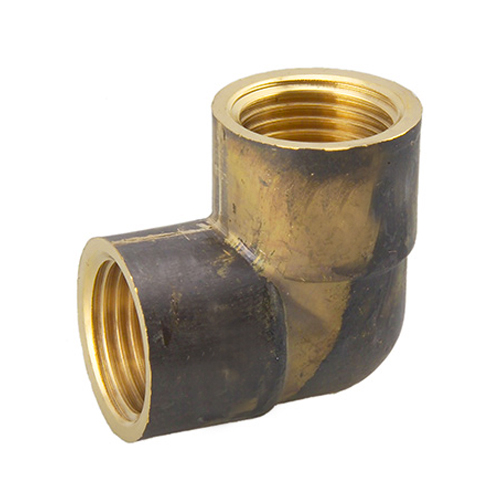

Brass 90 Degree Elbow Female / Female - BSP Thread
,gravity=Center,allowExpansion)
Collect 2 Everyday Rewards points
Collect 2 Everyday Rewards points
Brass Elbow Fittings 90 Female Thread BSP
When connecting two pipes or fittings at a 90-degree angle, a brass elbow fitting is a popular choice. Brass fittings are resistant to corrosion and can withstand high temperatures. As a result, it is an excellent choice for both residential and commercial applications. Thornado stocks brass elbow fittings with various thread sizes to accommodate various pipe diameters.
Brass Elbow Fittings Key Features
Specifications
Note that TH1 and TH2 refer to the pipe's nominal bore.
BRASS - ELBOW 90 deg F/F | ||||||
SKU | TH1 | TH2 | L (mm) | H (mm) | W (mm) | WEIGHT (kg) |
7308.07.08 | 1/4" | 1/4" | 28 | 28 | 17 | 0.04 |
7308.07.10 | 3/8" | 3/8" | 35 | 36 | 22 | 0.05 |
7308.07.15 | 1/2" | 1/2" | 38 | 38 | 28 | 0.07 |
7308.07.20 | 3/4" | 3/4" | 43 | 43 | 31 | 0.11 |
7308.07.25 | 1" | 1" | 53 | 543 | 38 | 0.16 |
7308.07.32 | 1. 1/4" | 1. 1/4" | 66 | 66 | 47 | 0.26 |
7308.07.40 | 1. 1/2" | 1. 1/2" | 74 | 74 | 54 | 0.42 |
7308.07.50 | 2" | 2" | 91 | 91 | 66 | 0.6 |
