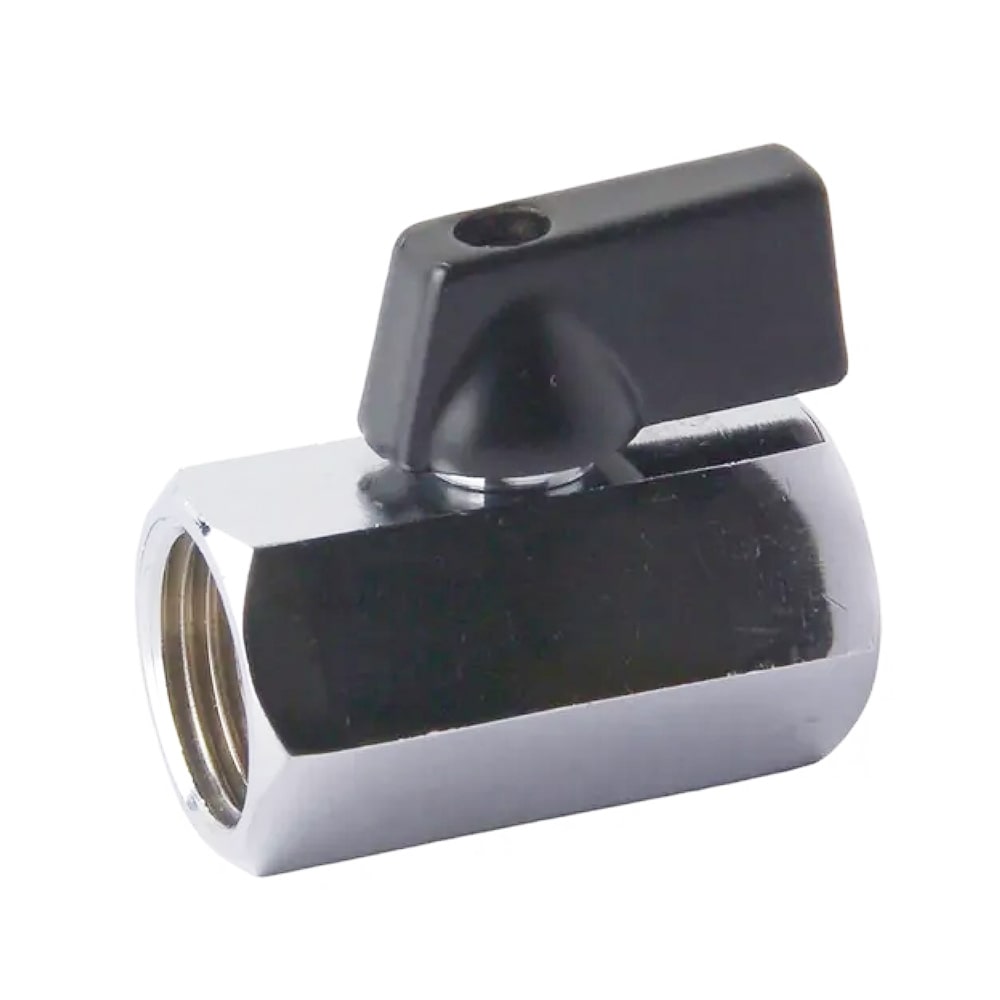

Brass Mini Ball Valve F/F BSP Thread
A brass mini ball valve is a small, quarter-turn valve that is used to control the flow of water in household plumbing and other small applications. It consists of a ball with a hole in it that is connected to a handle. The ball is rotated so that the hole is aligned with the flow of the fluid to allow it to pass through or blocked so that the flow is stopped.
Mini Ball Valve Features
MATERIAL LIST | |
PARTS | MATERIAL |
Body | Brass |
Seal | PTFE |
Ball | Brass |
Body Nut | Brass |
Spindle | Brass |
Handle | Aluminium |
Handle Screw | Steel |
O Ring | NBR |
Mini Ball Valve Specifications | ||||||
SKU | IMPERIAL SIZE | L (mm) | H (mm) | W (mm) | TH1 & TH2 (inch) | Weigh (kg) |
8002.01.08 | 1/4 | 38 | 26 | 21 | 1/4 | 0.07 |
8002.01.10 | 3/8 | 40 | 26 | 21 | 3/8 | 0.08 |
8002.01.15 | 1/2 | 46 | 28 | 23 | 1/2 | 0.10 |
