Brass Mini Ball Valve General Purpose M/F - BSP Thread

Image 1
Hurry! 4 items left!
From$6.03

Collect 6 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

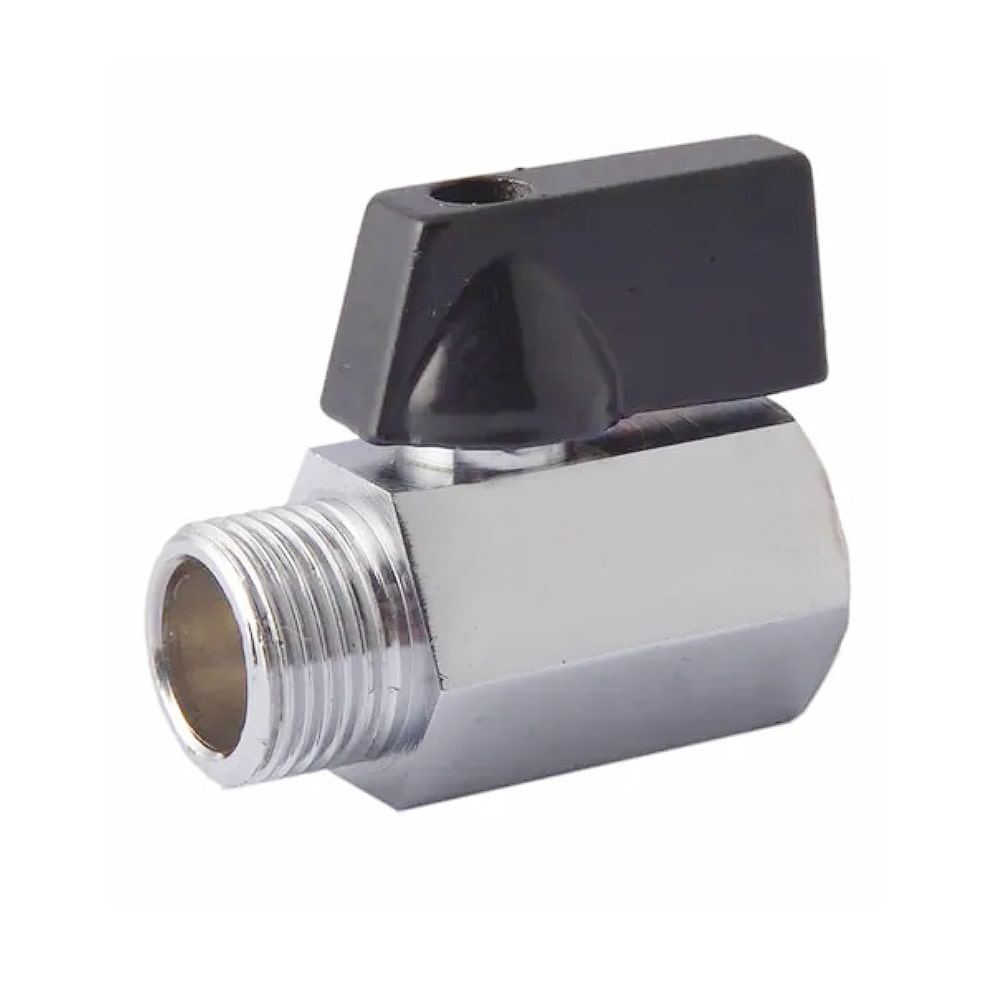

Brass Mini Ball Valve M/F BSP Thread


Mini ball valves have a smaller diameter than standard ball valves, allowing them to be used in smaller spaces. Furthermore, mini ball valves are often lighter in weight and require less force to operate than standard ball valves.


Mini ball valves come in a variety of materials such as brass, stainless steel, and plastic. Brass is the most commonly used material for low-pressure applications.


Features



  • 100% pressure tested

  • Slow proof spindle

  • Threads: BSPP, ISO 228

  • Working temperature 1 to 120 deg C

  • Maximum pressure rating 1600 Kpa










































MATERIAL LIST
PARTS MATERIAL
Body Brass
Seal PTFE
Ball Brass
Body Nut Brass
Spindle Brass
Handle Aluminium
Handle Screw Steel
O Ring NBR



















































BRASS Ball Valve Mini M/F Specifications
SKU IMPERIAL SIZE L (mm) H (mm) W (mm) TH1 & TH2 (inch) Weigh (kg)
8002.02.06 1/8 40 27 20 1/8 0.07
8002.02.08 1/4 38 27 20 1/4 0.07
8002.02.10 3/8 42 27 20 3/8 0.08
8002.02.15 1/2 45 29 23 1/2 0.10
