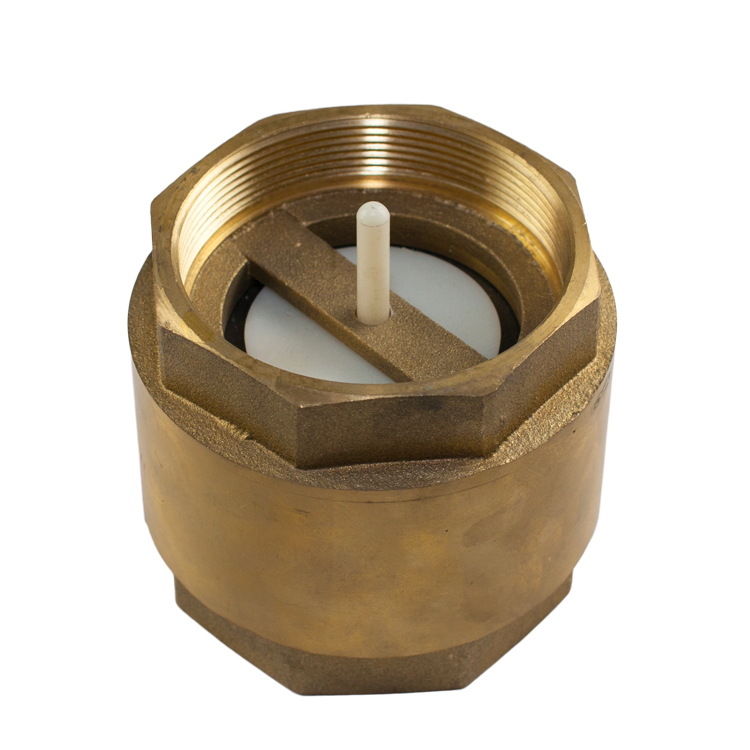

Brass Spring Check Valve - Logivalve


A check valve is a backflow preventer, used to keep water from flowing backwards through your plumbing system. As water pressure changes, a check valve allows water to flow in only one direction. Check valves are common in household and industrial applications.


There are several types of check valves, including spring check valves, ball check valves, and diaphragm check valves. Spring check valves are the most common type of check valve. They use a spring-loaded disc to block reverse flow. Ball check valves use a ball to block reverse flow. Diaphragm check valves use a flexible diaphragm to block reverse flow.


Brass Spring Check Valve Features



  • Logivalve check valve

  • DR Brass material

  • Backflow prevention

  • Suitable for vertical and horizontal installations

  • High flow design with minimal head loss

  • Threads: BSPP, ISO 228

  • Working temperature 1 to 60 Deg Celcius

  • Maximum pressure rating 1600 Kpa































MATERIAL LIST
PARTS MATERIAL
Washer EPDM
Stem POM
Body Brass
Cap Brass
Spring Stainless Steel






















































































SPECIFICATIONS
SKU IMPERIAL SIZE L (mm) H (mm) W (mm) Weigh (kg)
8503.01.15 1/2 45 32 26 0.12
8503.01.20 3/4 50 41 31 0.18
8503.01.25 1 54 47 38 0.24
8503.01.32 1.1/4 57 57 46 0.38
8503.01.40 1.1/2 68 67 53 0.58
8503.01.50 2 72 79 66 0.71
8503.01.65 2.1/2 90 103 82 1.30
8503.01.80 3 99 110 95 1.90
8503.01.94 4 112 142 121 2.95
