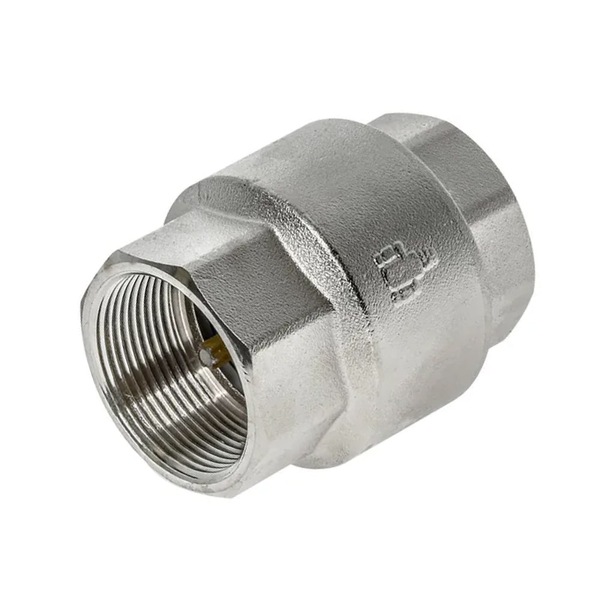

Brass Spring Check Valve Watermarked - Logivalve
A brass spring check valve is a backflow preventer, used to keep water from flowing backwards through your plumbing system. As water pressure changes, a check valve allows water to flow in only one direction. Check valves are common in household and industrial applications.
There are several types of check valves, including spring check valves, ball check valves, and diaphragm check valves. Spring check valves are the most common type of check valve. They use a spring-loaded disc to block reverse flow. Ball check valves use a ball to block reverse flow. Diaphragm check valves use a flexible diaphragm to block reverse flow.
Brass Spring Check Valve Features
MATERIAL LIST | |
PARTS | MATERIAL |
Washer | EPDM |
Stem | ULTEM |
Body | DR Brass |
Cap | DR Brass |
Spring | Stainless Steel |
Seals | FKM |
SPECIFICATIONS | |||||
SKU | IMPERIAL SIZE | L (mm) | H (mm) | W (mm) | Weigh (kg) |
8504.01.15 | 1/2 | 64 | 27 | 32 | |
8504.01.20 | 3/4 | 62 | 39 | 31 | |
8504.01.25 | 1 | 73 | 48 | 39 | |
8504.01.32 | 1.1/4 | 83 | 59 | 47 | |
8504.01.40 | 1.1/2 | 84 | 69 | 54 | |
8504.01.50 | 2 | 96 | 86 | 67 |
Estimated Delivery Time Frame:2-7 business days
Ask a Question About This Product
Reference ID: 13348616
