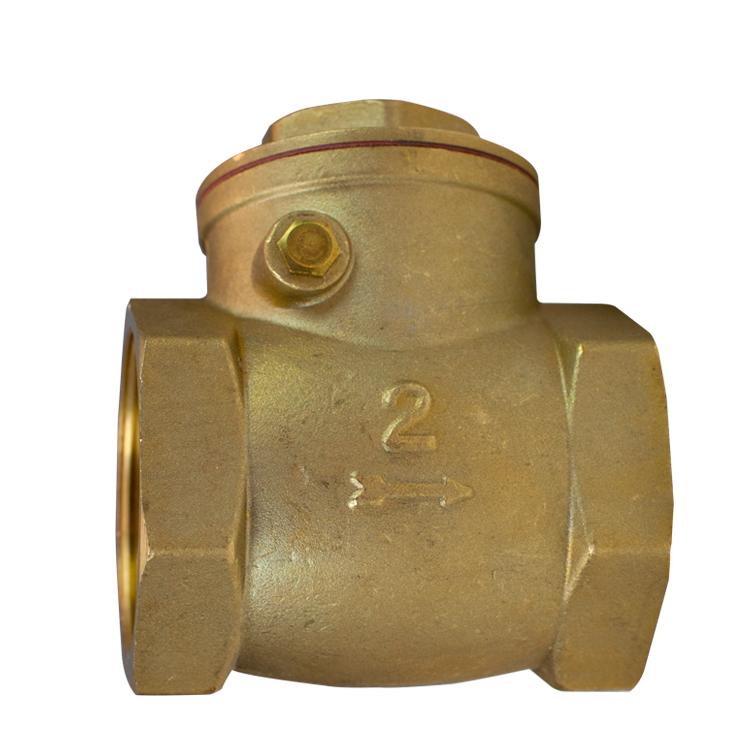

Brass Swing Check Valves BSP Thread
A check valve is a mechanical device that restricts fluid flow to one direction only. Swing check valves are a type of check valve that consists of a disc that swings open and closed in response to fluid flow. The disc opens and allows fluid to pass through when fluid flows in the proper direction. When fluid attempts to flow in the opposite direction, the disc closes and prevents the flow. This aids in the prevention of backflow and protects systems from damage.
Brass Swing Check Valve Features
MATERIAL LIST | |
PARTS | MATERIAL |
Body | Brass |
Check Disc | Brass |
Cap | Brass |
Pin Fixing Screw | Brass |
O Ring | EPDM |
Pin | Stainless Steel |
SPECIFICATIONS | ||||||
SKU | IMPERIAL SIZE | L (mm) | H1 (mm) | H2 (mm) | W (mm) | Weigh (kg) |
8505.01.15 | 1/2 | 47 | 52 | 48 | 26 | 0.16 |
8505.01.20 | 3/4 | 57 | 57 | 59 | 31 | 0.22 |
8505.01.25 | 1 | 63 | 71 | 64 | 38 | 0.34 |
8505.01.32 | 1 1/4 | 77 | 80 | 77 | 46 | 0.54 |
8505.01.40 | 1 1/2 | 78 | 92 | 80 | 53 | 0.77 |
8505.01.50 | 2 | 92 | 107 | 93 | 66 | 1.15 |
8505.01.65 | 2 1/2 | 104 | 127 | 105 | 82 | 1.80 |
8505.01.80 | 3 | 124 | 138 | 125 | 95 | 2.38 |
8505.01.94 | 4 | 164 | 177 | 161 | 121 | 3.80 |
