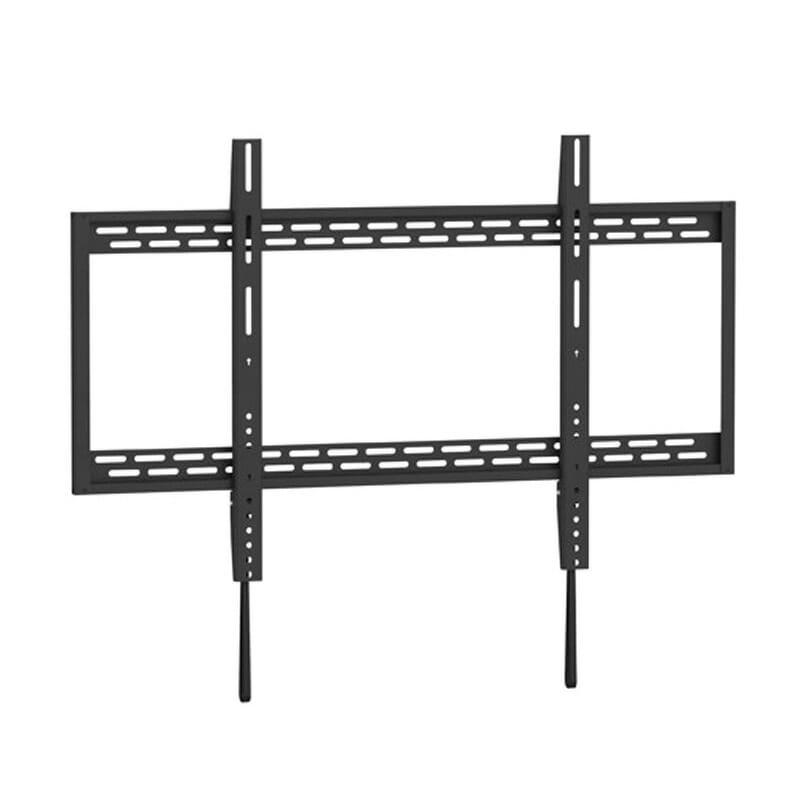

X-Large Heavy-duty Fixed Wall Mount The popular model LP37-69F is designed to fit any 60' ~ 100' Flat Panel TV up to 100kgs/220lbs. Its automatically click-in spring lock with easily-release cord easily and securely attaches your super large flat panels to wall. Strength has been tested for a minimum of four times its stated load capacity.

FEATURES

• Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
• Open Architecture: provides increased ventilation and easier access to wires

SPECIFICATION
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=3mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.12' cold-rolled sheet,Bracket Arm THK=0.079' cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1009x630x32mm (39.7'x24.8'x1.3')
Fit Screen Size: 60'-100'
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200,300x300,400x200,400x400,600x400,800x400,800x600,900x600
Weight Capacity: 100kg (220lbs)
Strength Tested: 4 Times Approved
Profile: 32mm (1.3')
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: No
Certification: UL
