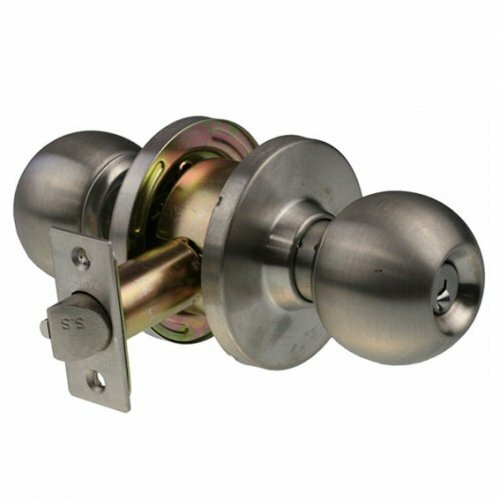

Brava Metro Glass Door Knob Set
EA3011SS70

BRAVA Metro EA3000 series commercial grade 70mm backset glass door knobset.

Glass door function:

• Outside key locks and unlocks both knobs.
• Inside key locks and unlocks both knobs.

Additional info:

• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinders.
• Incorporates the popular PD 8221 barrels.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• 2 keys supplied.
• Fire rated.
• Finished in satin stainless steel.

Features:

• Door thickness: 35-45mm
• Backset: 70mm
• Max. knob projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 70mm backset
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed knobs
• Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
