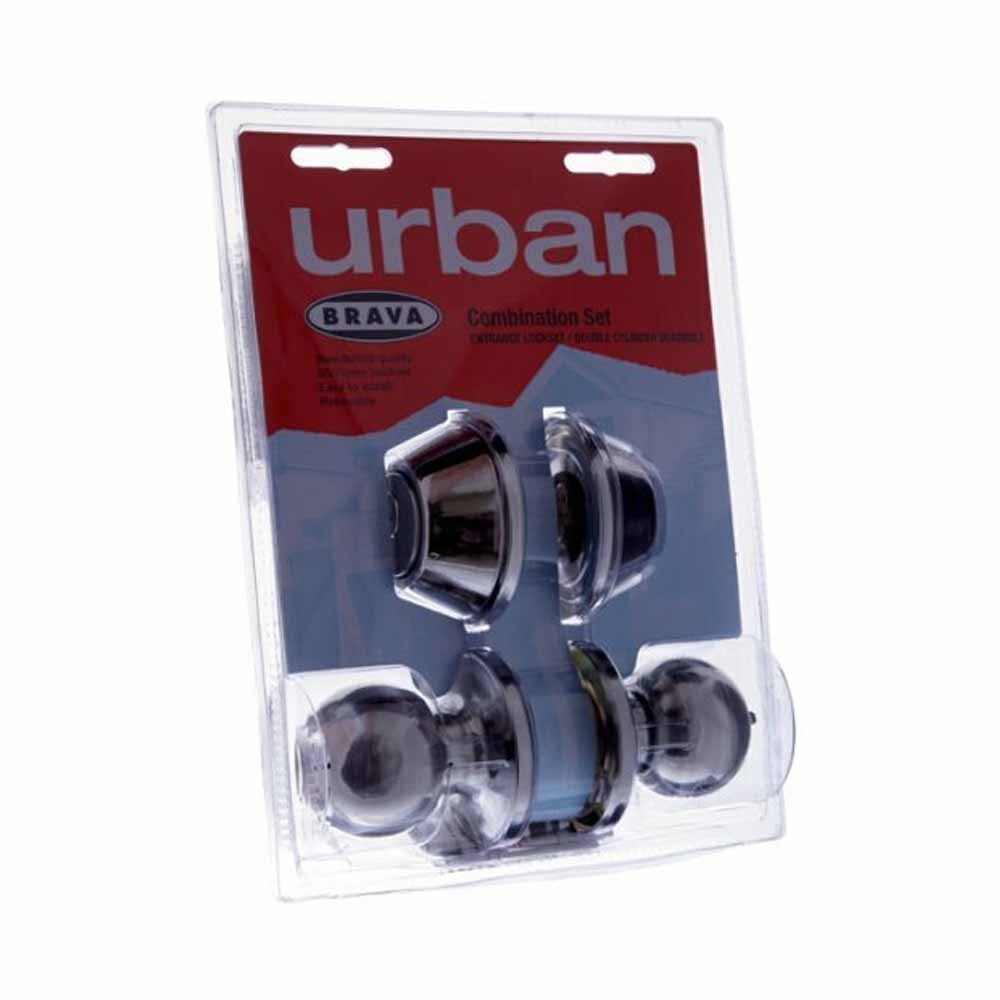

Brava Urban Door Lock Combo Set
BRT3632DP

• Brava Urban BRT3632 combo pack.
• Domestic grade combination entrance set and deadbolt.

Entrance function:

• Key outside locks and unlocks both knobs.
• Turnsnib inside, locks and unlocks both knobs.

Deadbolt function:

• Key locks or unlocks deadbolt from either side.

Features:

• Tiebolt fixing.
• Silca LW4 profile.
• Spherical knob design.
• Rekeyable to 6pin.
• Deadbolt incorporates popular PD/8221 cylinder assembly.
• 3 keys supplied.
• Supplied display packed (and colour coded) with mounting hardware.

Specifications:

Knob:

• Door thickness - 35-45mm
• Backset - 60/70mm adjustable
• Max. lever/knob projection - 64mm (Distance may not include turnsnib)
• Strike - 70x27x1.2mm
• Latch - 60/70mm adjustable
• Latch face plate - 57x25mm
• Cylinder - LW4 profile (C4)
• Door handing - Non-handed knobs
• Rose - 66.5mm

Deadbolt:

• Door thickness - 35-45mm
• Backset - 60/70mm adjustable
• Max. lever/knob projection - 24mm (Distance may not include turnsnib)
• Strike - 70x28x1.2mm
• Latch - 60/70mm adjustable
• Latch face plate - 57x25mm
• Cylinder - LW4 profile (C4)
• Door handing - Non-handed
• Rose - 64.8mm
