BVB4200WP DOSS Water Proof BNC Video Balun Passive
The DOSS Range of UTP Video Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.
The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported.

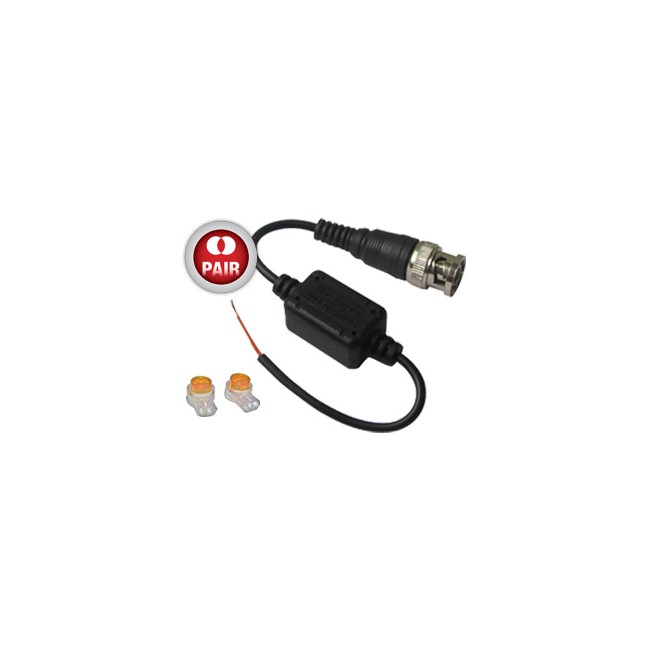

BVB4200WP PASSIVE BNC WATER PROOF VIDEO BALUN
The BVB4200WP video balun is waterproof and able to be used outside. Because of its ultra-miniature size, BVB4200WPgreatly save space during installation. Working in pairs, the BVB4200WP eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft).
The superior interference rejection and low emissions ofthe BVB4200WP allow signals to coexist in the same wire
bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existingcable infrastructure. The BVB4200WP has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
_
Basic Usage
Advanced Usage
click for larger image
_
| Applied Devices | CCTV cameras, monitors, DVR, switchers,IP encoders, and other CCTV equipment | |
| Video | Video Format | PAL, NTSC, SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance | UTP Category 5e (24AWG) Color: 400m (1300ft) B&W: 600m (1950ft) | |
| Common-mode / Differential-mode rejection | 15kHz to 5MHz 60dB typical | |
| Impedance | Coax, Male BNC 75 unbalanced | |
| UTP, two coax pigtail 100 balanced | ||
| Attenuation | 1.5dB Max typical | |
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100 ±20 ohms | |
| DC Loop Resistance | 18 ohms per 100m (52 ohms per 1,000ft) | |
| Differential Capacitance | 62 pF/m max (19 pF/ft max) | |
| Power | No external power required | |
| Connector | Video input/output | Male BNC connector |
| Videoinput/output | Two coax pigtail to be soldered | |
| Protection | Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode), 10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999) | |
| Video Output | 2KV(different mode), 10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999) | |
| Mechanical | Housing | ABS engineering plastic |
| Body Color | Black | |
| Dimensions (L*W*H) | 40*14.5*28.5mm (BNC connector & cable excluded) | |
| Net Weight | 20g | |
| Environmental | Operating Temperature | -20~ 70 C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40~ 150 C |
