About products

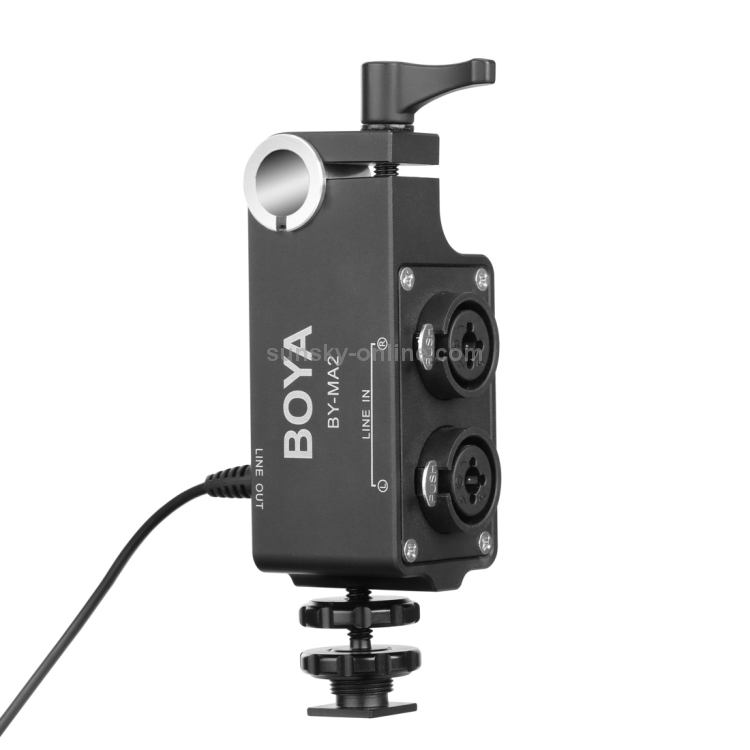

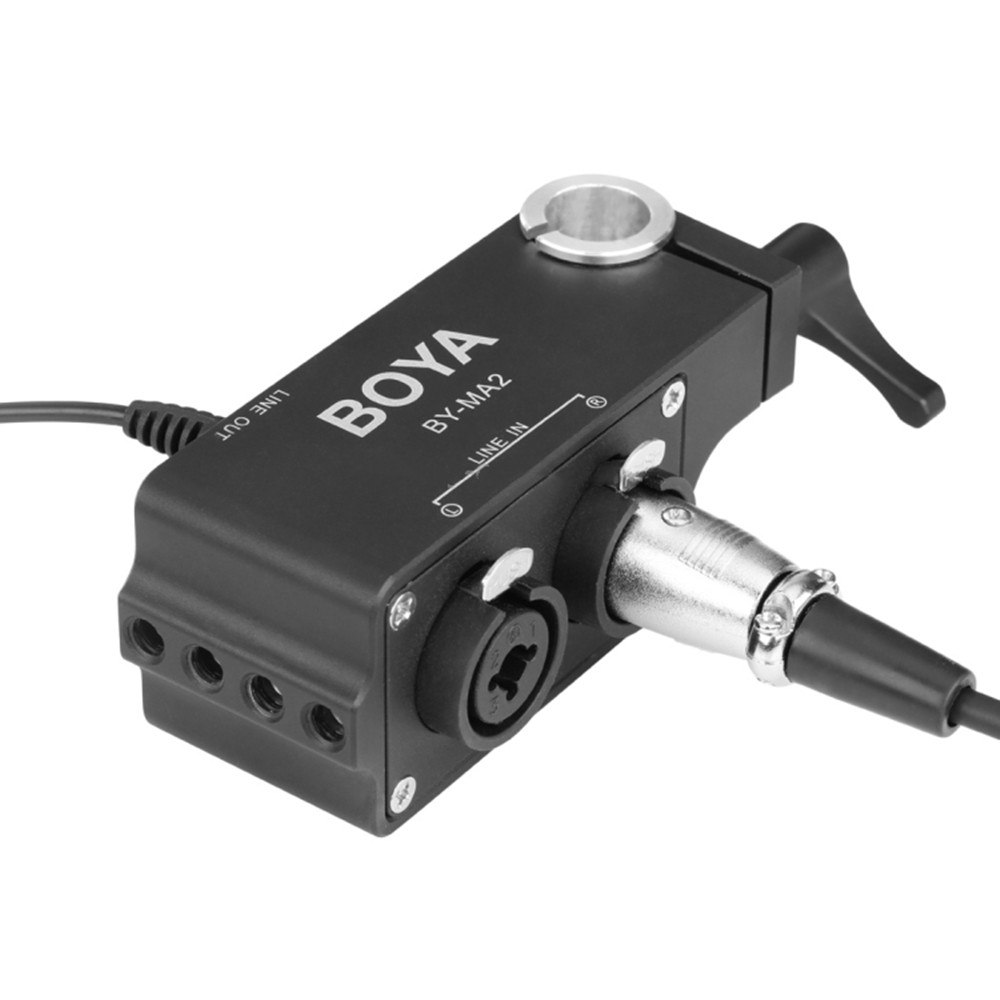

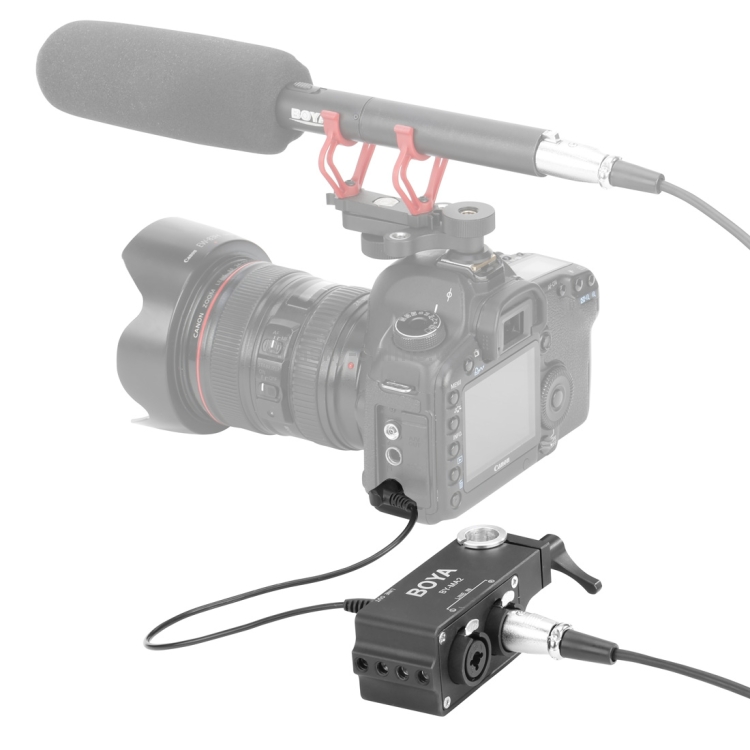

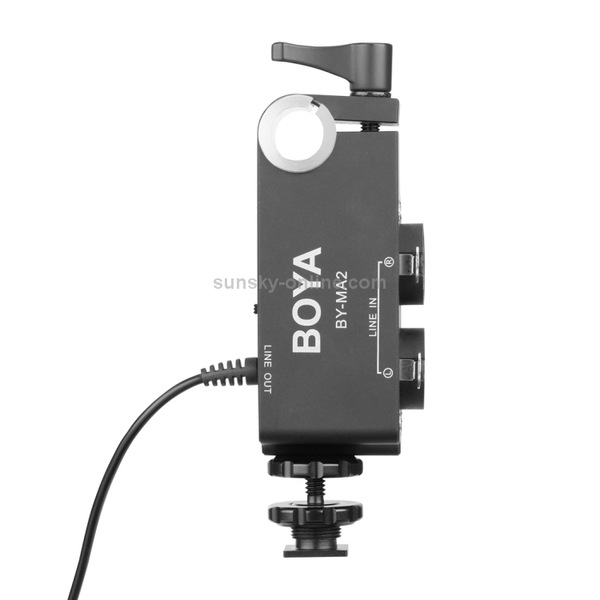

1. Boya by-ma2 is a dual channel XLR audio mixer designed for digital SLR cameras, portable cameras and other devices with 3.5mm TRS audio jack. By-ma2 has 2 XLR audio inputs, which can be used with two external XLR wireless microphone receivers or XLR shotgun microphones. With by-ma2, it helps improve the built-in sound performance and audio quality of portable cameras or digital SLR cameras.

2. by-ma2 also has a built-in combination of 6.35mm jack, which can be input into guitar or other instruments with 6.35mm output jack.

3. built in standard 19mm bolt rod, by-ma2 can be easily installed on any camera holder with 19mm rod.

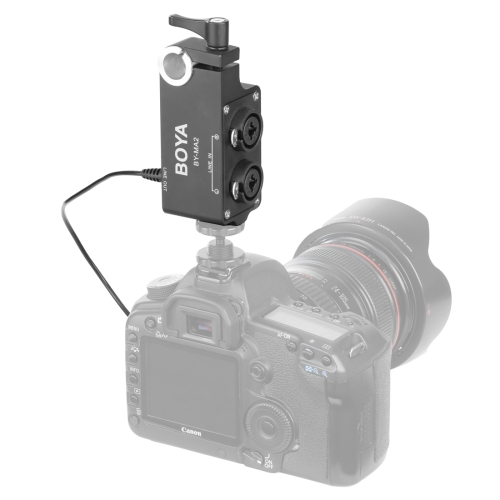

4. also includes a 15 mm bolt rod adapter that is compatible with any holder with a 15mm rod. At the bottom, it has three standard 1 / 4-20 female threads, enabling the audio mixer to be connected to any camera holder (with 1 / 4-inch accessory hole) by 1 / 4-20 screws, or it can be placed directly on the hot boots of the digital SLR camera after the attached cold boot mounting adapter is installed properly.

characteristic

1. 19mm thick rod: install the tuning console on any 19mm camera base bar

2. 15mm rod pipe adapter: install mixer on any 15mm camera base plate rod

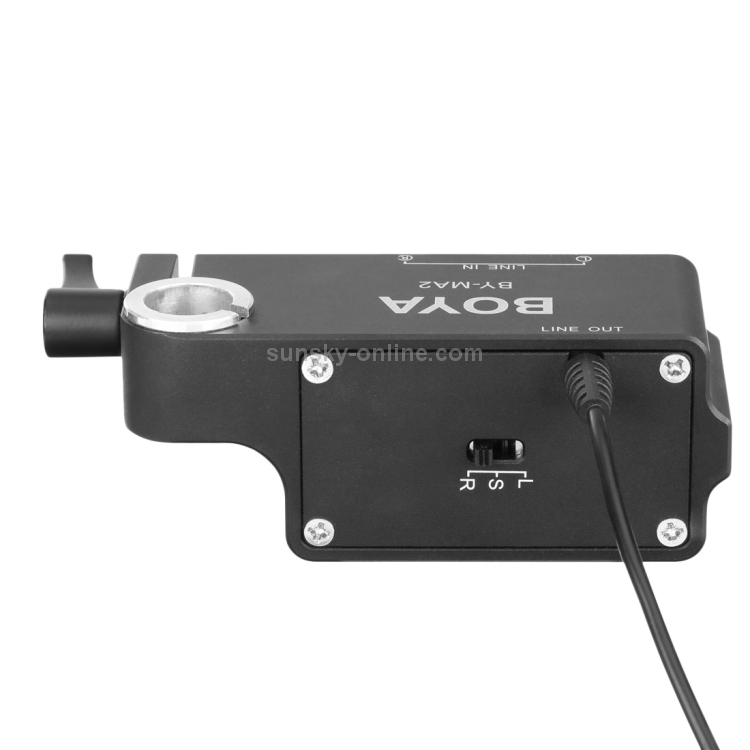

3. xlr1 / mix / xlr2 switch

4. cold boot mounting adapter: connect it to any DSLR hot boot

5. passive operation: neither battery nor phantom power supply is required

6. die cast aluminum chassis

Specifications

1. 3.5mm output connector

2. 1 / 4 in-20 female thread

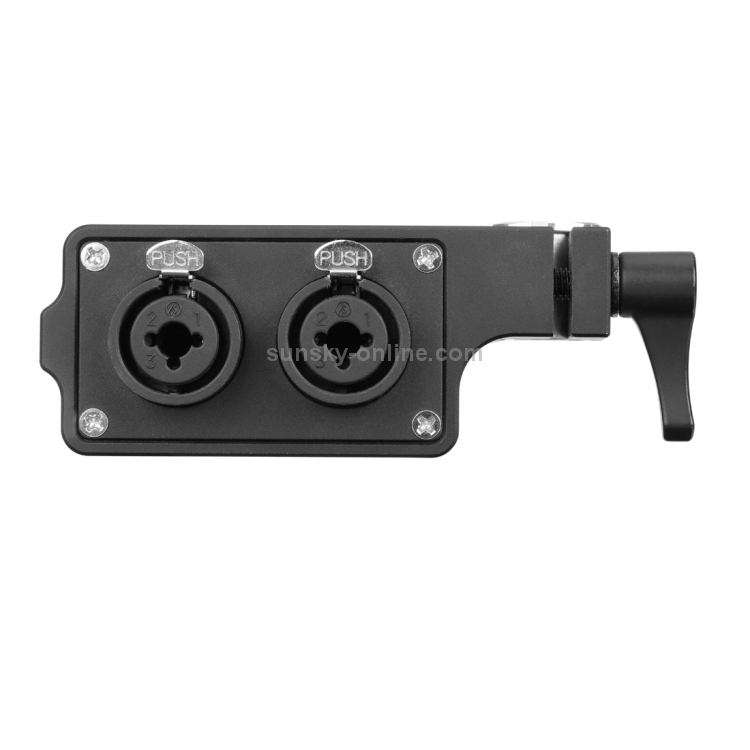

3. combine XLR and 6.35mm audio input-1

4. combine XLR and 6.35mm audio input-2

5. on / off switch

6. 19mm rod hole

7. 15mm rod adapter

8. cold shoe adapter
