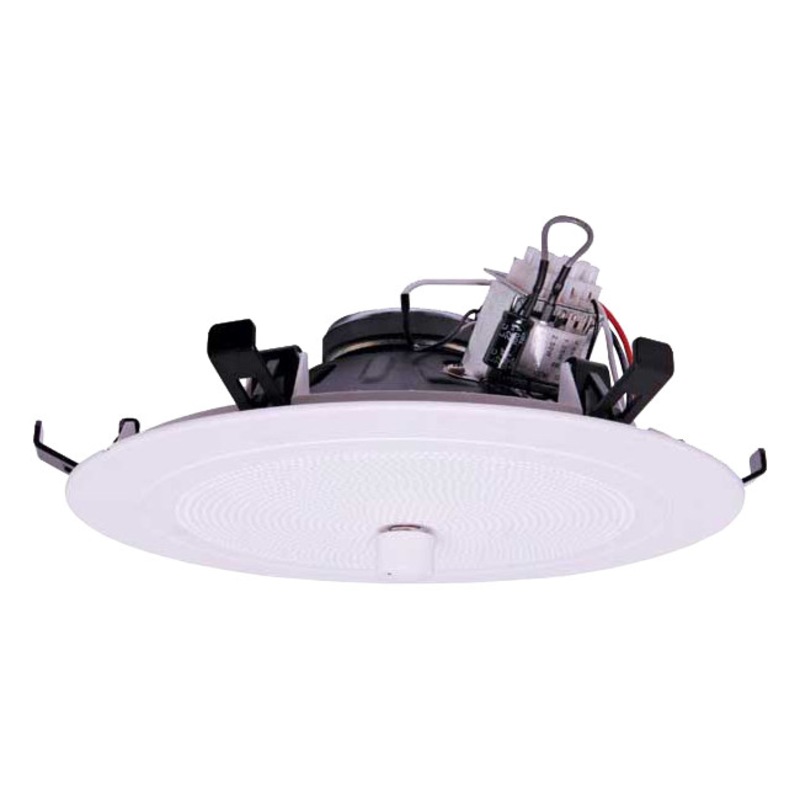

200mm (8") 5W 100V EWIS Ceiling Speaker with VolumeControl
This 200mm (8") One-Shot Redback PA ceiling speaker has been engineered to be EWIS compatible and offer fast installation. A volume control in the middle of the grille allows for easy adjustment of local volume level. Ideal forinstallations where local volume needs to be higher or lowerthan the surrounding zone level. These speakers are ideal for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. Fitted with twin cone 200mm driver with 4 way wire protect terminal block & 22uf bipolar cap.
Features
Excellent speech intelligibility.
Engineered to meet Australian Standard AS1670.4
Volume control on grille
High quality speaker driver developed for BGM, paging and emergency warning applications.
Patented 6 way latching ensures a neat, sag free installation.
Fitted with 4 way wire protect terminal block for loop in,loop out wiring as required by Australian Standards.
Fitted with cable restraint plate and transformer safety cover as required by Australian Standards.
Fitted with supervisory capacitor for line monitoring.
High impact styrene grille.
5 year warranty.
Suitable for EWIS Systems.
This speaker and transformer combination is designed for both paging announcements and emergency tones in EWIS systems. Speakers employed in an EWIS?installation must comply to AS1670.4. This dictates that the speakers must befitted with transformer safety cover, cable restraint plate, line monitoring capacitor and 4 way wire protect terminal connection. This Redback EWIS speaker complies to this standard.
About Redback® Speakers
Each custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequencyrange and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is critical for emergency paging applications.
Each transformer is fitted with multiple power settings which are user selectable via taps on the transformer. For reference, the transformer safety cover is imprinted with power selection information.
Manufacturing & Performance
Redback® drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver hasa power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity. A strict quality control procedure is employed during every step of the manufacturing process. Finally, every finished speaker is 100% QC checked prior to .
The Labour Saving One-Shot® System
Redback® "One-Shot®" speaker units installin seconds providing substantial labour cost savings for the professional installer compared to traditional mountingmethods. They simply snap fit to the ceiling by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. The neutral white RAL colour of C 2134VC provides an architecturally unobtrusive finish to virtually any installation.
Installation Guidelines
This speaker is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling. The cable can be secured to the in-built restraintplate with 100mm cable ties.
All One-Shot® speakers are designed for fast installation due to the integral pressure clips which grip to the reverse side of the ceiling tile. They suit any 10-13mm ceiling tile, including gyprock, mineral fibre or fixed gyprock ceilings. Redback provide an optional tile support or 'ceiling pan' to minimise sag and vibration.
These pans fit inside the 't-bar' supports for the tile ceiling and provide a solid surface on which the One-Shot® clips secure to. Once the hole is cut, these simply slide up into the hole, the speaker is then pushed in until the clips release.
For 200mm (8") models we recommend a speaker hole of246mm. This is easily cut using the T 2314 holesaw.
Specifications
Power taps: 0.33, 0.66, 1.25, 2.5, 5W
Frequency Response: 75Hz- 15kHz
SPL (1W @ 1M): 93dB
Size: 200mm
Hole Cutout (Ø): 246mm
Connection: 4 way terminal block + 22uf bipolar capacitor
Note: All SPL figures are measured at 1KHz +/- 2dB.
*Specifications are subject to change without notice.
Weight: 1.142
