Electricity suppliers for certain geographical areas of New South Wales and Queensland inject an off-peak ripple control signal onto their distribution networks in order to remotely control devices such as hot water systems. This allows for access to cheaper off-peak electricity, but can have an unfortunate effect on electrical appliances that are sensitive to the superimposed control signal.

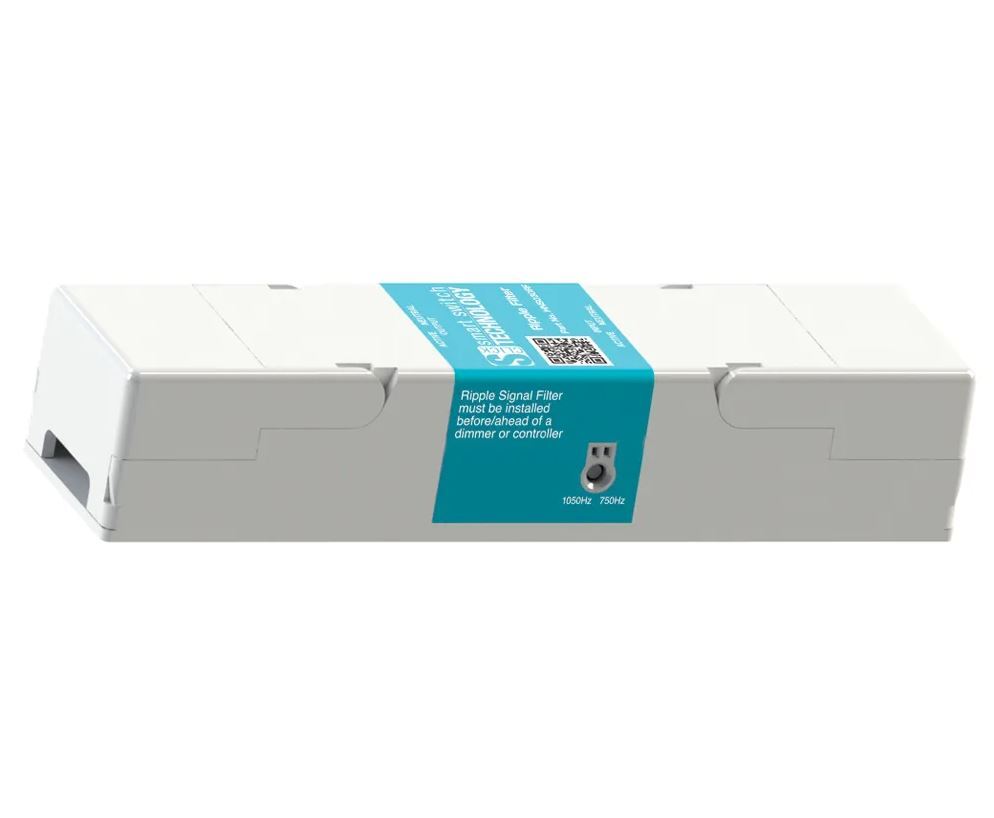

The Cabac ripple signal filter is a simple and easy-to-install solution to this problem, preventing the unwelcome effects of ripple signal events such as flickering LED lights or loud, buzzing fans. The ripple signal filter is a tuned passive inline filter which eliminates the superimposed ripple injection control signal from the normal mains supply to create a noise free filtered mains supply which can then be connected to the electrical appliances or light control systems. The device is designed to fit through a downlight hole and is compatible with LED, Halogen, CFL and Incandescent lamps.

Use the HNS030RF-1050 for areas of Southern Queensland (Energex) that inject a 1050Hz off-peak ripple control signal. The rest of Queensland (Ergon) does not have ripple signalling. The HNS030RF-1050 is also suitable for areas of Newcastle, Dee Why and NSW Central Coast.

If in doubt about the ripple control signal for a particular location, always check with the service provider for confirmation before selecting a filter device. The HNS030RF is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person.

Features

• Guaranteed ripple signal flicker free with Cabac S-Click dimmers
• HNS030RF-1050 completely eliminates 1050Hz off peak ripple signal
• Works with LED, Halogen, CFL and Incandescent lamps
• Stops LED lights flickering during ripple signal events
• Stops buzzing noises in fans during ripple signal events
• Simple and easy to install
• Designed to fit through downlight hole
• Can be used for mulitple dimmers - total load must not exceed 250W
