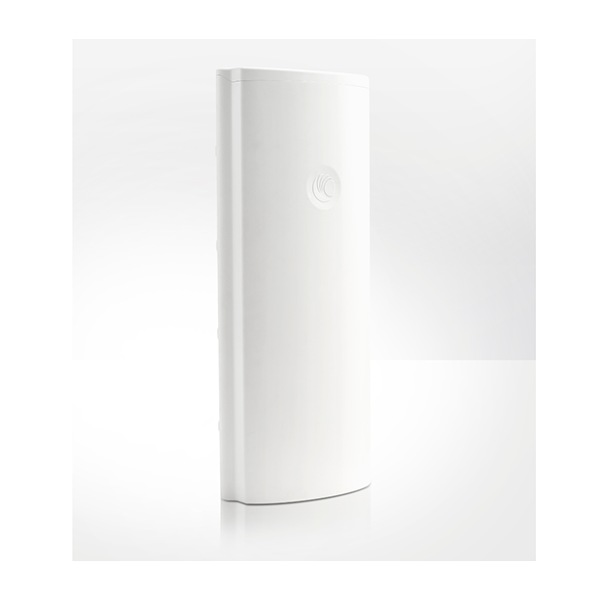

CAMBIUM NETWORKS C050910D301A EPMP 4X4 MU-MIMO 17DBI SECTOR ANTENNA (FOR EPMP3000AP)


FEATURES

17dBi Gain

4.9 to 5.97GHz Spectrum

30dBi Front to Back Ratio

IP 65 Ruggedisation

SPECIFICATIONS

Model Number C050910D301A

Frequency Range 4.9 GHz to 5.97 GHz

Gain 17 dBi

3 dB Beam-width - Azimuth 70 degrees

3 dB Beam-width - Elevation 6 degrees

Electrical Downtilt -2 degrees

Polarisation 2X Horizontal, 2X Vertical

Model Number C050910D301A

Port-to-Port Isolation > 20 dB

Front-to-Back Ratio 30 dB

Maximum Input Power 5 W

Input Impedance 50 ohms

Mounting Connectors 4 x RP SMA

Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt

Hardware included to connect ePMP access point to back of antenna body

Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)

Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg

Environmental IP65

Radome Material UV Protected ABS

Operating Temp -400C to 600C (-400F to 1400F)

PACKAGE CONTENTS

1 x ePMP 3000 Sector Antenna

1 x User Manual

SKU: C050910D301A

Estimated Delivery Time Frame:6 - 10 Business Days
