1. Auto-cut off protectionThe auto-cut-off protection will shut off the gas supply immediately if the flame oes out for any reason.

2. Anti-dry combustion protectionShould dry combustion occur for any reason, the gas supply will be immediately and automatically shut-off.

3. Anti-freezing protectionWhen the temperature is below freezing.remove the water discharge valve to discharge accumulated standing water inside the interna pipes. This will keep he appliance from freezing.

4.Over water pressure protectionWhen water pressure is over 1000kPa, the appliance wil automatically relieve the excessive pressure to avoid damage to its internal components.

5. Tilt switch protectionTo prevent appliance being knocked over or tipped in any direction beyond an angle of 450 from the vertical, all gas to the burners will be shut-off automatically.

SPECIFICATIONS

Gas consumption: 620g/Hr

Gas Type: ULPG

Gas Pressure: 2.75kPa

Total Nominal Gas Consumption: 30MJ/H

Injector Size: 0.63mm

Minimum Water Pressure: 15kPa

Maximum Water Pressure: 1000kPa

Maximum Woring Water Pressure: 1300kPa

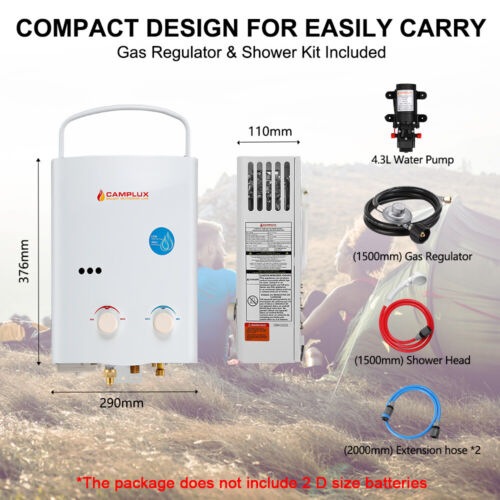

Product Size: 290 x 515 x 110mm

Pulse igniter, 100% rate of ignition

Auto cut off protection

Removable drain

The water temperature can be adjusted freely

Preventing smoke clogging
