Car Charger Battery Voltage And Power Display 12V 24V Support Multi-Protocol Fast Charge

Note:

1. The power meter defaults to 12V battery mode. Other specifications of the battery need to be set by buttons.

2. The USB port fast charge function requires mobile phone cooperation and cannot be activated every time. If it cannot be activated, please plug and unplug a few times. The chip uses Inchip IP6505T, and the circuit is also recommended by the manufacturer. The chip supports mainstream fast charge protocols, but cannot support all the fast charge protocols on the market. Because fast charge is related to many factors such as mobile phone data lines, mobile phone models, mobile phone power, and protocol matching degree, it cannot guarantee that every mobile phone can charge fast Or you can charge fast every time.

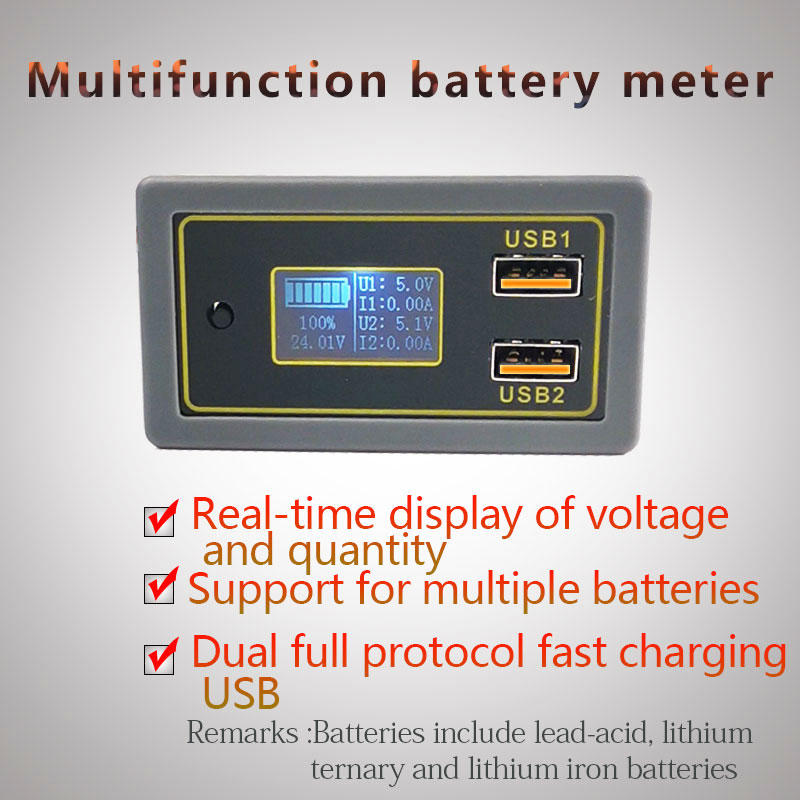

Product selling points:

• Voltage / power / power percentage One screen display

• Support multiple batteries, battery type and string number can be set (default 12V lead-acid battery)

• Input reverse connection protection, reverse connection does not burn the module

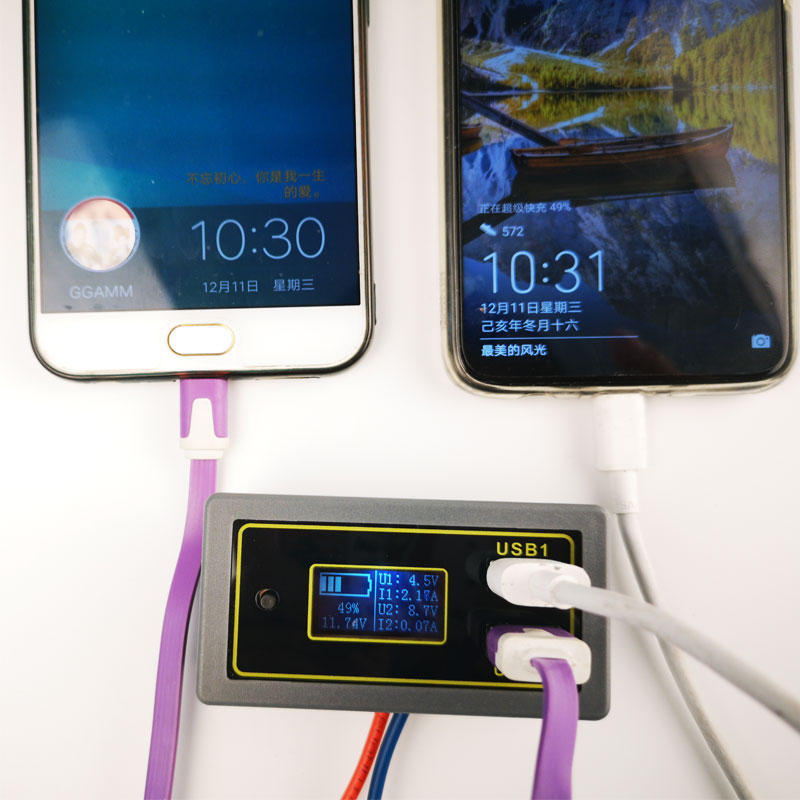

• Dual independent USB, using IP6505T fast charge identification chip, support mainstream fast charge protocols such as QC2.0 / QC3.0 / FCP / SCP / MTK / APPLE

Product parameters:

• Input voltage: DC6V-30V (Note: The USB port is a step-down power supply. If your input voltage is less than 12V, you cannot support 12V fast charge, and the same is true for 9V fast charge)

• Battery display: 7-segment display-13% 26% 39% 52% 65% 78% 91%

• Output voltage: 5V by default, automatically adjusted between 3-12V after triggering fast charge

• Output power: up to 24W (5V @ 4A, 9V@2.5A, 12V @ 2A, etc.)

• USB efficiency: 90% -97%

• Supports multiple fast charge protocols

• Input anti-reverse protection

• Output overcurrent, short circuit protection

• Working temperature: -10 �b?— 60 �b?/span>

• Operating humidity: 10-80% (non-condensing)

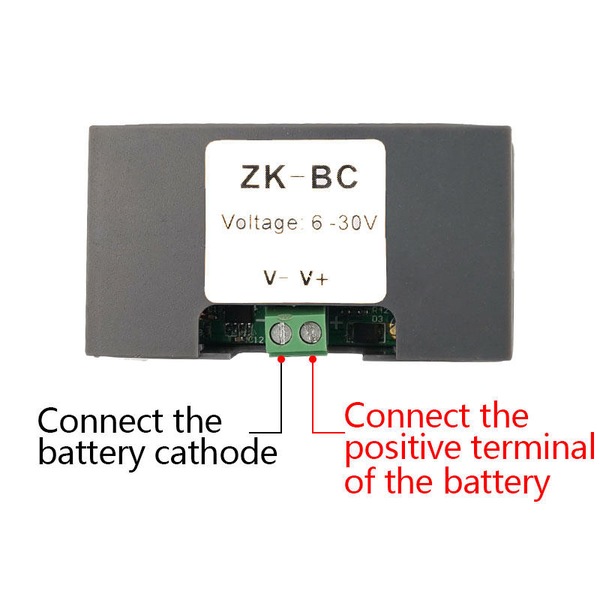

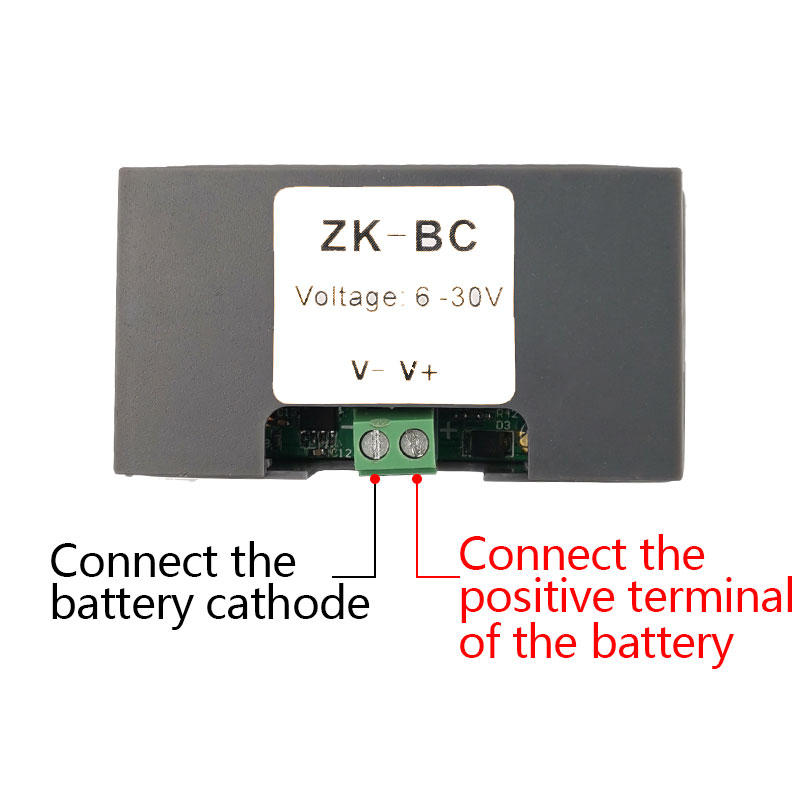

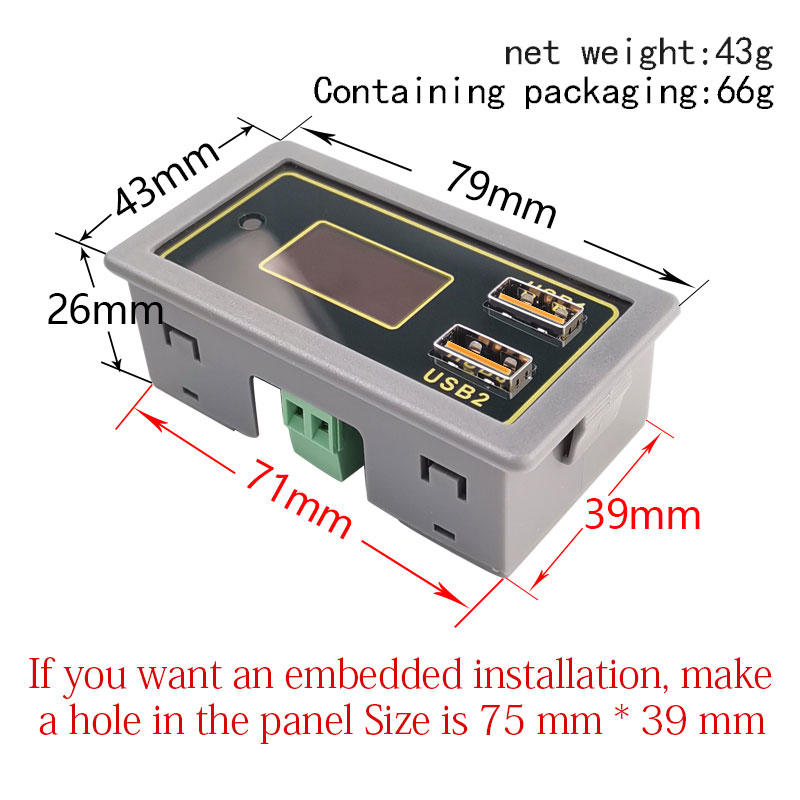

Installation size: 75mm * 39mm

Battery description:

Please select the corresponding option according to the type of your battery and the number of cells in series. Ordinary lithium batteries and ternary lithium batteries are generally nominally 3.7V / cell and fully charged to 4.2V. The lithium-ion battery is generally nominally 3.2 V / cell and fully charged with 3.7V. Lead-acid batteries are generally rated at 12V / block and are charged at 13.8V-14.5V.

Ternary lithium battery:

The battery voltage is greater than N × 3.21V + -1%, and the power is on for 1 grid (Note: N is the number of battery cells, N = 2-7)

Battery voltage is greater than N × 3.31V + -1%, 2 grids light

Battery voltage is greater than N × 3.48V, + -1% bright 3 cells

Battery voltage is greater than N × 3.61V + -1%, 4 grids light

Battery voltage is greater than N × 3.73V + -1%, bright 5 cells

Battery voltage is greater than N × 3.86V + -1%, with 6 cells on

Battery voltage is greater than N × 3.97V + -1%, 7 grids light

Lithium iron phosphate battery:

The battery voltage is greater than N × 2.72V + -1%, and the power is on for 1 grid (Note: N is the number of battery cells, N = 2-8)

The battery voltage is greater than N × 2.81V + -1%, and the power is on for 2 grids

Battery voltage is greater than N × 2.90V, + -1% bright 3 cells

Battery voltage is greater than N × 2.98V + -1%, 4 grids light

The battery voltage is greater than N × 3.07V + -1%, and the power is 5 grids.

The battery voltage is greater than N × 3.16V + -1%, and the power is 6 cells.

Battery voltage is greater than N × 3.24V + -1%, 7 grids light

12V lead-acid battery:

The battery voltage is greater than N × 10.8V + -1%, and the power is on for 1 grid (Note: N is the number of battery cells, N = 1-2)

Battery voltage is greater than N × 11.2V + -1%, with 2 cells

Battery voltage is greater than N × 11.5V, + -1% bright 3 cells

The battery voltage is greater than N × 11.8V + -1%, and the power is 4 grids.

The battery voltage is greater than N × 12.2V + -1%, and the power is 5 grids.

Battery voltage is greater than N × 12.5V + -1%, bright 6 cells

The battery voltage is greater than N × 12.8V + -1%, and the power is 7 cells.

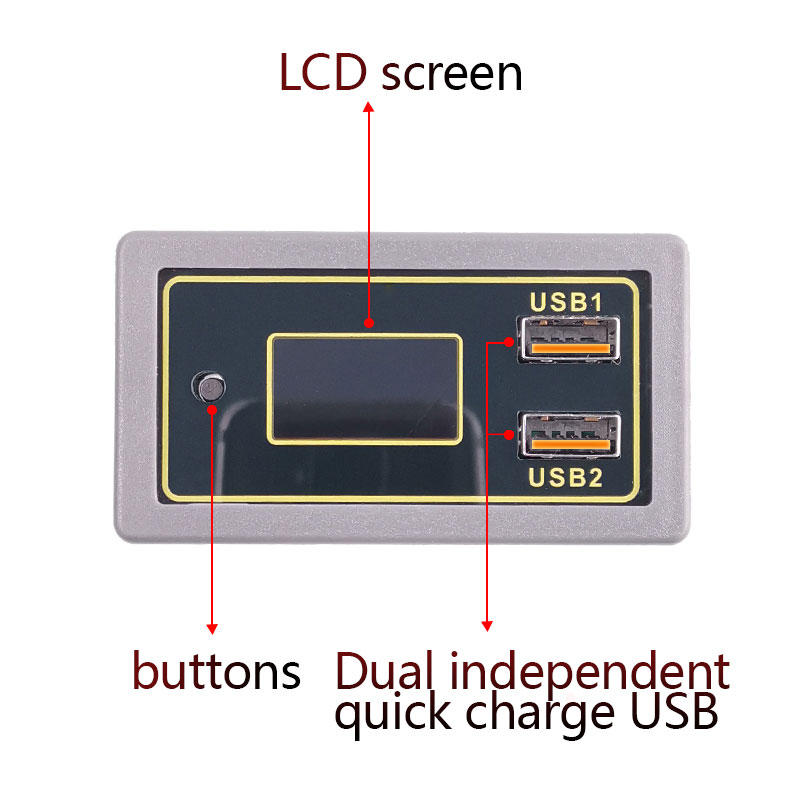

Key function description:

1.Control the backlight

Short press-switch the backlight on or off

2. Set the battery type and number of strings (only the battery type and number of strings can be displayed correctly)

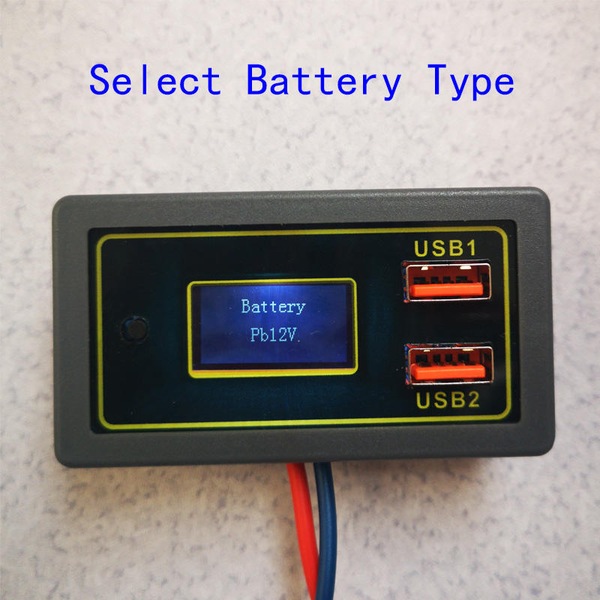

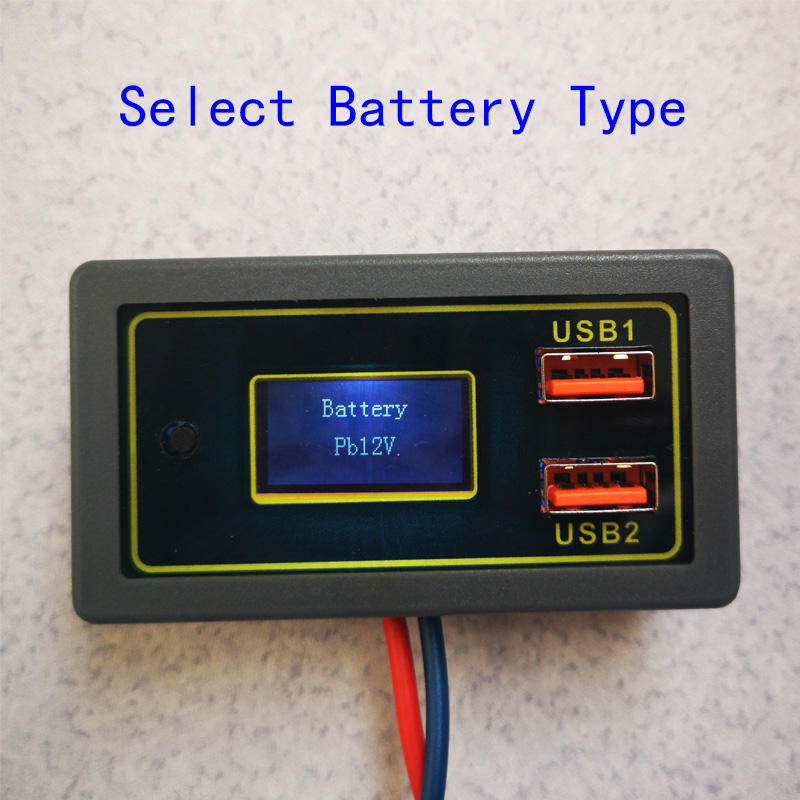

1. Press and hold the button for more than 3 seconds to switch to the battery selection interface Barrery.

In the battery type interface, short press to select the battery type. The battery type can be switched between Pb12V / Li3.7V / Fe3.2V

Pb12V——12V lead-acid battery

Li 3.7V-ternary lithium battery

3.2 Fe3.2V-lithium iron phosphate battery

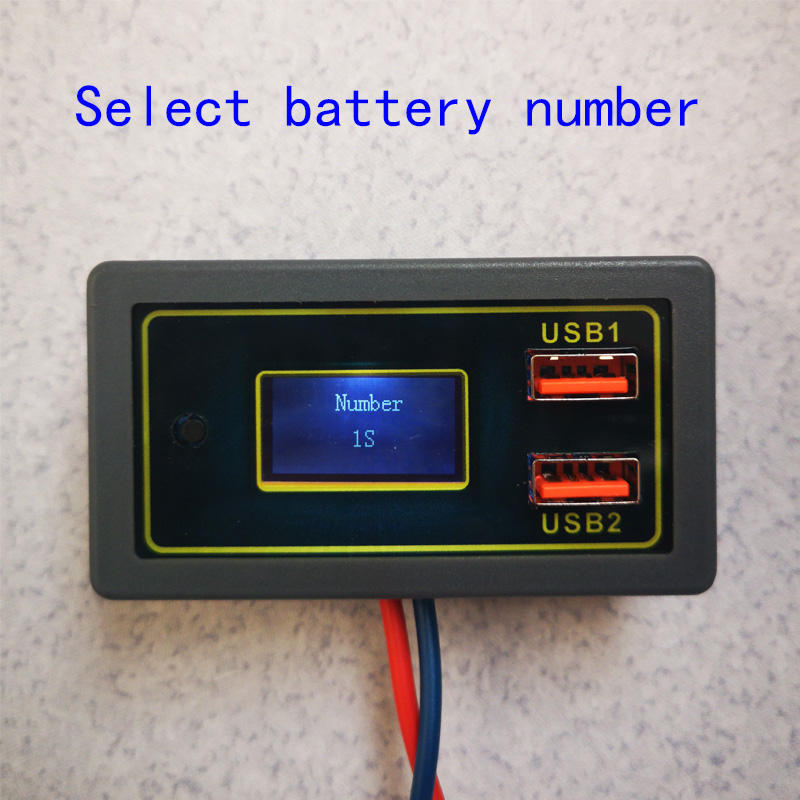

2. After selecting the battery type, press and hold the button for more than 3 seconds to switch to the number selection interface for battery strings.

On the battery string number interface, short press to select the battery string number NS (N stands for string number)

12V lead-acid battery--N = 1/2

Ternary lithium battery-N = 2/3/4/5/6/7

Lithium iron phosphate battery-N = 2/3/4/5/6/7/8

3. After selecting the number of battery strings, press and hold the button for more than 3 seconds to return to the normal interface.

Packageincludes:

1 XVoltmeter
