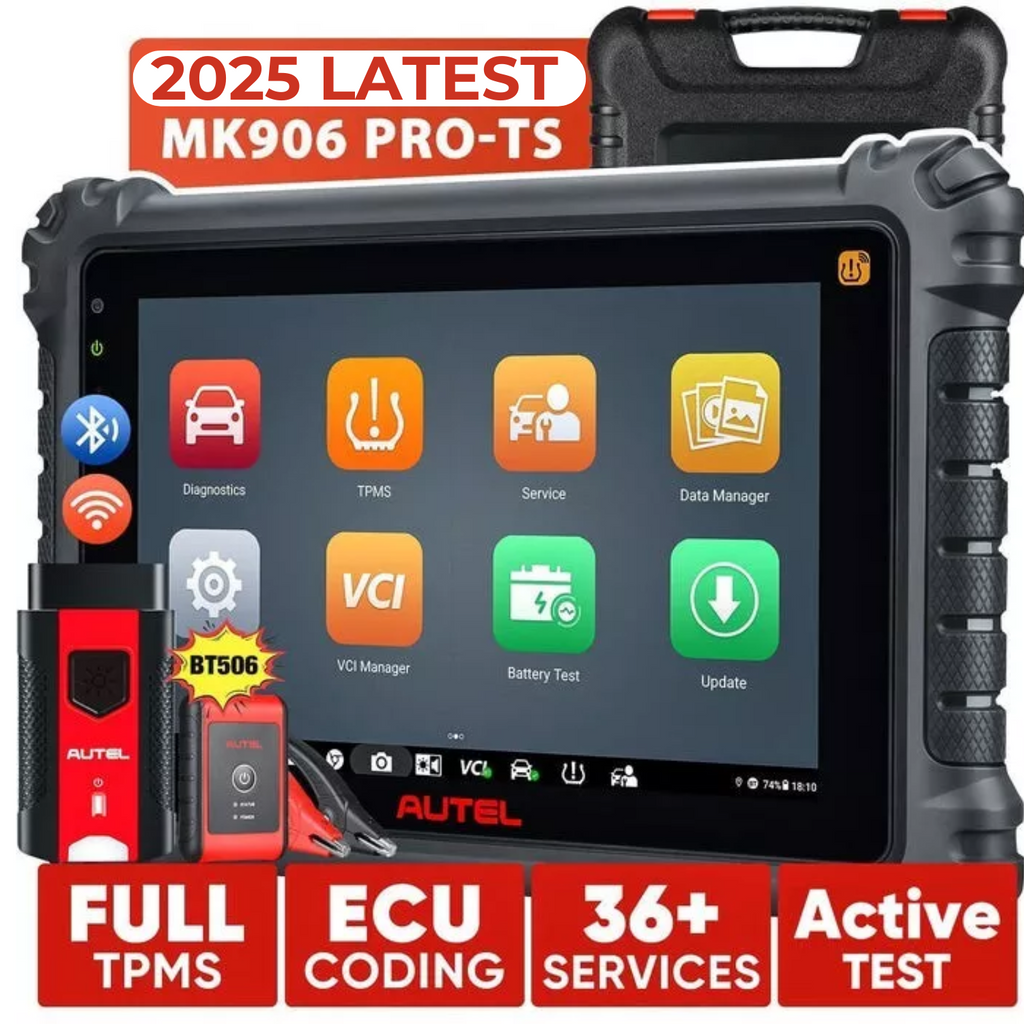

Autel MaxiCOM MK906 Pro-TS Advanced Automotive Diagnostic Scanner with Complete TPMS Functionality - Comprehensive Technical Description

Introduction and Product Overview:
The Autel MaxiCOM MK906 Pro-TS represents the cutting edge of professional automotive diagnostic technology, combining comprehensive vehicle system scanning with advanced TPMS service capabilities in a single, powerful Android-based tablet platform. As the 2025 flagship model in Autel's MaxiCOM series, this device builds upon the proven success of previous 906-series scanners while introducing significant hardware upgrades and expanded functionality to meet the evolving demands of modern vehicle diagnostics.

Detailed Hardware Specifications:
The MK906 Pro-TS features a robust hardware architecture designed for professional workshop environments:

• Processing System:

  • Qualcomm 660 octa-core processor (2.2GHz quad-core A73 1.8GHz quad-core A53)

  • 4GB LPDDR4 RAM for smooth multitasking

  • 128GB internal flash storage (expandable via microSD card up to 256GB)

• Display and Interface:

  • 8.0-inch IPS LCD capacitive touchscreen

  • 1920 x 1200 resolution (283 PPI) for crisp, clear graphics

  • Multi-touch support with glove-friendly operation

  • 16:10 aspect ratio optimized for diagnostic workflows

• Connectivity Options:

  • Dual-band Wi-Fi (802.11 a/b/g/n/ac)

  • Bluetooth 5.0 with BLE support

  • USB 3.0 Type-C port

  • HDMI 2.0 output for external displays

  • Integrated 4G LTE modem (region-specific models)

• Power System:

  • 11,600mAh lithium-polymer battery

  • 12V-24V vehicle power input

  • 15W fast charging capability

  • Up to 10 hours continuous diagnostic operation

• Imaging System:

  • 16MP rear camera with autofocus and LED flash

  • 16MP front-facing camera

  • Dedicated barcode/VIN scanning mode

• Environmental Specifications:

  • Operating temperature: -10°C to 50°C (14°F to 122°F)

  • Storage temperature: -20°C to 60°C (-4°F to 140°F)

  • Humidity tolerance: 5% to 95% non-condensing

  • IP54-rated dust and water resistance

Advanced Diagnostic Capabilities:
The MK906 Pro-TS delivers professional-grade diagnostic functionality:

• Vehicle Coverage:

  • Compatible with 99% of 1996 and newer US, Asian, and European vehicles

  • Supports 10,000 vehicle models across 150 manufacturers

  • CAN FD, DoIP, and D-PDU/RP1210 protocol support

• Diagnostic Functions:

  • Full-system scanning (engine, transmission, ABS, SRS, etc.)

  • Enhanced AutoScan 2.0 with system prioritization

  • Pre-Scan and Post-Scan reporting

  • Comprehensive DTC database with repair suggestions

  • Live data streaming with customizable PID layouts

  • Advanced graphing and comparison tools

  • Freeze frame data capture and analysis

• Bi-Directional Controls:

  • Component activation testing

  • System adaptations and resets

  • Module initialization and programming

  • Vehicle configuration adjustments

Professional TPMS Service Features:
The integrated TPMS functionality provides:

• Sensor Programming:

  • Supports 99% of OEM and aftermarket sensors

  • Four programming modes:

    1. Copy by activation

    2. Copy by manual input

    3. Batch programming (1-16 sensors)

    4. OBD-based programming

• Diagnostic Capabilities:

  • Comprehensive TPMS system scanning

  • Sensor status monitoring (pressure, temperature, battery)

  • DTC reading and clearing

  • Live data display

• Special Functions:

  • TPMS module retrofitting

  • 3,000 built-in relearn procedures

  • Custom sensor programming

  • System configuration

Advanced ECU Coding and Programming:
The scanner provides OEM-level coding capabilities:

• Online Coding:

  • Cloud-based coding calculations

  • Secure gateway access (FCA AutoAuth)

  • Direct module programming

• Offline Coding:

  • Manual coding value entry

  • Adaptation channel adjustments

  • Custom coding options

• Supported Systems:

  • Engine control modules

  • Transmission control units

  • Body control modules

  • Immobilizer systems

  • Advanced driver assistance systems

Service and Maintenance Functions:
The device includes 36 specialized service functions:

• Common Resets:

  • Oil service reset

  • EPB service and pad replacement

  • Battery management system registration

  • Steering angle sensor calibration

  • Throttle body adaptation

• Advanced Services:

  • DPF regeneration

  • SCR system service

  • Injector coding

  • Transmission adaptations

  • Suspension calibration

• Specialty Functions:

  • A/F mixture adjustment

  • NOx sensor reset

  • Transport mode activation

  • Window initialization

  • Seat calibration

Additional Professional Features:

• Cloud-based reporting and data management

• Remote expert support (TeamViewer integration)

• Multi-language interface (21 languages)

• Customizable workspace and shortcuts

• Vehicle health reports

• Shop management tools

• Wireless printing

Package Contents:

• MK906 Pro-TS diagnostic tablet

• MaxiVCI V200 wireless interface

• OBDII diagnostic cable

• USB Type-C charging cable

• 12V-24V vehicle power adapter

• Quick start guide

• Protective carrying case

Technical Support and Updates:

• 2 years of free software updates

• 24/7 technical support

• Online knowledge base

• Regular feature enhancements

Warranty and Certification:

• 1-year manufacturer warranty

• CE, FCC, and RoHS certified

• ISO 9001 quality management

Professional Applications:

• Dealership service centers

• Independent repair shops

• Mobile technicians

• Fleet maintenance

• Automotive training institutions

The Autel MaxiCOM MK906 Pro-TS represents the ultimate professional diagnostic solution, combining comprehensive vehicle scanning, advanced TPMS service, and OEM-level programming capabilities in a single, rugged tablet platform designed for the demands of modern automotive repair.
