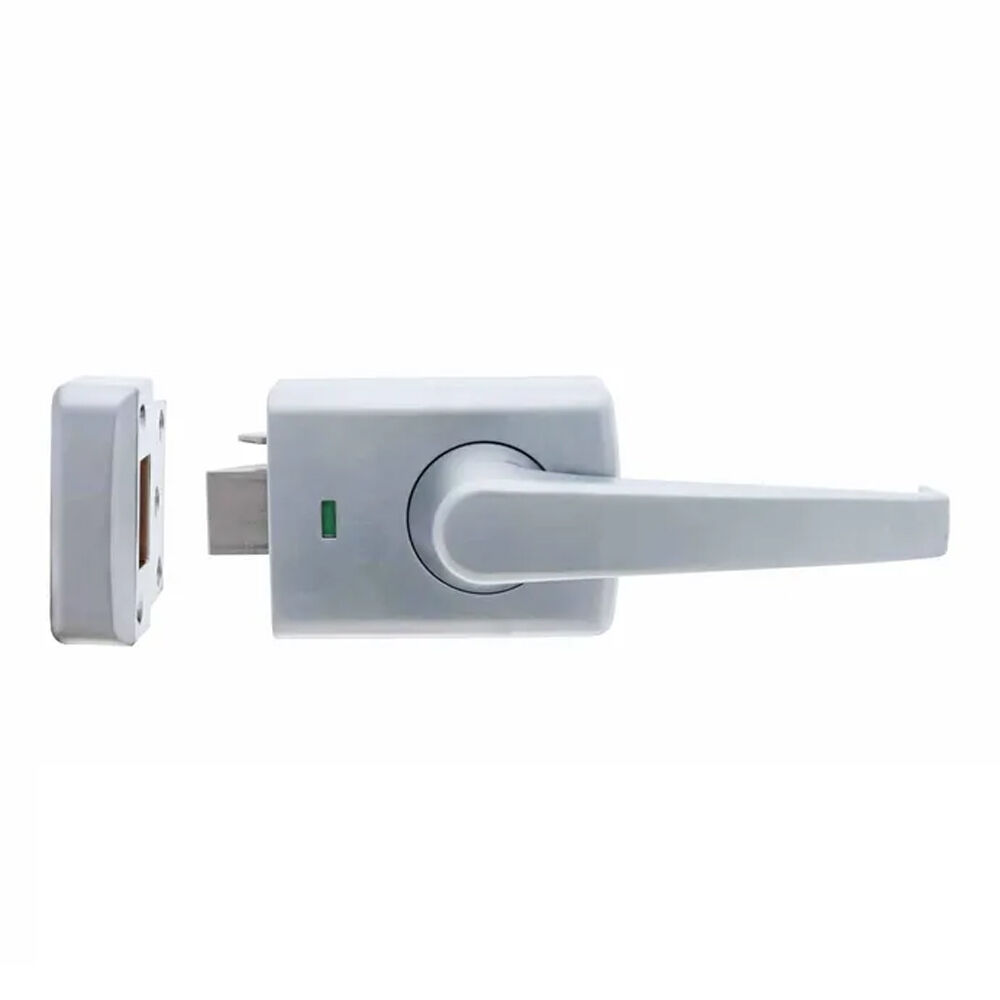

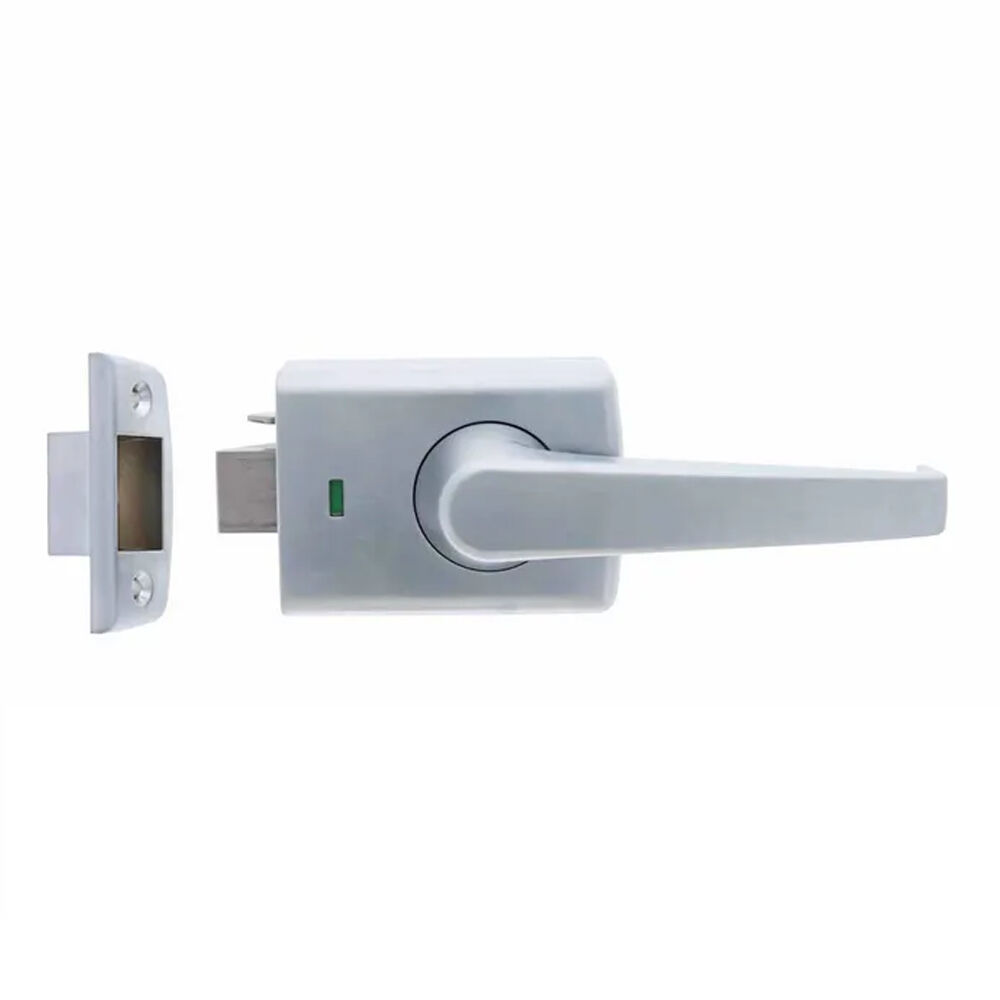

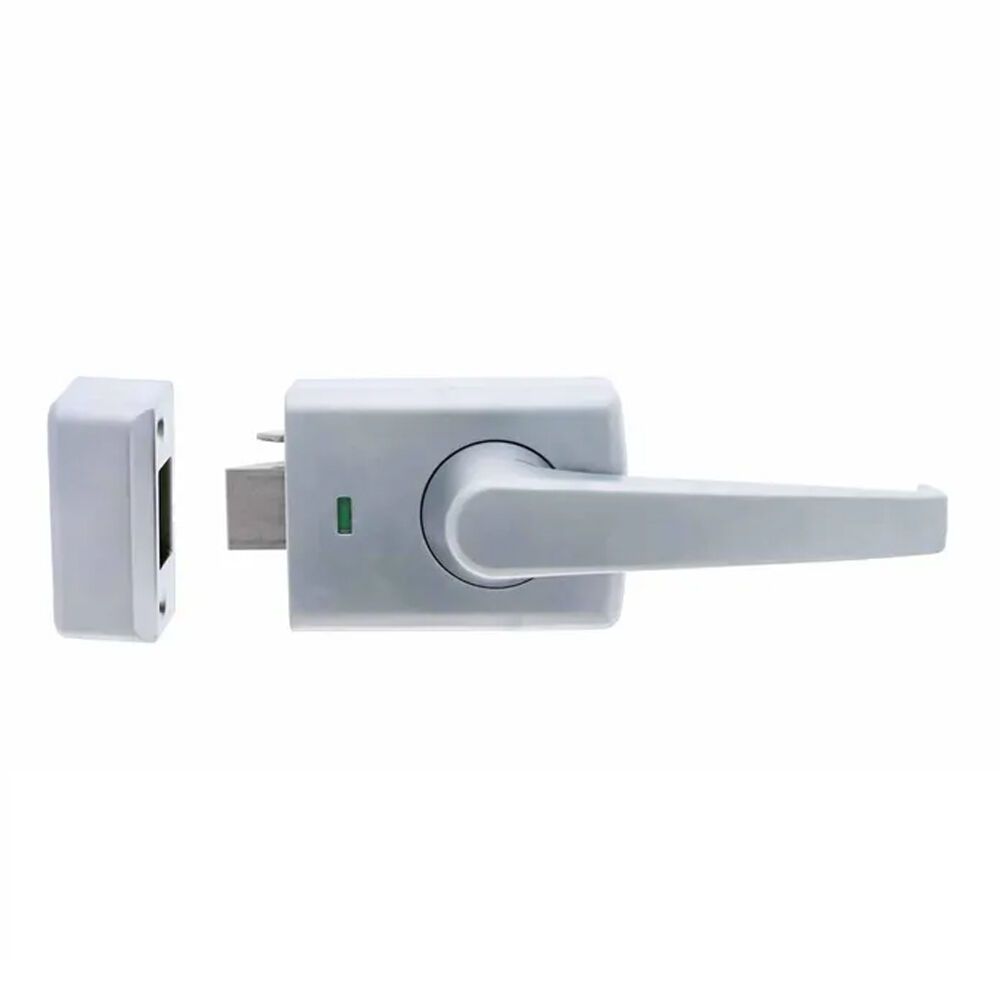

Carbine Alpha Deadlatch Long Lever Timber Frame Strike
CRD-1L1-SGL-SC

DeadLatch are commonly found on front doors that don’t have handles or if they do they are purely there for aesthetics.

DeadLatch Function - is a locking mechanism that locks automatically without having to turn a knob or use a key.

Features:

• 45 degree lever rotation to unlock the door
• Lever compliant with BCA codes and AS1428
• Lever Offset (distance between door face and inside of lever) meets requirement for disability
• Fire rated up to 2 hours on E-core as a primary or secondary lock with the hold back disabled, egress regulations still apply
• High grade zinc alloy for the lock casing, knob and lever, marine grade stainless steel for the latch bolt and snib, has a cut resistant latch bolt and a reinforced strike with extended fasteners for increased frame strength
• Adjustable strike
• Suits left and right hand opening doors

Specifications:

• Lockable Hold Back Function: when holdback has been activated by the knob or lever, it can be locked in this mode by the internal key
• Door Thickness: 30mm - 50mm
• Latch Projection: 19mm
• Door Gap: 1mm - 3mm
• Fixing: Concealed Fix
• Cylinder: Single cylinder (keyed entry from outside, lever on inside)
• Backset: 60mm
• Door Compatibility: Timber or metal doors
• Fire Rating: Compliant for certain fire doors
• Function: Key-lockable from outside, lever-operated from inside
• Included: Lock body, external cylinder, internal lever, screws, strike plate
• Strike Option: Timber Frame Strike
• Finish: Satin Chrome
