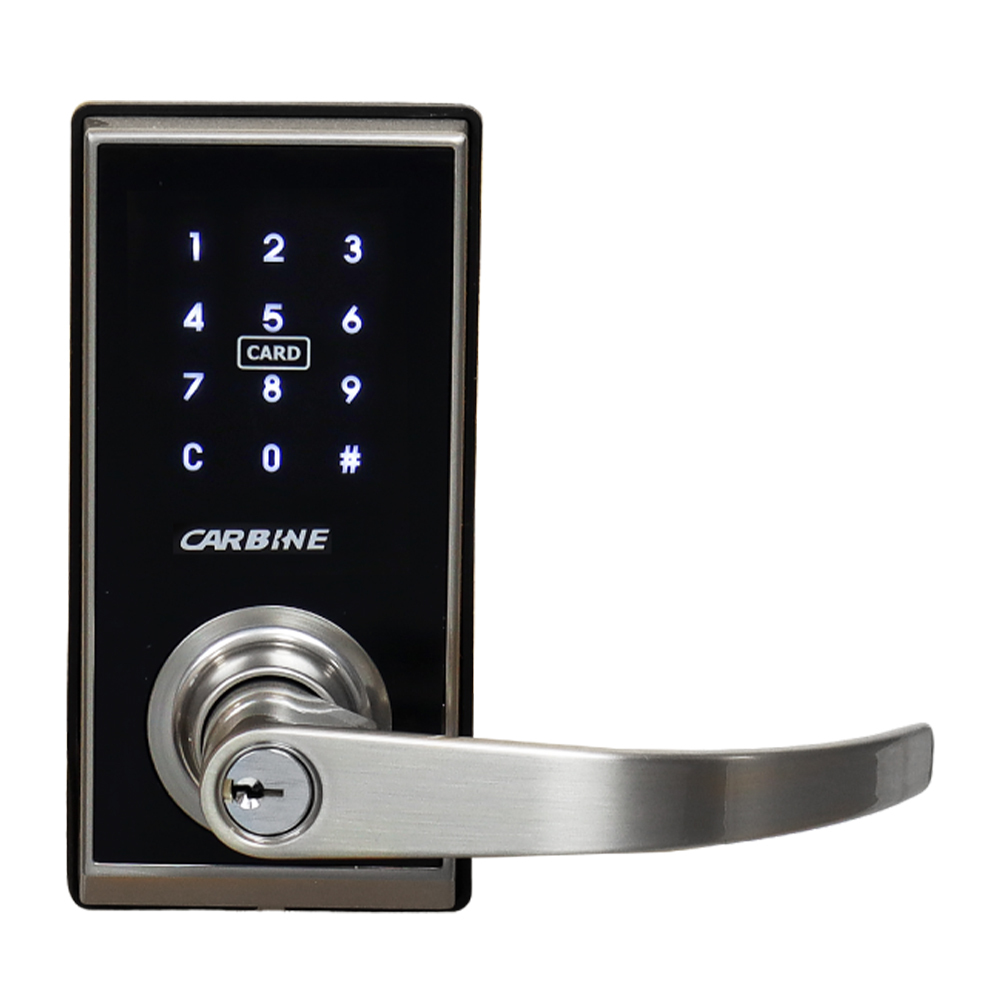

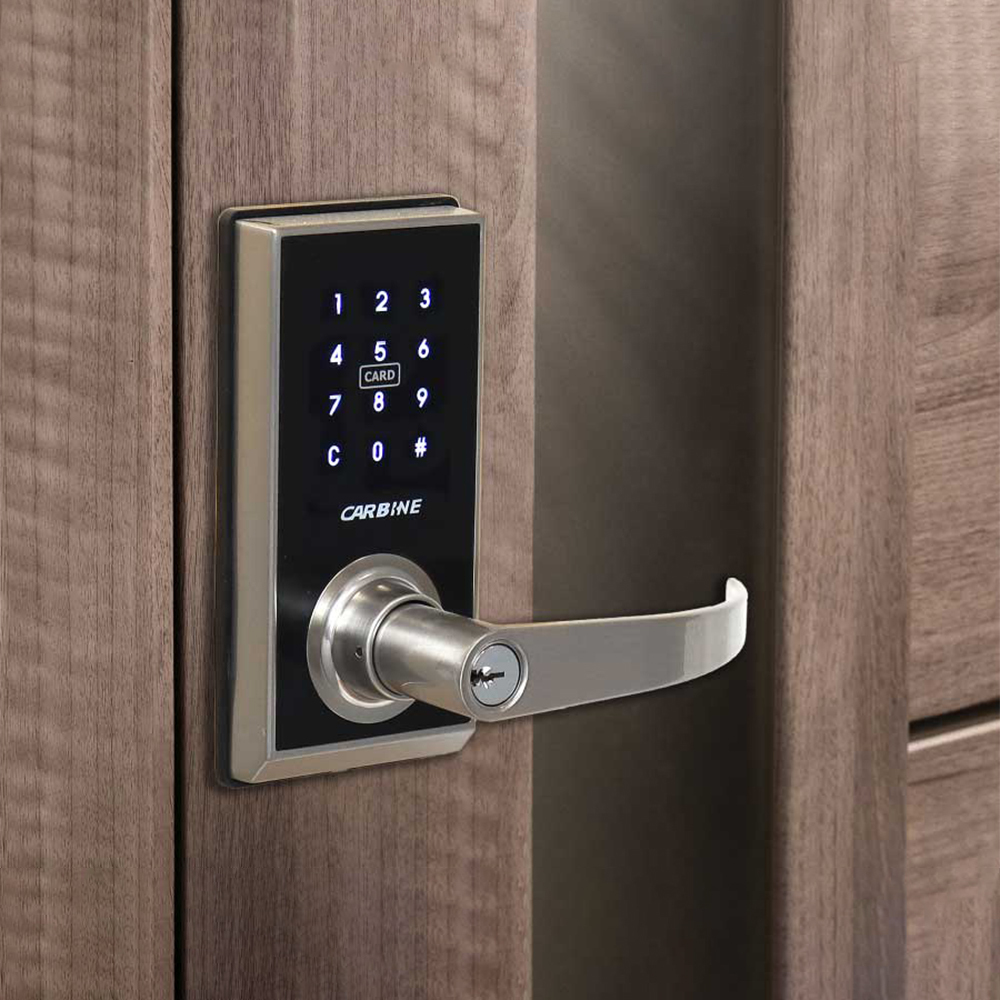

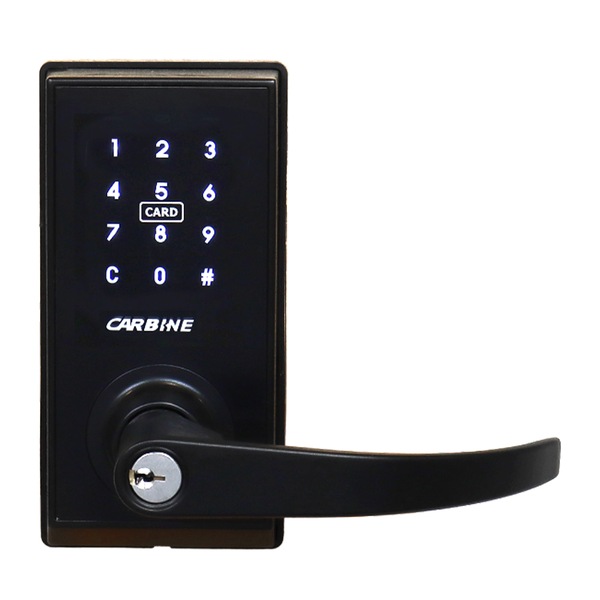

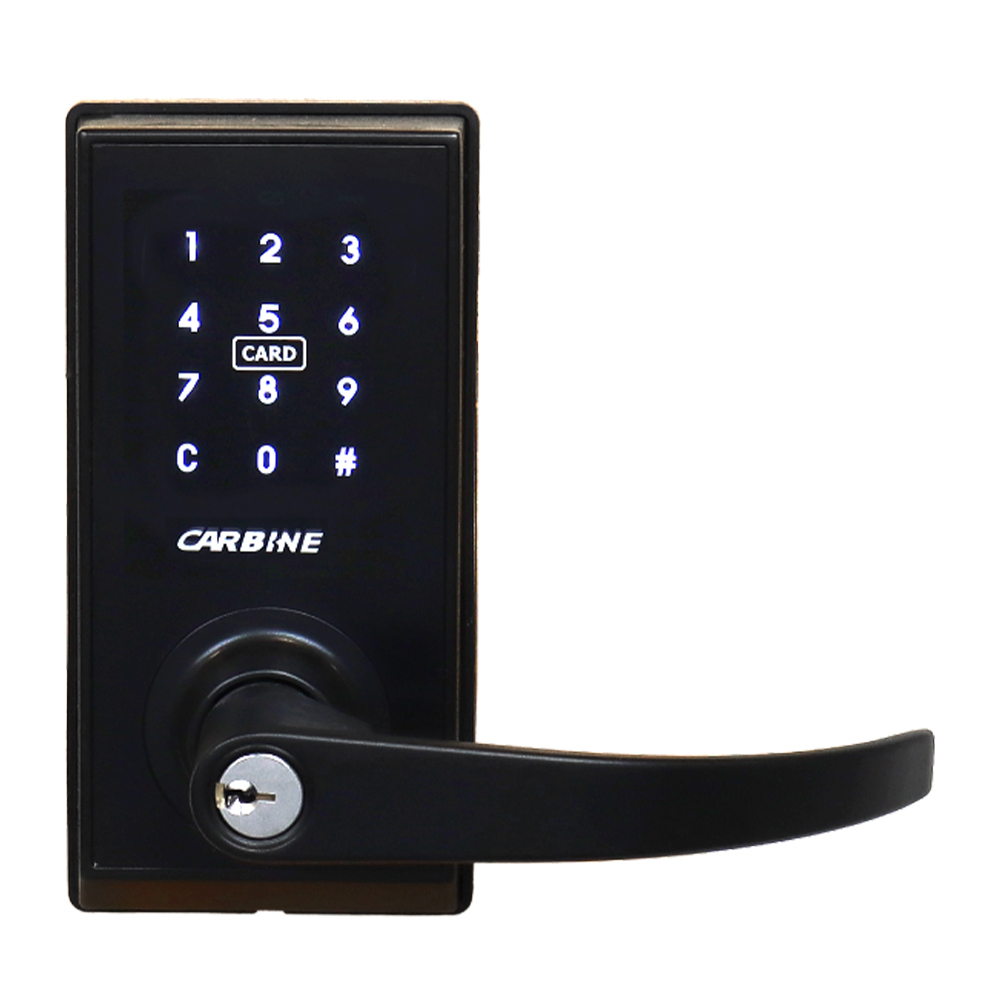

Carbine CEL2 Electronic Digital Door Leverset
CEL2-3IN1-SL8SNFRKIT

Digital Door Lock provides a keyless locking solution making for more convenient access. It puts a stop to lost keys and the unnecessary lockouts

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

Features:

• NFC enabled smart phone or via a RFID FOB, card, sticker or wristband.
• Low profile touchscreen
• Fits in a standard 54mm lockset hole with no additional drilling required
• 4-8 digit code, RFID Card / Sticker / Wristband / Key FOB, Key override, and NFC enabled smartphone*
• Auto-lock or auto-lock delay timer (auto-lock off by default. Time range 5-99 seconds) (Deadbolt models 10-99 seconds)
• Single-use user code which can only be used once to unlock the lockset
• Guiding code. A set of random codes to be entered prior to any user code to prevent code probing
• Volume control to turn on/off door lock operation volume

Specifications:

• Backset: 60mm - 70mm Adjustable
• Door Thickness: 35mm - 51mm
• Keyway: C4 6 Pin
• Touchpad: 10 digit
• Height: 195mm
• Width: 88mm
• Finish: Satin Nickel

Compliance and Ratings:

• IP54 Rated
• NCC Compliant Lever
• Fire Rated for up to 2 hours (Leverset model variant)
