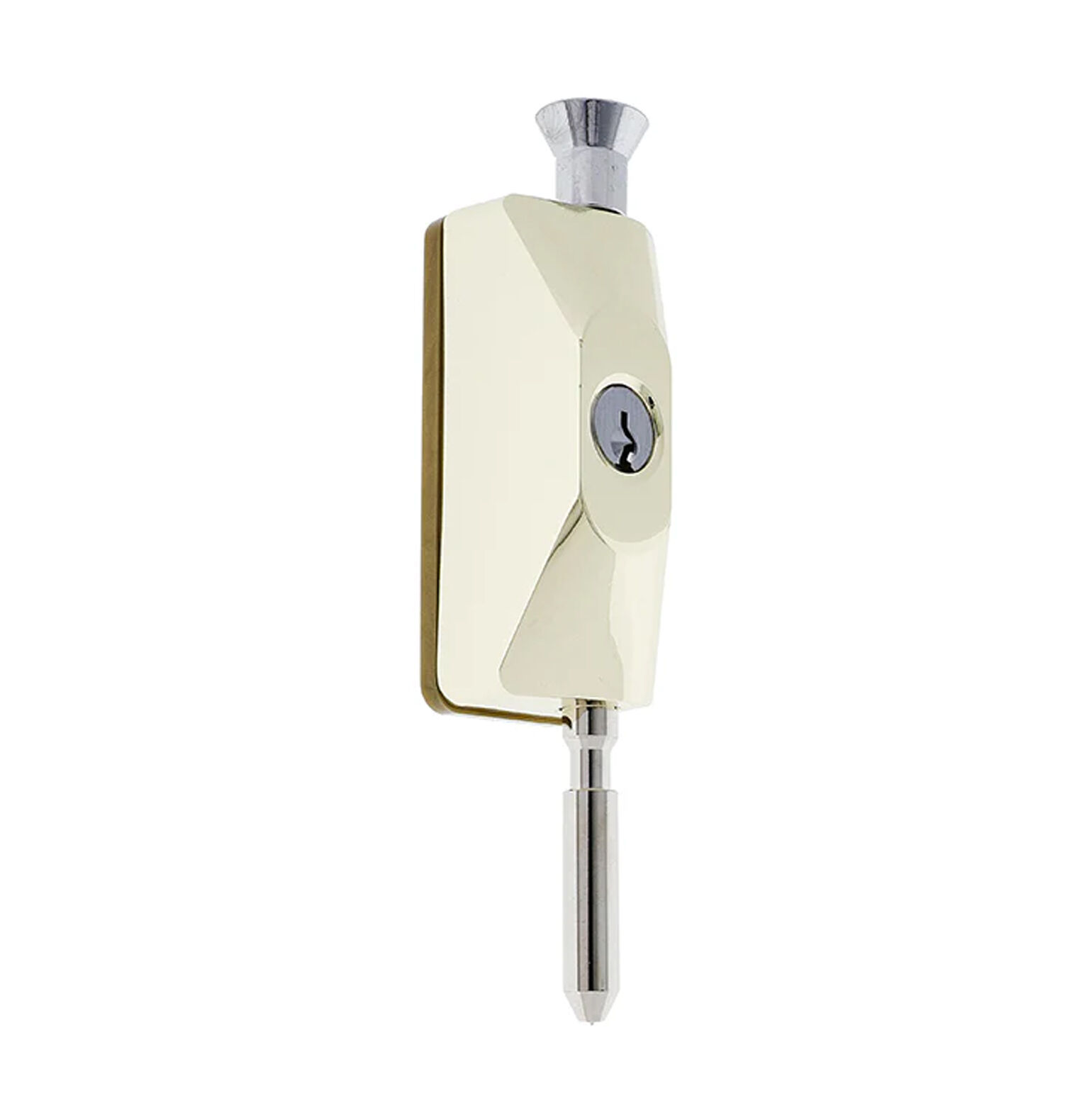

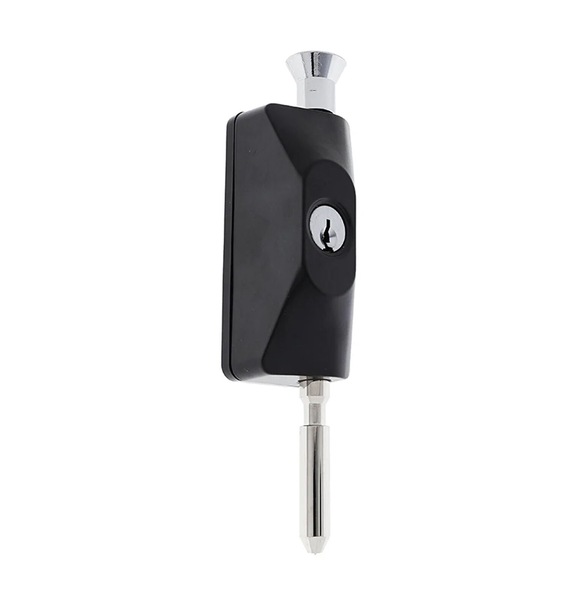

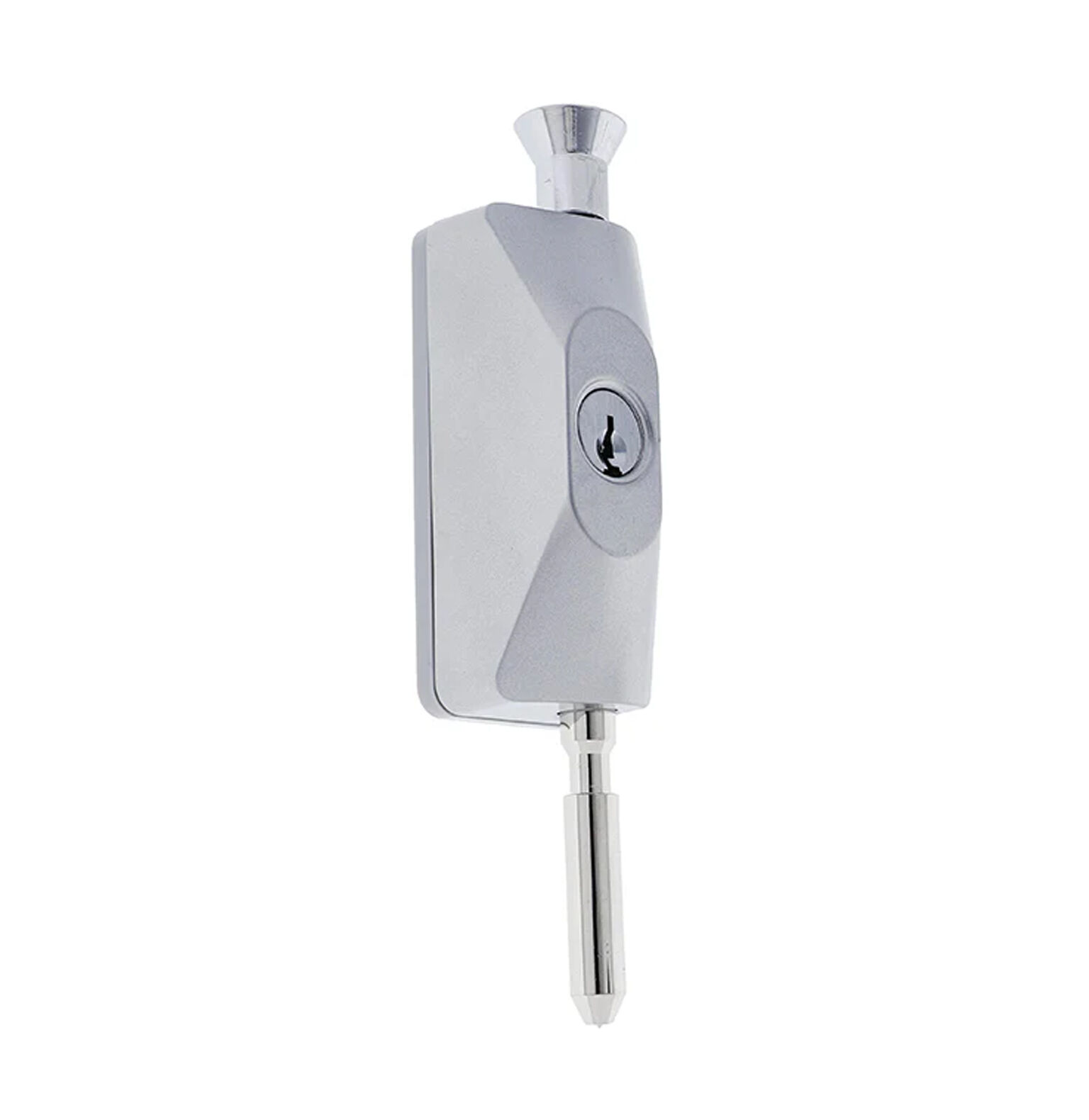

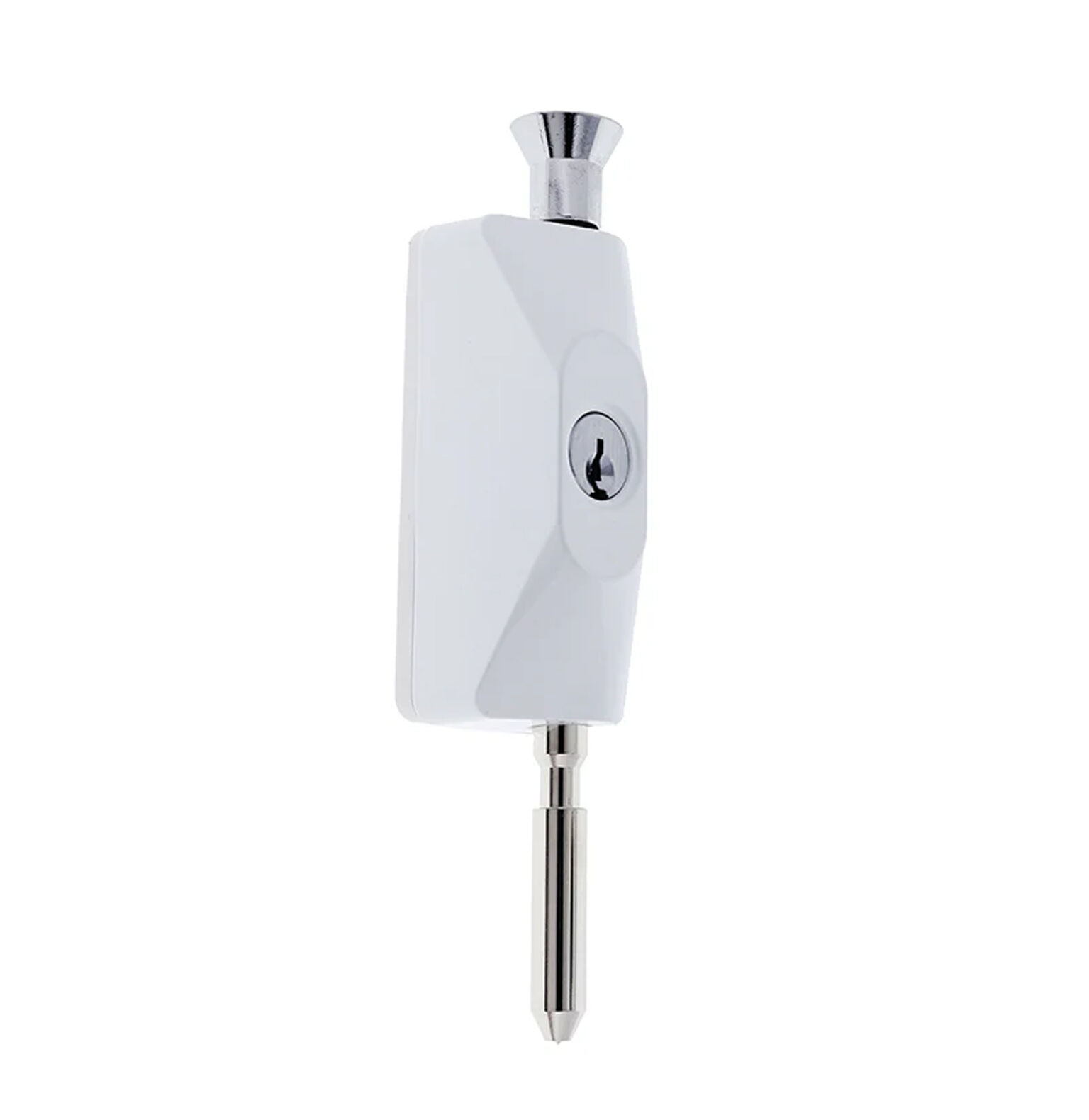

Carbine Heavy Duty Patio Bolt
CHDPB-BL-KA1

Patio Bolt are usually easy to install and operate, and they add an affordable yet effective layer of security to any home or property.

Patio Bolt Function - is a locking mechanism commonly used to secure sliding doors, particularly on patios, to prevent unauthorized access.

• The Carbine Heavy Duty Patio Bolt is a strong, heavy duty product designed to fulfill a demand for a secure patio bolt in a variety of residential sliding and hinged door applications.

Features:

• Stylish design & easy to install
• Retrofits for Carbine C500, Lockwood 680 & Whitco patio bolts
• Supplied with a locksmith grade 001 inner style cylinder, easily rekeyable, use Keyline LKW9 (Silca LW5) key
• Accepts 6 pin LKW5 (C4) keyblanks
• Cylinder can be easily removed from the front of the lock
• Uses the same bolt as the C500 patio bolt
• Reversible quick release bolt mechanism
• Bolt can be locked in the open / closed position
• Snap shut or key retained functions available
• All mounting screws are concealed
• Designed to suit most aluminium and timber sliding and hinged doors
• A high security diecast receiver is available as a spare part in each finish
• 9.5mm Diameter High Tensile Bolt (Hard Chrome Plated)
• Extended bolts of 50mm available

Specifications:

• Suits: Left and Right Hand Doors
• Keying: Keyed Alike
• Finish: Black
