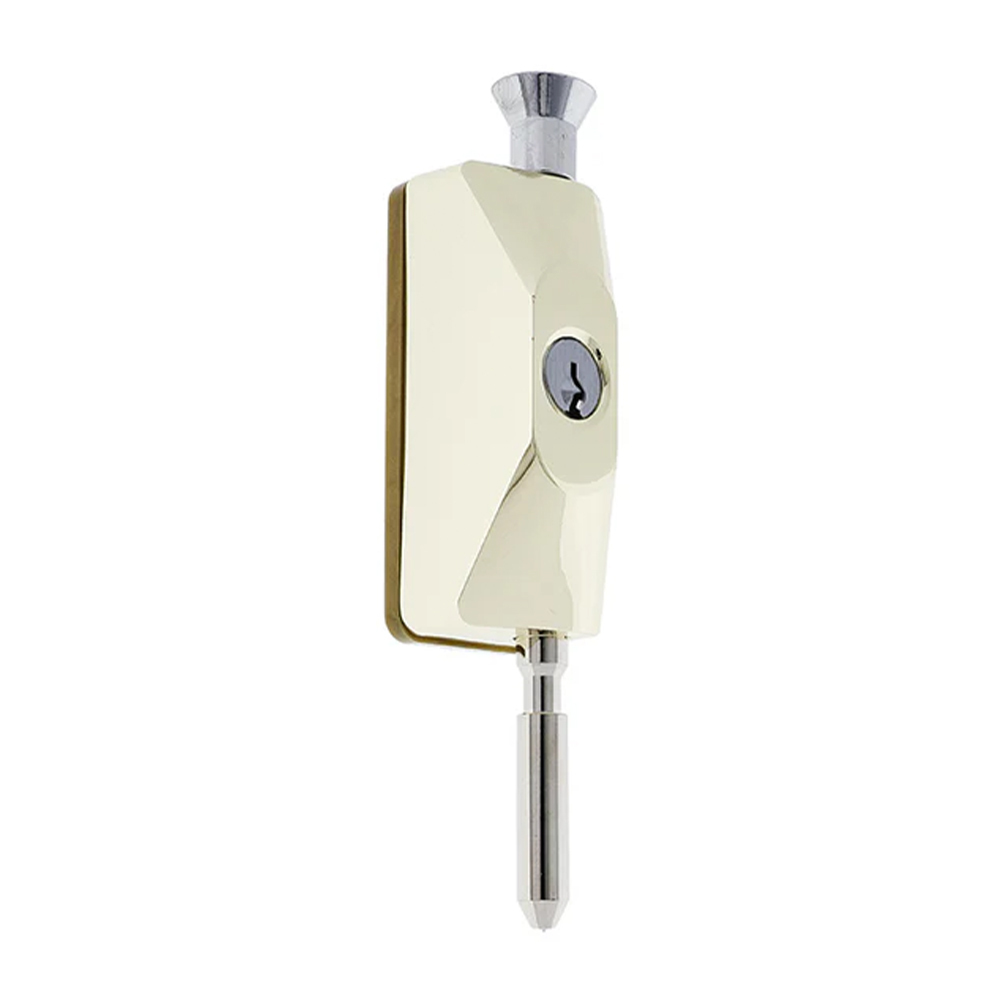

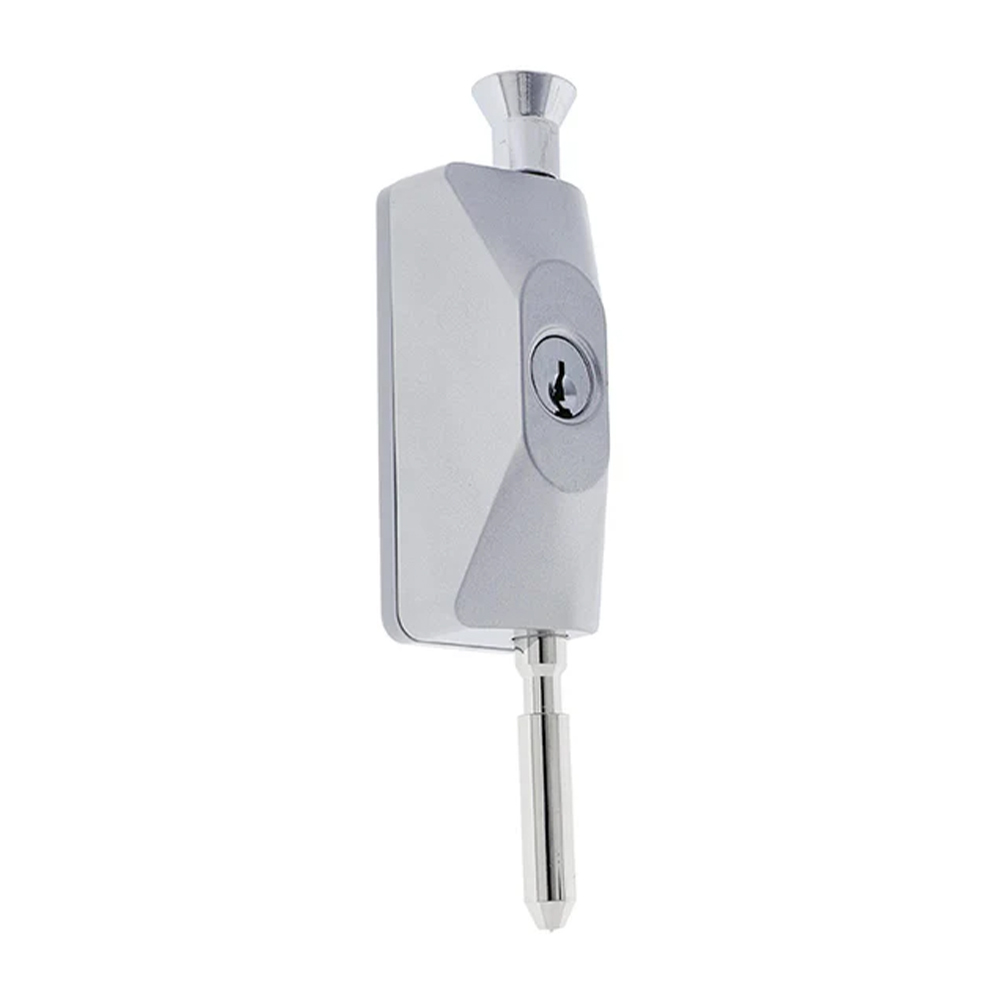

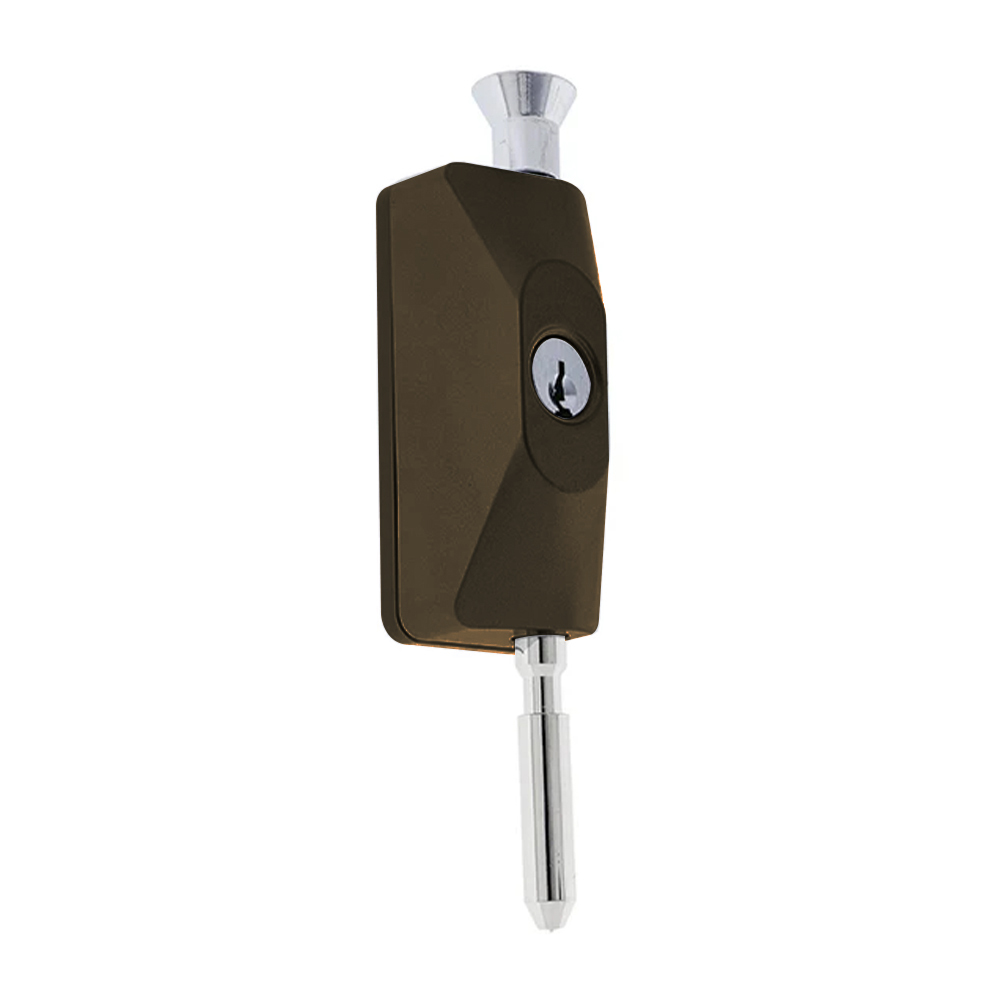

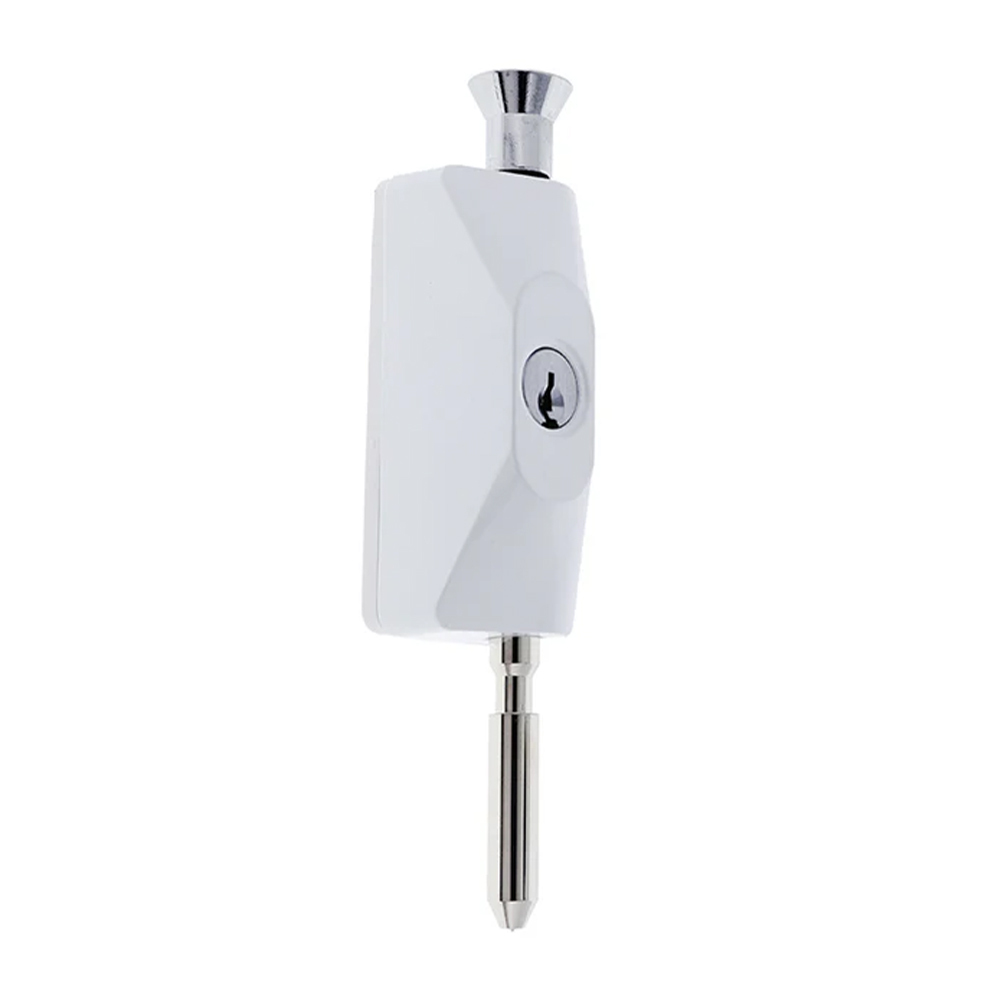

Carbine Padbolt Heavy Duty Patio Bolt Lock
CHDPB-BL-BP1

Patio Bolt is used on inside doors when additional security is required. Typically, it is mounted near the top of the door, where it can lock into the top door jamb.

Patio Bolt Function - a rod-shaped bolt that slides into a socket on the opening's frame to secure a door or the like. It is fastened to one side of the door at the edge.

Features:

• Stylish design & easy to install
• Retrofits for Carbine C500, Lockwood 680 & Whitco patio bolts
• Supplied with a locksmith grade 001 inner style cylinder, easily rekeyable, use Keyline LKW9 (Silca LW5) key
• Cylinder can be easily removed from the front of the lock
• Uses the same bolt as the C500 patio bolt
• Reversible quick release bolt mechanism
• Bolt can be locked in the open / closed position
• Snap shut or key retained functions available
• All mounting screws are concealed
• Designed to suit most aluminium and timber sliding and hinged doors
• Suitable for left and right hand doors
• A high security diecast receiver is available as a spare part in each finish

Specifications:

• Length: 158mm
• Centre to Centre: 50mm
• Bolt Throw: 50mm
• Bolt Diameter: 9.5mm
• Keyway: C4 6 Pin

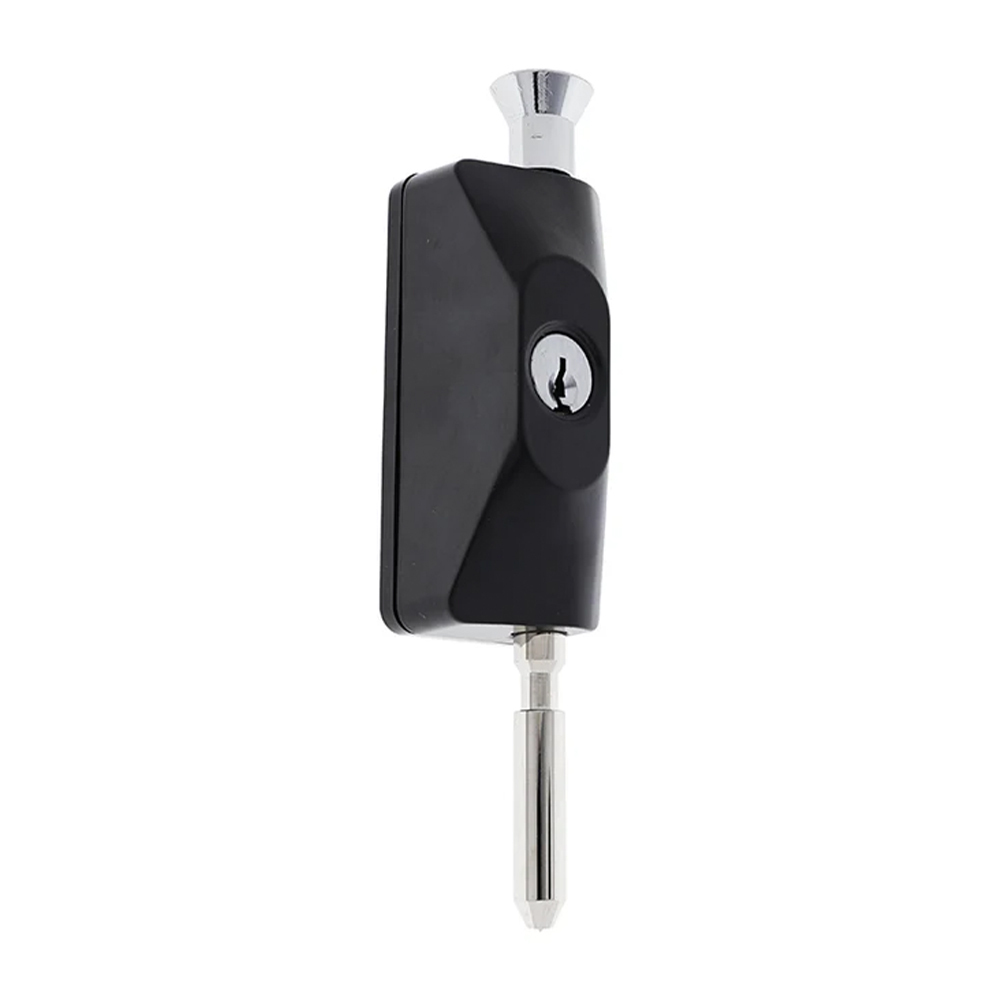

• Finish: Matt Black
