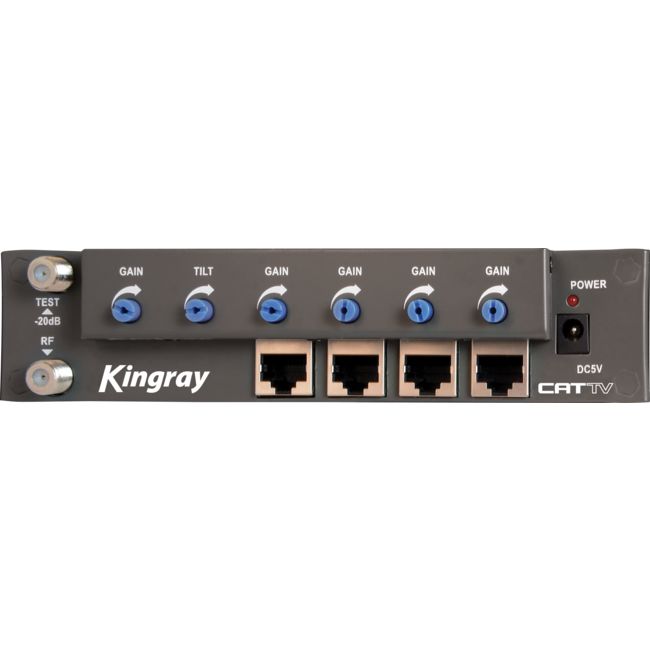

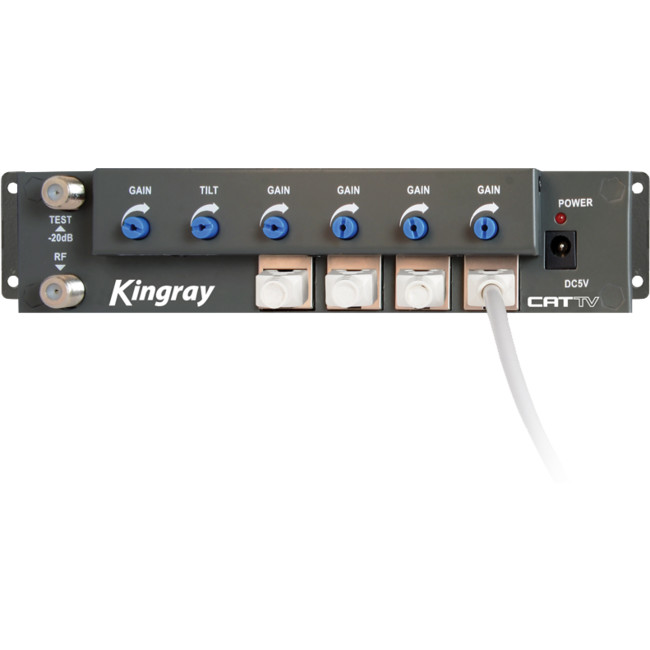

CAT01 4 WAY RF OVER CAT5 AMPLIFIER KINGRAY

Kingray is proud to announce the introduction of the CATTV? range; this product line will transform the way television signals are delivered over CAT5 cable.
For many years CAT5/6 cable has been used to distribute various types of data throughout offices, schools, hospitalsand even private homes.

More recently CAT5/6 cabling has been used to reticulate many different signal sources such as audio, video and HDMI.
The Kingray CATTV? product now makes it possible to add terrestrial TV to the signals distributed using CAT5/6 cabling.

High output distribution amplifier ? capable of supplyingquality signal to up to four television receivers.
Incorporates master gain and tilt controls, plus individual gain controls for each outlet, delivering a balanced output level regardless of cable lengths.

Available separately is the Kingray KLE02 impedance matching balun cable for connection between the RJ45 wall outlet and the television ensuring optimal performance at all times.

Features
  • High output distribution amplifier ? capable of supplying quality signal to up to four television receivers.
  • Incorporates master gain and tilt controls, plus individual gain controls for each outlet, delivering a balanced output level regardless of cable lengths.
  • Also available separately is the Kingray KLE02 impedance matching balun cable for connection between the RJ45 wall outlet and the television ensuring optimal performance at all times.
Specifications
  • Frequency range 47-862 MHz
  • Gain 35 dB max.
  • Output Level 98 dB (42 Ch. CENELEC)
  • Min input level 63 dBuV
  • Tilt control 0-15 dB
  • Input gain control 0-20 dB
  • Output gain control 0-20 dB
  • Noise figure <8 dB
  • Return loss >13 dB
  • Isolation >20 dB (port to port)
  • Test point -20 dB
  • Power 5 volt DC 2.1m (adaptor inc.)
  • Power consumption 800 mA
  • Temperature range -20 - +60 C
  • Dimensions 200 x 41 x 38.2 mm

Weight: 0.543
