DC 5V 433mHz 2 Channel Wireless Delay Relay Remote Controller

Image 1
Image 2
Image 3
Image 4
Image 5
$50.95

Collect 50 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases Over $29
Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)
Secure ways to pay at checkout
Technical indicators:
Operating voltage : DC 5V
Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay? open,about 157MA
Operating frequency : 433.92M;
Receiver sensitivity? : -108dB;
Work mode?????? : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),? Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay
Size(Including housing)? : 75*54*28mm
Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );
Max load : 500W;

Typical applications:

DC 5V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360
?

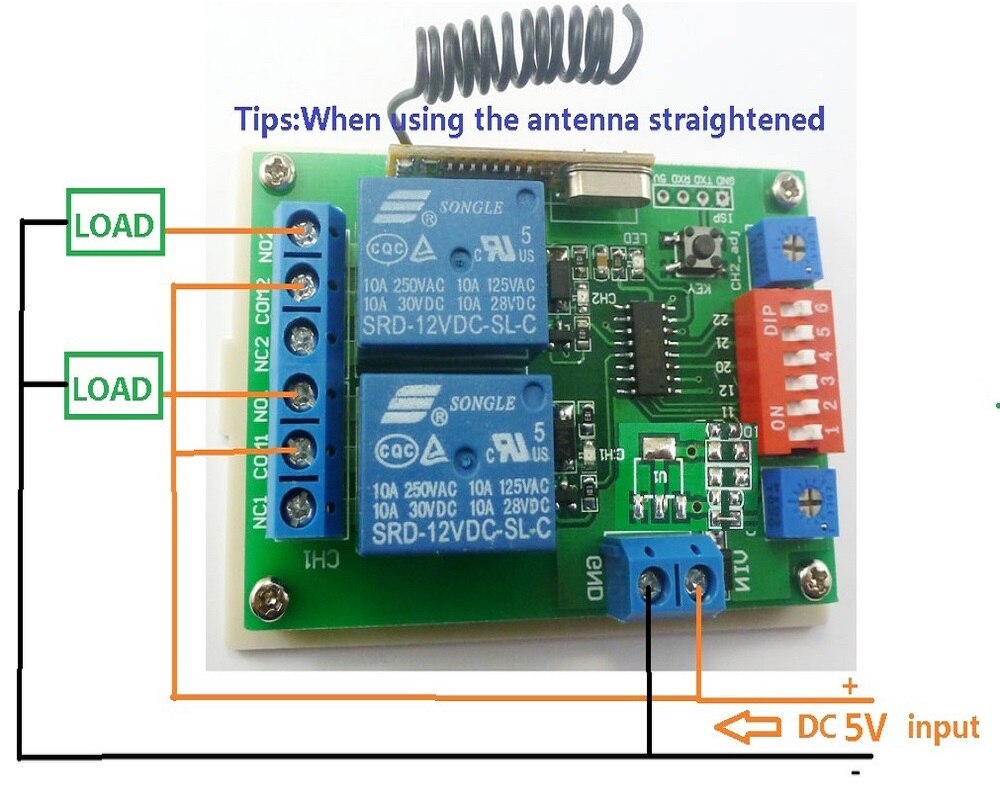

Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 5V

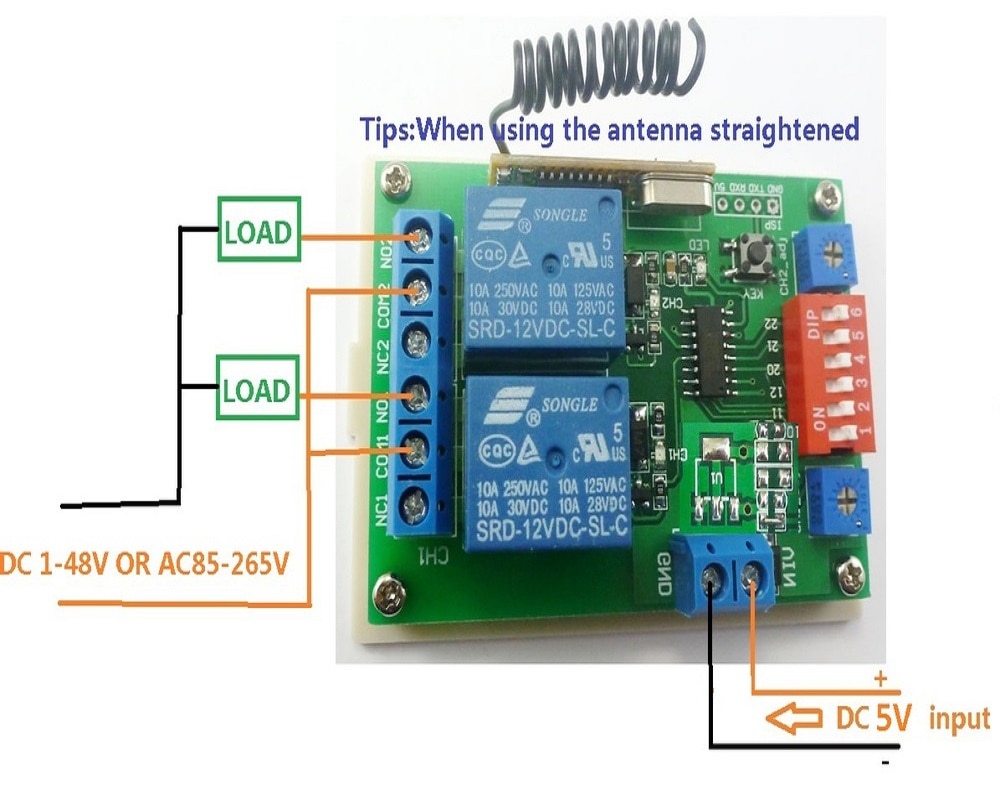

Wiring Diagram 2:
DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

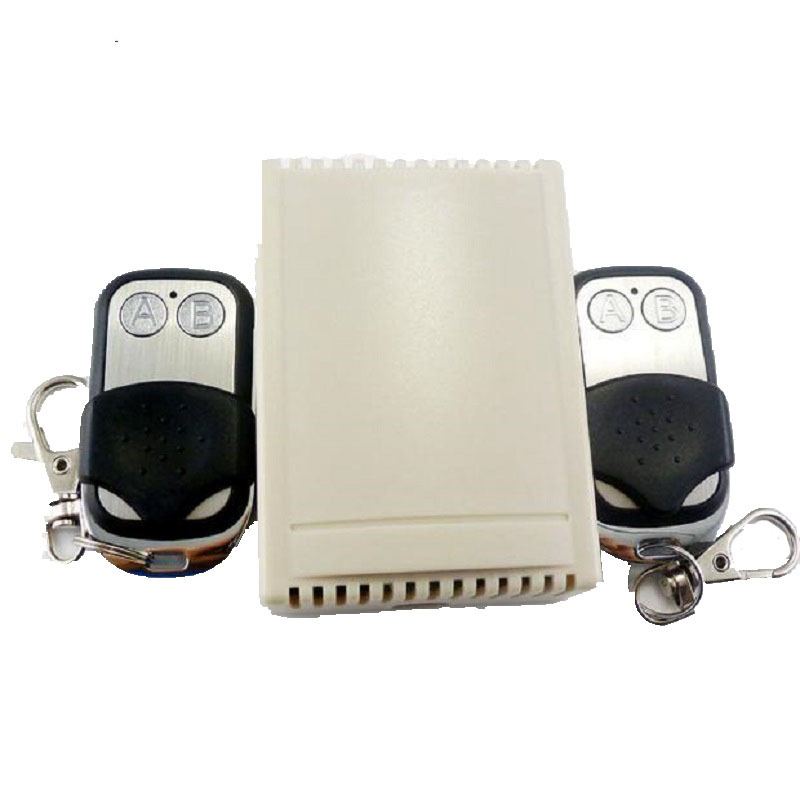

Packing list:1 PCS433M DC 5V 2 Channel Multifunction Wireless Controller ??2 PCS? 433M? 2 Button EV1527? Remote Control (USE 12V 27A battery,Batteries not included)

GTIN: 774048925914

Estimated Delivery Time Frame:12-20 business days
