Cellular 5G 4G LTE Antenna 2x2 MIMO & WiFi 7 2x2 MIMO 600-8000 MHz IoT M2M

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 1 items left!
$225.99

Collect 225 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

Description:

ITEM ID:AN_Master_Cubic_2C2W

Brand Name Maswell

AN_Master_Cubic_2C2W is a design project supervised by Australia Charted Engineer.

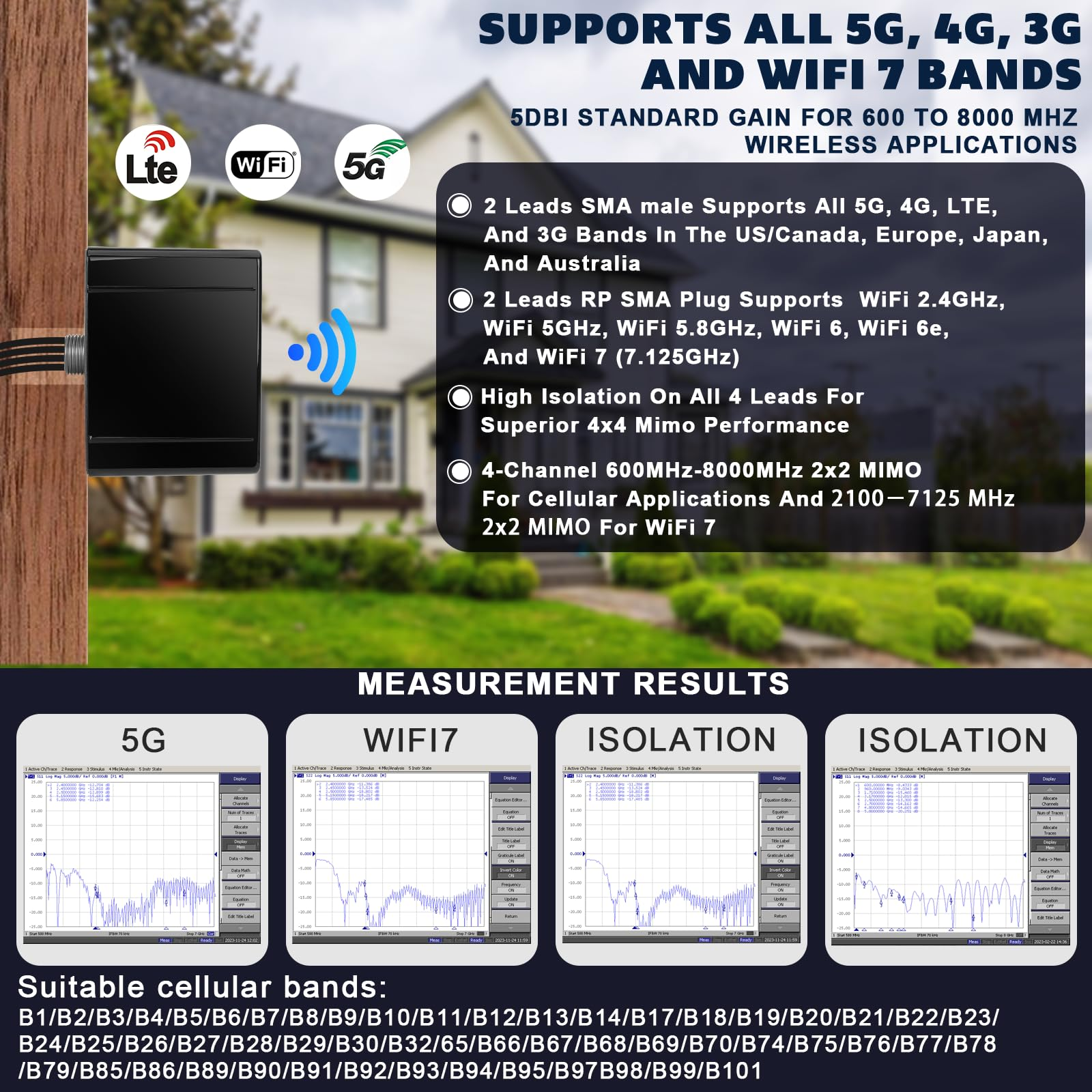

  • High quality Cellular 2X2 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 600-8000Mhz.
  • High quality WiFi 7 WiFi 6E 2X2 MIMO Antenna for WiFi 7 WiFi 6E Bluetooth Zigbee Wimax 2100-8000MHz

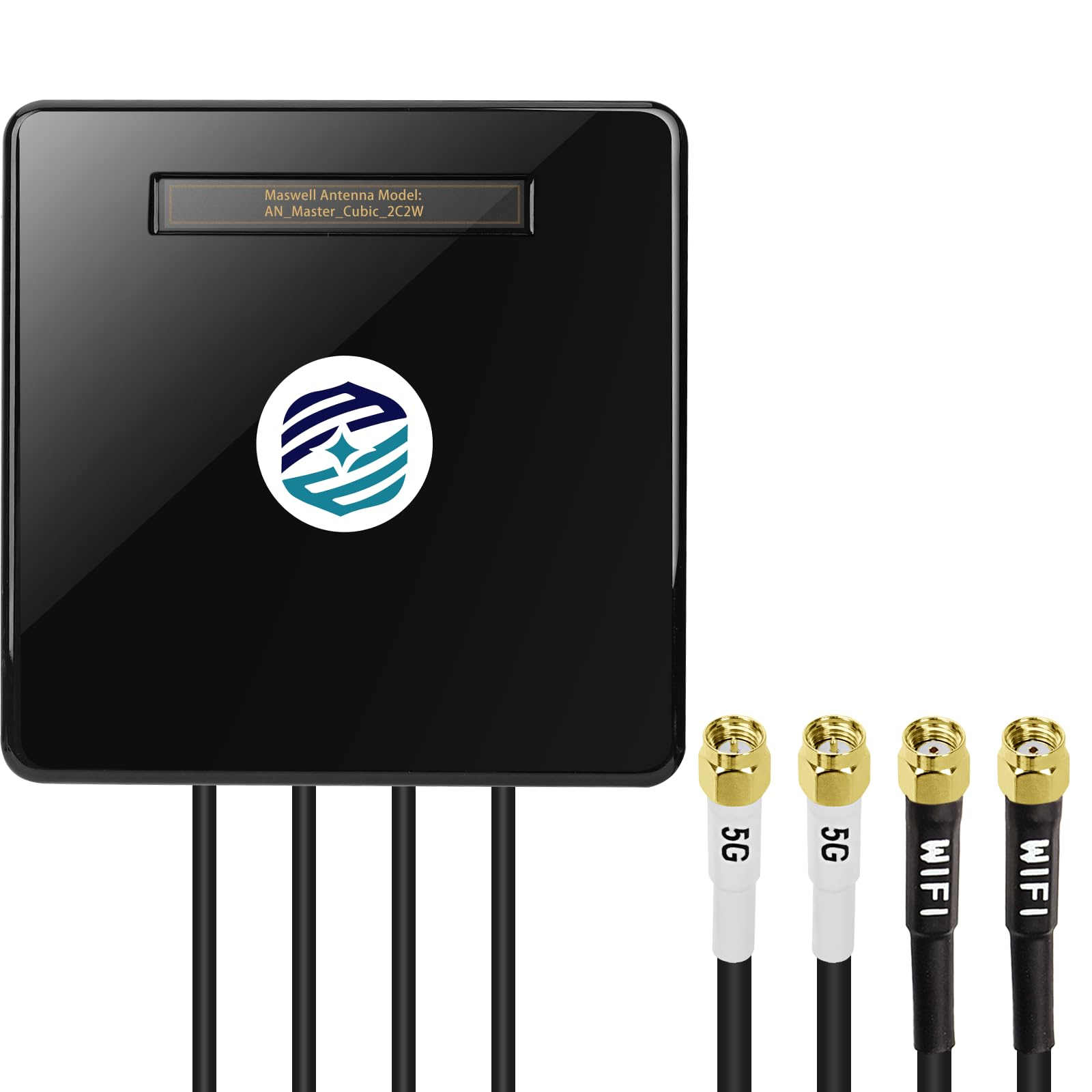

  • 2 X SMA male connectors leads 2 meters for 5G Cellular 2X RP SMA Plug connector lead 2 meters for WiFi.
  • High Gain 6.0 dBi (@20cm) for all your Cellular and WiFi applications, NOT a high gain version.

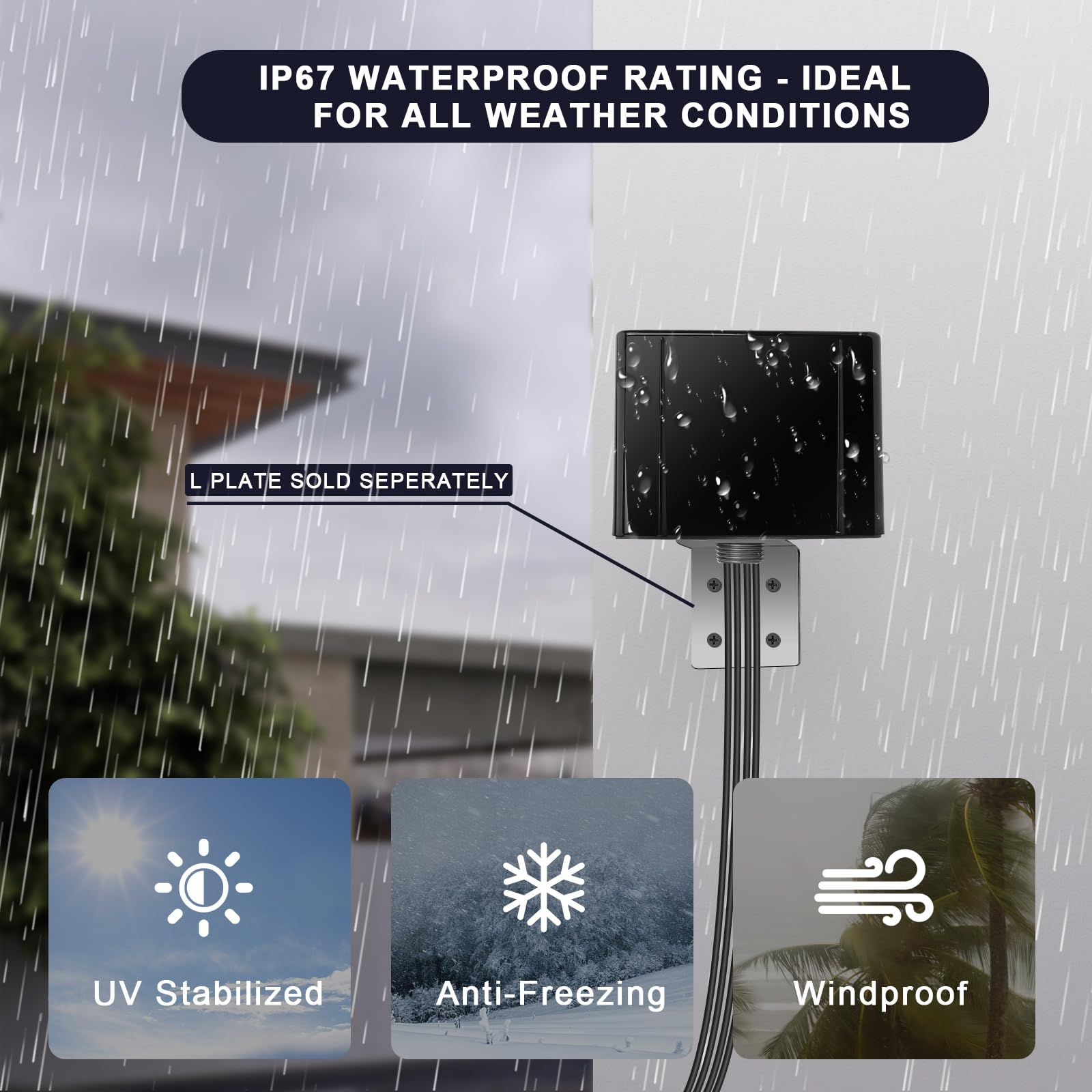

  • 7/24 Operation Capability IP67Waterproof.
  • Glossy Black Radome with UV stabilized Capacity

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

 Vodafone: ALL 5G 4G LTE 3G Supported

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

Specifications:

Applications:

  • GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!

Repeater station system

  • Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported
  • WiFi routers Bluetooth Wimax Zigbee IoT M2M devices
  • For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

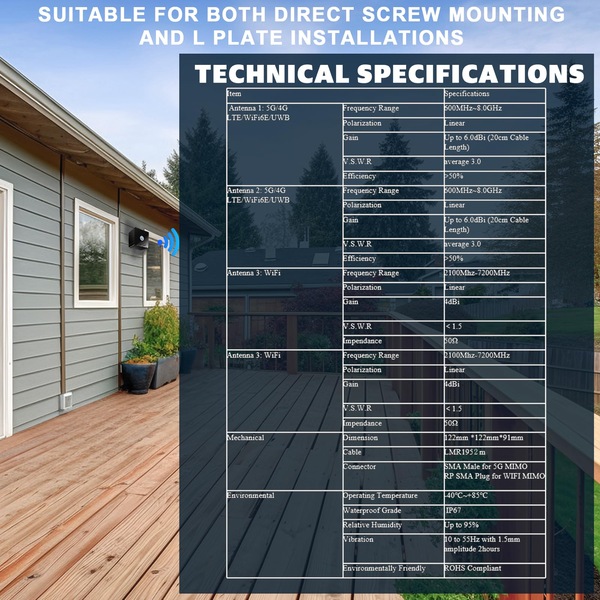

 Electric specifications:

 Antenna 1~Antenna 2:

Frequency 600-8000MHz

Band Width 7400 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Antenna 3-Antenna 4:

Frequency 2100-7200MHz

Band Width 5100 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

 Mechanical specifications:

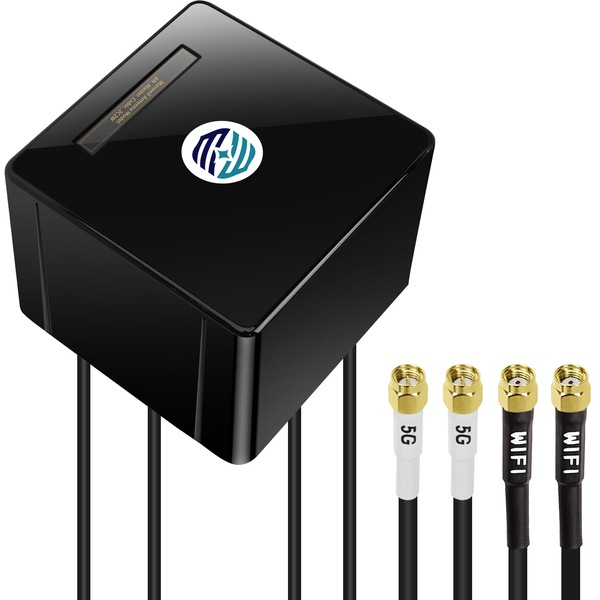

Dimensions: 122mm *122mm*91mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

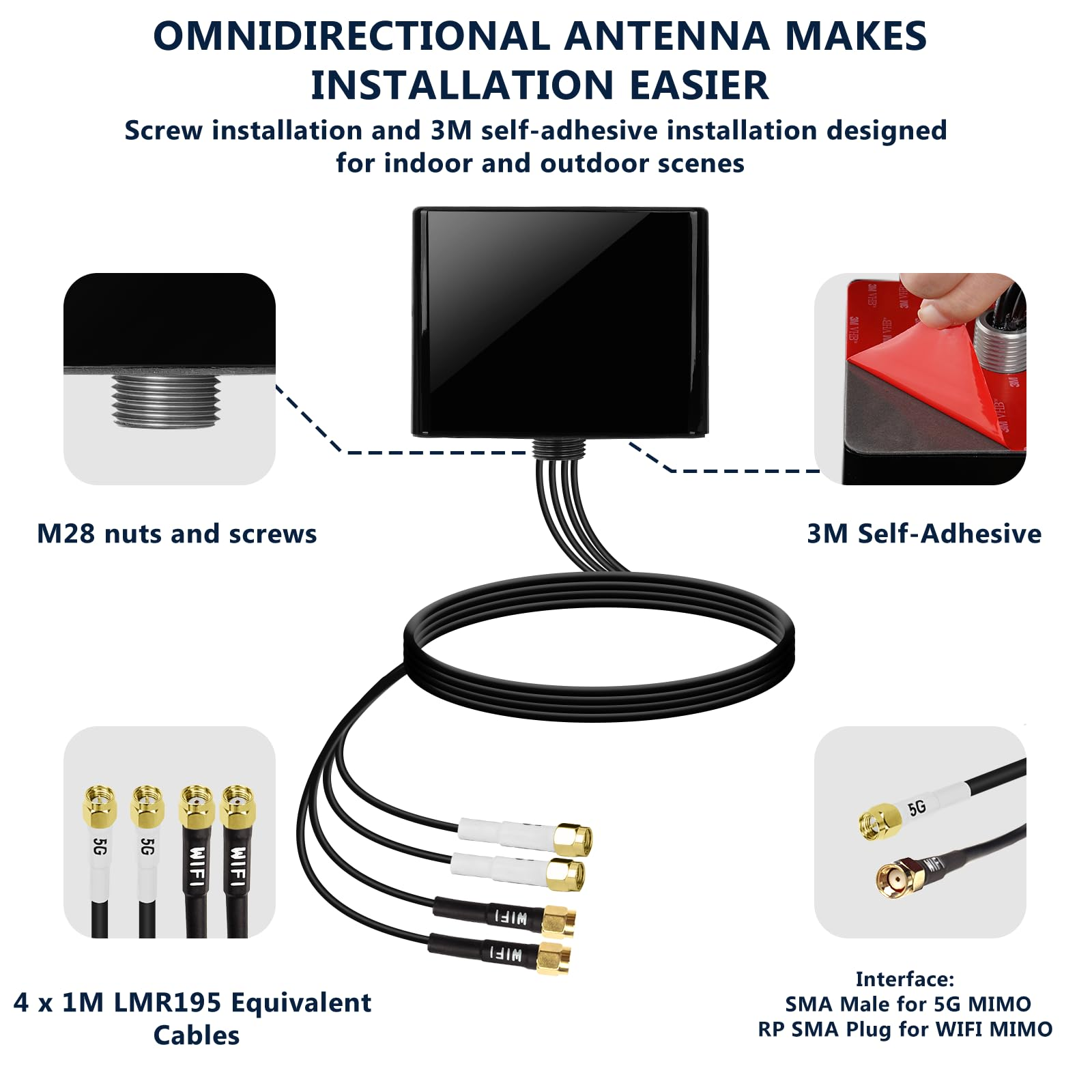

Mounting type: Screw and 3M Adhesive

 Waterproof: IP 67 EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-2017

Cable Length: LMR 195 2m (4 leads)

Connector type: SMA male for 5G 2x2 MIMO 2 Leads

RP SMA plug for WiFi 2x2 MIMO 2 Leads

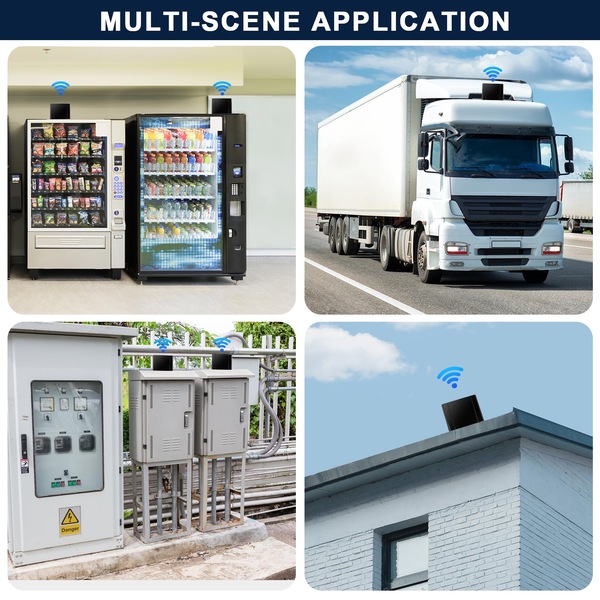

IoT, M2M, CPE, Smart Meters, Routers highly suitable for outdoor installations 24/7!

GTIN: 735942985541
