Specifications:

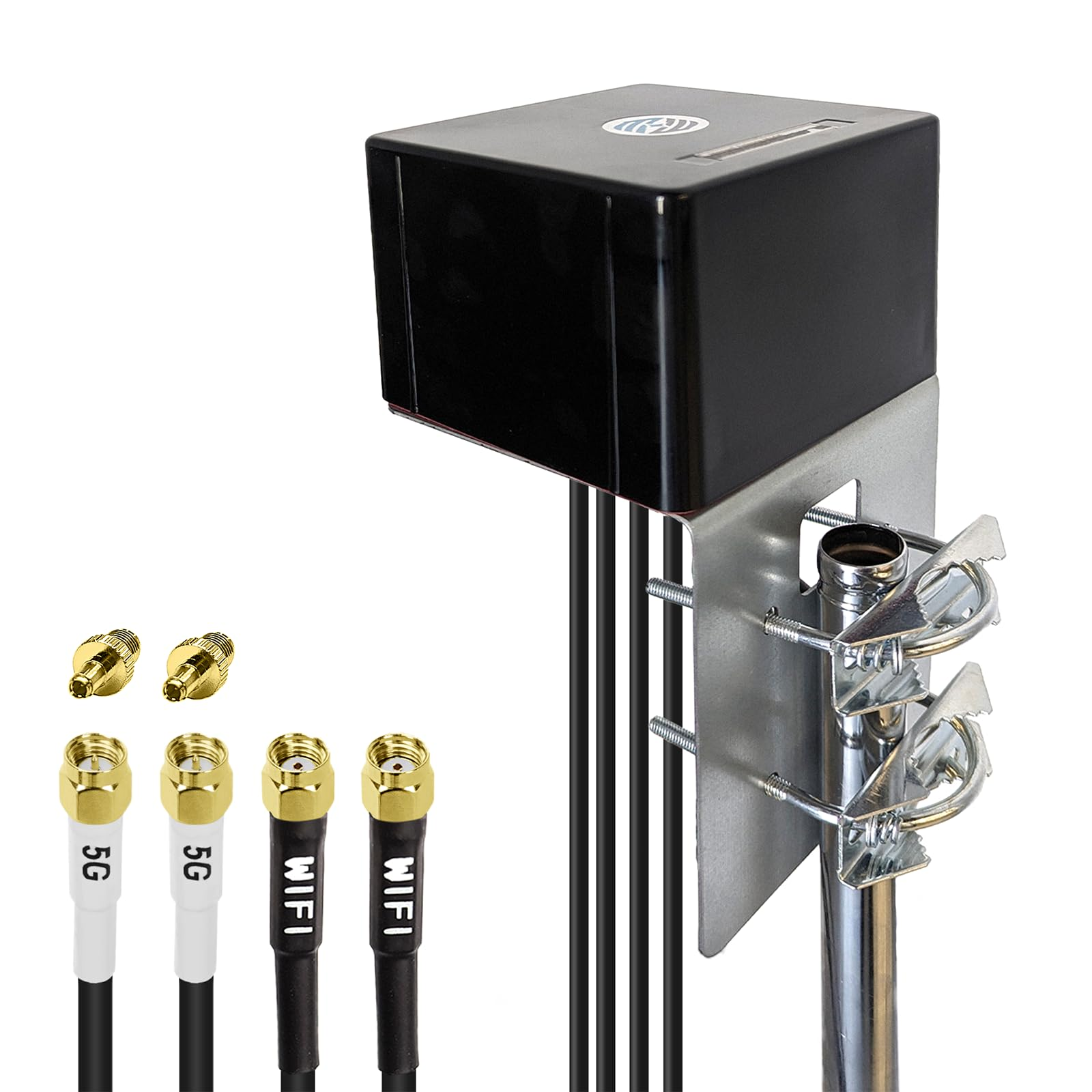

The package contains the antenna plus L shape plate/bracket and U bolts/ screws

• High quality Cellular 2X2 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 600-8
• High quality WiFi 7 WiFi 6E 2X2 MIMO Antenna for WiFi 7 WiFi 6E Bluetooth Zigbee Wimax 2100-8000MHz
• 2 X SMA male connectors leads 2 meters for 5G Cellular 2X RP SMA Plug connector lead 2 meters for WiFi.
• High Gain 6.0 dBi (@20cm) for all your Cellular and WiFi applications, NOT a high gain version.
• 7/24 Operation Capability IP67Waterproof.
• Glossy Black Radome with UV stabilized Capacity

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

Applications:

• GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!

Repeater station system

• Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported

• WiFi routers Bluetooth Wimax Zigbee IoT M2M devices

• For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

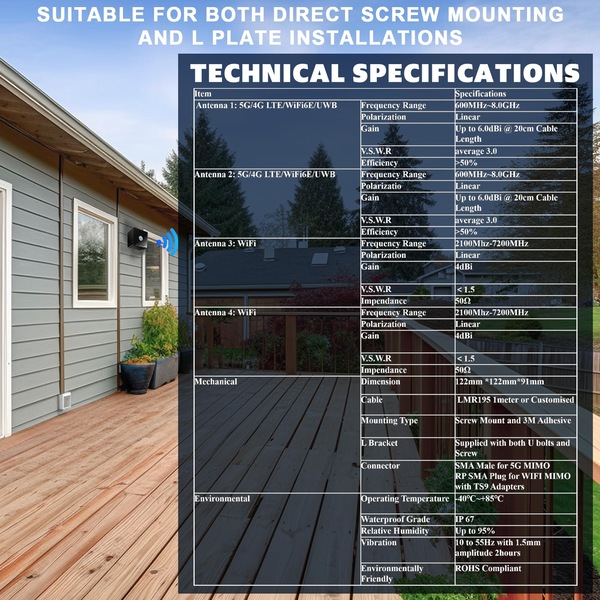

Electric specifications:

Antenna 1~Antenna 2:

Frequency 600-8000MHz

Band Width 7400 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Antenna 3-Antenna 4:

Frequency 2100-7200MHz

Band Width 5100 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

 Mechanical specifications:

Dimensions: 122mm *122mm*91mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

Mounting type: Screw and 3M Adhesive

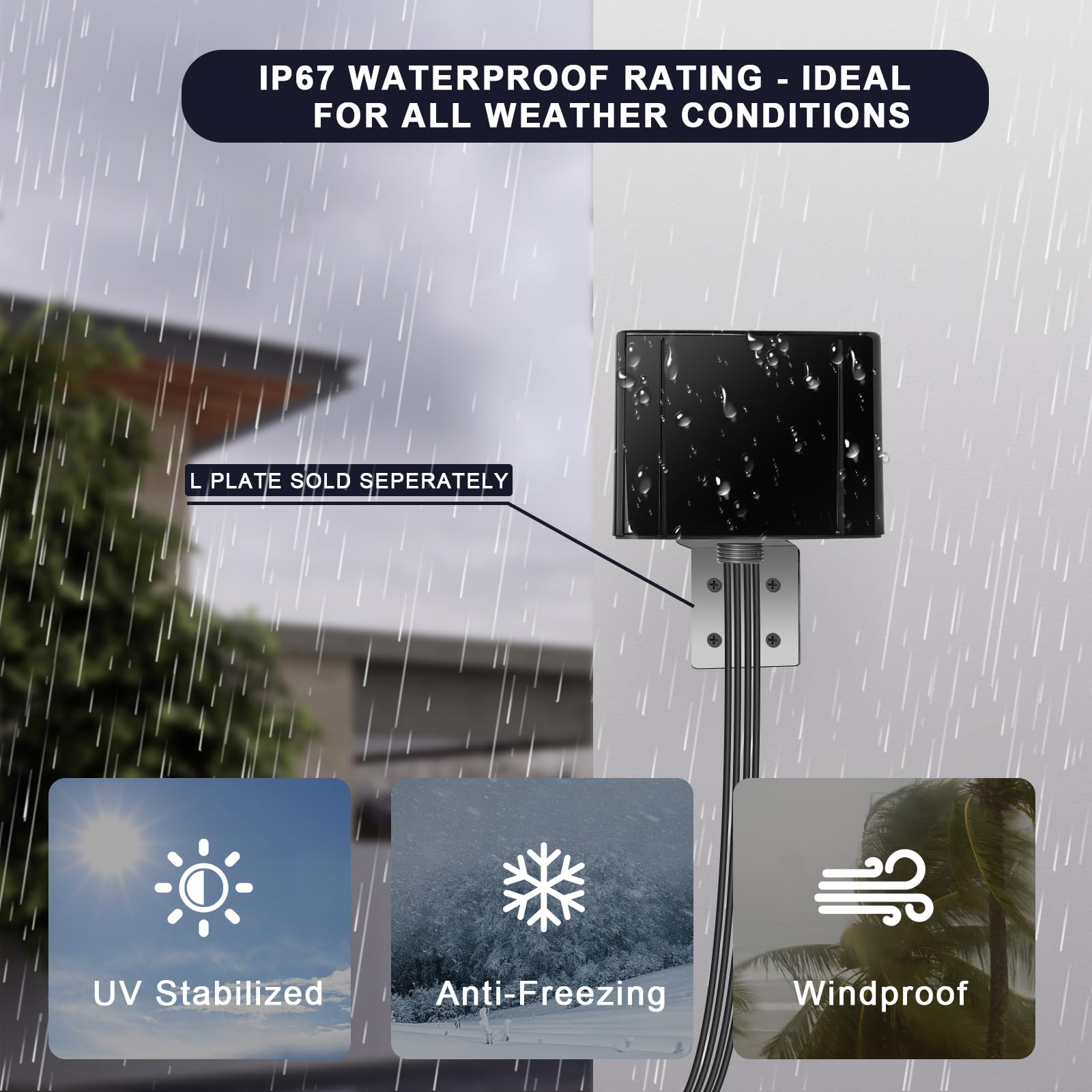

Waterproof: IP 67

EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-2017

Cable Length: LMR 195 2m (4 leads)

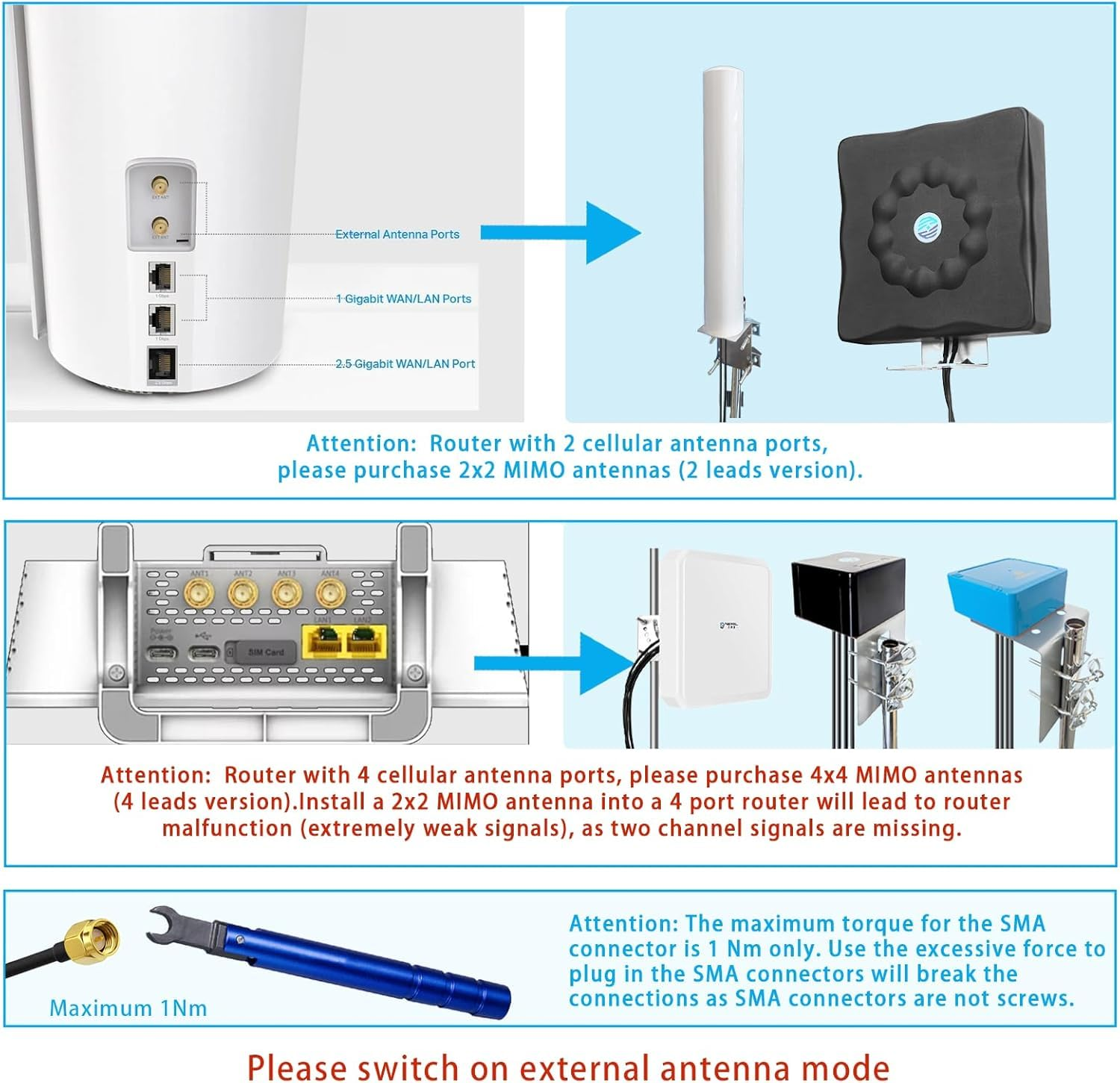

Connector type: SMA male for 5G 2x2 MIMO 2 Leads

RP SMA plug for WiFi 2x2 MIMO 2 Leads
