Description:

 Maswell 5G 2x2 MIMO+WiFi 2x2 MIMO 4 Combo Antenna 4 leads

ITEM ID: AN.AG50.2Cell.2WiFi.40-LP

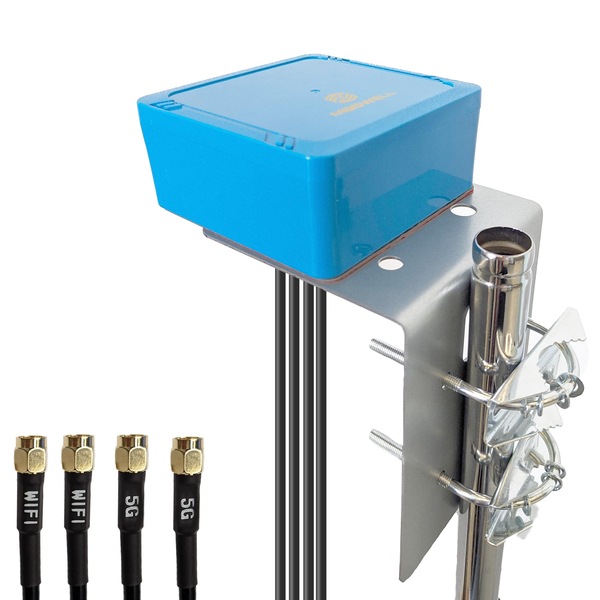

The package includes the antenna and the L bracket and U bolts/Screws

  • High quality Cellular 2X2 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 700-6000Mhz.
  • High quality WiFi 7 WiFi 6E 2X2 MIMO Antenna for WiFi 7 WiFi 6E Bluetooth Zigbee Wimax 2100-8000MHz
  • 2 X SMA male connectors leads 1 meter for 5G Cellular 2X RP SMA Plug connector lead 1 meter for WiFi.
  • Medium 3.0 dBi gain for all your Cellular and WiFi applications, NOT a high gain version.
  • 7/24 Operation Capability IP66 Waterproof.

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

 Vodafone: ALL 5G 4G LTE 3G Supported

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

Specifications:

Applications:

GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!

Repeater station system

Long distance telecommunication

Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported

WiFi routers Bluetooth Wimax Zigbee IoT M2M devices

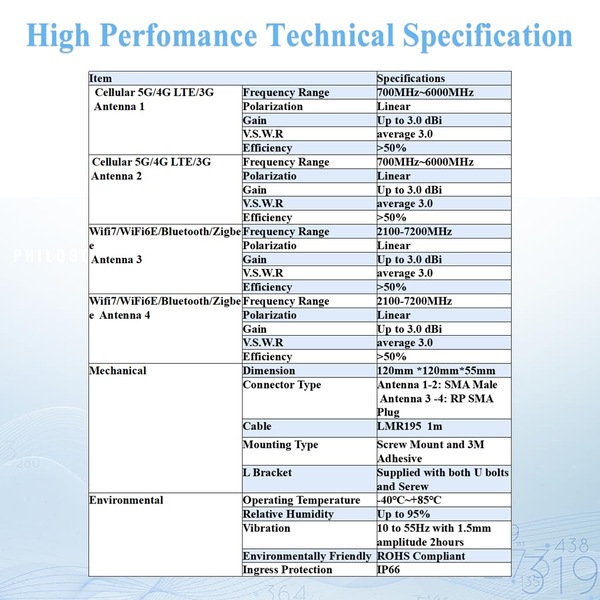

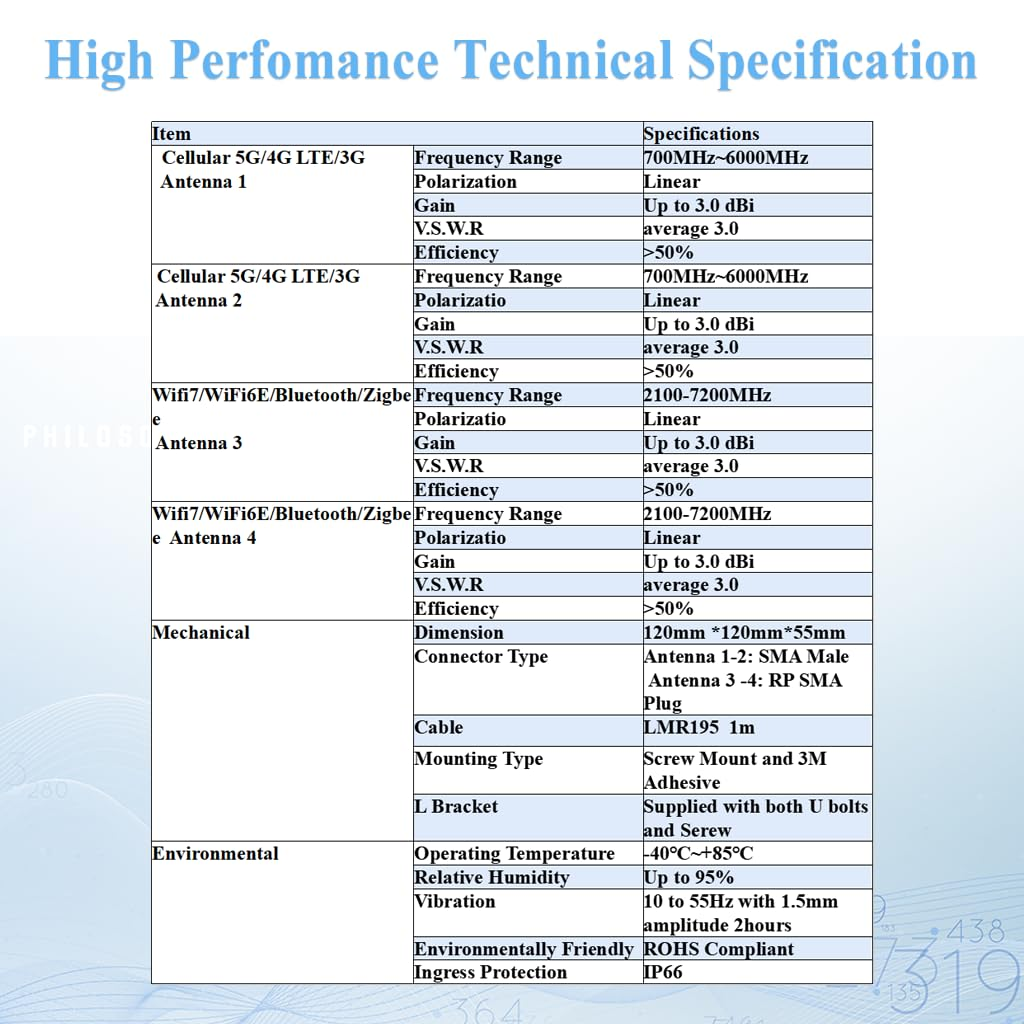

Electric specifications:

Antenna 1-Antenna 2:

Frequency 700-6000MHz

Band Width 5300 MHz

Gain 3dBi medium gain (NOT high gain)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Antenna 3-Antenna 4:

Frequency 2100-7200MHz

Band Width 5100 MHz

Gain 3dBi medium gain (NOT high gain)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

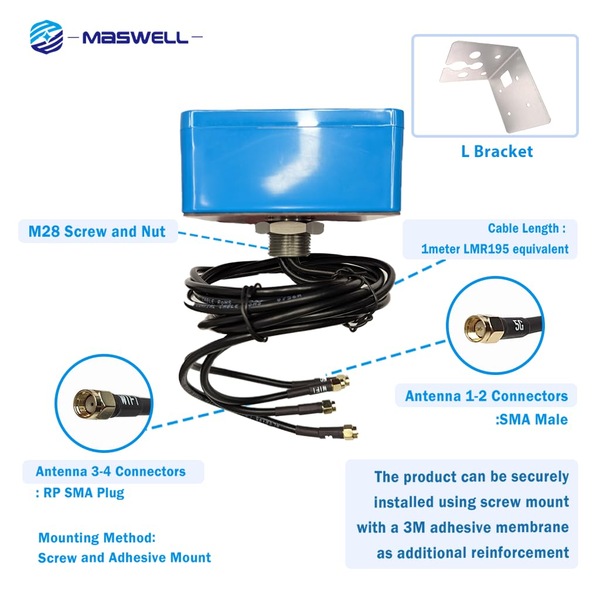

Mechanical specifications:

Dimensions: 120mm *120mm*55mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

Mounting type: Screw and 3M Adhesive

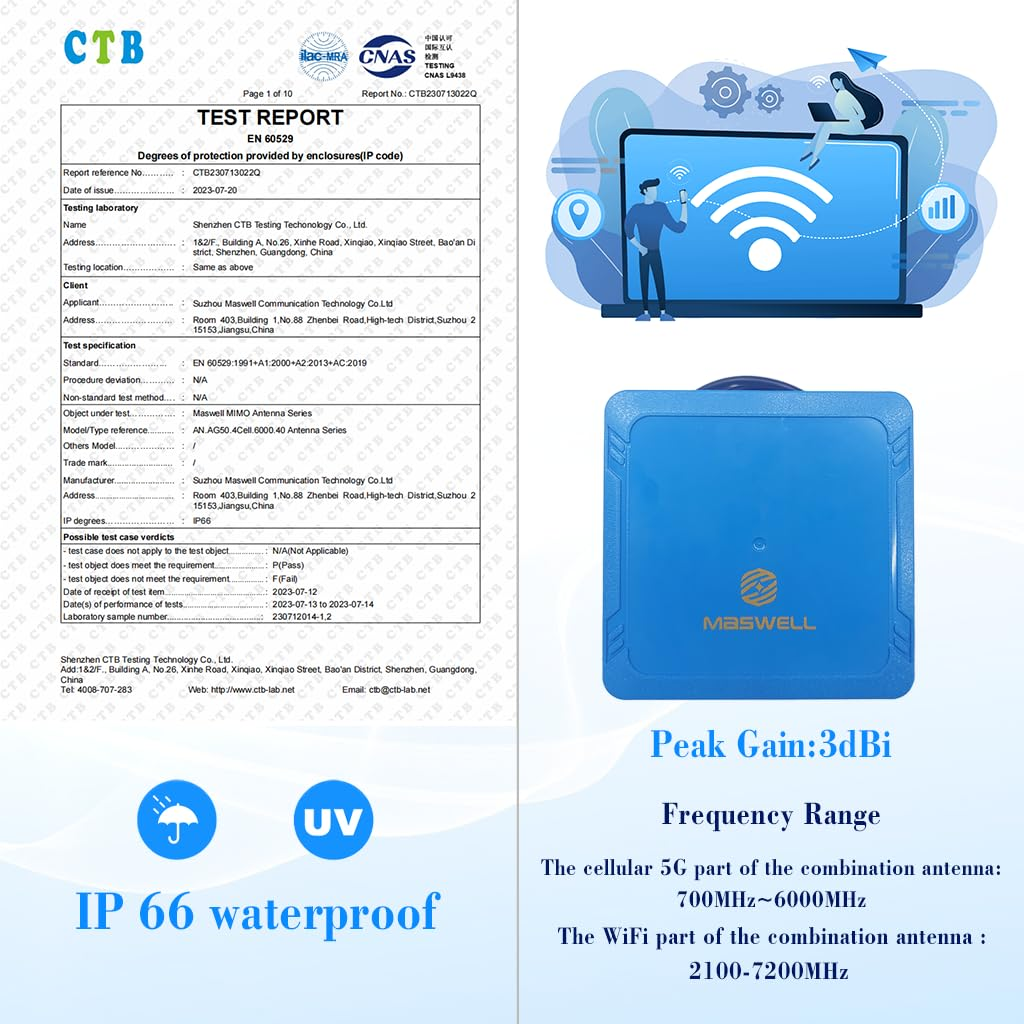

Waterproof: IP 66

EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 66 Standard PASSED: GB/T4208-2017

 Cable Length: LMR 195 1m (4 leads)

Connector type: SMA male for 5G 2leads and RP SMA Plug for WiFi 2 leads

  • Outdoor screw mount antenna for GSM/3G/4G/5G signal reception with 2X2 MIMO
  • WiFi7 Bluetooth Zigbee with 2X2 MIMO signal reception
  • Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.
  • 7/24 Operation Capability

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

WiFi 7 WiFi 6E at 7.125GHz Supported

GTIN: 735942986050
