Specifications:

Brand Name Maswell

AN_Master_Cubic_4C -LP is a design project supervised by Australia Charted Engineer.

• High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G WiFi 6E signal boosting antenna 600-8000Mhz.
• 4 X SMA male connectors leads.
• High Gain 6.0 dBi (at 20cm cable length) for all your Cellular and WiFi 6E/WiFi 7 applications
• IP67 Waterproof 7/24 Operation Capability
• Glossy Black Radome with UV Stabilized Capacity

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

WiFi: WiFi 2.4GHz WiFi 5GHz WiFi 6, WiFi 6E at 7.125GHz WiFi 7 All Supported (adapter may be required)

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

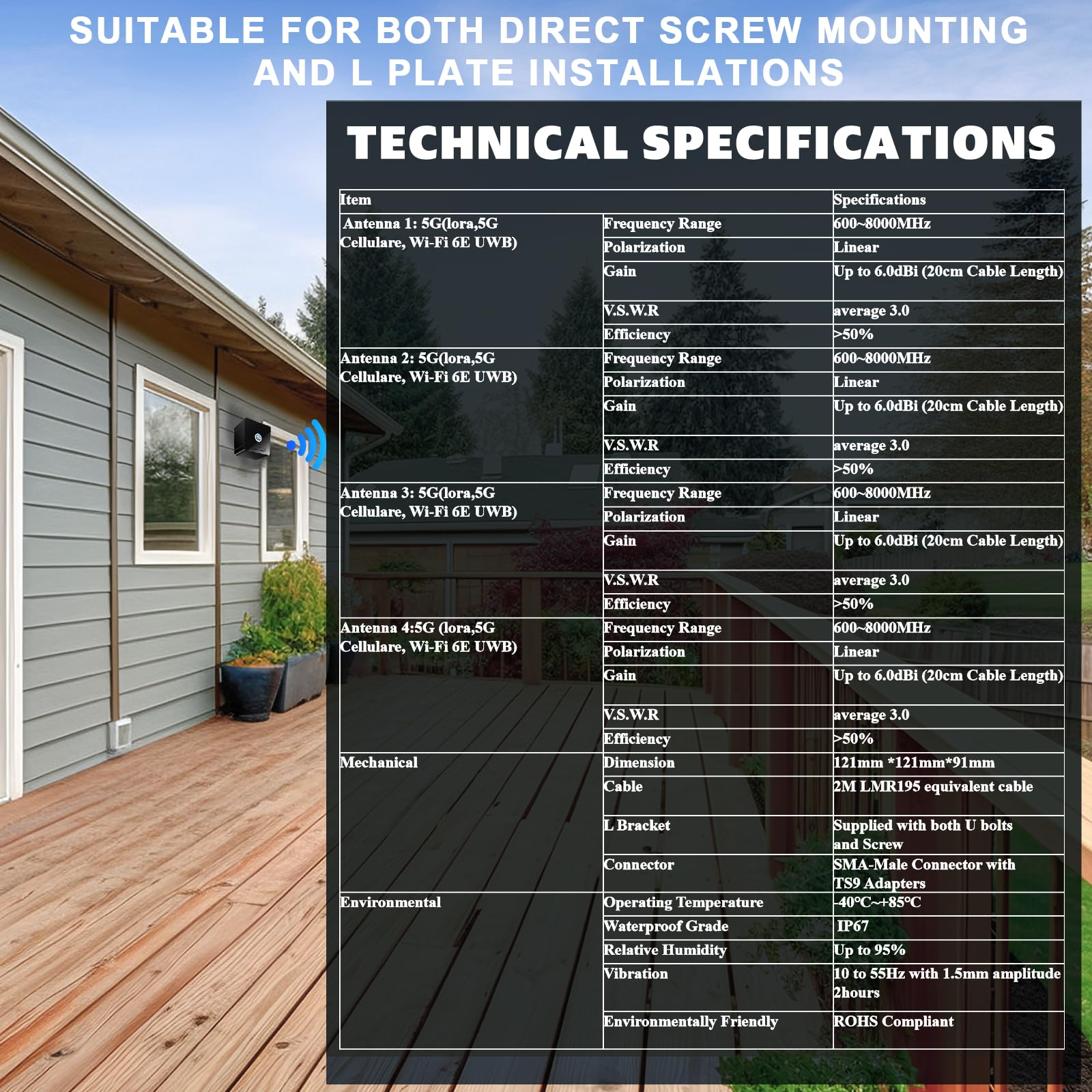

Electric specifications:

 Antenna 1~Antenna 4:

Frequency 600-8000MHz

Band Width 7400 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Mechanical specifications:

Dimensions: 122mm *122mm*91mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

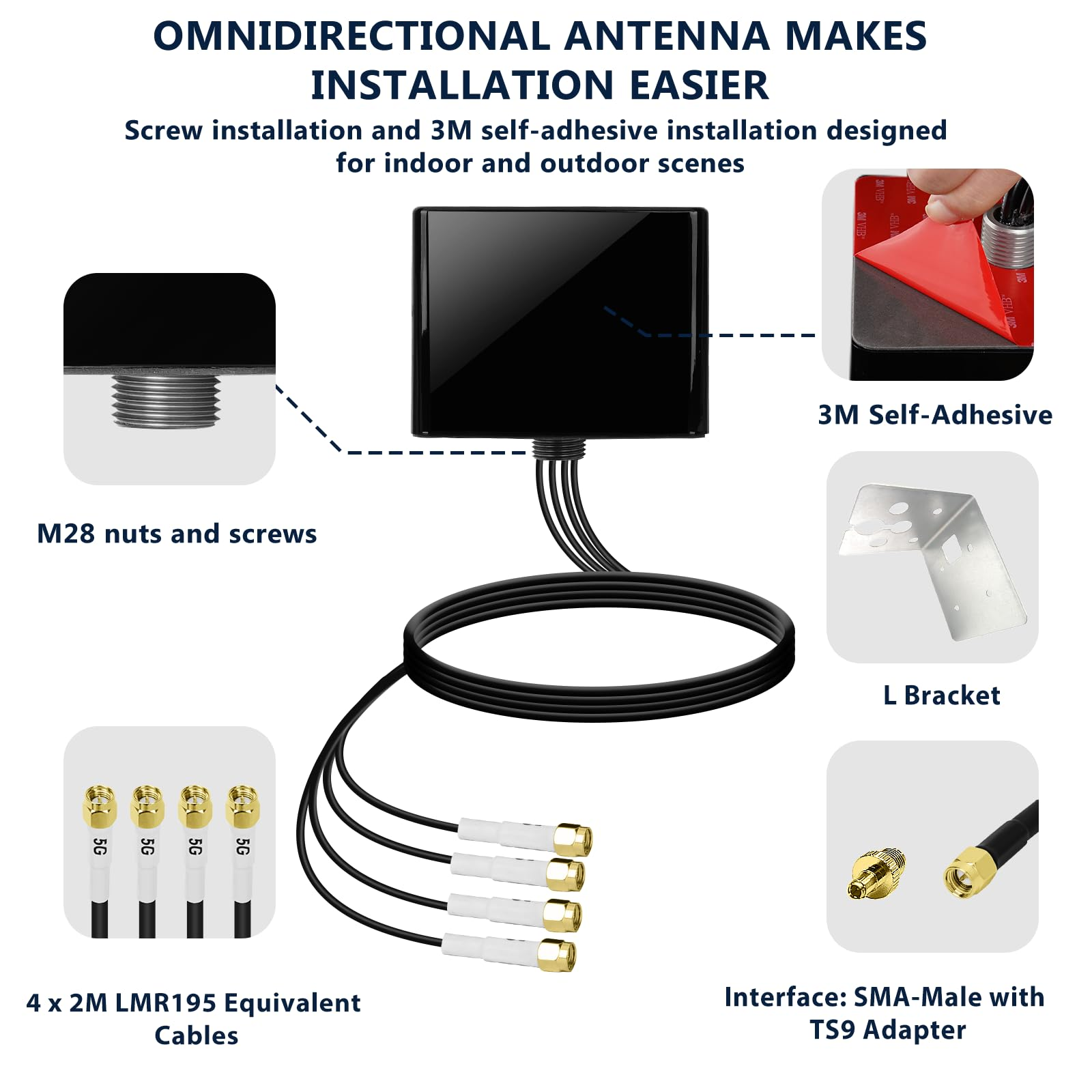

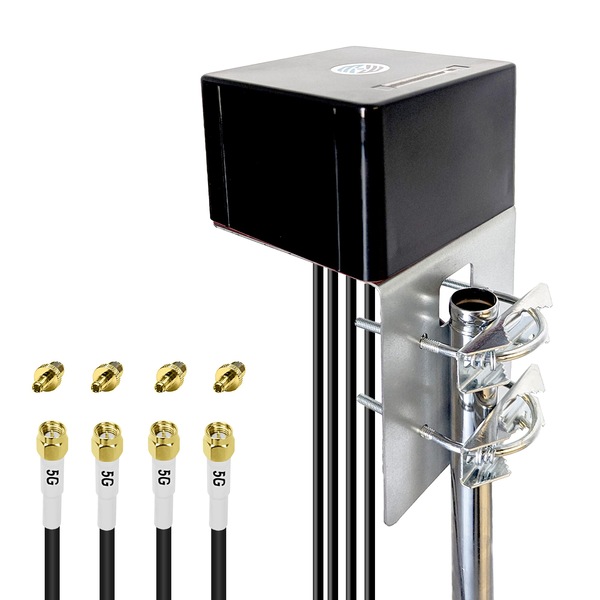

Mounting type: Screw and 3M Adhesive plus L plate mount supplied for U bolt mount

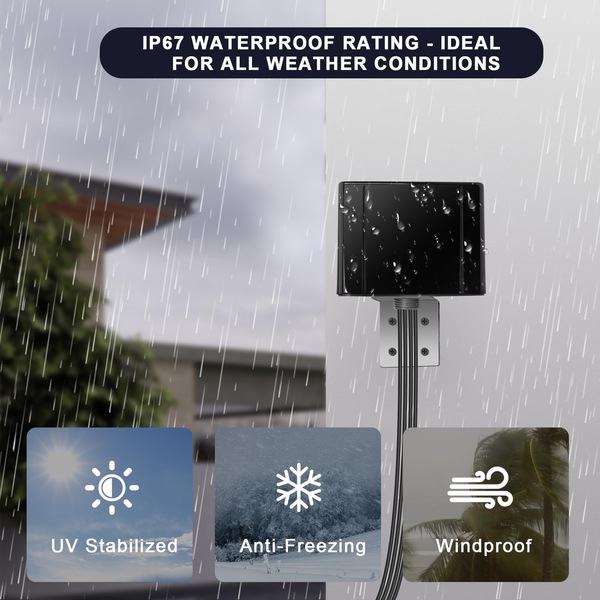

Waterproof: IP 67 EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-2017

Cable Length: LMR 195 2m (4 leads)

Connector type: SMA male for ALL 4 leads

• Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO

• Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.

• 7/24 Operation Capability

• Telstra: ALL 5G 4G LTE 3G Supported

• Optus: ALL 5G 4G LTE 3G Supported

• Vodafone: ALL 5G 4G LTE 3G Supported
