ITEM ID:AN.AG50.4Cell.6000.40

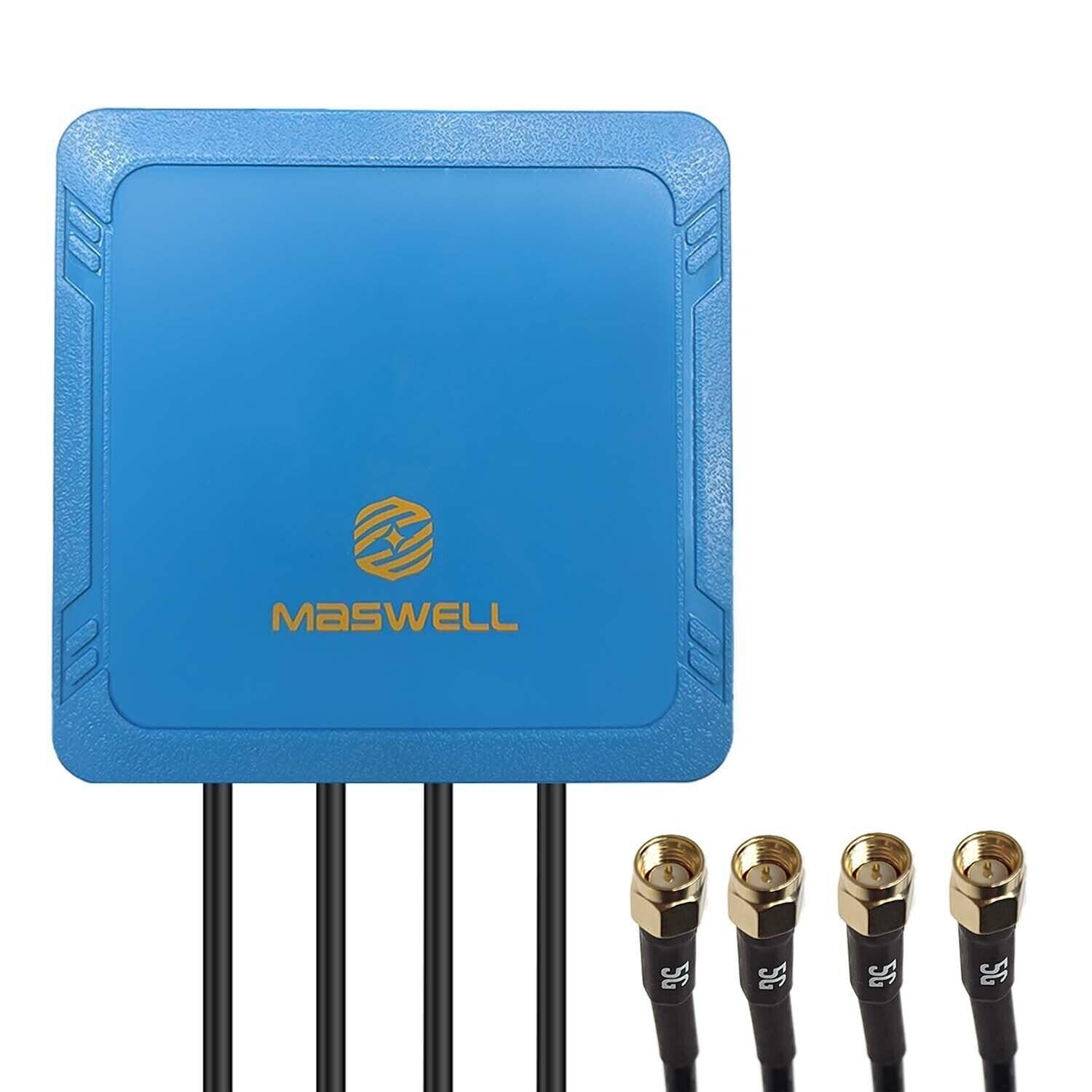

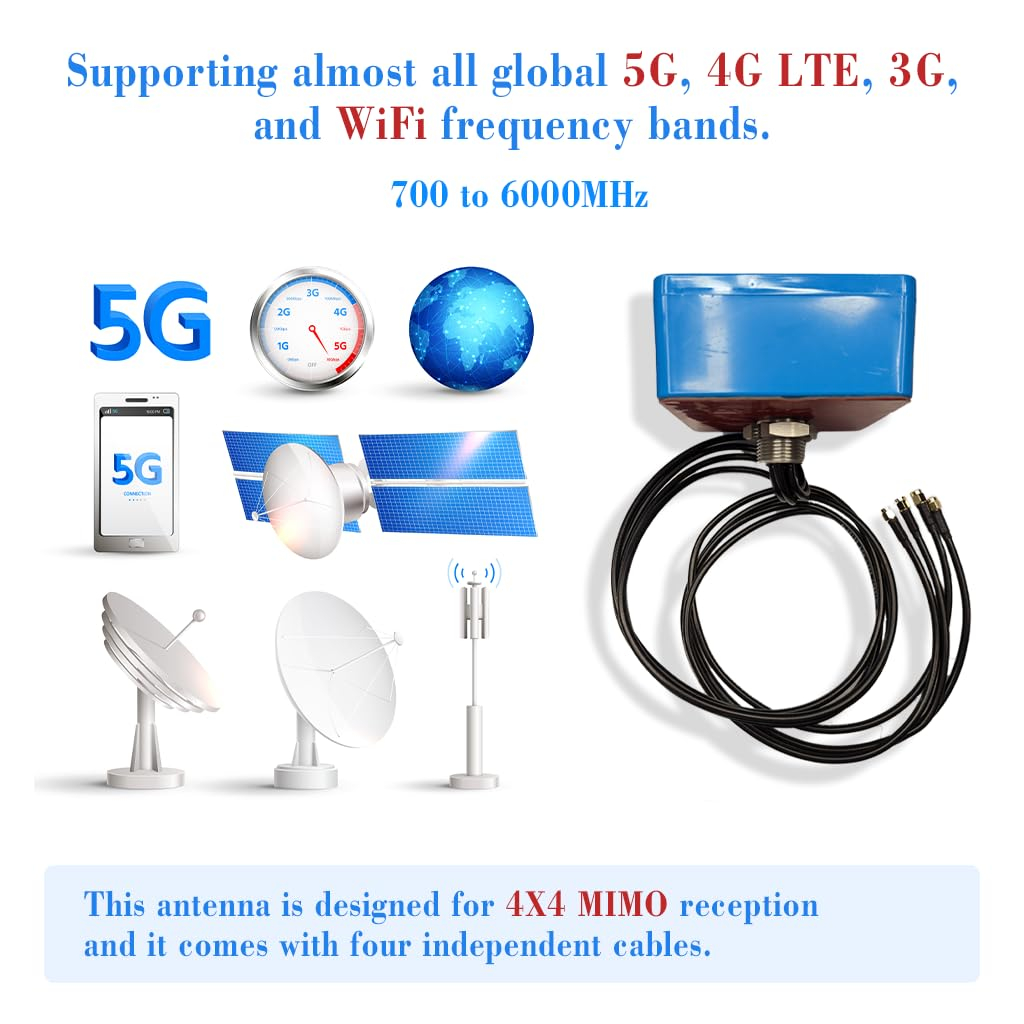

High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 700-6000Mhz.
4 X SMA male connectors leads.
Medium 3.0 dBi gain for all your Cellular and wifi applications, NOT a high gain version.
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
 Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Applications:
GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!
Repeater station system
Long distance telecommunication
Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported

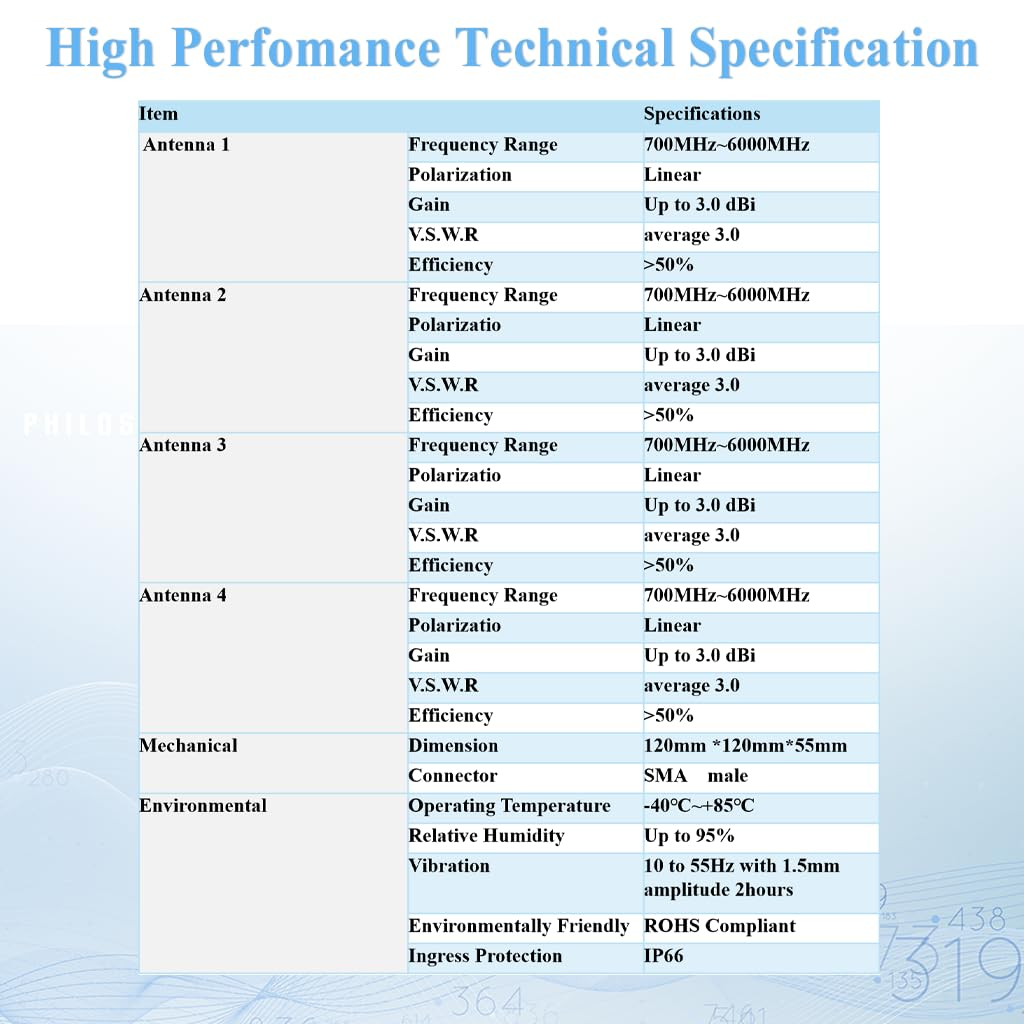

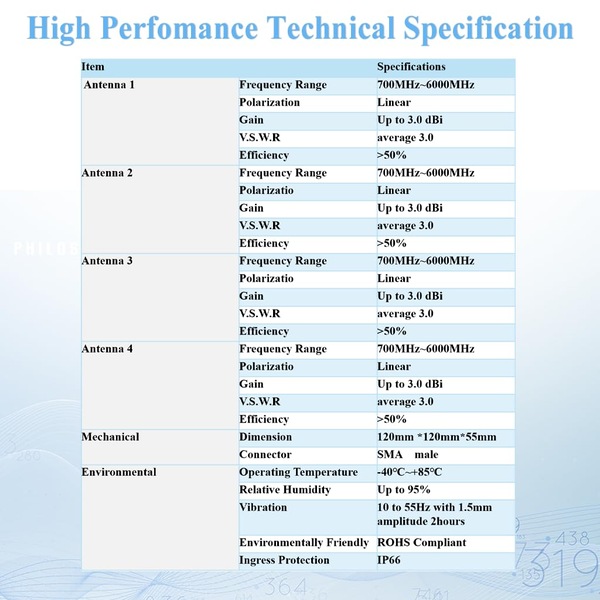

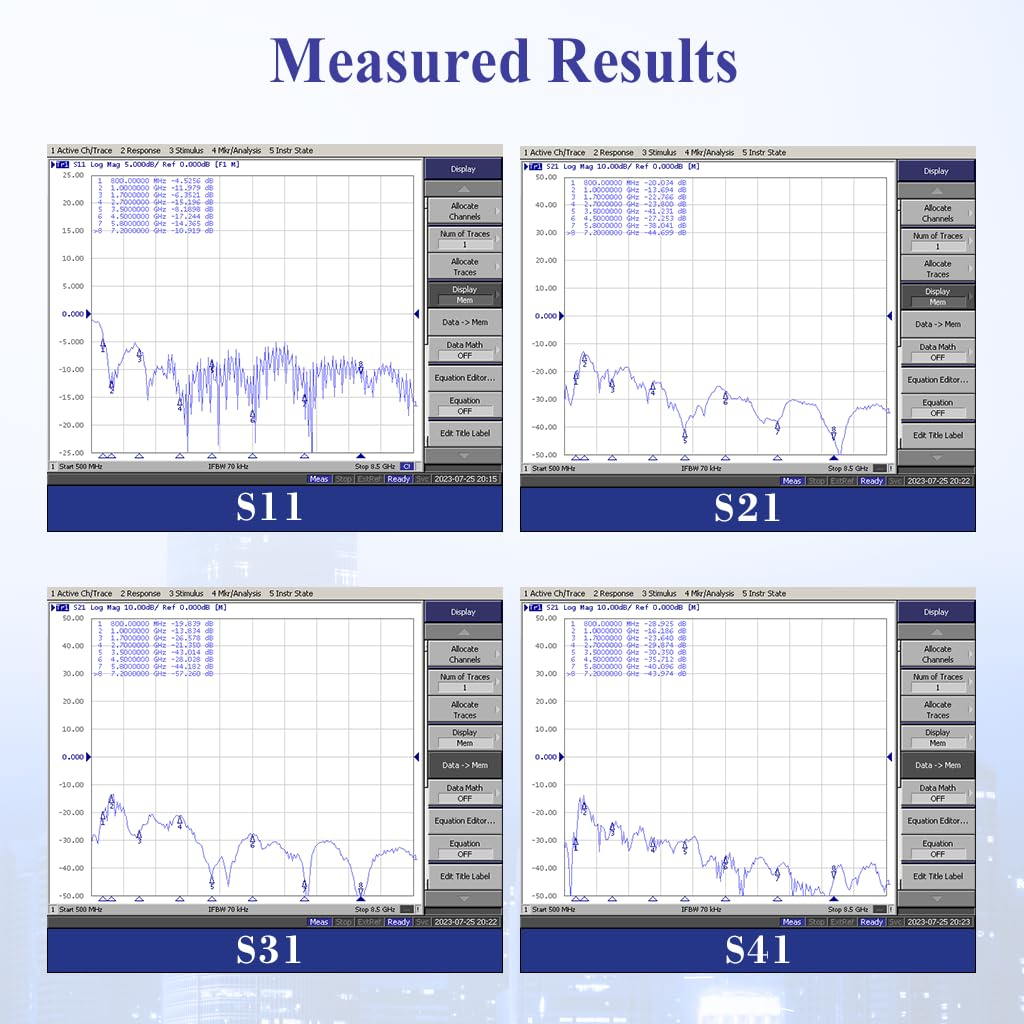

Electric specifications:
Antenna 1~Antenna 4:
Frequency 700-6000MHz
Band Width 5300 MHz
Gain 3dBi medium gain (NOT high gain)
V.S.W.R ≤2
Input Impendence 50 ohmÂ
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Mechanical specifications:
Dimensions: 120mm *120mm*55mm
Working Temp -40Degrees Celsius~+85Degrees Celsius

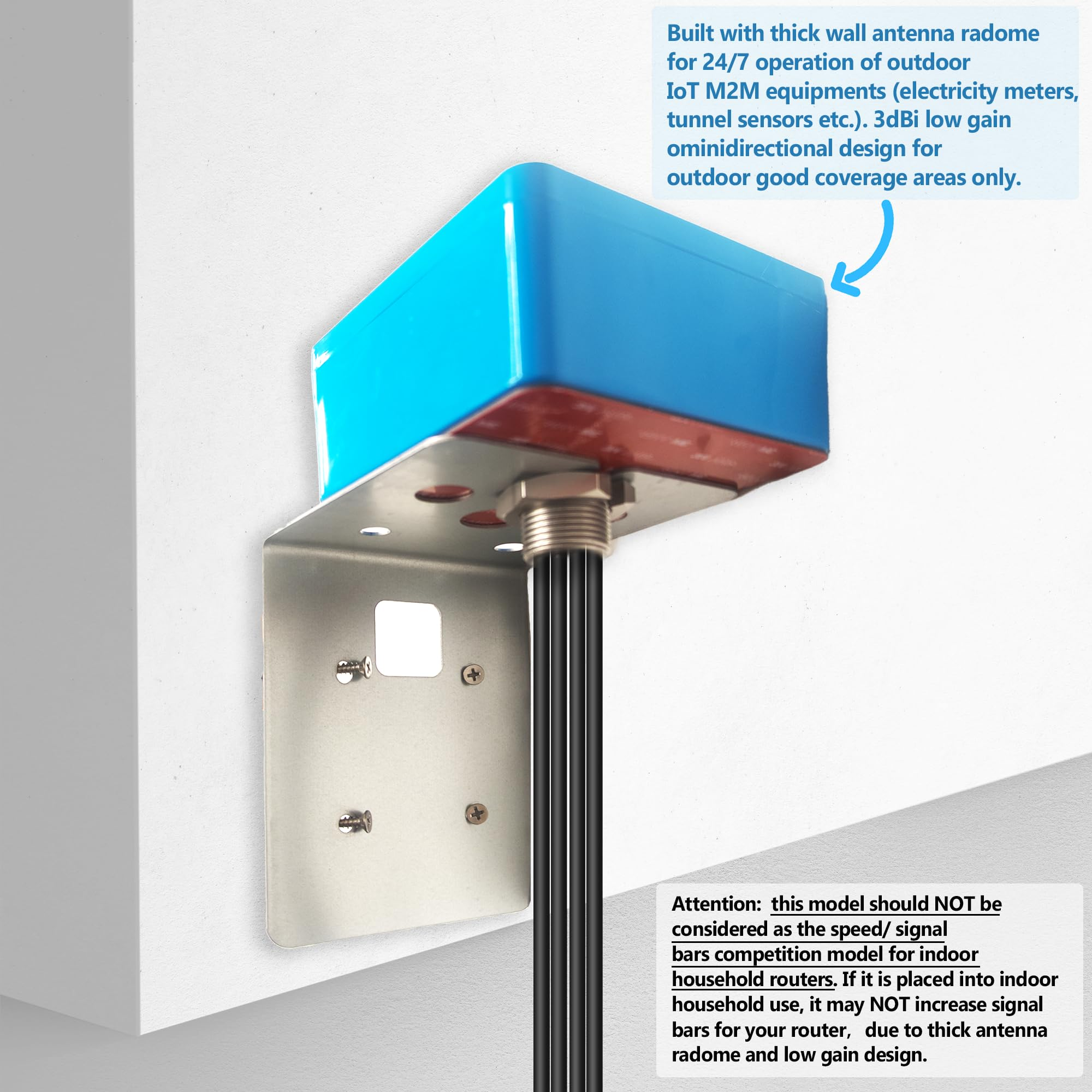

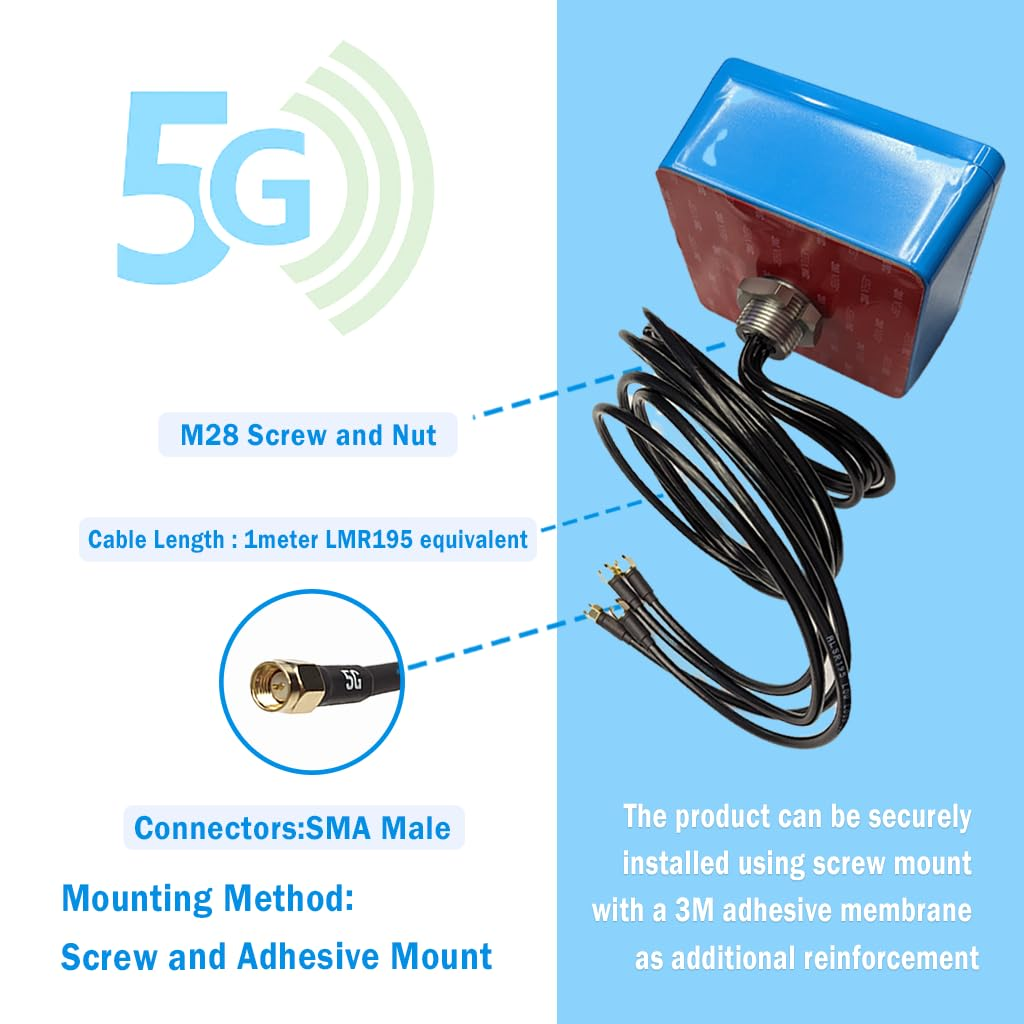

Mounting type: Screw and 3M Adhesive
Waterproof: IP 66

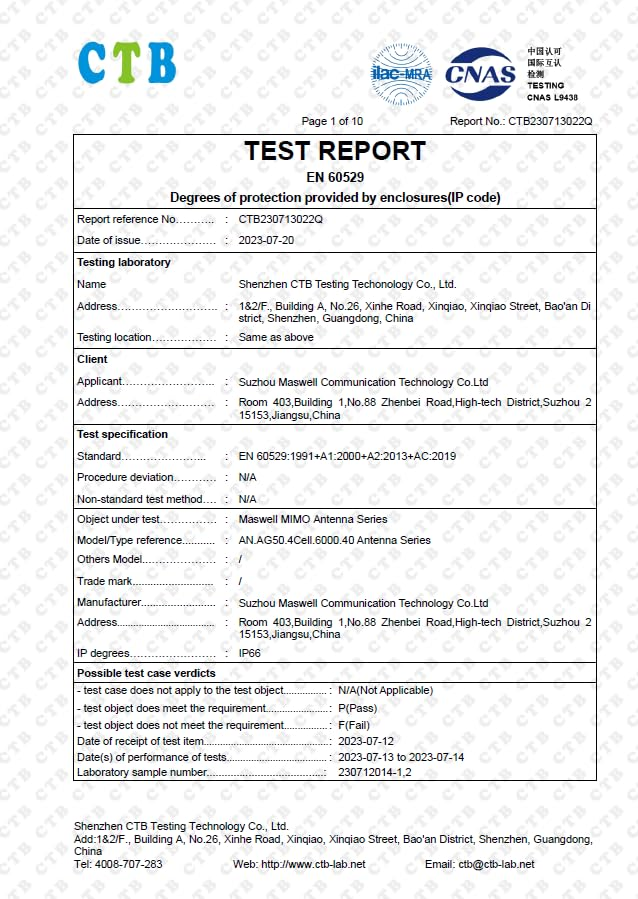

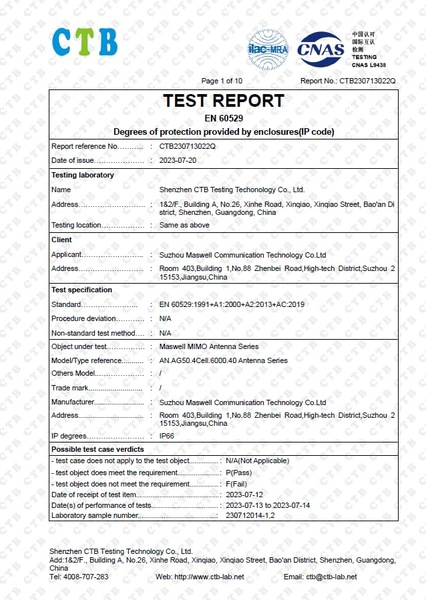

EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019Â
China IP 66 Standard PASSED: GB/T4208-2017
Cable Length: LMR 195 1m (4 leads)
Connector type: SMA male for ALL 4 leads
Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO
Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
 Vodafone: ALL 5G 4G LTE 3G Supported
GTIN: 735942985367
