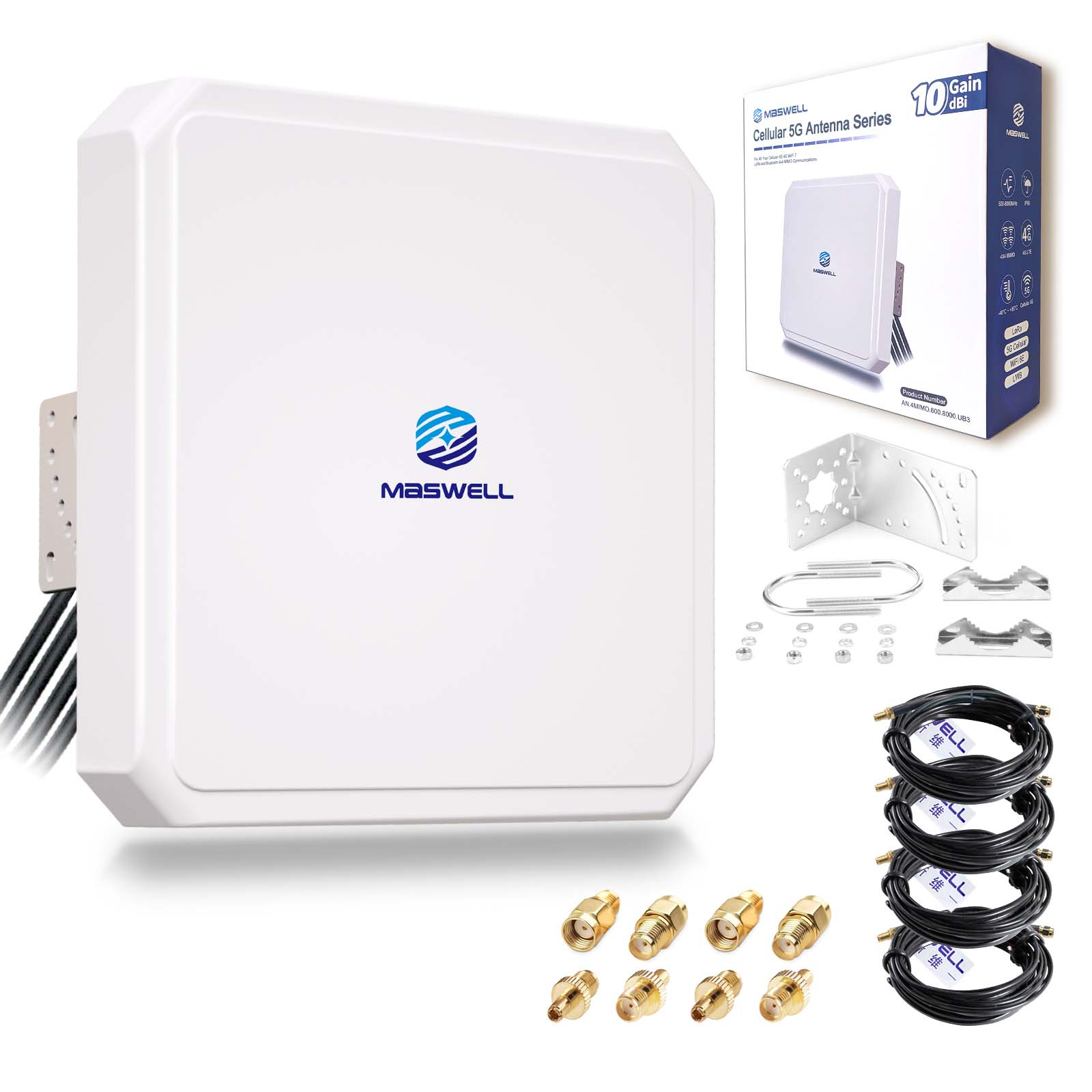

Cellular 5G 4G LTE Panel Antenna 4X4 MIMO 600-8000 MHz WIFI7 UWB TS9 & SMA Male

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 1 items left!
$320

Collect 320 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

Brand Name: MASWELL

ITEM ID:AN.4MIMO.600.8000.UB3

High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 600-8000Mhz.

  • All TS9, SMA male and RP SMA plug supported

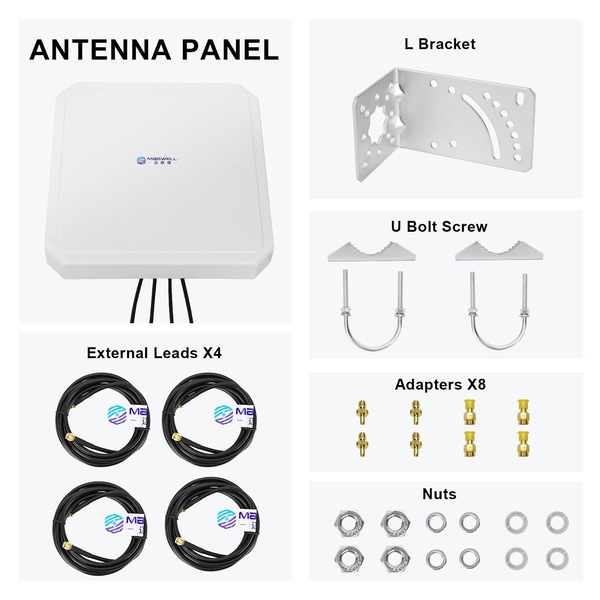

  • 4 X SMA male connectors leads, 4 TS9 adapters and 4 RP SMA plug Adapters.
  • High Gain 10.0 dBi gain for all your Cellular and wifi applications.
  • All WiFi bands supported WiFi Halow WiFi 2.4 GHz and WiFi 7 at 7.125GHz.
  • 7/24 Operation Capability

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

For all your Nighthawk 5G router series, Huawei CPE, ZTE 5G Routers and All WiFi 7 routers

Specifications:

Applications:

GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!

Repeater station system

Long distance telecommunication

Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported for Mobile Routers

WiFi7 Routers

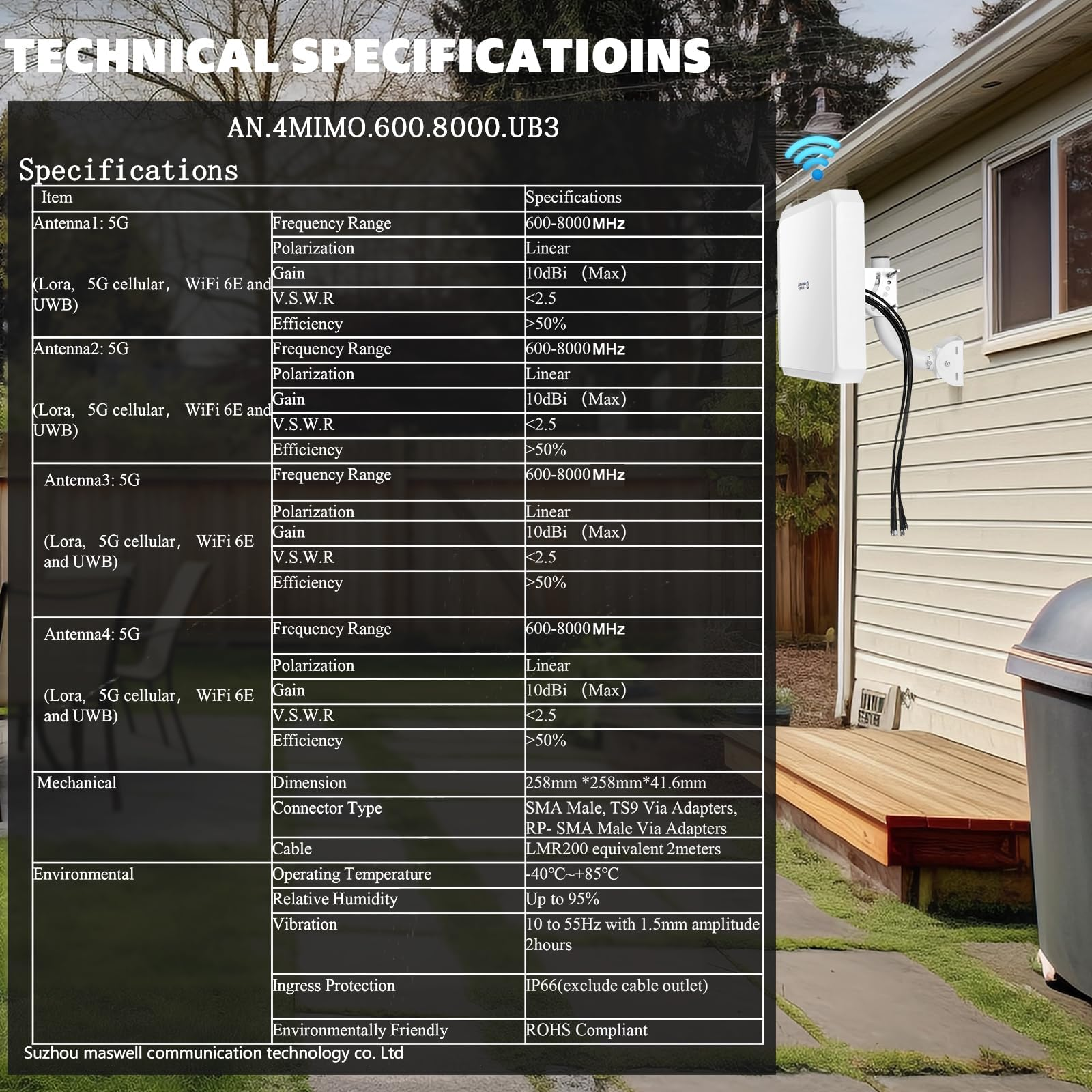

Electric specifications:

Antenna 1~Antenna 4:

Frequency 600-8000MHz
Band Width 7300 MHz

Gain 10 dBi high gain

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Connector: SMA male, TS9 and RP SMA Plug

Mechanical specifications:

Dimensions: 260mm *260mm*46mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

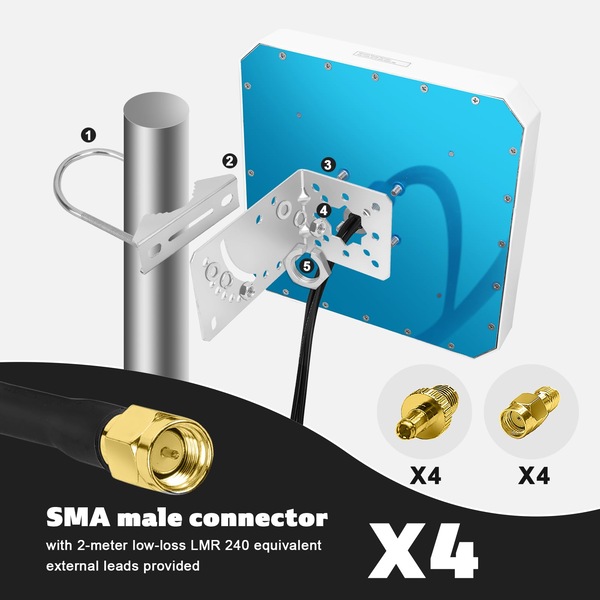

Mounting type: Screw U bolt installation (Bracket included)

Waterproof: IP 66

EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 66 Standard PASSED: GB/T4208-2017

Cable Length: LMR 200 2m (4 leads)

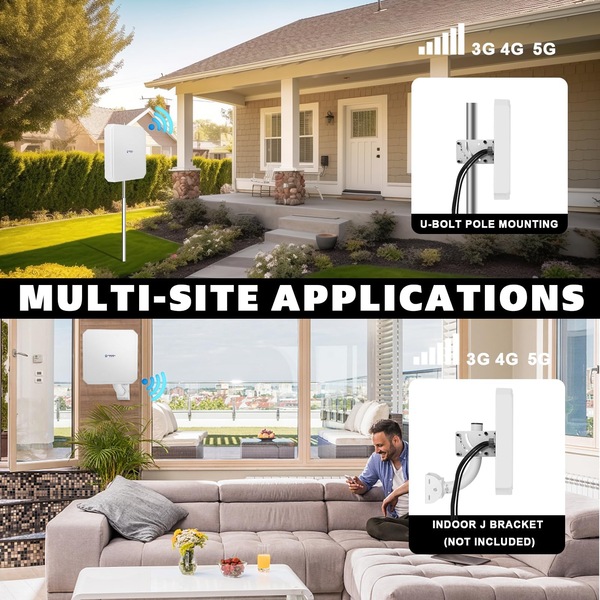

Outdoor U bolt screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO

Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and WiFi 7.

Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone

Each Leads suitable for 5G 4G 3G and WiFi 7 applications.

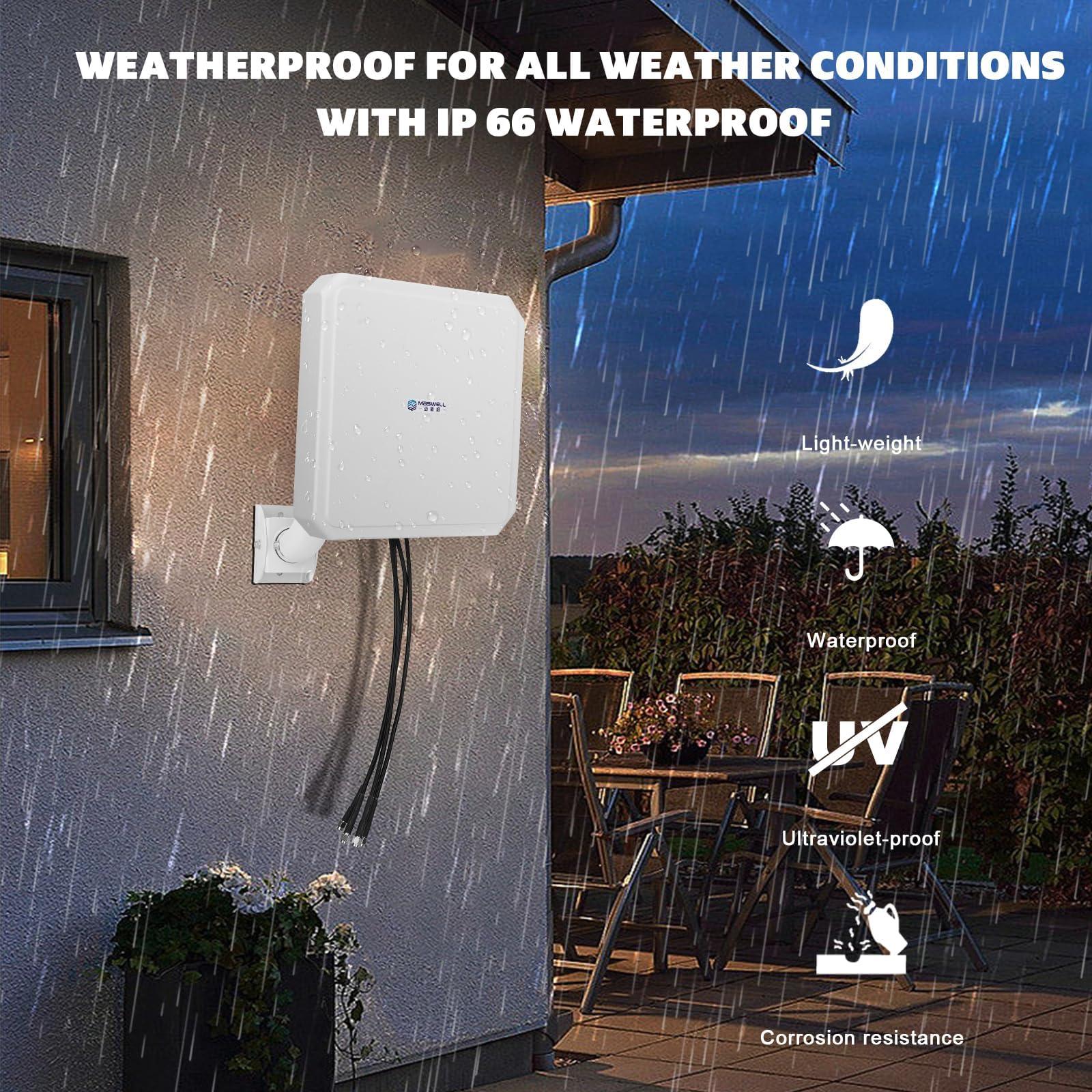

IP66 Waterproof for Outdoor applications.

GTIN: 735942985435
