Cellular 5G Antenna 4X4 MIMO 4G LTE 700-6000 MHz Omni WIFI6 M2M IoT L Plate included

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 1 items left!
$179.99

Collect 179 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

ITEM ID:AN.AG50.4Cell.6000.40-LP

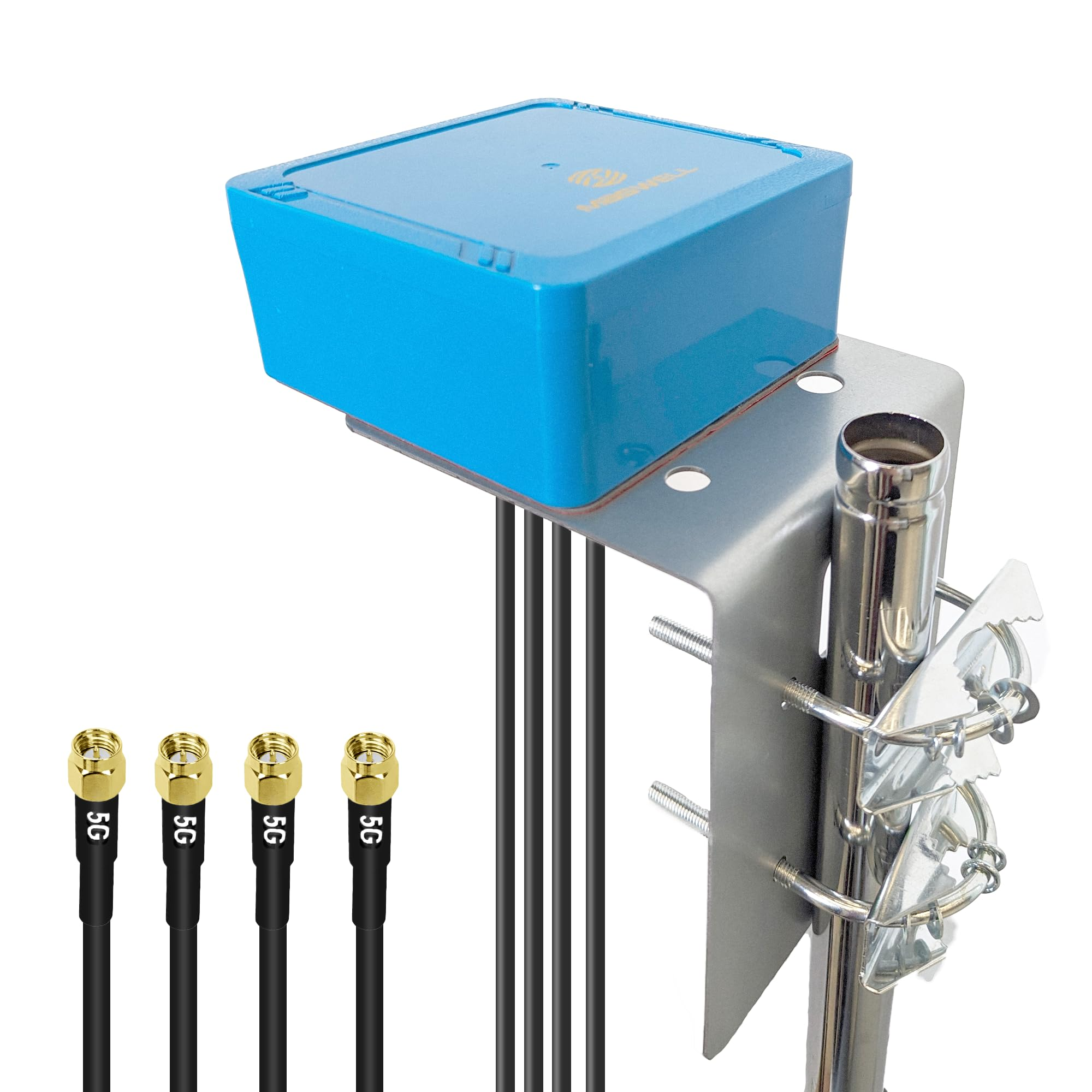

This version includes both the antenna and L plate bracket, U bolts, screws for pole installation.

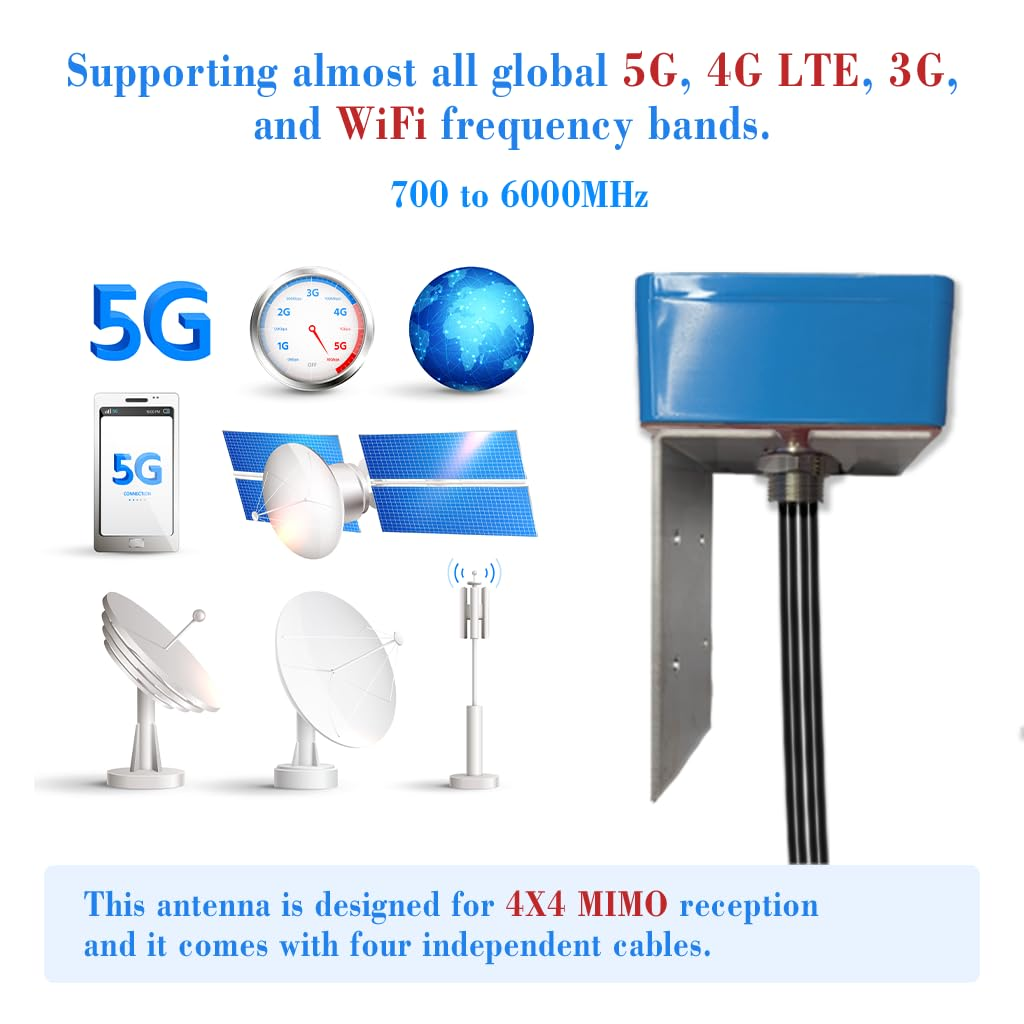

  • High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 700-6000Mhz.
  • 4 X SMA male connectors leads.
  • Medium 3.0 dBi gain for all your Cellular and wifi applications, NOT a high gain version.
  • 7/24 Operation Capability

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

Specifications:

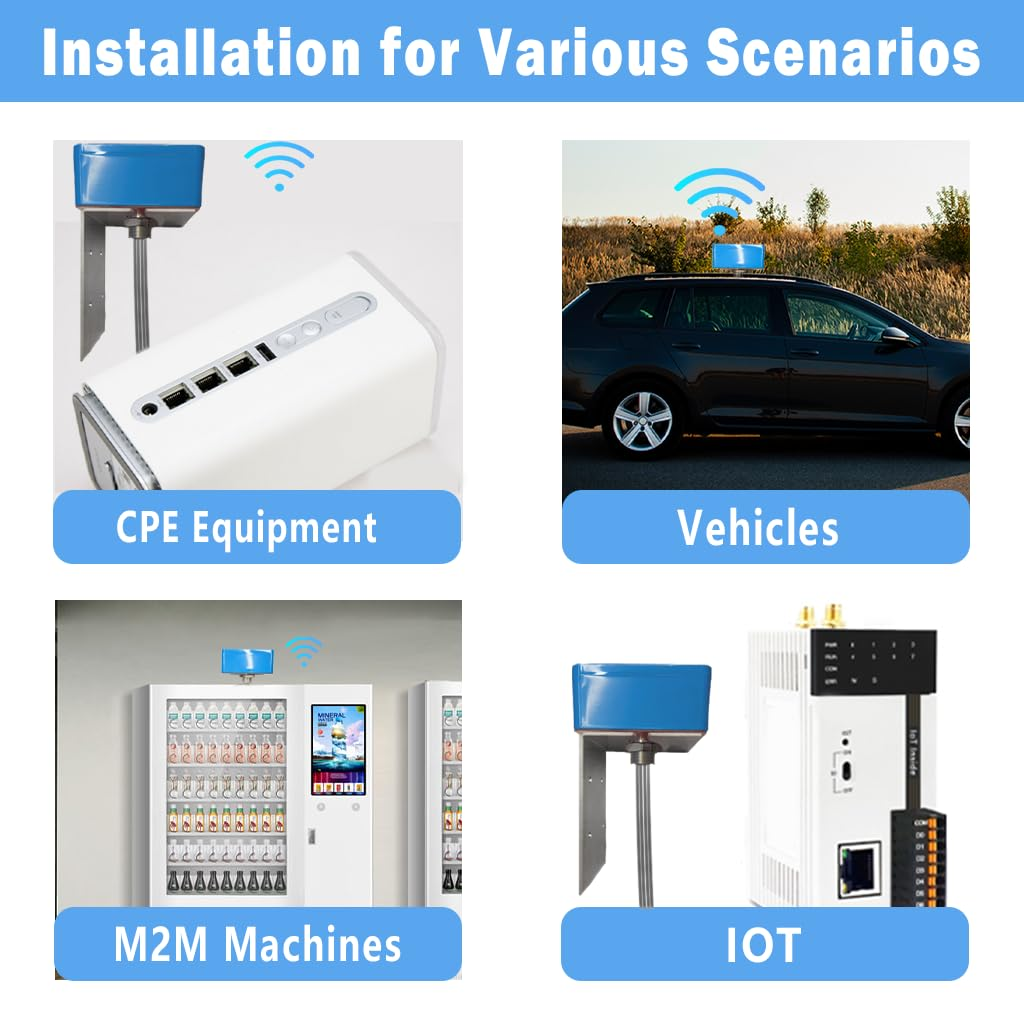

Applications:

GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!

Repeater station system

Long distance telecommunication

Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported

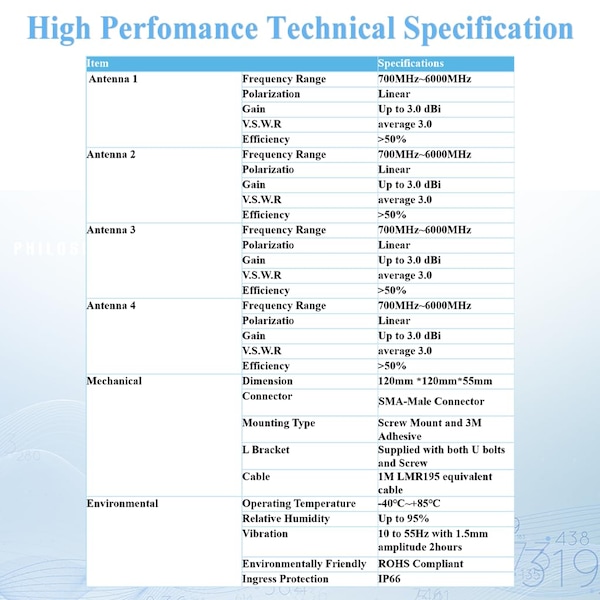

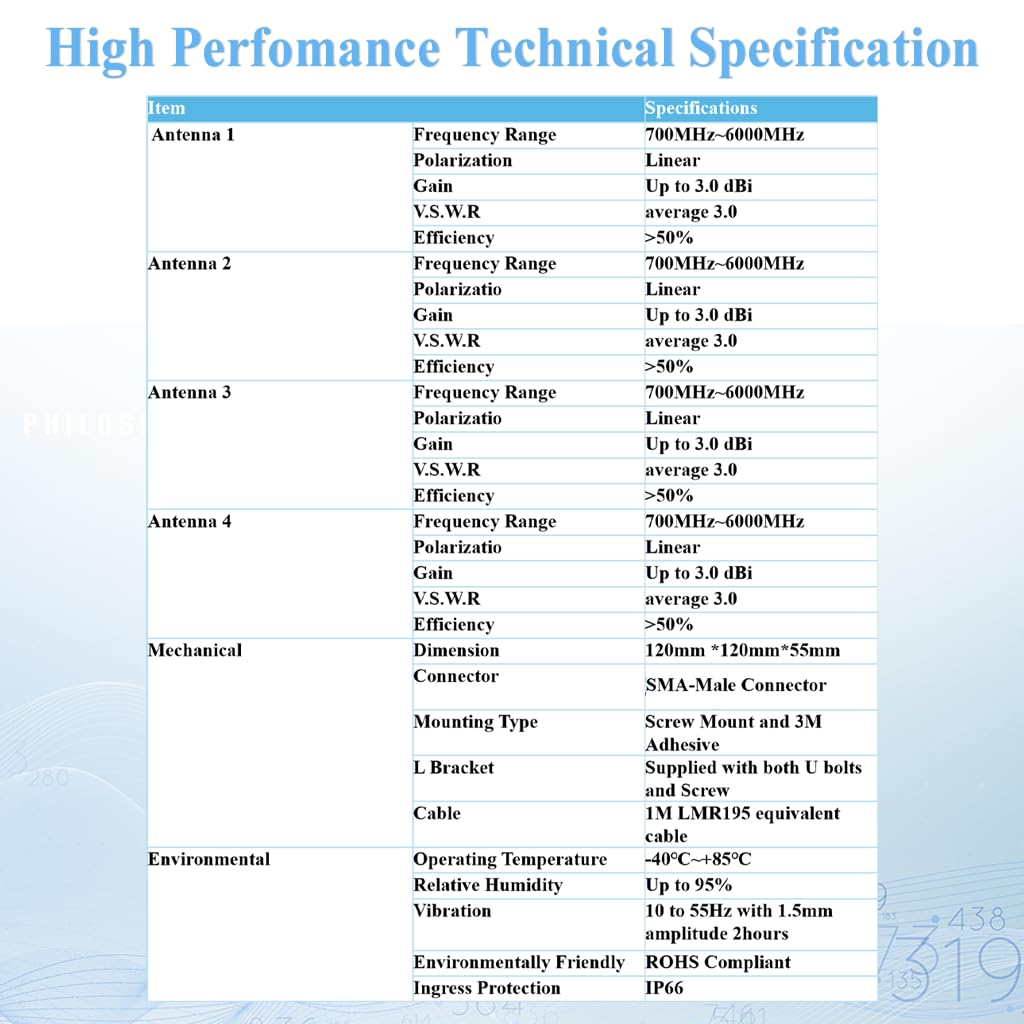

Electric specifications:

Antenna 1~Antenna 4:

Frequency 700-6000MHz
Band Width 5300 MHz

Gain 3dBi medium gain ( NOT high gain)

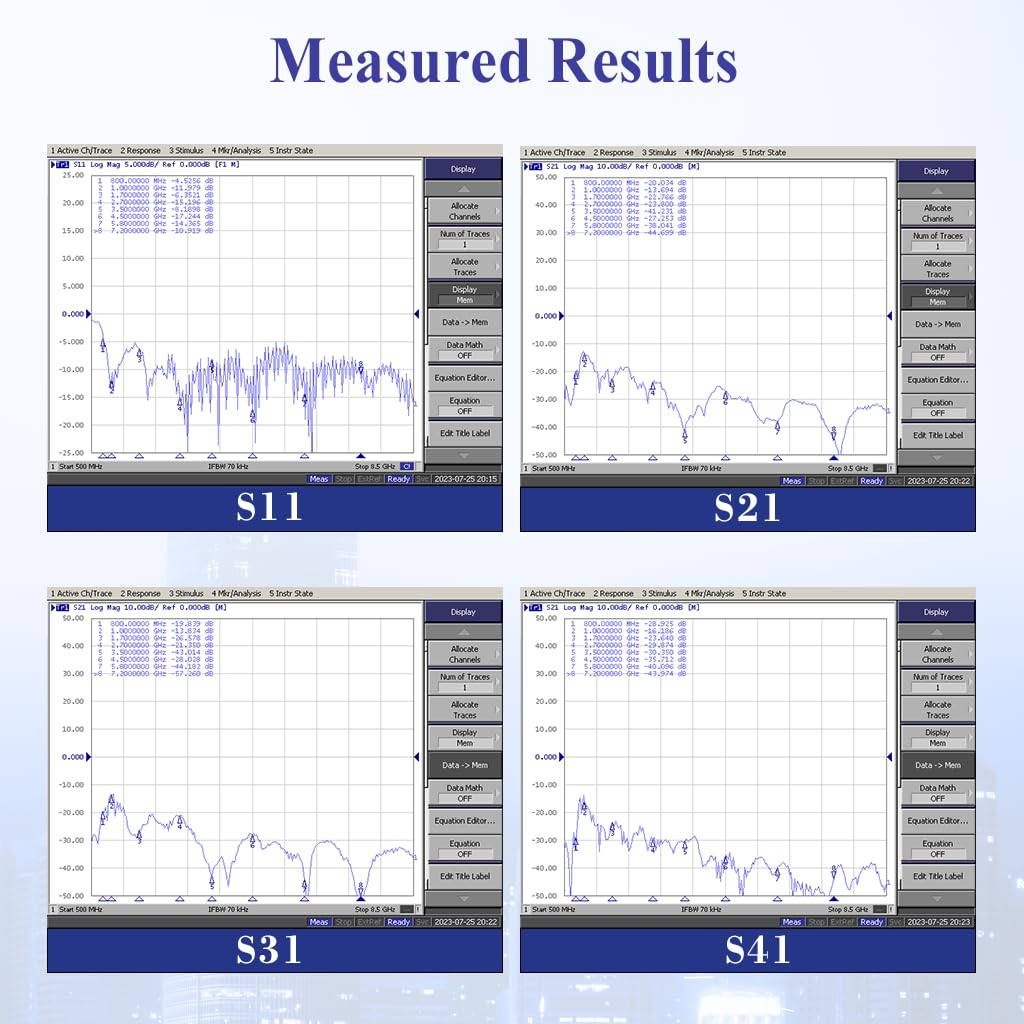

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Mechanical specifications:

Dimensions: 120mm *120mm*55mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

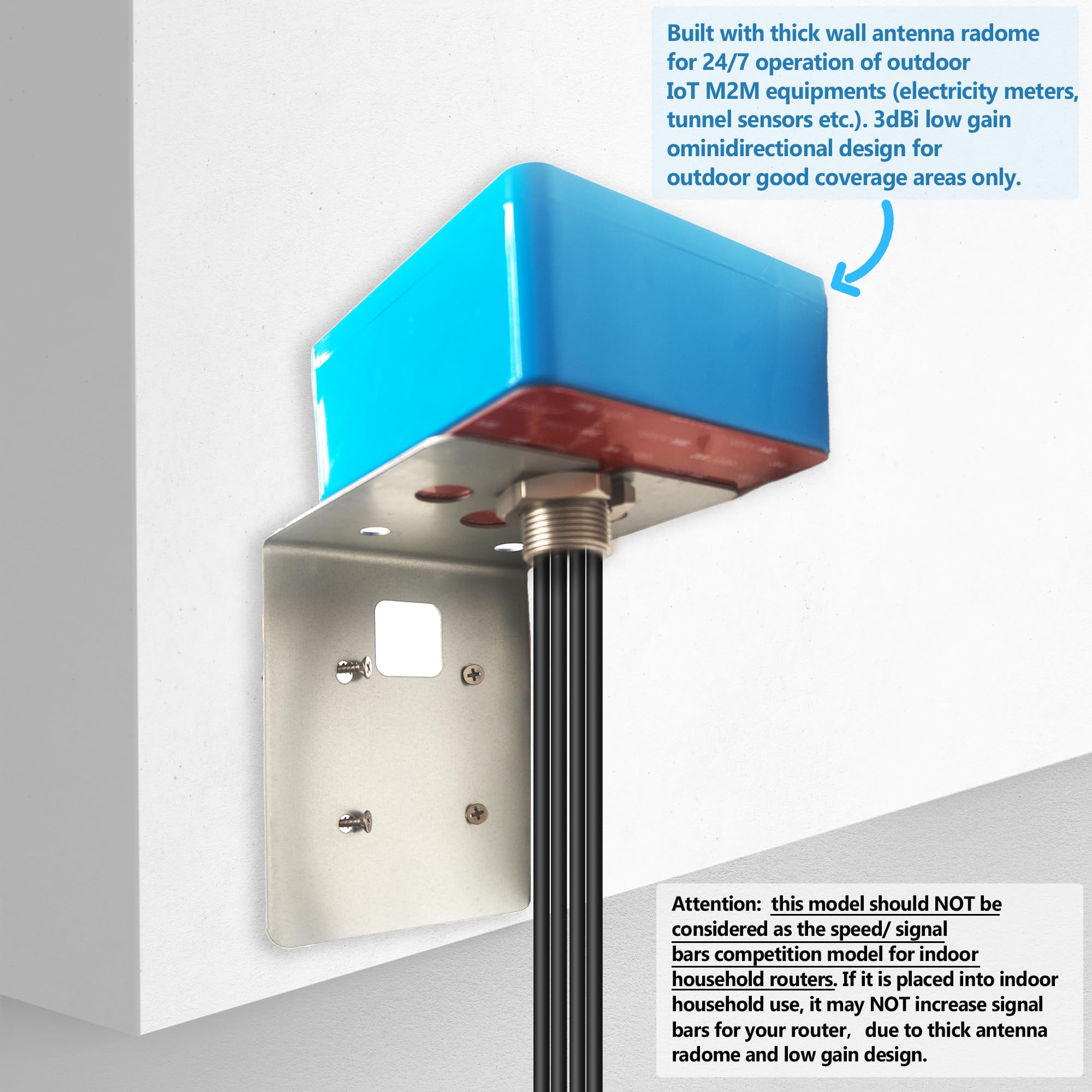

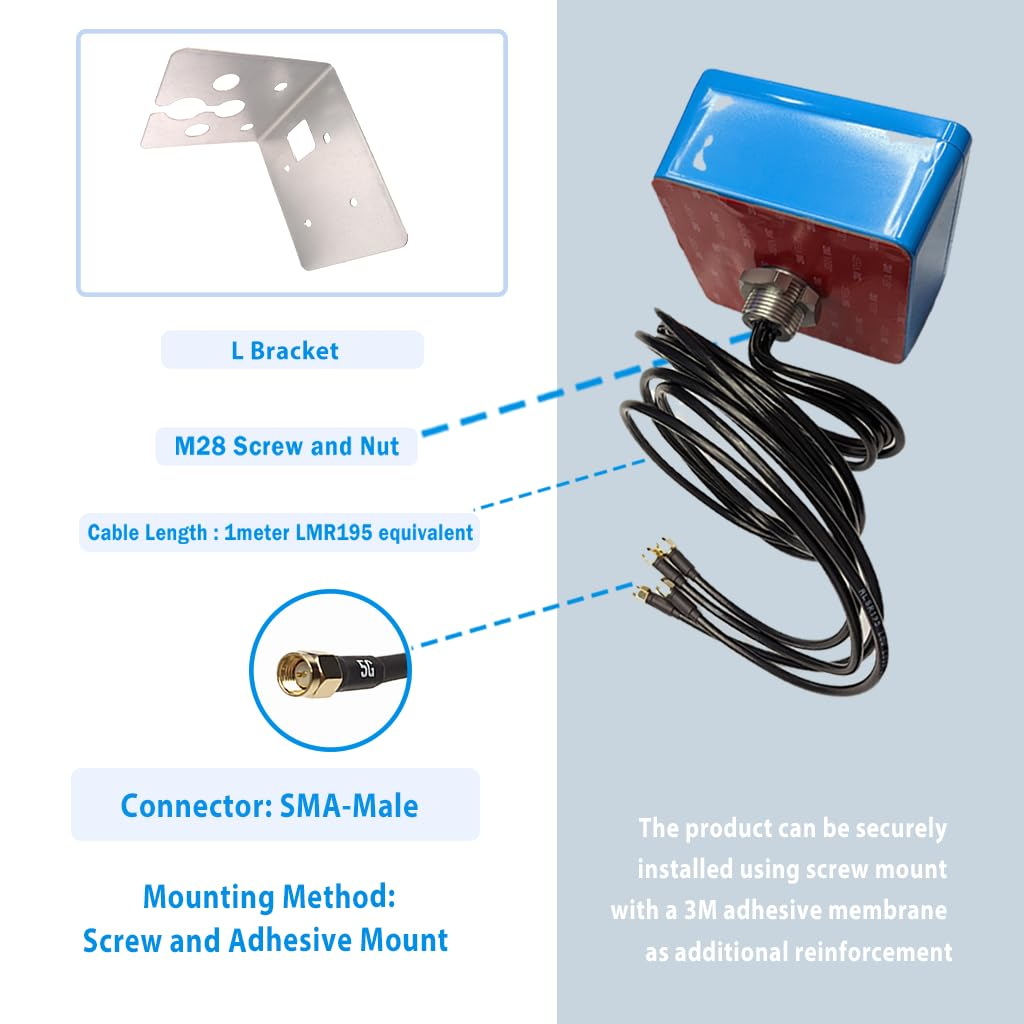

Mounting type: Screw and 3M Adhesive with L bracket and U bolt supplied

Waterproof: IP 66

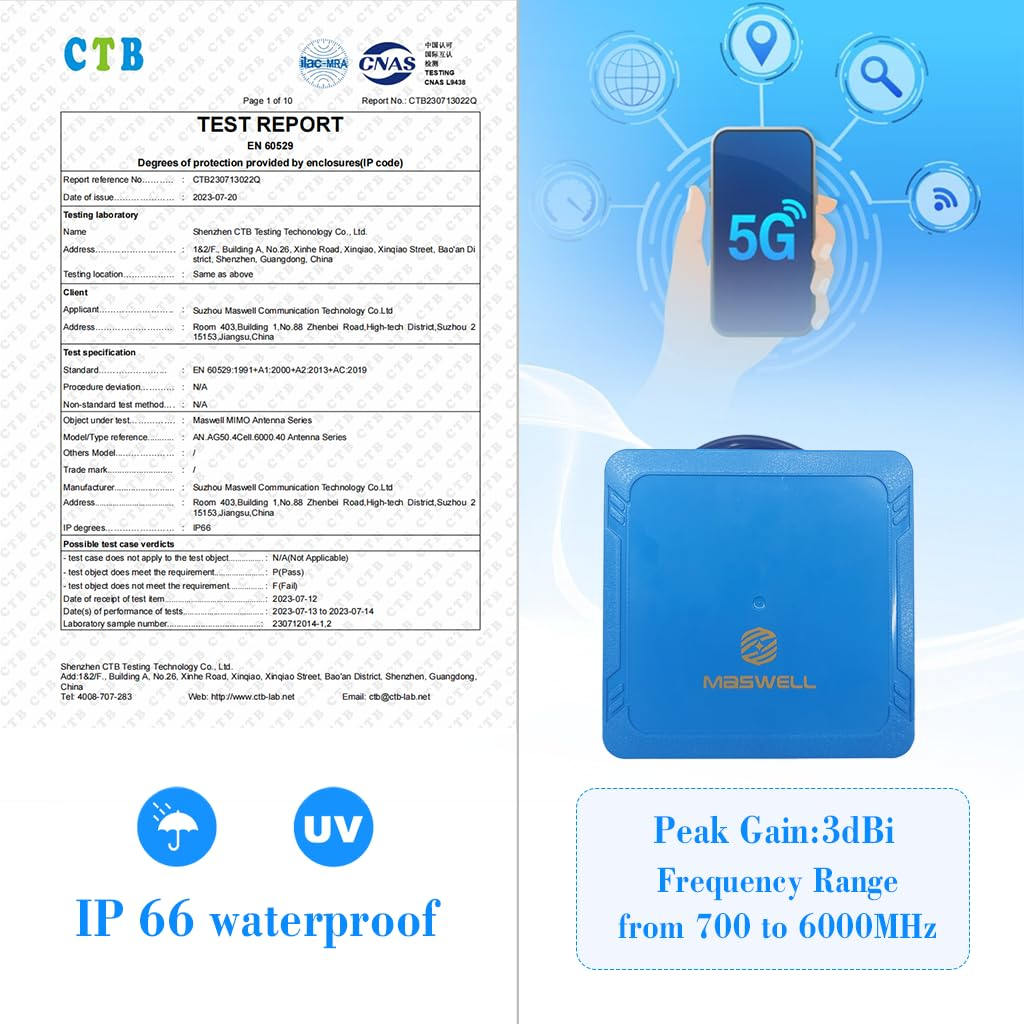

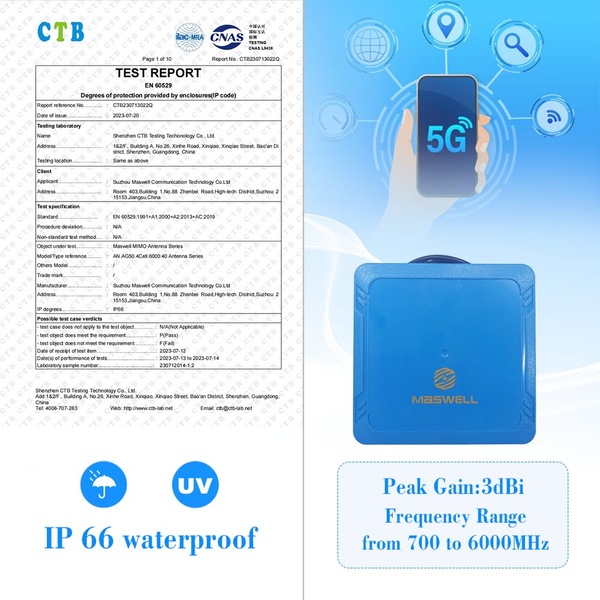

EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 66 Standard PASSED: GB/T4208-2017

Cable Length: LMR 195 1m (4 leads)

Connector type: SMA male for ALL 4 leads

Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO

Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.

7/24 Operation Capability

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

 Vodafone: ALL 5G 4G LTE 3G Supported

GTIN: 735942986081
