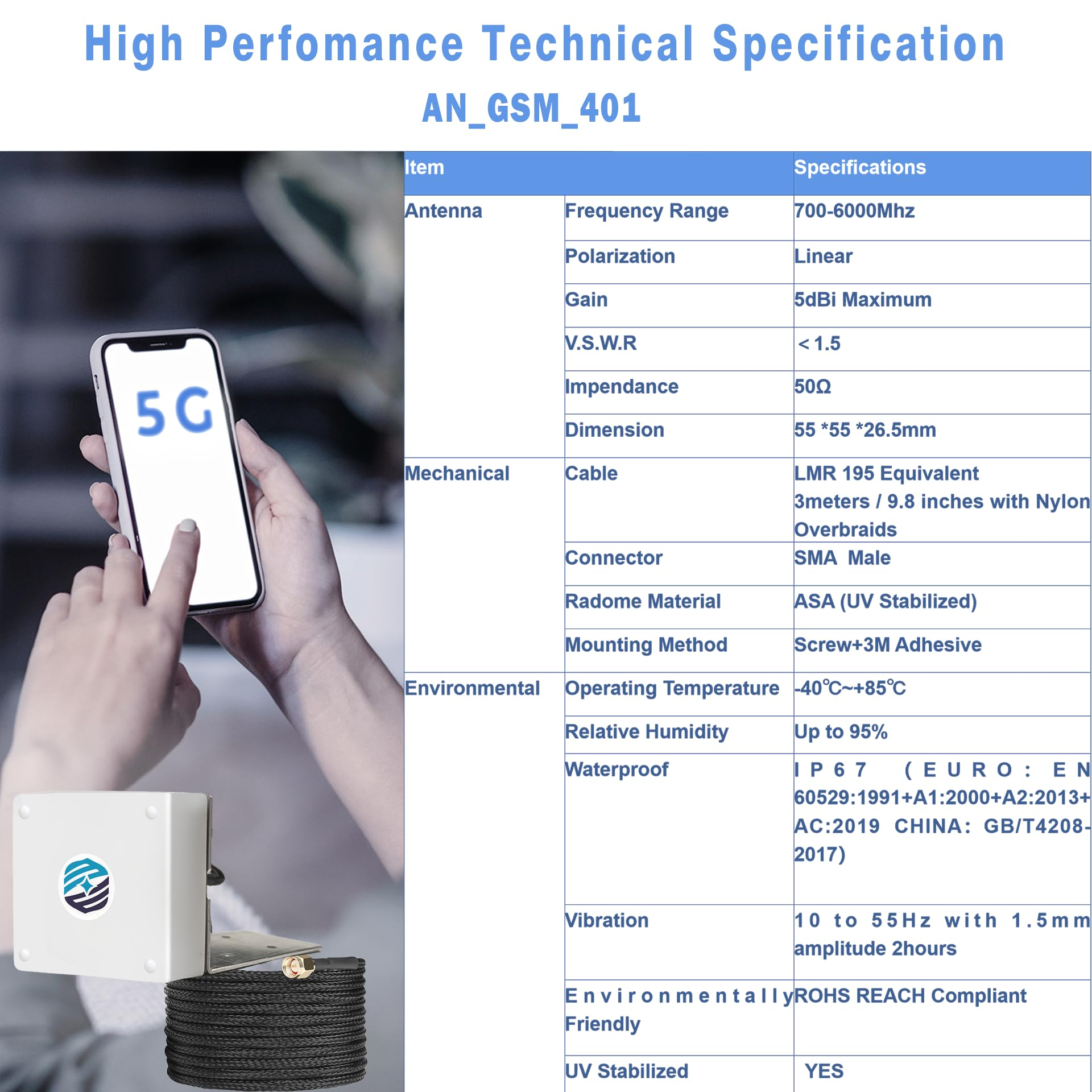

Specifications:

Specification

Centre Frequency 700-6000MHz
V.S.W.R 2 : 1

Band Width 5300Mhz
Impendence 50 ohm

Polarization Type Linear

Gain 2dBi (standard gain design for daily cellular reception, not for high gain requirements)

Cable LMR195 3meters with Nylon Overbraids
Connector SMA Male

Working Temp -40Degrees Celsius~+85Degrees Celsius

Humidity 55%~75%RH
UV stabilized Yes

Water proof IP67

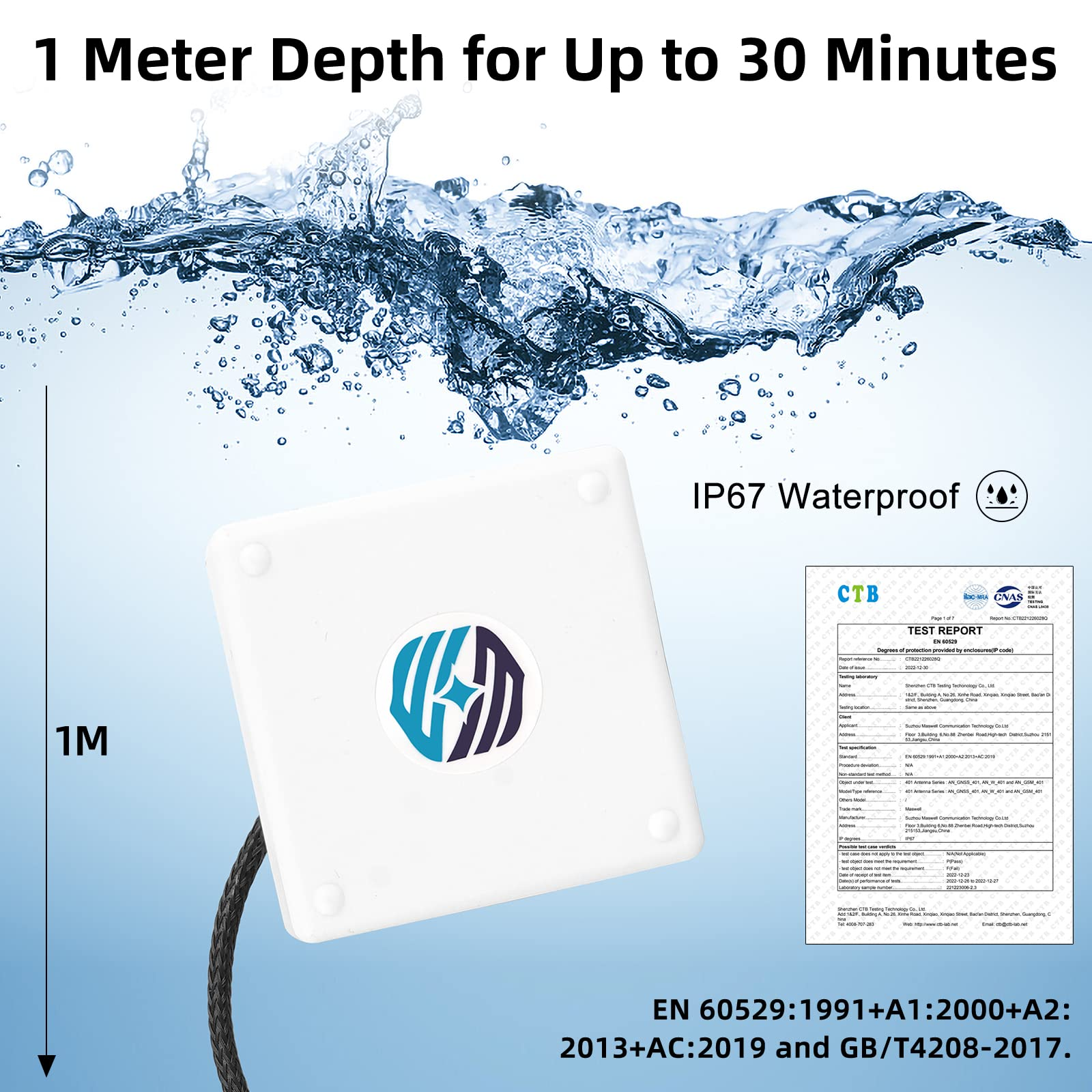

EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-2017

Size: 55mm *55mm*26.5mm

Mounting type: M12 Screw and 3M adhesive

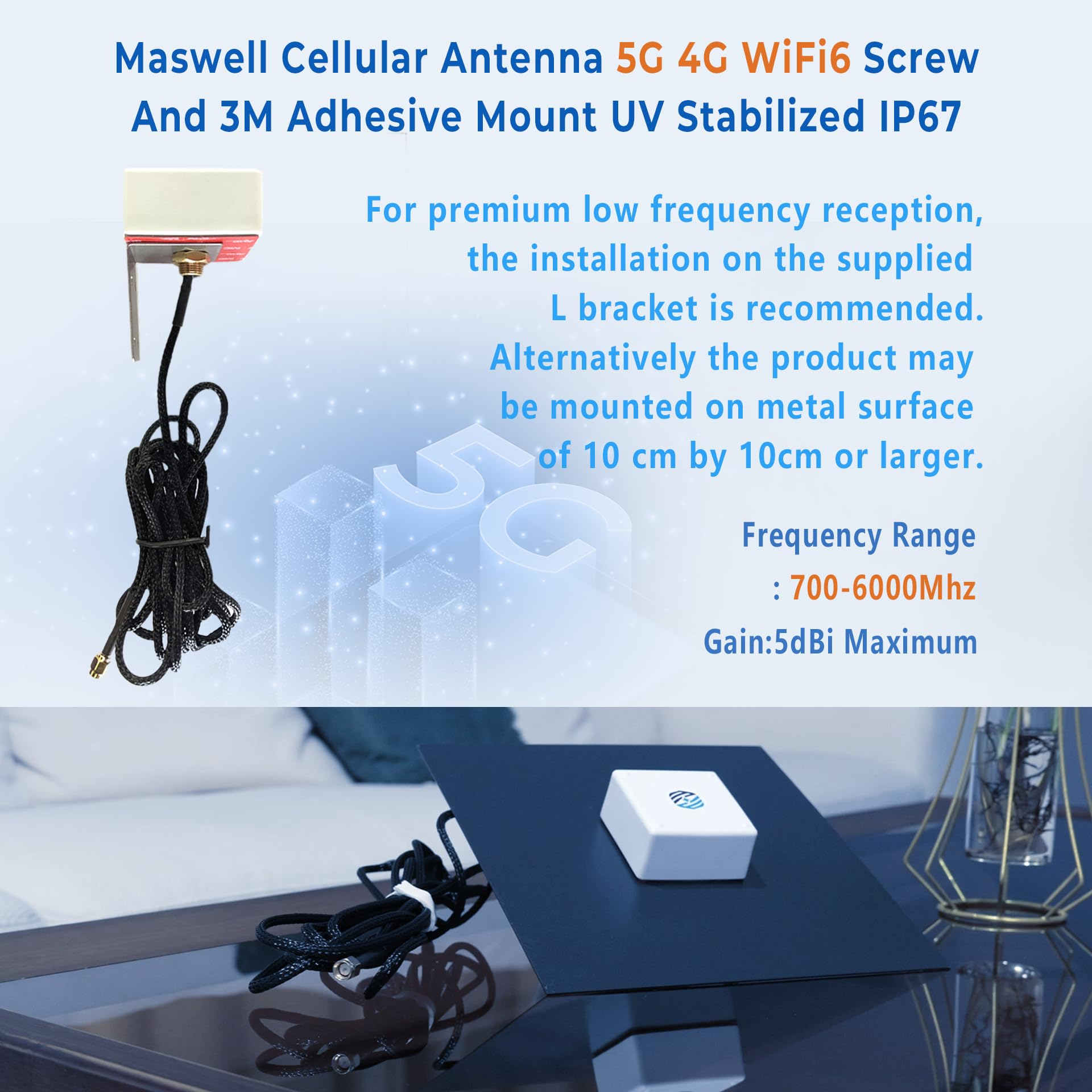

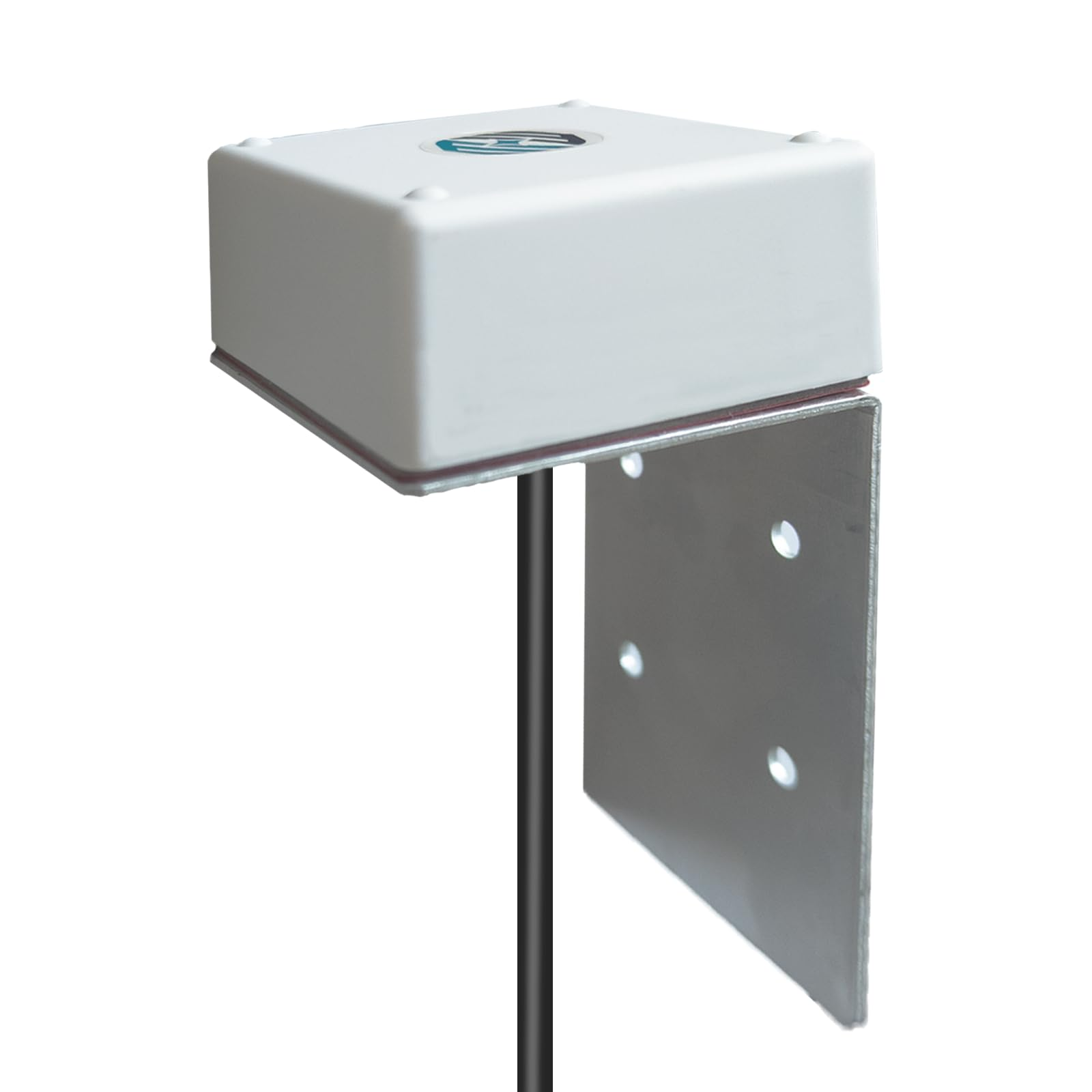

The antenna must be mounted on the supplied L plate or on a metal surface of 10cm by 10cm or larger

The antenna is for area with good signal coverages as it is a moderate gain design for small size.

Outdoor wall/roof mount antenna for 5G/4G/LTE/3G/GSM WiFi applications

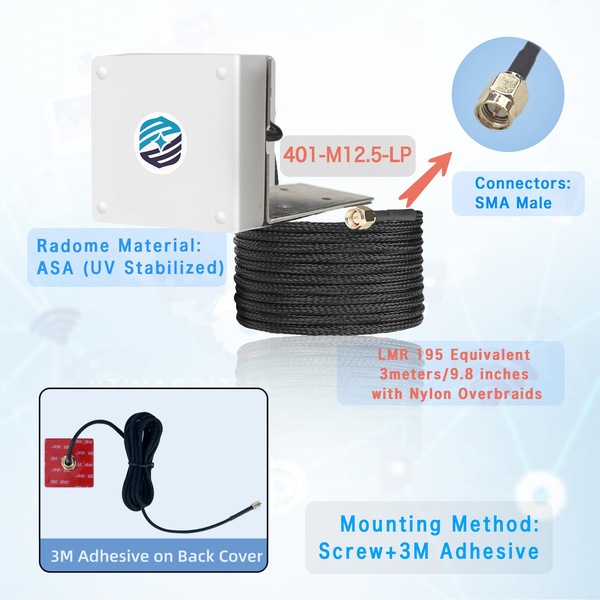

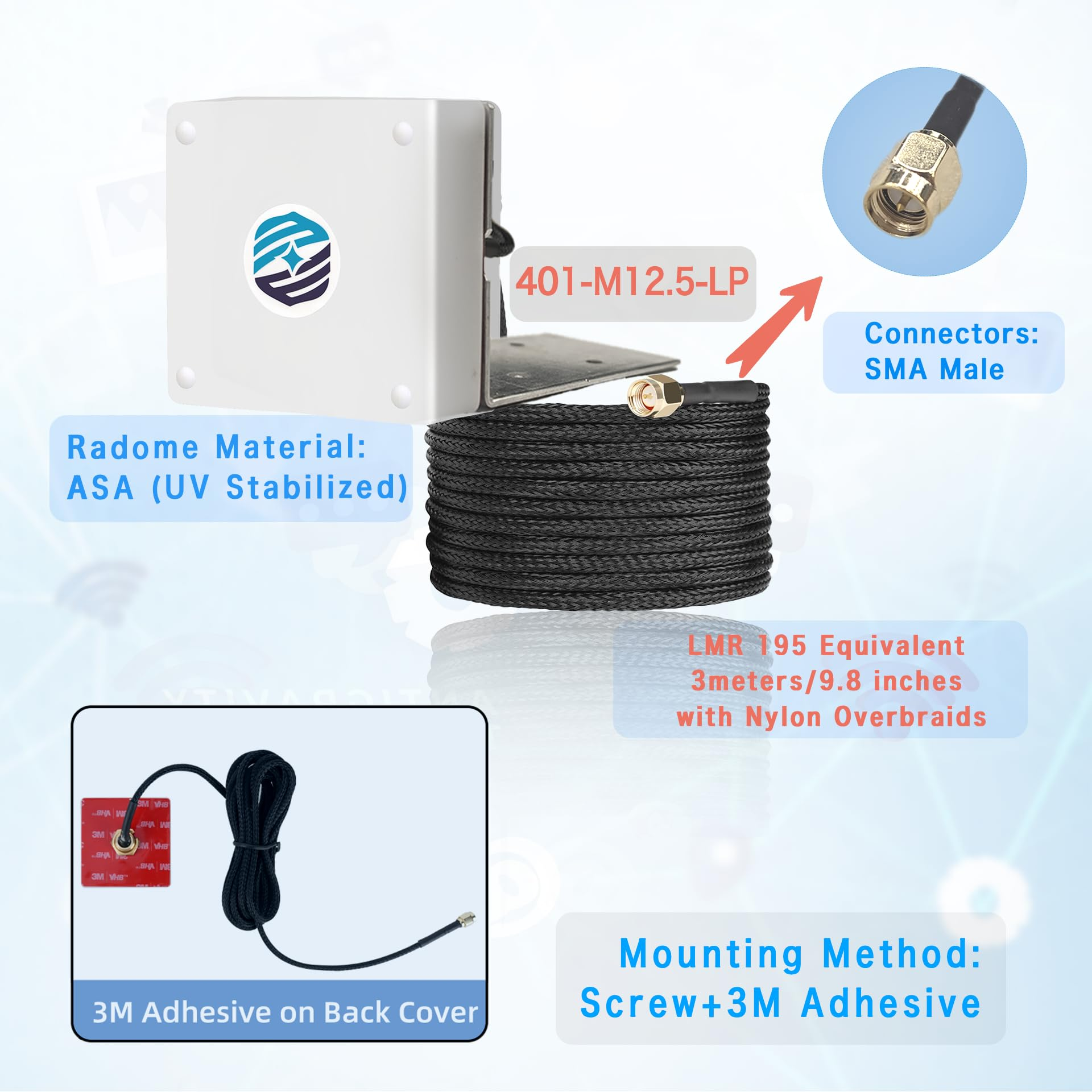

LMR195 3meters Lead with Nylon Overbraids for premium outdoor or machinery applications.

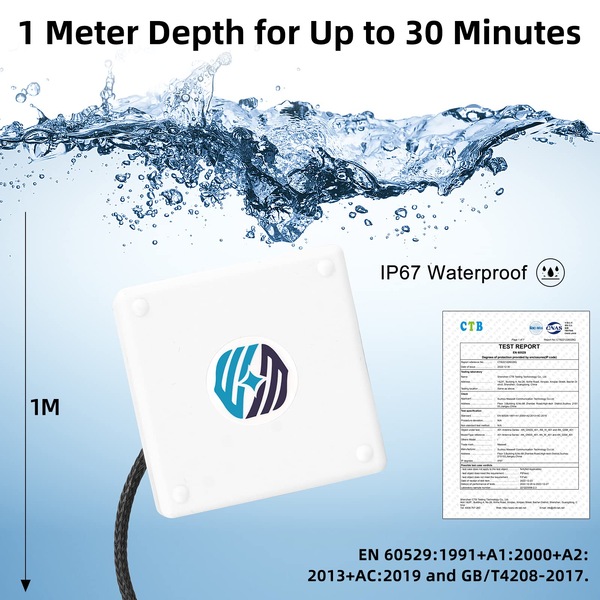

UV stabilized ASA radome plus IP 67 grade water proof (up to 30 minutes underwater)

Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone

Suitable for 5G 4G 3G and WiFi applications.

Square shape with M12 screw and 3M Adhesive Mounting

Waterproof Demonstration Video:
https://youtu.be/Rt9pCCc2w3g

Installation Demonstration Video:

https://youtu.be/L2AhCUKI6zY
