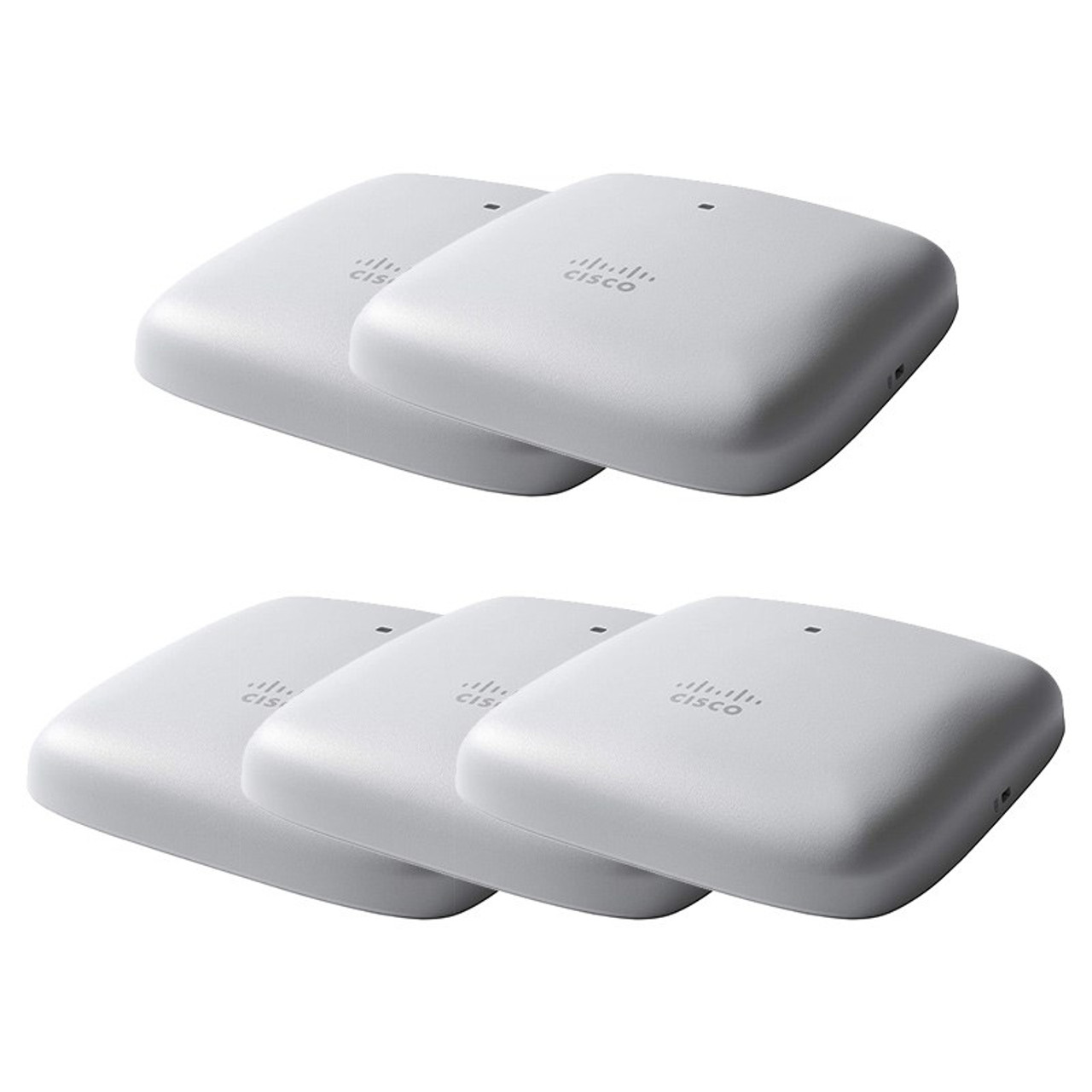

CISCO (5-CBW240AC-Z) CBW240AC 802.11AC 4X4 WAVE 2 ACCESS POINT 5 PACK

• 4x4 MU-MIMO with four spatial streams
• 802.11ac Wave 2 standard
• Two Gigabit-Ethernet (GE) ports with PoE support
• Simplified management with Cisco Business Mobile app
• Flexible deployment with Cisco Business 100 Series Mesh Extenders

Enhance your small-to-midsize business with fast and reliable Wi-Fi connections by connecting the Cisco Business 240AC Dual-Band Wireless Access Point to your compatible network router or switch. This dual-band 802.11ac Wave 2 access point can be discreetly mounted onto a wall or ceiling to transfer data at up to 2333 Mb/s over the 2.4 GHz and 5 GHz frequencies. Both of the 240AC's Gigabit Ethernet ports support 802.3af/at power over Ethernet, allowing you to transfer both data and power over a single cable, which can be passed through to IP cameras and other devices when connected to a compatible switch. Alternatively, you can power the access point with a separately purchased PoE injector. Up to 50 (25 recommended) access points can be used to create a mesh network that operate using a single network ID (SSID) and password. Each 240AC access point also supports up to 25 Cisco Business mesh extenders to maximize coverage, providing users with smooth experiences as they browse the internet, watch videos, and more while moving from one location to another. Use the Cisco Business mobile app to configure, manage, and monitor your network and its connected devices.

Strong Connections
With its powerful internal omnidirectional antennas and support for 4x4 MU-MIMO and beamforming technologies, the Cisco Business 140AC can communicate with multiple devices simultaneously, transferring up to 1733 Mb/s over the 5 GHz frequency and 600 Mb/s on the 2.4 GHz band. Each access point can also handle up to 400 clients with up to 1000 clients in a system.

Security
Your wireless network is protected by WPA/WPA2 encryption with WPA3 support coming in a future update. Other security features include RADIUS authentication, support for up to 16 VLANs, and guest network logins that can be authenticated against Google and Facebook.

Cisco Business App
With the Cisco Business mobile app for Android and iOS, you can quickly expand your network by using Quick Response (QR) codes to add new mesh extenders and devices. You can also use the app to monitor network usage, traffic patterns, and network throughput to help ensure optimal user experiences.

Flexible Mounting
You can attach the Cisco Business 240AC access point to a wall or ceiling using the included hardware.

Technical Specifications

Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

MU-MIMO Support: 4 x 4

Antenna Gain: 4 to 5 dBi

Transmit Power: 20 to 23 dBm

Supported Protocols: MAC Filtering

5 GHz: 1733 Mb/s

2.4 GHz: 600 Mb/s

Inputs/Outputs: 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE

Operation Modes: Access Point

Supported Clients: 400

RAM: 1 GB

Storage Capacity: 256 MB

Supported IEEE Standards: 802.11a, 802.11ac, 802.11b, 802.11d, 802.11g, 802.11h, 802.11i, 802.11n, 802.3, 802.3ab, 802.3af, 802.3at, 802.3x
