Value statement

Simple, affordable business networking

Product overview

From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.

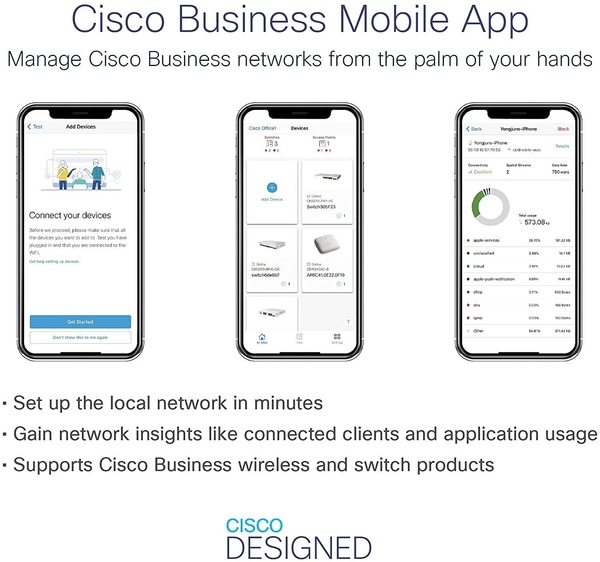

Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.

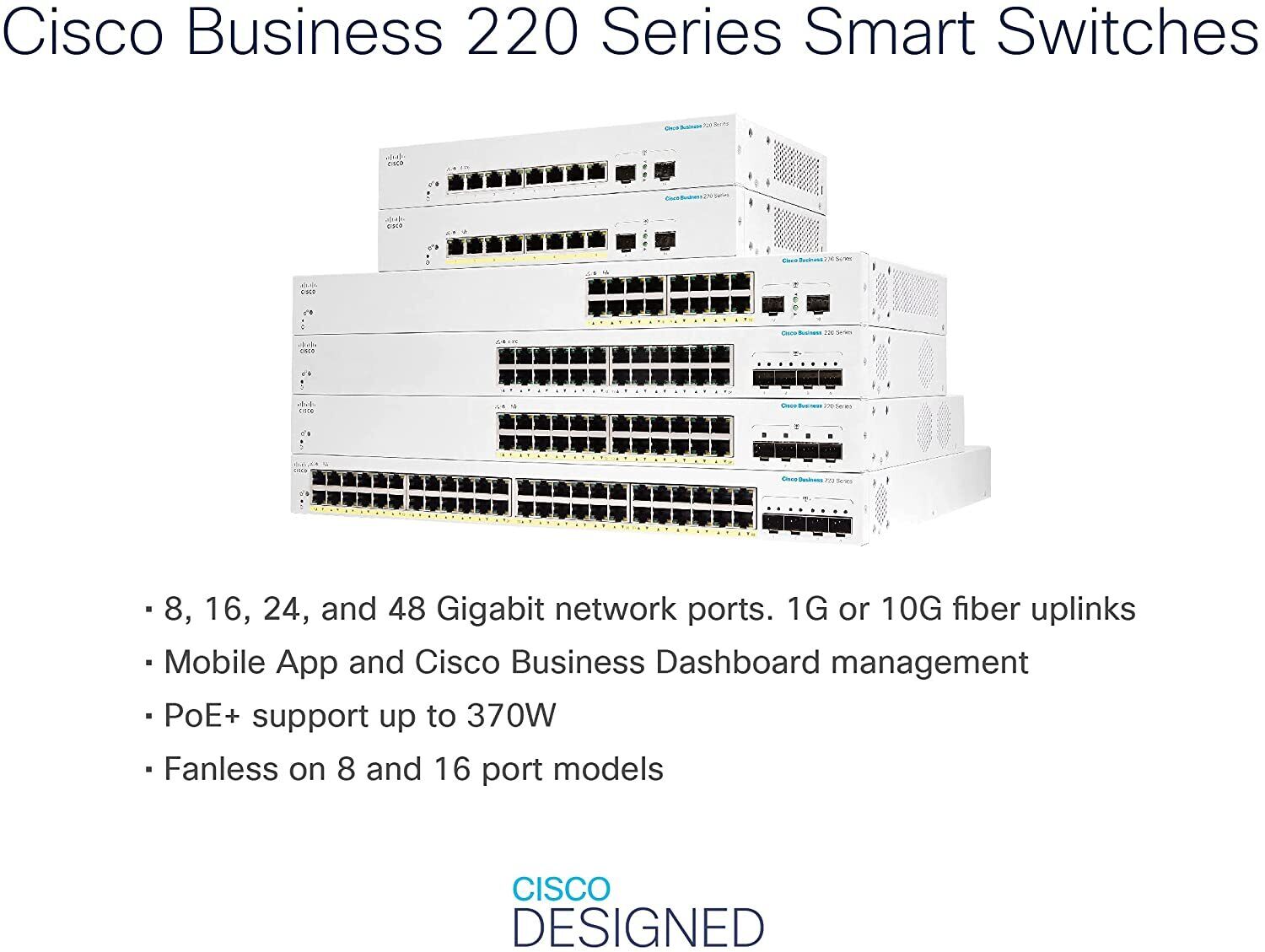

Cisco Business 220 Series Smart Switches

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220

Series provides an excellent solution.

Prominent feature | Business Applications

With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Possible deployment scenarios include:

Small office networking: The versatility and affordability of the Cisco Business 220 Series family of switches provide an ideal business-class networking foundation for small businesses with limited IT support and budget.

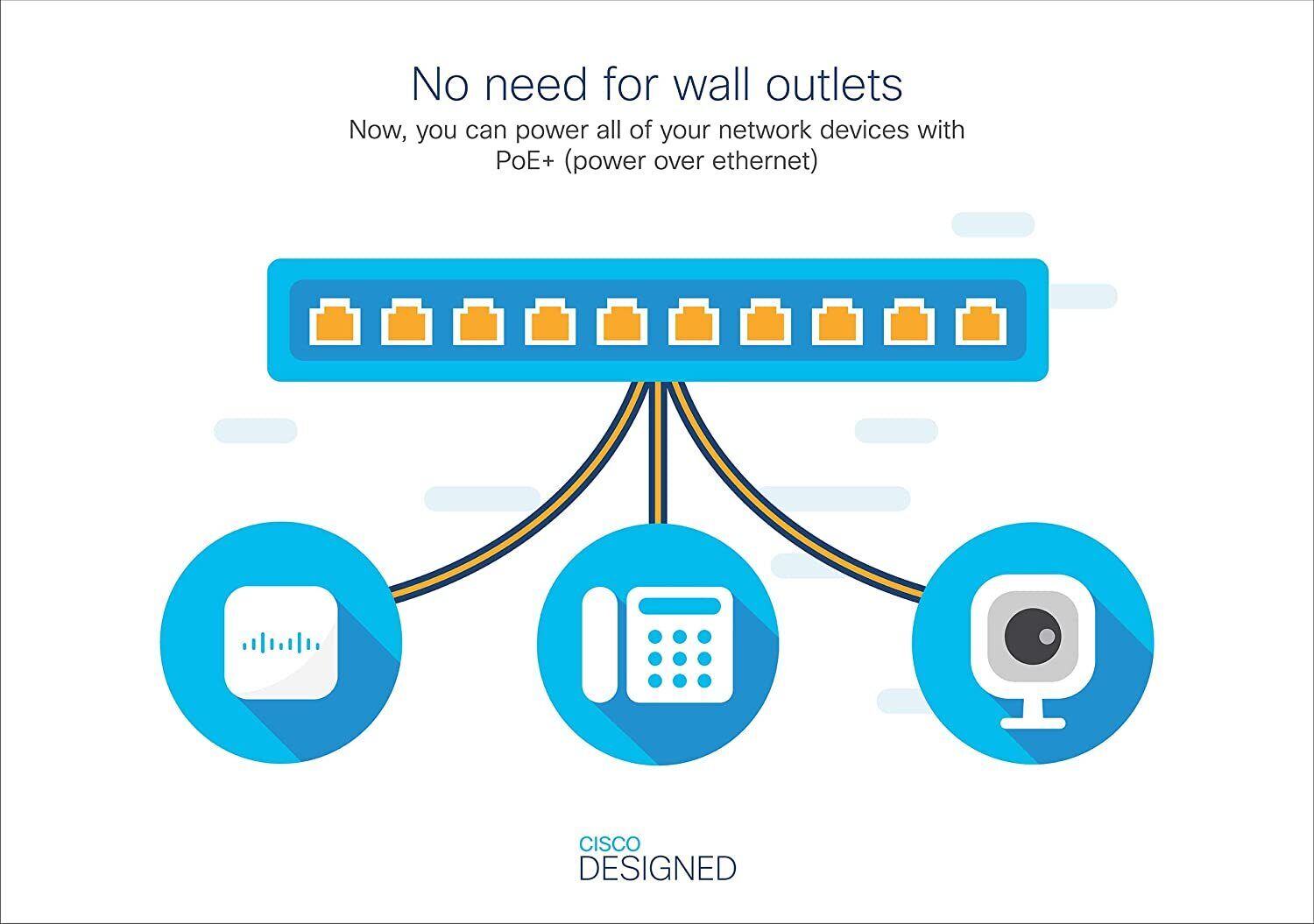

Wireless connectivity. With PoE+ support, and comprehensive security and Quality of Service (QoS) capabilities, Cisco Business 220 Series switches provide a solid foundation to add business-grade wireless to the network. You can easily deploy Cisco Business wireless access points to increase workforce productivity without worrying about power and throughput.

Unified communications. The Cisco Business 220 Series switches provide QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco Business 220 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

General Information

Product Type     Ethernet Switch

Manufacturer Part Number              CBS220-24FP-4X-AU

Manufacturer    Cisco Systems, Inc

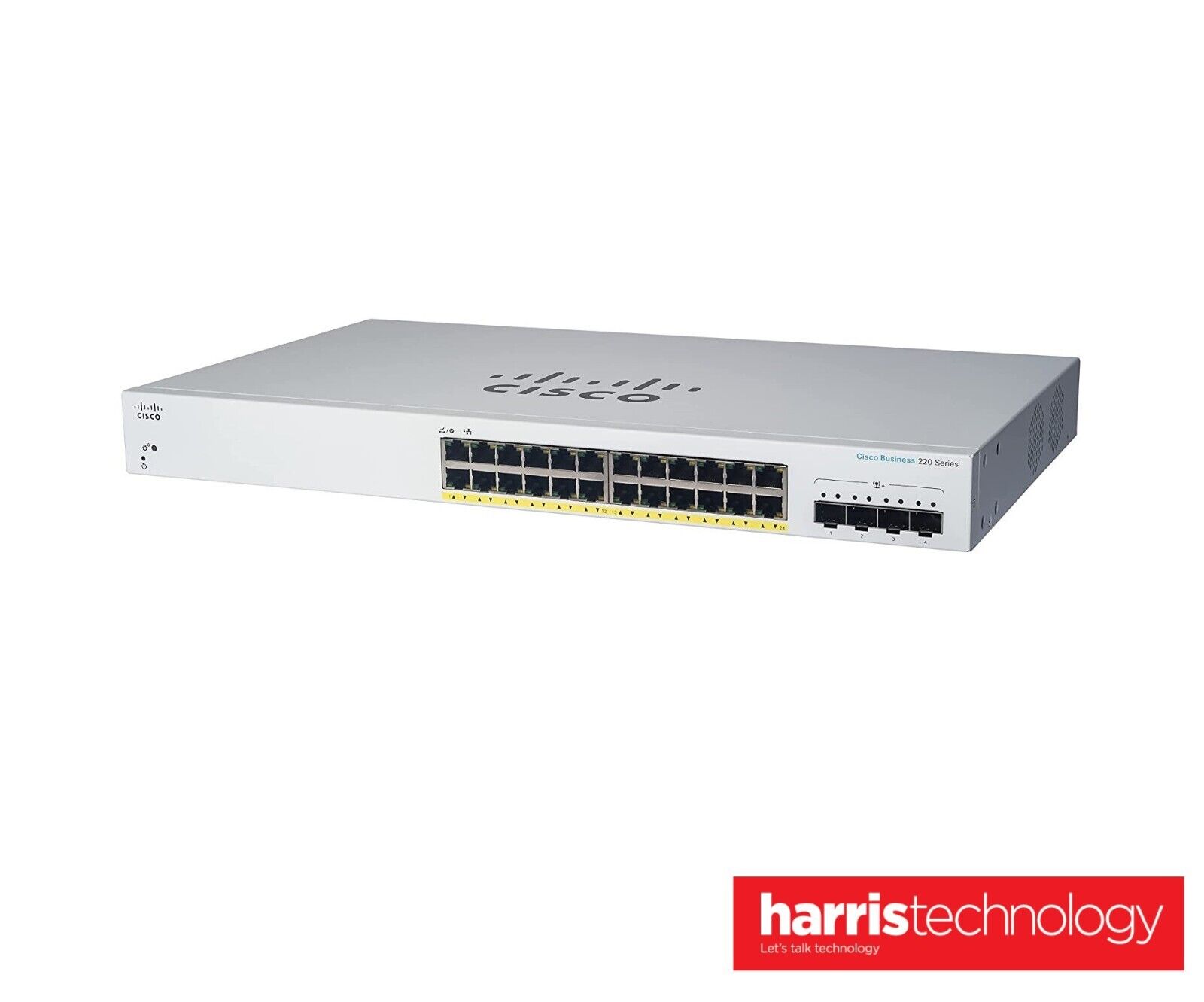

Product Model  CBS220-24FP-4X

Product Name   Business CBS220-24FP-4X Ethernet Switch

Product Line      Business

Product Series   220

Brand Name       Cisco

Package Contents

• Business CBS220-24FP-4X Ethernet Switch
• Power Cord
• Mounting Kit
• Quick Start Guide

Environmentally Friendly              Yes

Environmental Certification              WEEE

Physical Characteristics

Weight (Approximate)    4.03 kg

Height   44 mm

Width   440 mm

Depth   257 mm

Network & Communication

Layer Supported              2

Networking Standards    IEEE 802.3af

              IEEE 802.1D

              IEEE 802.3

              IEEE 802.3ad

              IEEE 802.11ac

              IEEE 802.3x

              IEEE 802.1x

              IEEE 802.3z

              IEEE 802.3at

              IEEE 802.1Q

              IEEE 802.3ab

              IEEE 802.3u

              IEEE 802.1p

              IEEE 802.1w

              IEEE 802.1s

              IEEE 802.3az

Interfaces/Ports

Network (RJ-45)               Yes

Modular              Yes

Uplink Port         Yes

Total Number of Network Ports              24

Port/Expansion Slot Details              24 x Gigabit Ethernet PoE+

              4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Network Technology              10GBase-X

              10/100/1000Base-T

Ethernet Technology      10 Gigabit Ethernet

              Gigabit Ethernet

Media Type Supported  Twisted Pair

              Optical Fiber

Power Description

Input Voltage     120 V

              230 V

Power Source    Power Supply

Frequency          50 Hz

              60 Hz

Power Consumption       39.60 W

PoE (RJ-45) Port Yes

PoE Budget        382 W
