CISCO (CBW140MXS-Z-AU) CBW140 CISCO BUSINESS MESH STARTER KIT

Key Features
Wireless Access Point + Two Extenders
Wi-Fi 5 (802.11ac) Wave 2
Up to 1011 Mb/s Throughput
2.4 GHz / 5 GHz (Dual-Band)
1 x Gigabit Ethernet PoE Port (AP)
2-Prong Plug-In Wi-Fi Mesh Extenders
Includes PoE Injector

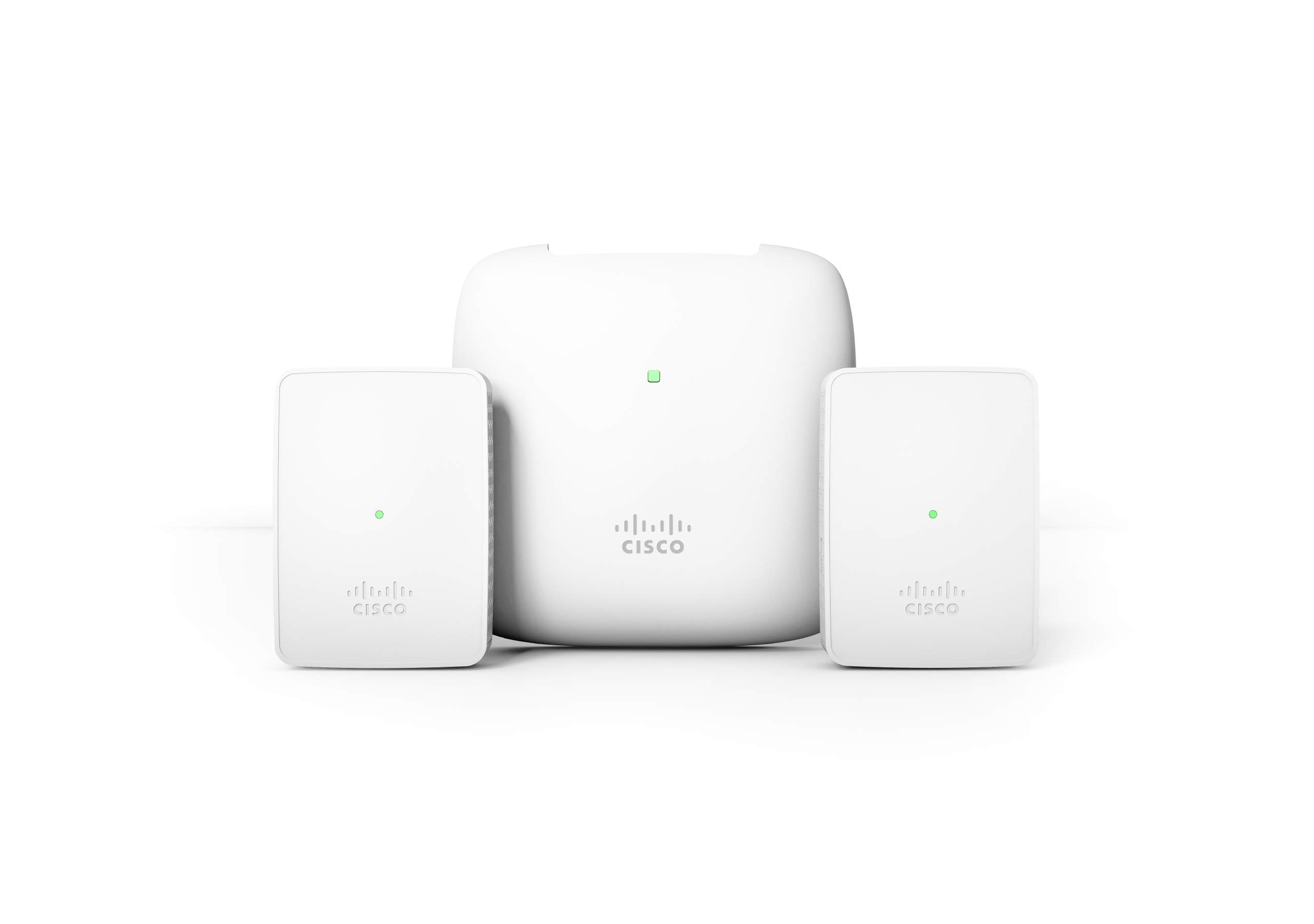

Eliminate dead spots from your business or office with by using the Cisco Business CBW140AC Wireless Dual-Band Mesh Wi-Fi Starter Kit with your existing wired network. Comprised of an access point and two mesh extenders, this 802.11ac Wave 2 Wi-Fi kit includes everything you need to add fast and reliable wireless connectivity to your wired network. Start by connecting the Cisco CBW140AC Access Point to your router or network switch through its Gigabit Ethernet port using the included PoE injector for power if necessary. Then plug the 2-prong AC-powered CBW142ACM Mesh Extenders into wall outlets where the signals are weakest and use the Cisco Business mobile app to configure them. Once the system is set up, the devices can transfer up to 1011 Mb/s to each other over the 2.4 GHz and 5 GHz bands. The devices, including the wall-mountable access point, are designed to blend into most environments.

Fast Connections
This 802.11ac Wave 2 Wi-Fi kit includes an access point that is designed to transfer up to 877 Mb/s and 144 Mb/s with each of the two mesh extenders over the 5 GHz and 2.4 GHz bands respectively. MU-MIMO and other technologies help to ensure reliable connections to wireless devices.

Mesh Wi-Fi
A mesh network operates with a single network ID (SSID) and automatically switches your mobile device to the Wi-Fi module with the strongest signal to provide a seamless experience as you roam from room to room while video chatting, watching videos, browsing the internet, and more.

Technical Specifications
Number of Units: 3
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Inputs/Outputs Router:
1 x RJ45 Gigabit Ethernet (WAN) PoE
1 x RJ45
MU-MIMO Support: 2 x 2
Wireless Security: WPA2, WPA3
Bluetooth: None
Communication Protocol: None
Virtual Assistant: None
5 GHz: 867 Mb/s
2.4 GHz: 144 Mb/s
Antenna Gain: 2 to 4 dBi
Guest Network Support: Yes
Mobile Operating System Support: None
Operation Modes: Access Point, Mesh, Repeater
Supported IEEE Standards: 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af
Hardware
CPU: to 710 MHz Quad-Core
Memory: Router: 1 GB
Satellite: 512 MB
Flash Memory: Router: 256 MB
Satellite: 128 MB
Speakers: None
Built-In Microphones: None
Display: None
Operating Temperature: 32 to 122°F / 0 to 50°C
Operating Humidity: 10 to 90%
Storage Temperature: -22 to 158°F / -30 to 70°C
Storage Humidity: 10 to 90%
