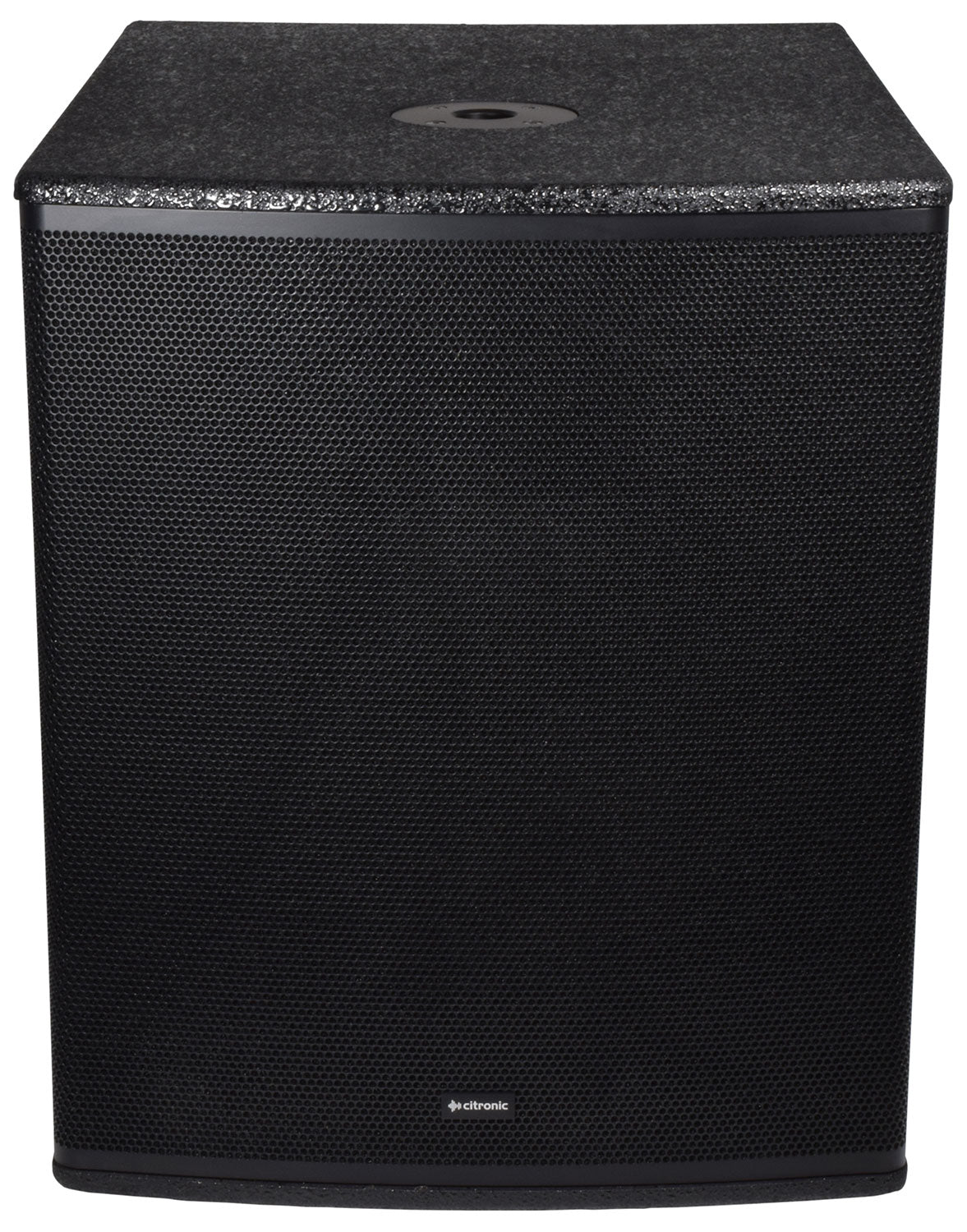

Citronic CASA 15" inch Active PA 1800W Subwoofer for DJ Party Club

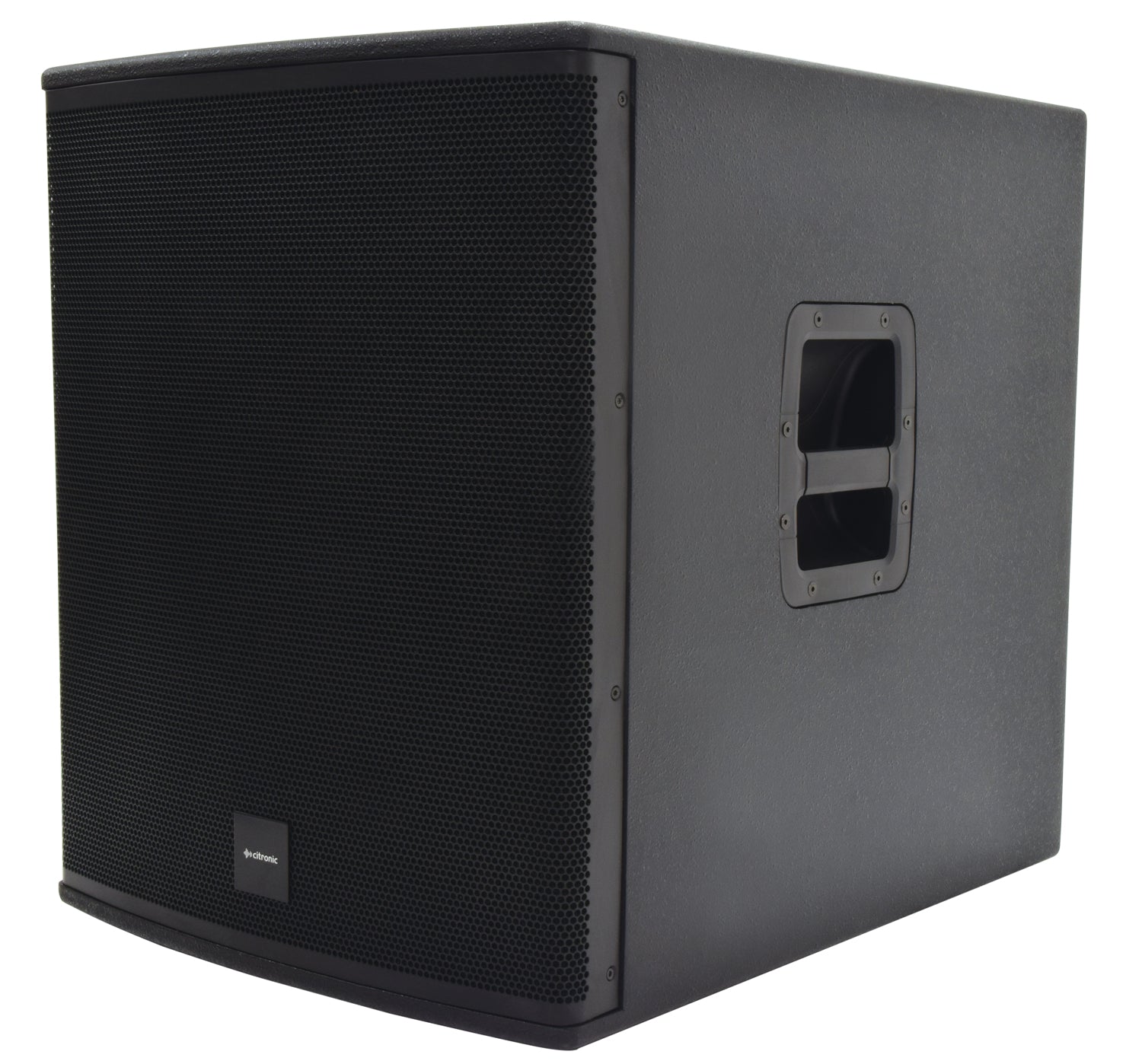

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and a 35mm socket to accommodate a mounting pole. The high-flex sub-driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with a switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-aligned multiple-speaker setups. Designed as a perfect match for the CASA series speakers and is equally at home with other active full-range cabinets.

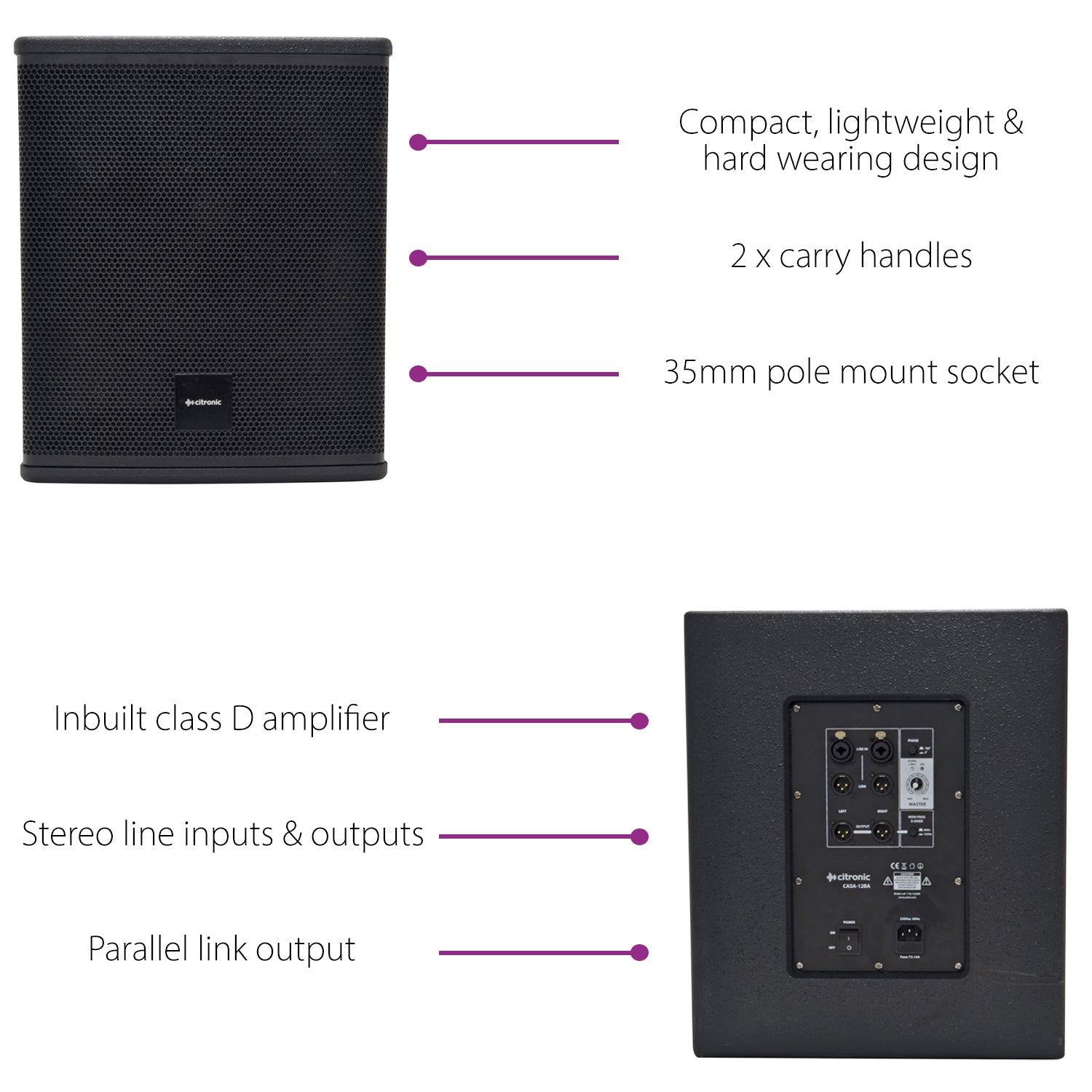

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish

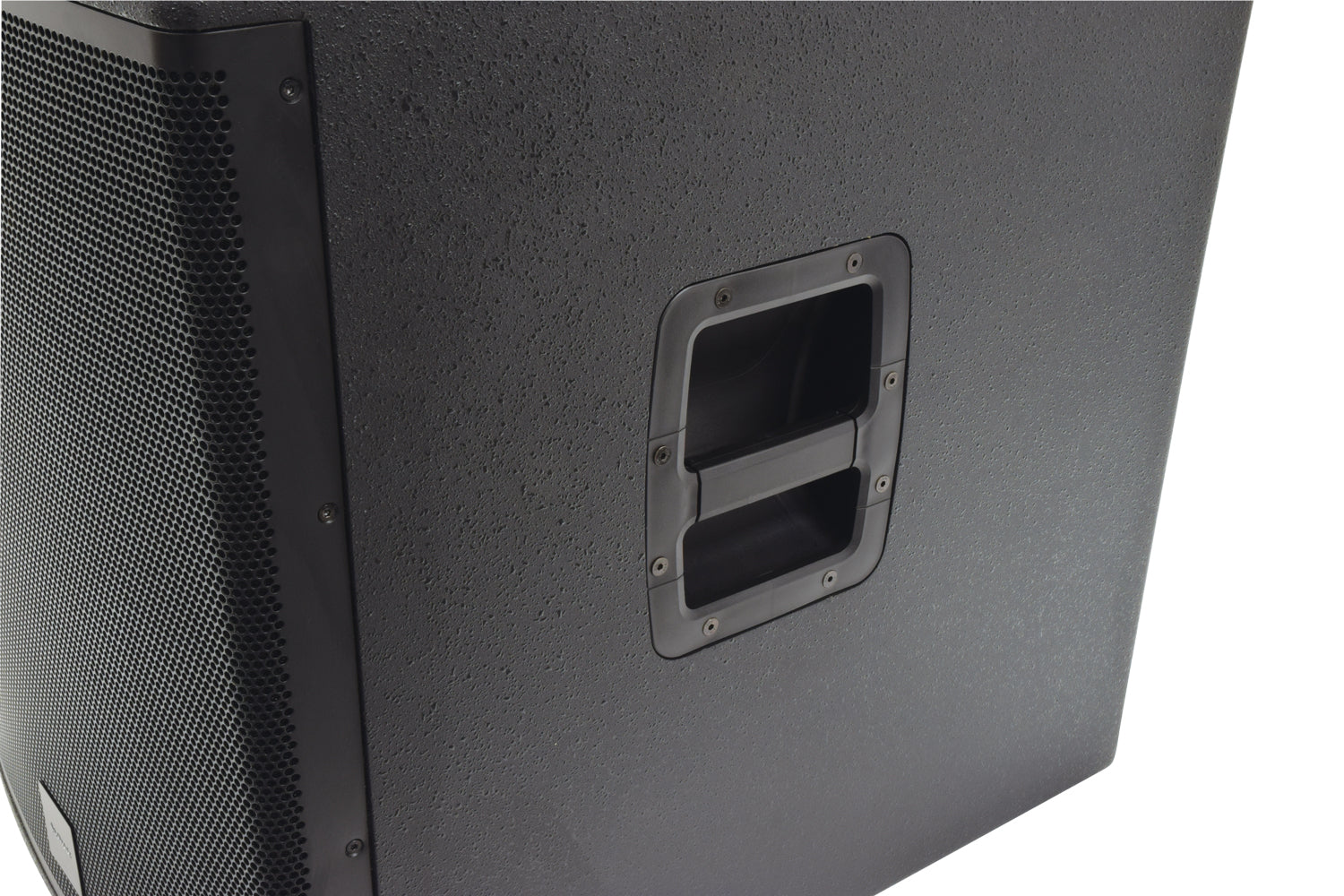

• 2 x side carry handles

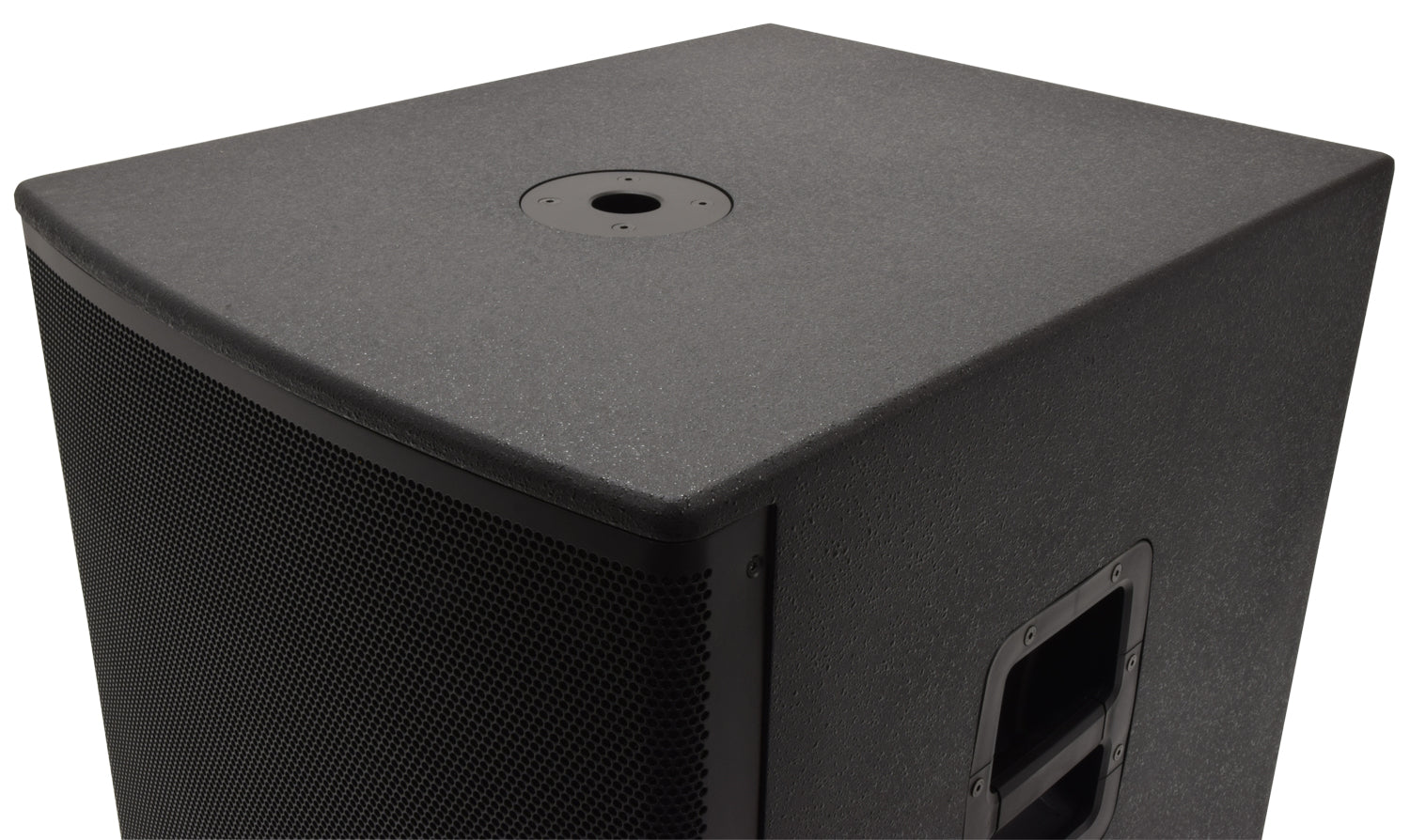

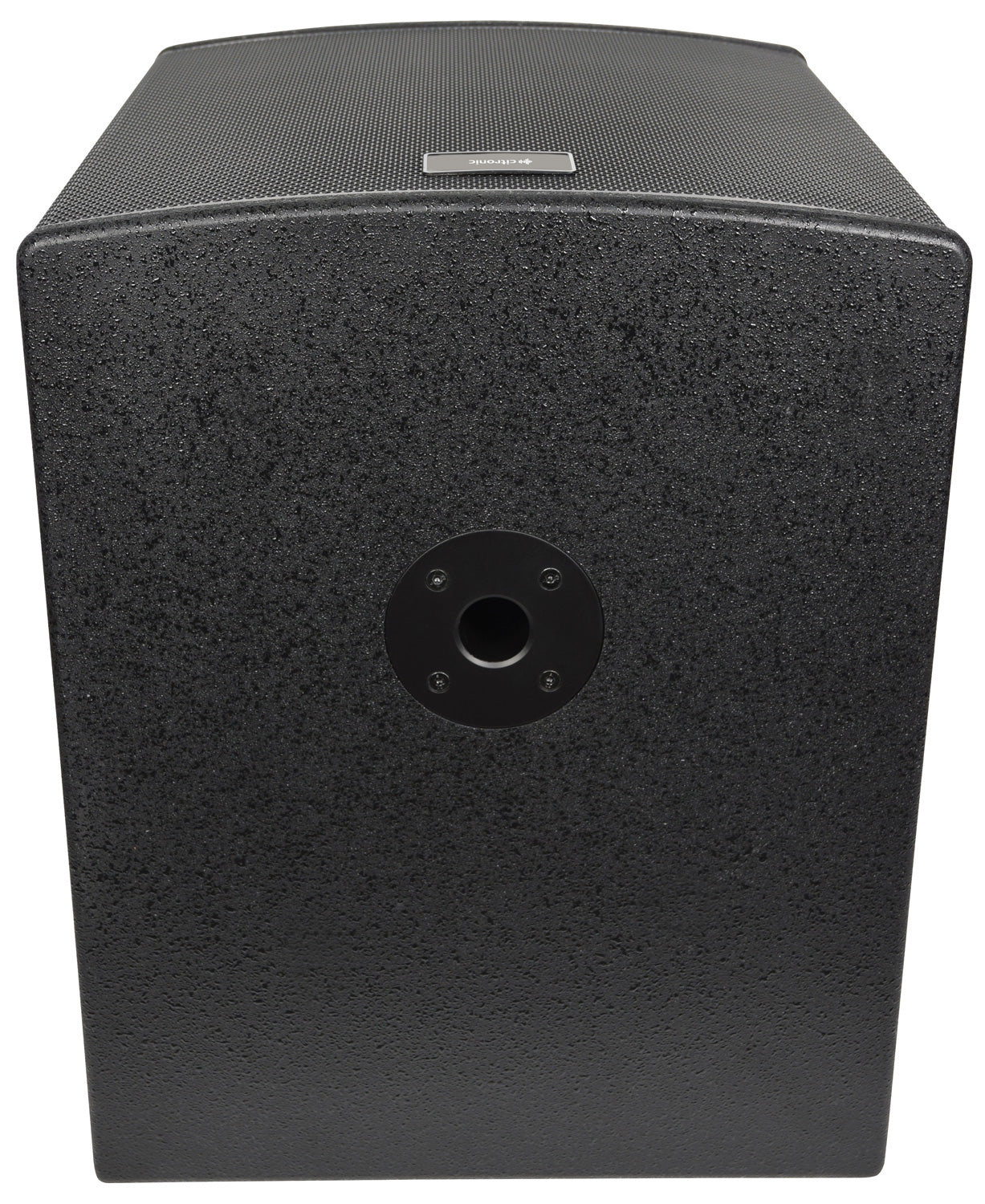

• 35mm pole mount socket
• Power supply230Vac, 50Hz (IEC)
• Construction15mm MDF with durable texture paint finish
• Hardware2 x side carry handles + 35mm pole mount socket
• Amplifier: construction Class D

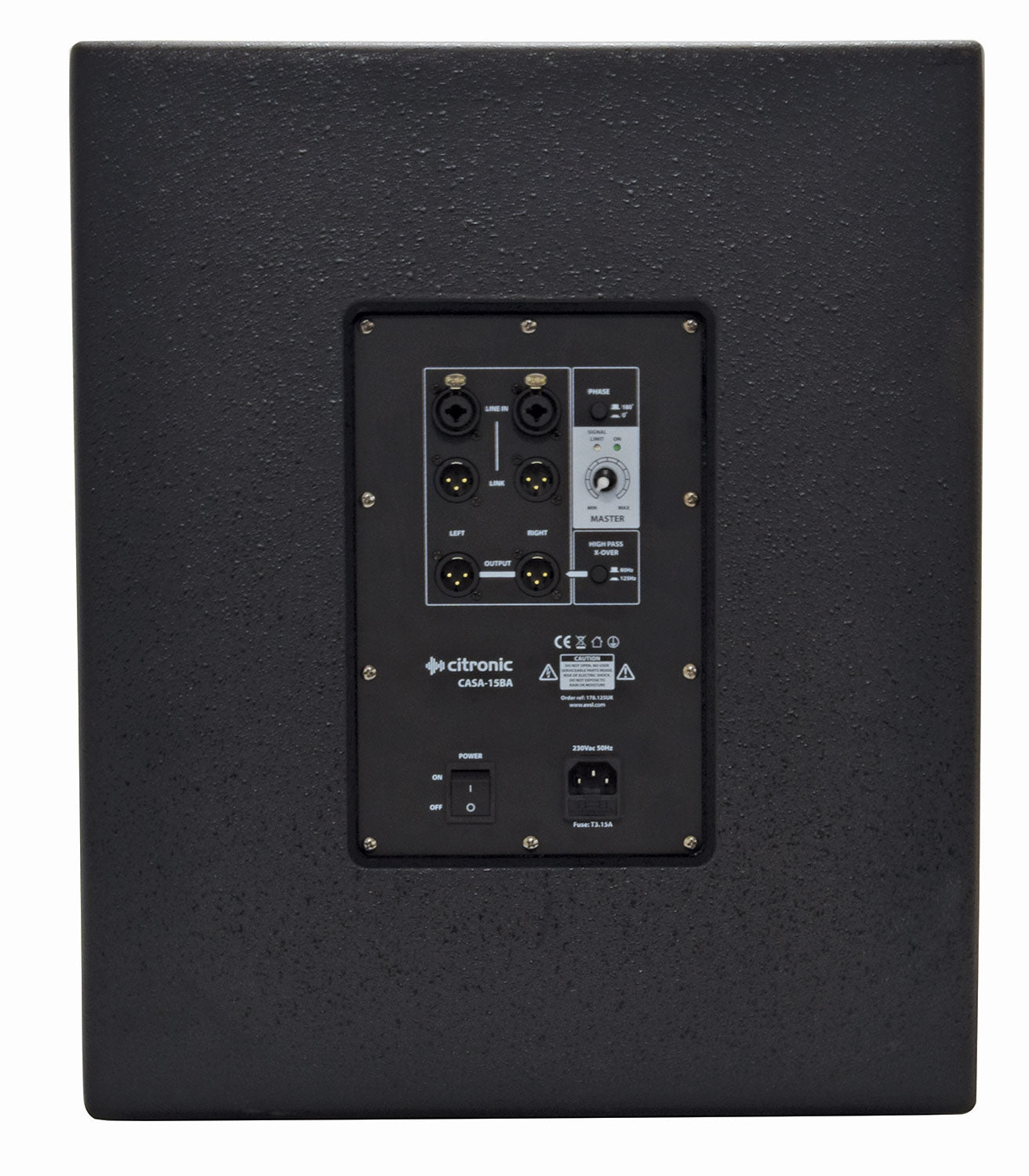

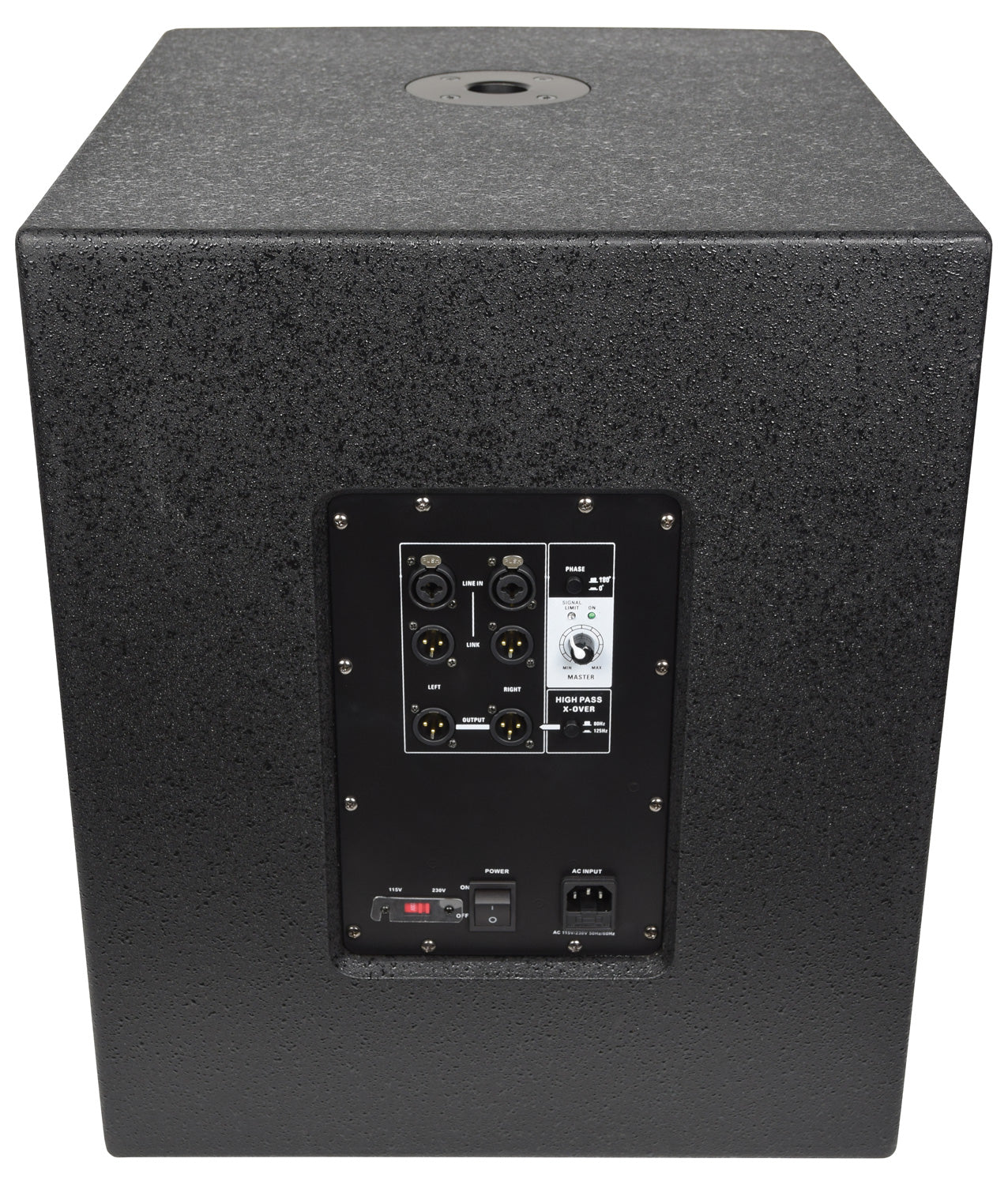

• Line inputs: L+R balanced XLR
• Line outputs: L+R balanced XLR & L+R link XLR
• Controls Output level, phase switch, high pass x-over (output)

Technical Specifications:

• Sub driver:380mmØ (18")
• Voice coil:75mmØ (3")
• Output power: rms:500W
• Output power: max.900W
• Peak output: 1800W
• SPL max.: 123.5db
• Frequency response:50 - 150Hz
• Dimensions: 564 x 540 x 448mm
• Weight: 26kg
