Collect 459 Everyday Rewards points
Dispatch in 2 business days

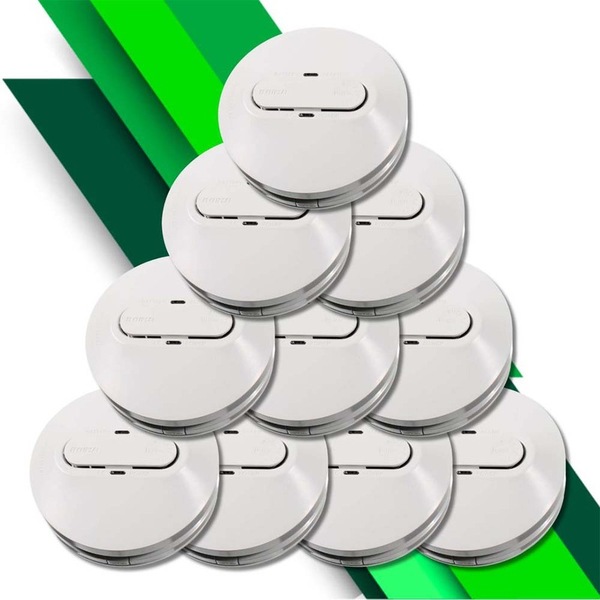

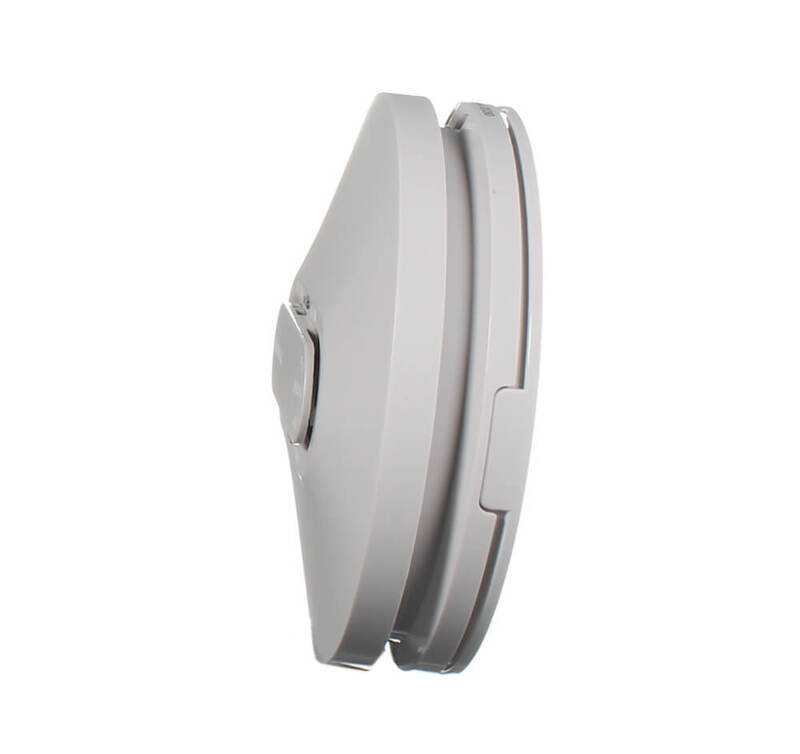

The Clipsal 755PSMA4-10Bundle includes 10 modern, reliable, and easy-to-use photoelectric smoke alarms. Certified and ActivFire listed to AS3786:2014, these smoke alarms ensure early detection of smouldering fires and open fires. The robust digital design features a quality optical chamber with a stainless steel insect screen for enhanced performance and durability.
Installation and maintenance are straightforward, with the alarms offering a wired interconnect feature that supports up to 40 units, compatible with all 755 Series FireTek smoke alarms. The optional integral isolated relay (755RB) or wireless interconnect (755RFB) mounting bases provide additional flexibility. These alarms are also backwards compatible with 755PSMA/2, 755RLPSMA2, and 755SMA smoke alarm surface mounting bases.
Q: What certifications do these smoke alarms have?
A: They are certified and ActivFire listed to AS3786:2014 standards.
Q: How many alarms can be interconnected?
A: Up to 40 alarms can be interconnected via wired connections.
Q: Are these smoke alarms compatible with older models?
A: Yes, they are backwards compatible with 755PSMA/2, 755RLPSMA2, and 755SMA surface mounting bases.
Q: What optional accessories are available?
A: Optional accessories include the 755RB relay and the 755RFB wireless interconnect mounting bases.
Important Information
Queensland Smoke Alarm legislation
The new QLD smoke alarm legislation starts on January 1st 2022, All properties leased or sold in Queensland must be fitted with photoelectric, interconnected smoke alarms in all bedrooms of the home as well as hallways or between areas containing bedrooms and on each storey of the dwelling.
You can mix old with the new too.
| Specification | Details |
|---|---|
| Range | Firetek |
| Product brand | Clipsal |
| Product or component type | Smoke detector |
| Device application | Early detection of smouldering fires and open fires |
| Electronic sensor type | Photo-electric sensor |
| Colour | White (RAL 9003) |
| Supply | Mains |
| [Us] rated supply voltage | 220...240 V AC 50 Hz |
| Backup type | Battery |
| Battery life | 10 year(s) |
| Output voltage limits | Interconnection: 6.5...20 V |
| Type of alarms | Low battery at 6.9...7.5 V |
| Detection type | Smoke |
| Function available | Local alarm Hush function Self-test of smoke detection |
| Control type | Button (test/hush function) |
| Maximum number of device interconnected | 40 for wired alarm |
| RF range | 50 m indoor use line of sight 140 m in free field |
| Wireless response time | < 30 s |
| Horn level | 85 dB at 3 m, minimum |
| Time delay range | 10 min (hush) 10 h (do not disturb) |
| Local signalling | Visual: 1 LED (red) for warning and low battery Visual: 1 LED (green) for ON status Sound: signal Sound: alarm |
| Connections - terminals | (Line) - 2 x 1.5 mm² (Neutral) - 2 x 1.5 mm² (Earth loop) - 2 x 1.5 mm² (interconnect) - 2 x 1.5 mm² |
| Type of installation | Indoor |
| Device mounting | Surface |
| Mounting support | Ceiling Wall-mount |
| Fixing mode | By screws |
| Diameter | 140 mm |
| Height | 47 mm |
| Ambient air temperature for operation | 0…45 °C |
| Relative humidity | 5…95 % |
| Product certifications | RCM SAI Activfire |
| Standards | ISO 8201 AS 3786:2014 AS/NZS 60950.1 AS/NZS 60065 |
Warranty starts from Invoice Date
Domestic Use: 5Â Year
Commercial Use: 5Â Year
Warranty Method: Clipsal in home warranty
MPN: 755PSMA4-10Bundle
Estimated Delivery Time Frame:1-7 Business Days
