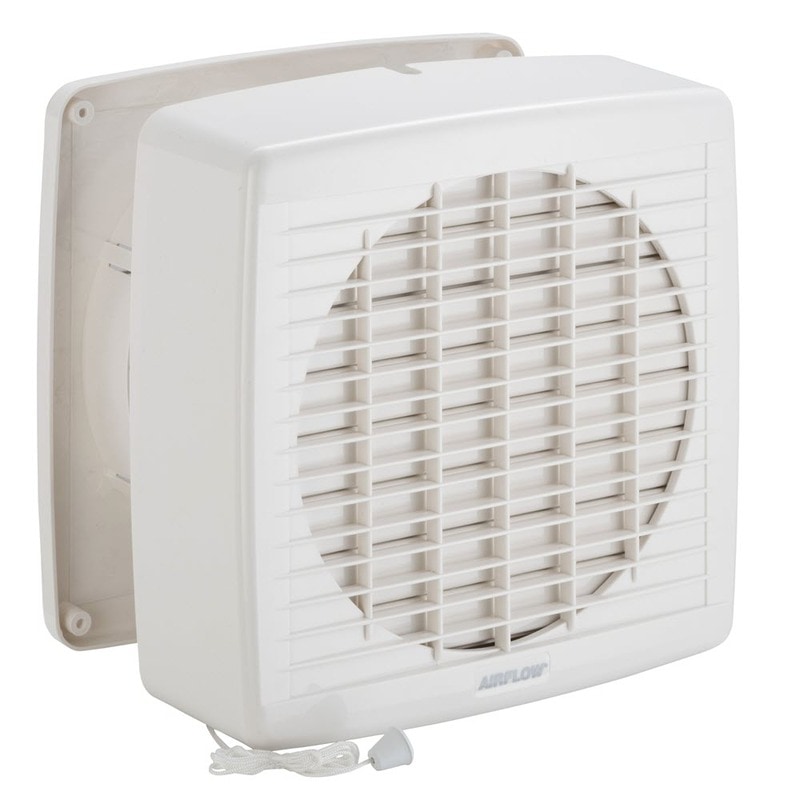

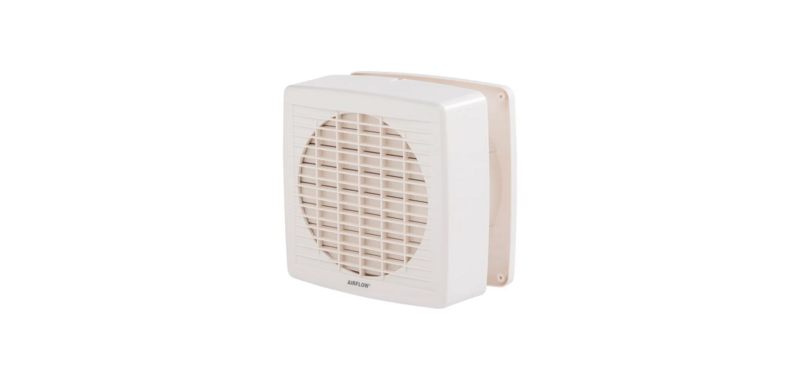

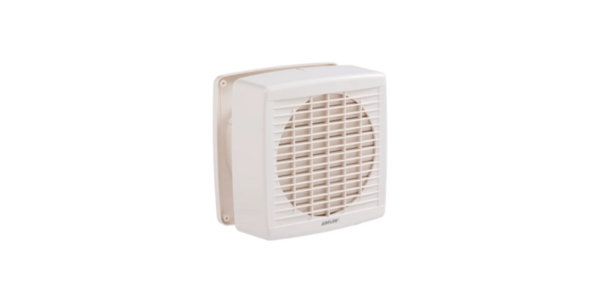

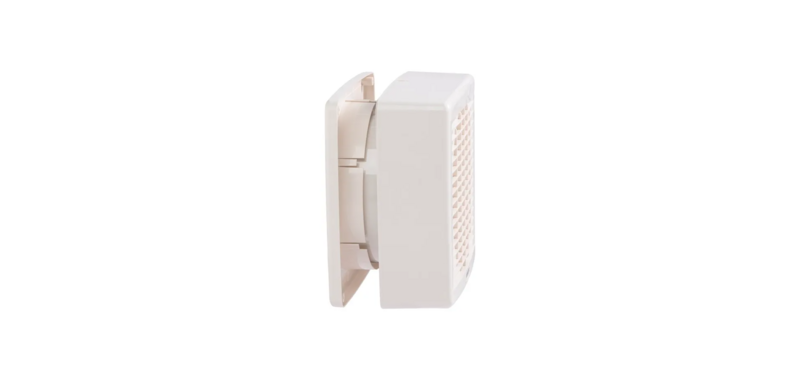

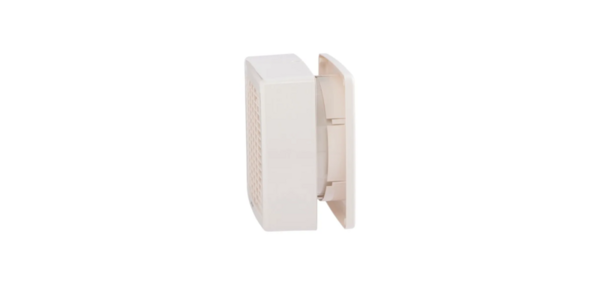

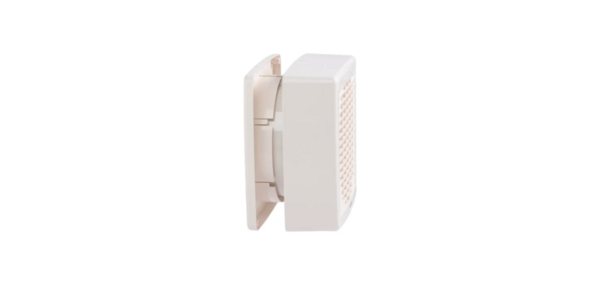

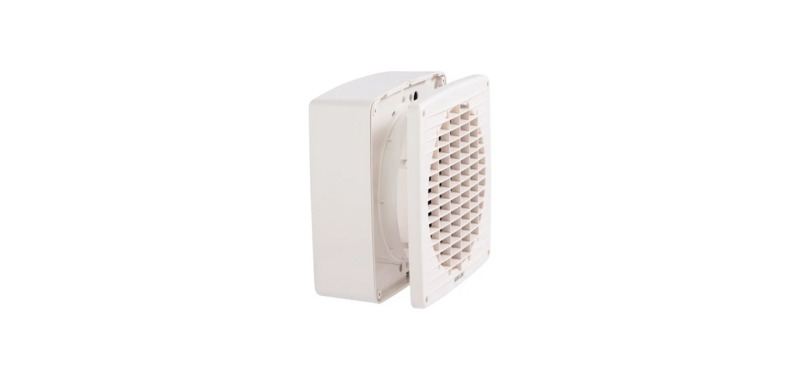

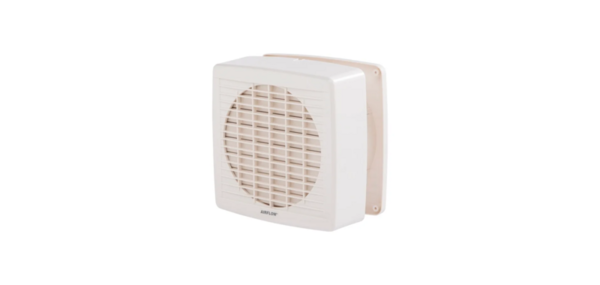

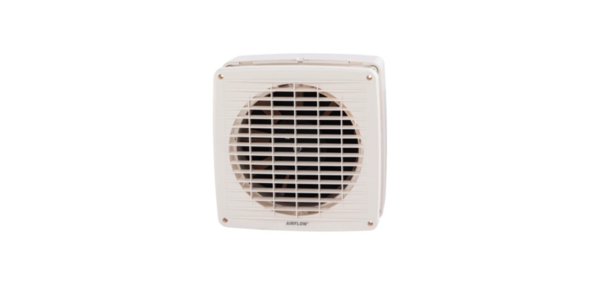

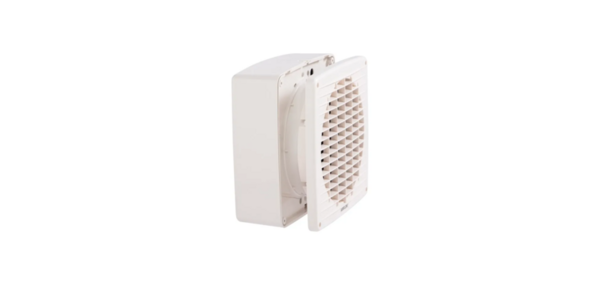

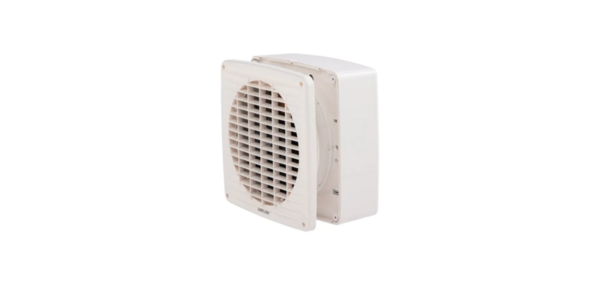

The Clipsal Airflow 7108AN Wall Exhaust Fan provides efficient and reliable ventilation with its 200mm axial blade and pull-cord-operated shutter system. With an airflow capacity of 470 m³/h, this fan is ideal for maintaining air circulation in both residential and commercial environments. The fan is equipped with a pull-cord switch for easy manual operation, allowing you to control ventilation when needed.

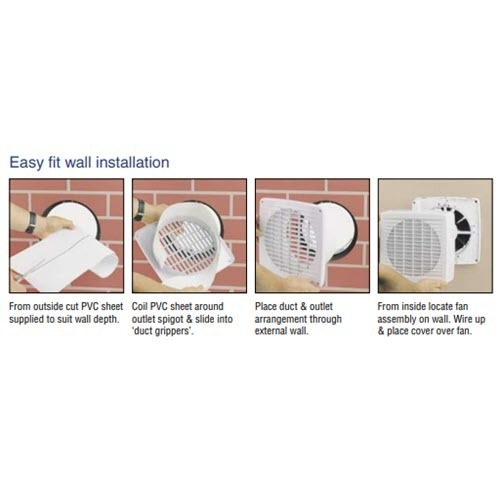

Operating at a low noise level of 53 dB and consuming only 25W of power, the 7108AN offers energy-efficient performance while ensuring minimal noise disruption. This fan is designed for wall mounting and features an IPX4 rating, making it suitable for damp environments like bathrooms and laundries.
Q: What is the airflow capacity of this exhaust fan?
A: The Clipsal Airflow 7108AN provides a high airflow capacity of 470 m³/h, ideal for effective ventilation.
Q: How is the fan operated?
A: The fan is controlled via a pull-cord switch for manual shutter operation.
Q: Is this fan suitable for use in humid environments?
A: Yes, the fan is IPX4 rated, making it safe for use in damp spaces such as bathrooms, kitchens, and laundries.
Specification | Details |
---|---|
Airflow | 470 m³/hr |
Sound level at 3m | 53 dB(A) |
Shutter operation | Pull cord |
Rated voltage | 230 - 240V a.c. 50Hz |
Power rating | 25W |
Hole size | 230mm Ø |
Fan size | 188mm Ø |
Overall intake size (A) | 271 x 271mm |
Wall depth required (B) | 110 - 310mm |
External protrusion (C) | 20mm |
Room protrusion (D) | 93mm |
Duct size (E) | 220mm Ø |
Protection rating | IPX4 |
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Clipsal in home warranty
