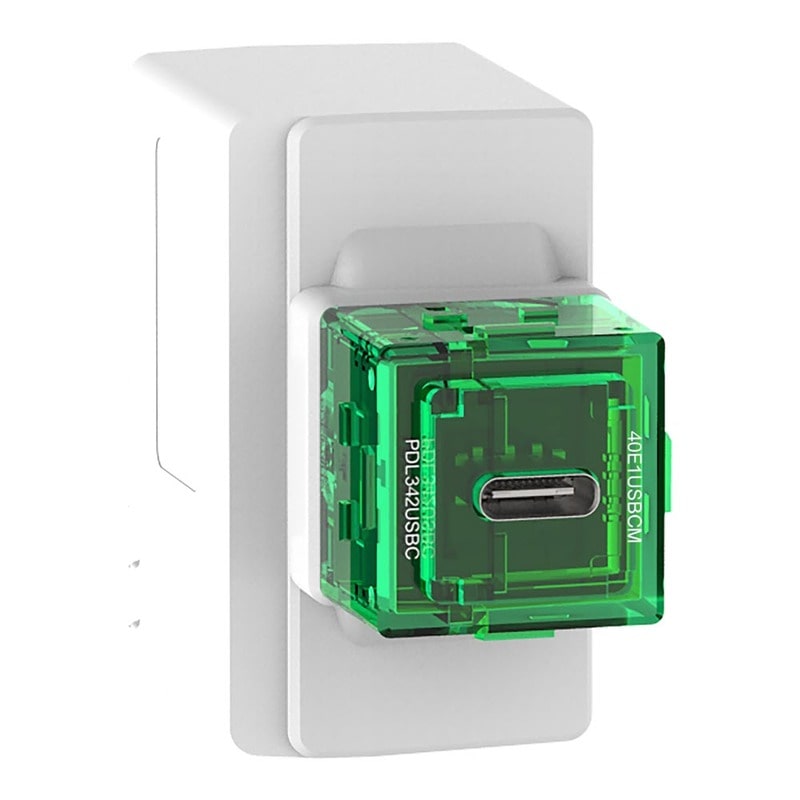

Clipsal Iconic 40E1USBCM-VW | Single USB C 3.1A |  25W Fast Charging Mechanism | Vivid White

The Clipsal Iconic USB-C Charging Mechanism makes it simple to fast charge your device.
Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.

Features

  • USB Type C
  • 3.1A
  • 25w fast charging
  • USB-C charging mechanism has been designed to eliminate bulky chargers by providing a universal charging solution whilst freeing up socket outlets.
  • Providing a dedicated independent port that optimises charging whilst monitoring the temperature of the device to ensure internal components don’t overheat.
  • This patented technology has the added advantage that enables the mechanism to be installed in harsh temperature environments.
  • The charging mechanism also includes a patented rotating head so that the correct orientation of the outlets can be provided in both horizontal or vertical plates.
  • The charger fits perfectly into the Iconic single, double or quad power outlets and can be accommodated in a deep wall box or standard mounting bracket
  • These energy-efficient USB Charger Mechs are compatible with both Apple® and Android™ devices and use less than 0.07W of power while in Standby mode.

Specifications:

Features:

  • Input Voltage: 220-240V ac 50hz
  • Output Voltage: 5V dc
  • Output Current: Max 2.1A per port (Max 3.1A for the module)
  • Standby Power <70mW Efficiency: >78%
  • Charging: BC1.2, cable compensation & Smartcharge
  • Operating Temperature: 0°-45° C Ambient
  • Operating Humidity: 5% ~ 90%
  • Relative Humidity, Non-Condensing Storage Temperature: 0°-60° C
  • Storage Humidity: 5% ~ 90% Relative Humidity, Non-Condensing
  • USB Connection type: 2 x USB A-Type

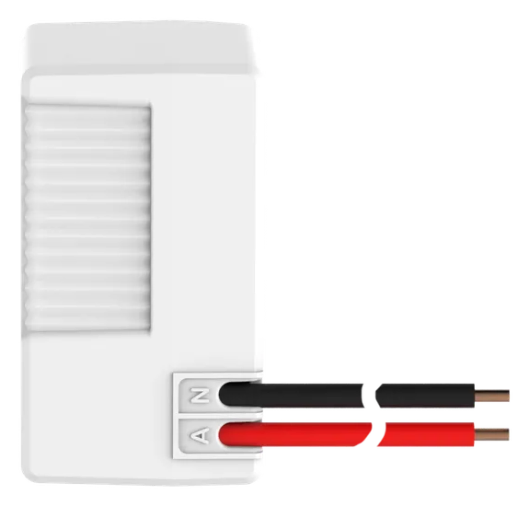

  • Input Connections 120mm flyleads, 22 AWG (0.64mm dia, 0.33mm²) terminal block supplied
  • IP Rating: IP20 Indoor Use Only
  • Rotating head angle: 180° Lifetime insertion of USB 10,000 cycles
  • Protection: Short circuit, Over Current and Over Temperature (self regulates output current)
  • Depth from rear of plate: 55mm (suits deep wall boxes)
  • Plate compatibility: Suitable for 40 Mech compatible wall plates (e.g. Iconic).
  • Not suitable for 30 series apertures.





Warranty starts from Invoice Date

Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty

GTIN: 9311554816056
