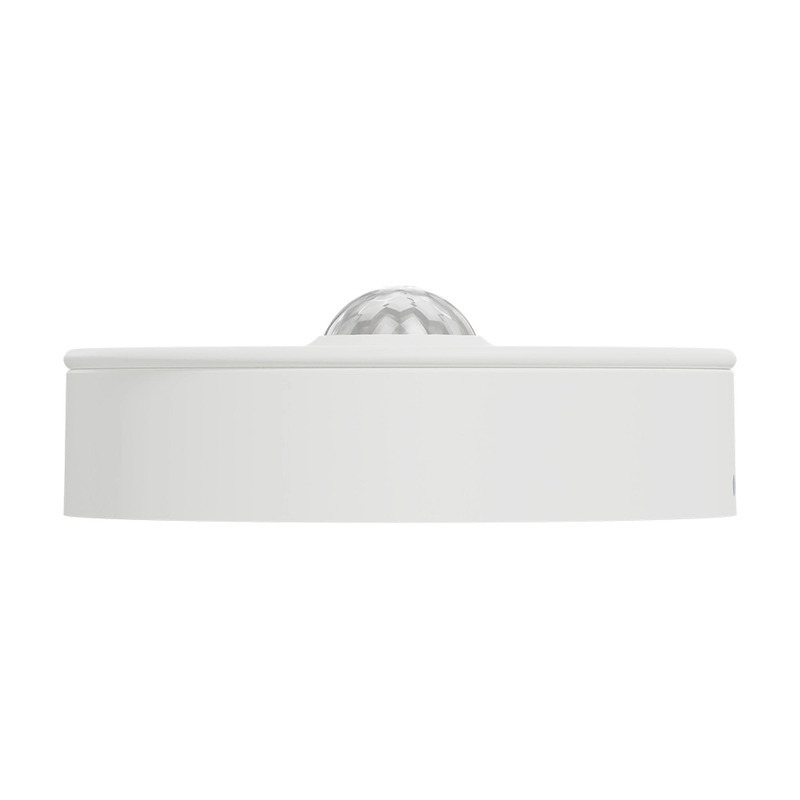

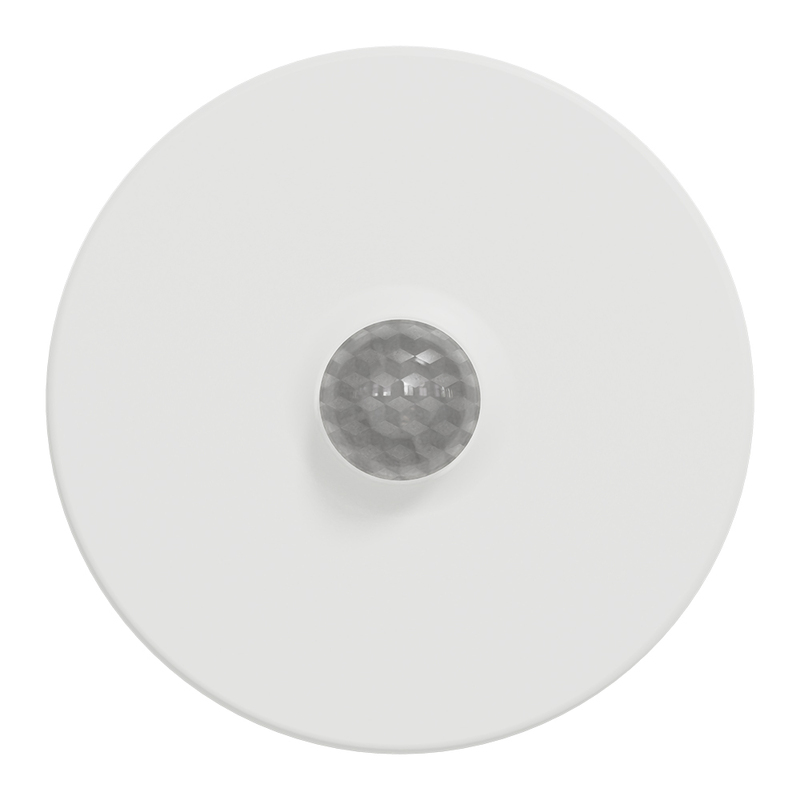

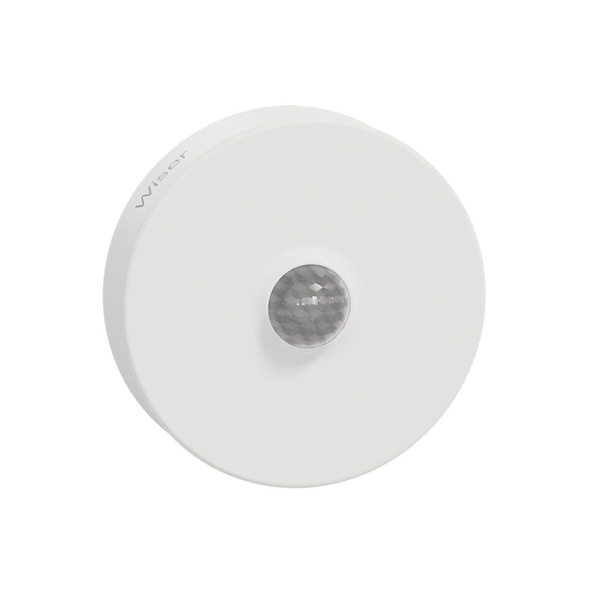

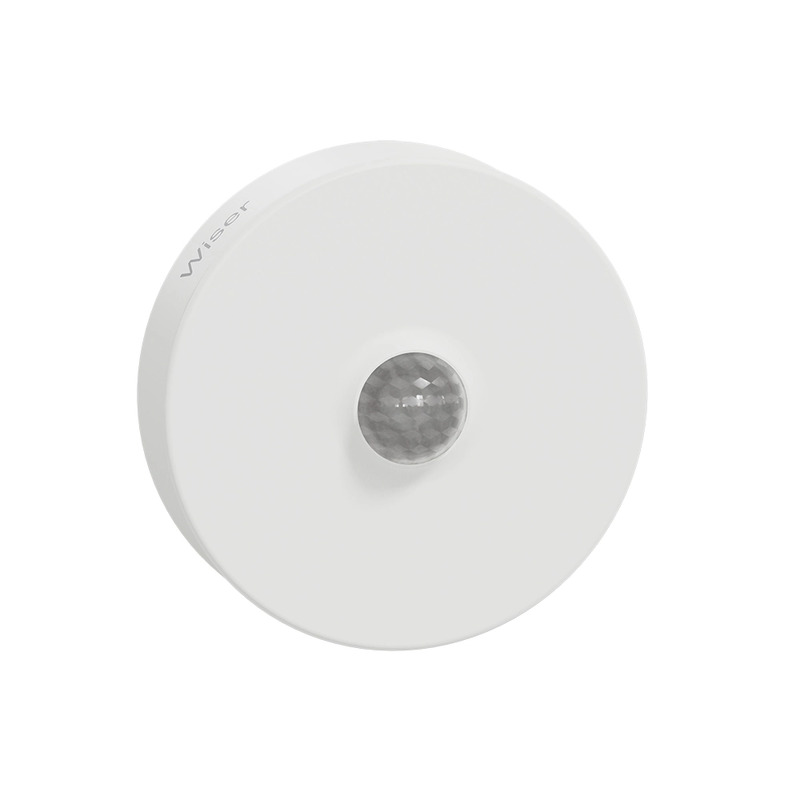

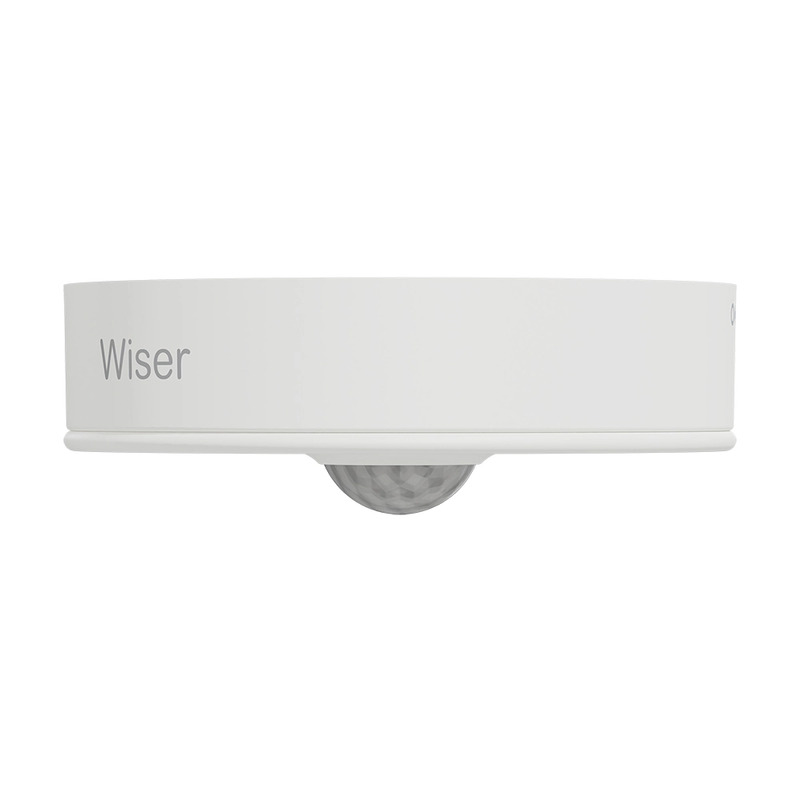

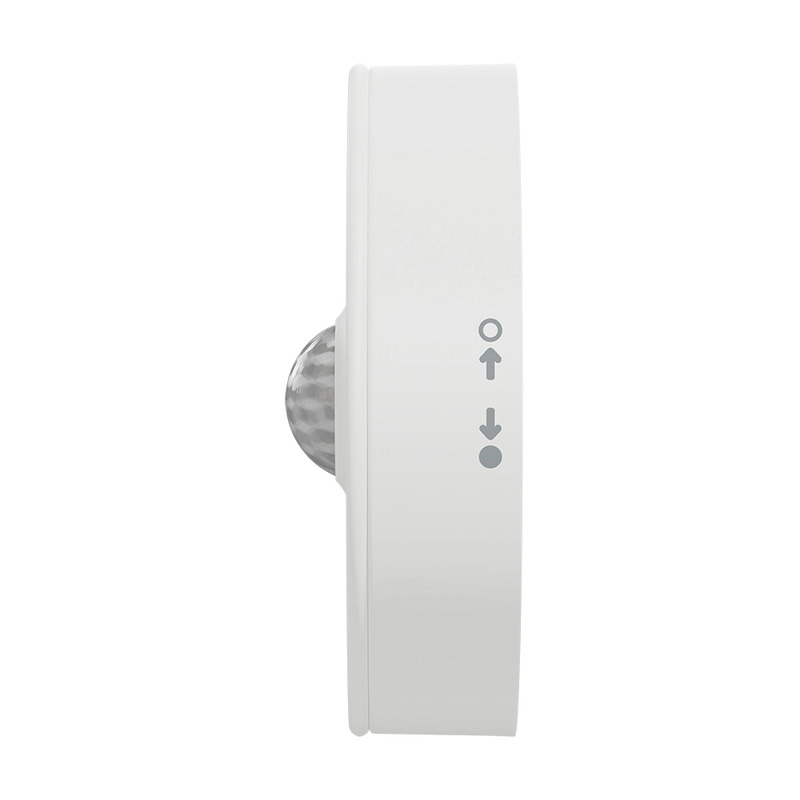

Clipsal Iconic Connected Zigbee Wiser Motion Sensor

The Wiser Motion Sensor detects movement, measures luminance in a room, and reports the status to the Wiser Hub. The threshold of luminance settings and/or movement detection can be programmed to determine what action to take at that moment.

Features:

• Detects movement, measures luminance in a room, and reports the status to the Wiser Hub

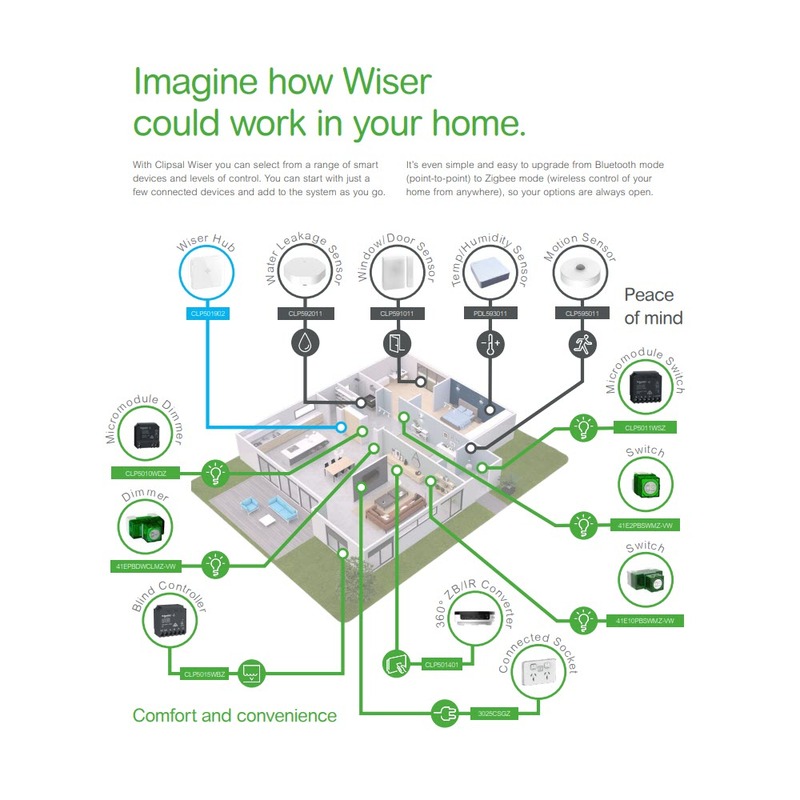

• Controls Wiser devices to configure the room for the desired effect
• Used as a trigger for Automations or Moments
• The threshold of luminance settings and/or movement detection can be programmed to determine what and when action is to be taken.
• When the sensor is connected to the Wiser Hub, it directly reports motion detection data to the hub.
• When the battery is low (less than 10%), the status LED blinks orange once per minute, and a message is sent to the Wiser Hub.
• Up to 360-degree detection

Detection - sensitivity

• Ceiling mount at 2.5m
  • Detection angle 360°
  • Detection Range 4m
• Wall-mounted at 1.2m
  • Detection angle 90 to 110° horizontal and Vertical
  • Detection Range 5m in radius

Installation Method

• Surface-mounting, with screws or adhesive pads, on a ceiling or a wall
• The sensor can be mounted on a wall or ceiling to provide desired coverage:
  • The ceiling mount provides a 360° detection angle with a maximum range of 4 m diameter.
  • Wall mounting provides a detection angle of 90° to 110° horizontal and vertical with a maximum range of 5 m radius.
  • Do not install the sensor in a place with strong sunlight or wind (for example, close to ventilation).
  • When the ambient temperature is >32 o C, the sensor’s ability to measure sensitivity, detection range, and detection angle are degraded.
• Walking detection
  • The PIR sensor is more sensitive to movement across different patterns. On the contrary, the sensor is less sensitive when movement is directed towards the sensor since the range is reduced.

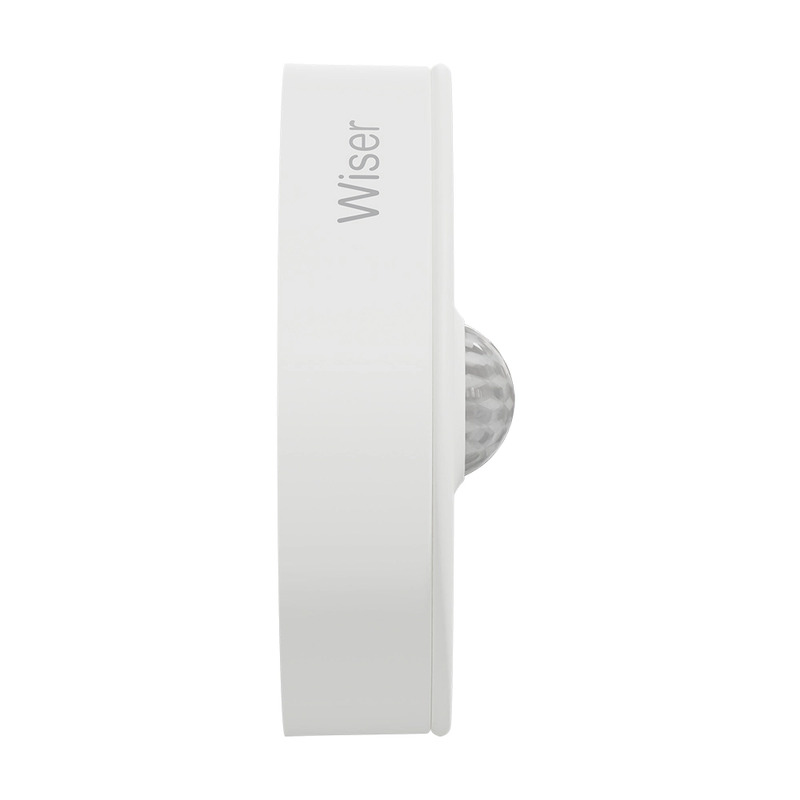

Dimensions:

• 75mm Diameter
• 26.6mm Width

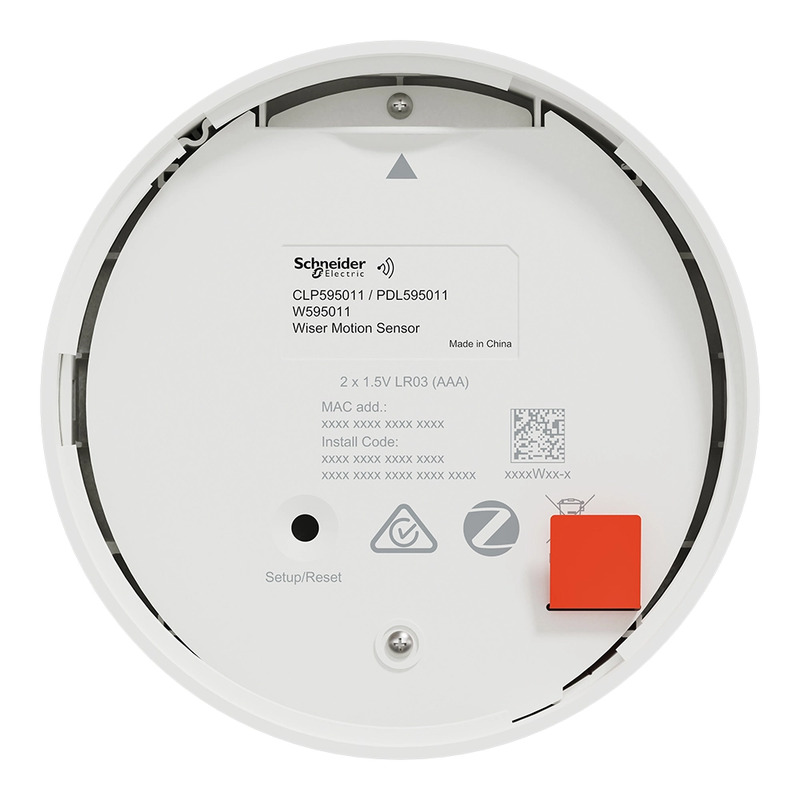

Power source:

• Battery Powered - Up to 5 Year Battery Life
• 3VDC - LR03 AAAx2

Zigbee at 2.4GHZ
