Introducing MAXBAR – The next generation busbar! MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR is nothing like ordinary busbars, it helps to improve your installation speed by up to 15 times when compared to traditional wiring method. With MAXBAR, you don’t need any cable connections to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across the RCBOs and AFDDs. MAXBAR helps to connect main switch to all types of Clipsal RCBOs - SLIM RCBO, 2 module RCBO or a 3P+N RCBO.

MAXBAR is easy to order with all the accessories, like cable connector, end caps, teeth covers, neutral terminal block, needed for a switchboard installation coming in a kit package. There are two type of MAXBAR kits (please take note of model numbers as follows):

• MAXBAR with Neutral Terminal Block Kit – MX9BxxxN - For installation in all single row enclosure or row with main incomer in case of multi-row enclosures.
• MAXBAR without Neutral Terminal Block Kit – MX9Bxxx - For installation in rows without main incomer in case of multi-row enclosures.

Features & Benefits

• MAX Speed – Up to 15 times faster compared to traditional wiring method
• MAX Professionalism – No cables for feeding RCBOs
• MAX Performance – 100A rated

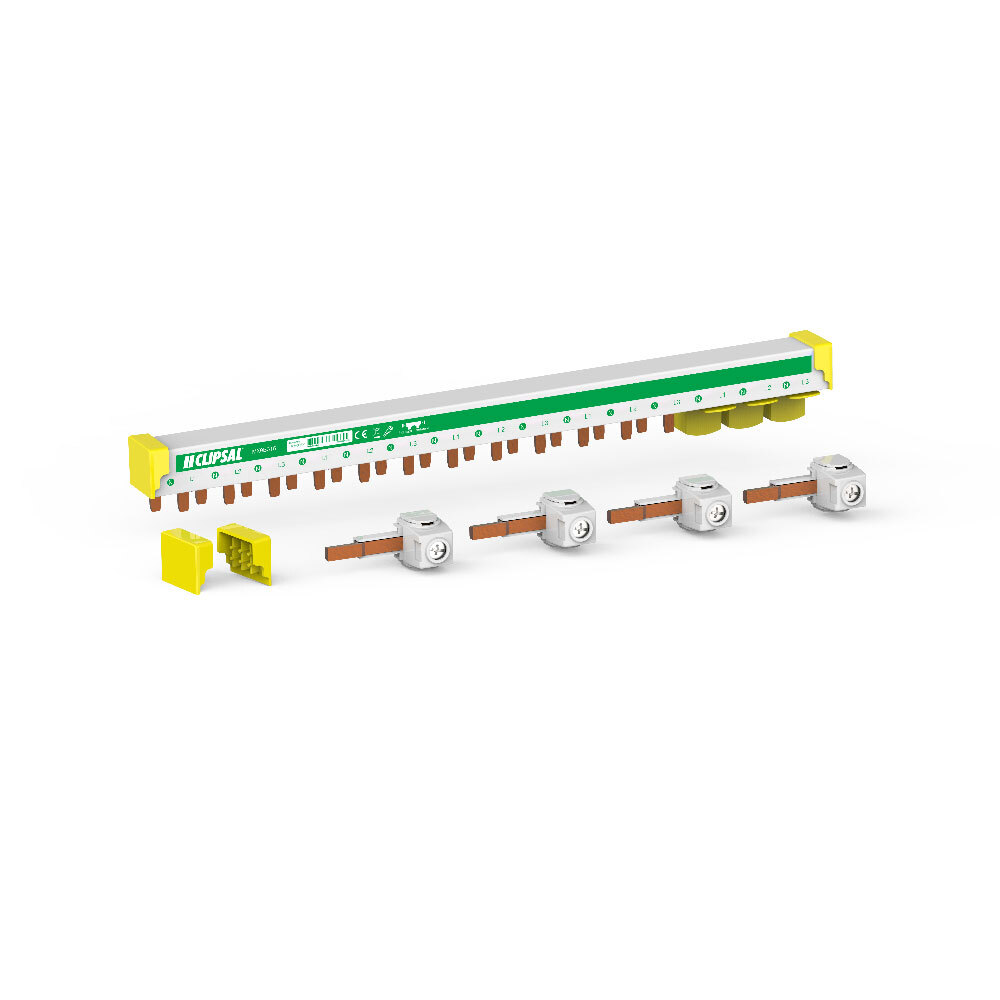

• MAX Ease – All in 1 pack: Busbar + Connector + Teeth cover + End Caps + Neutral terminal block (refs ending with N only)
• MAX Flexibility:
  • One busbar connects to main switch, all type of Clipsal RCBOs and AFDD
  • Cuttable to have desired number of modules and insulate with End caps
  • Teeth covers to insulate unused modules for future upgrades
  • Available in varying lengths
  • Compatible with Resi MAX SLIM Comb busbar accessories like connector and teeth cover
