Introducing Clipsal MAX9 new energy protection kits with MAXBAR+.

These innovative kits offer a comprehensive solution, combining circuit protection, busbar, and accessories to effectively tackle the challenges posed by renewable energy and home electrification. The MAXBAR+ busbar is designed to efficiently group multiple energy sources onto one busbar and distribute power to the general loads of the house.

MAXBAR+ kits consist of a combination of busbar specifically designed for new energy applications, MCB's for grid supply, solar, and battery connections, RCBO sized for EV charging, and neutral terminal block for simple neutral distribution.

With multiple energy sources entering a switchboard in electrified homes, current flow inside the board will vary depending on time of day and usage.

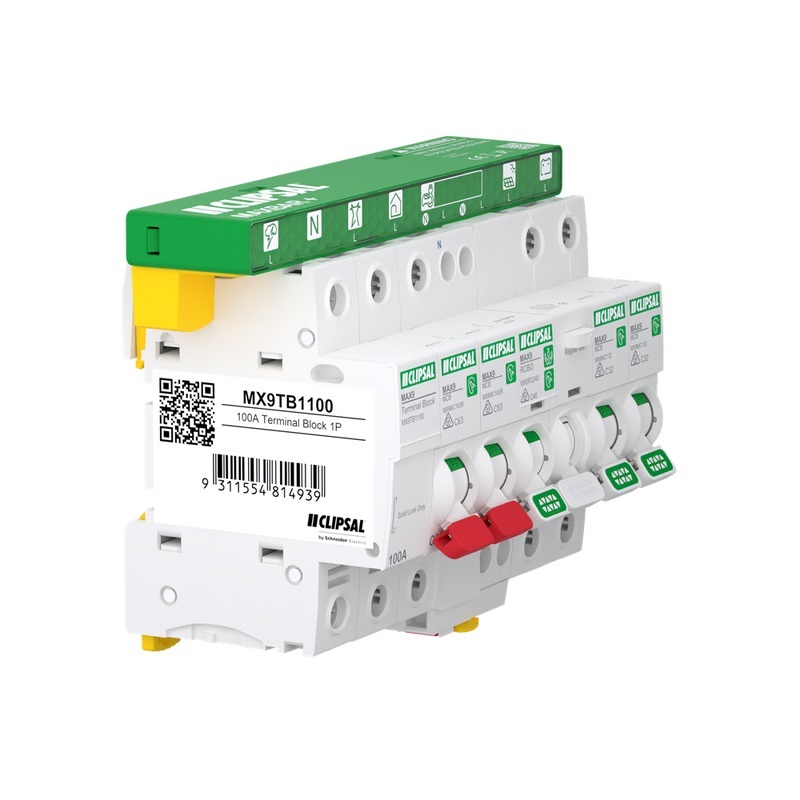

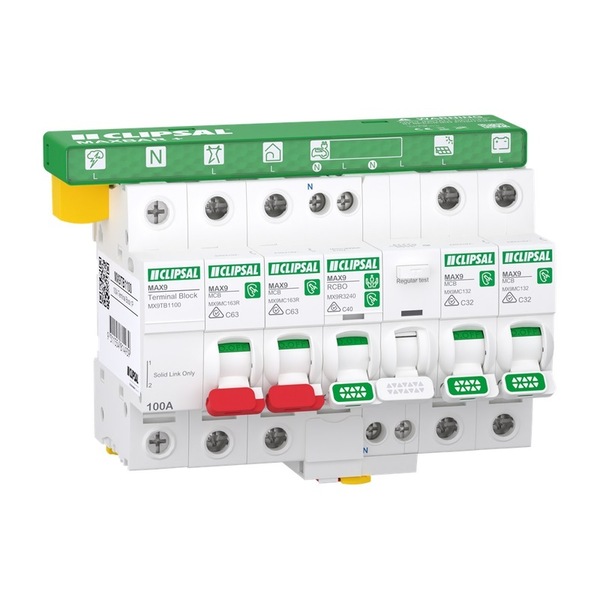

The pictograms on the front of MAXBAR+ are crucial for correctly placing circuits along the busbar. This ensures that grid supply and alternate energy sources are positioned at opposite ends of the busbar, while the home’s general loads are placed in the middle. By doing so, MAXBAR+ helps to keep current flow within busbar rating, even during peak power demands.

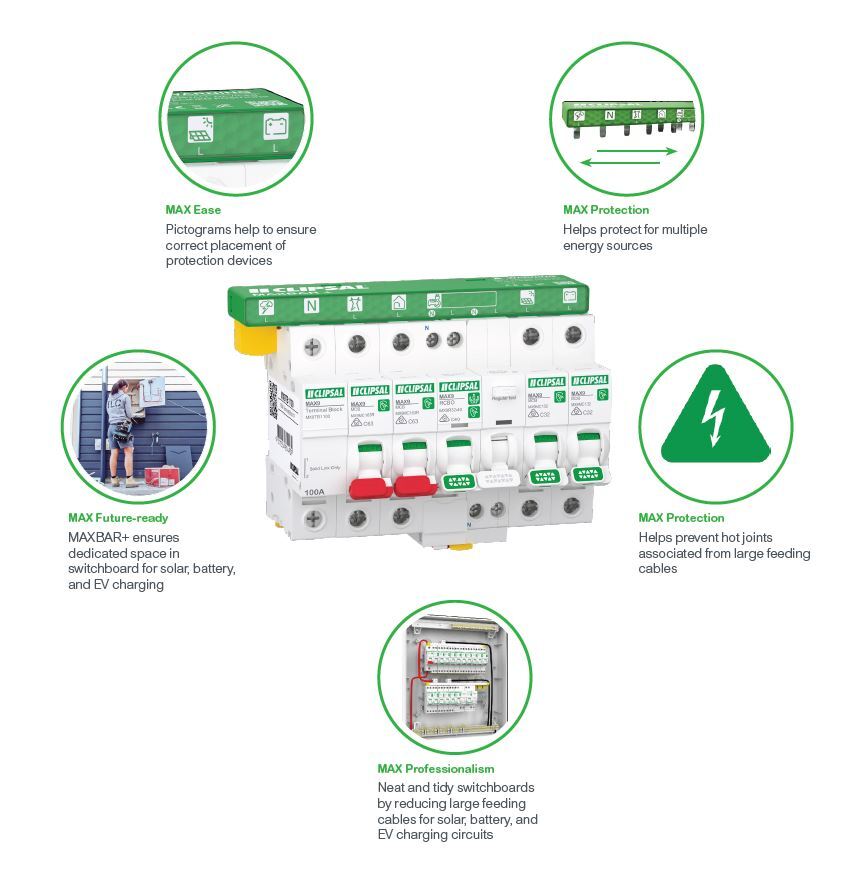

Features

• MAX Protection: MAXBAR+ busbar helps protect switchboards against overloading from bi-directional and multiple energy sources whilst also preventing potential hazards and hot joints associated from large feeding cables required for solar, battery, and EV charging.
• MAX Future-ready: MAXBAR+ ensures dedicated space in switchboard for solar, battery, and EV charging.
• MAX Speed: Faster installation by using a busbar instead of traditional cabling method.
• MAX Professionalism: Busbars enable installations to be neat and tidy by reducing feeding cables and providing more professional looking switchboards.
• MAX Ease: Easy to understand pictograms help to ensure correct placement of protection devices.

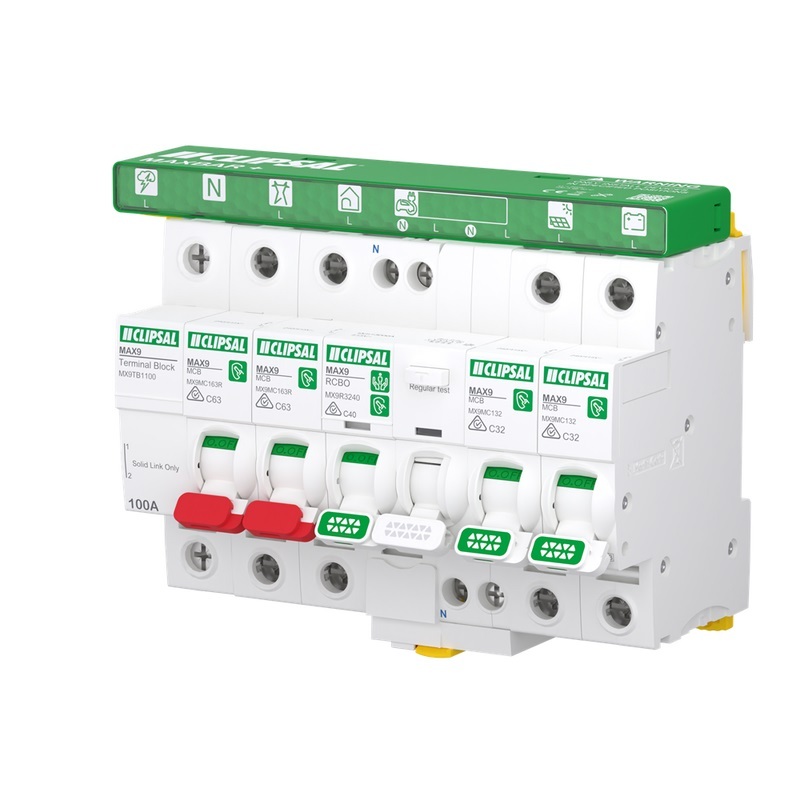

Contents

• 1 x MAXBAR+ 1P 8 Module

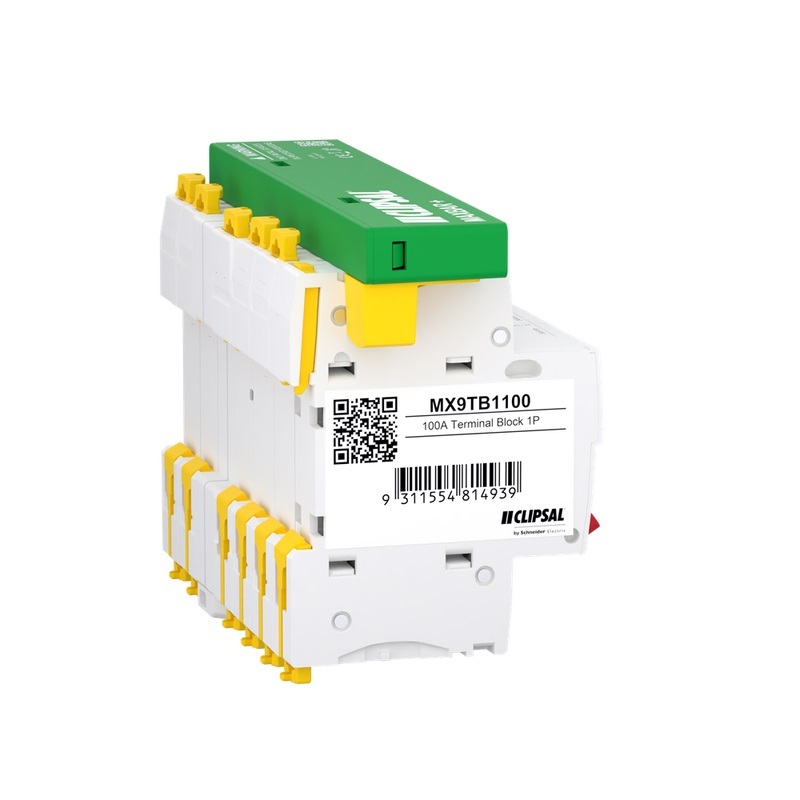

• 1 x MX9TB1100 | MAX9 Neutral Terminal Block
• 2 x MX9MC163R | MAX9 1P MCB 63A Red Toggle
• 1 x MX9R3240 | MAX9 2 Module RCBO 40A
• 2 x MX9MC132 | MAX9 1P MCB 32A
• 2 x Busbar Tooth Cover
• 1 x Sticker Label Sheet
