Keep your family and property protected

In just seconds, undetected arc faults can break out into an electrical fire. Broken wires, loose connections, crushed cables and worn insulation can all cause hidden arc faults in electrical circuits. Arc Fault Detection Device’s (AFDD’s), also known as Arc Fault Circuit Interrupter, can help to isolate the faulty circuit as soon as the Arc fault is detected.
Arc faults can be difficult to see. They usually occur in hidden places, such as damaged cables, inside walls or a loose connection in a hidden junction box, or outlet sockets.
Arc Faults are one of the main causes of electrical fires. These fires are surprisingly common in older buildings.

What is an Arc Fault Detection Device?

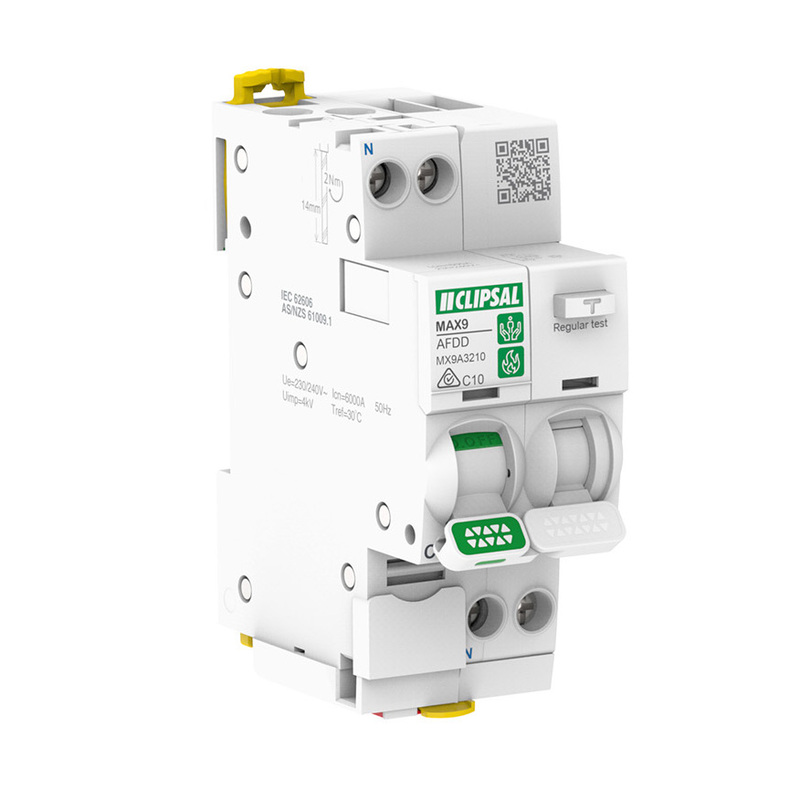

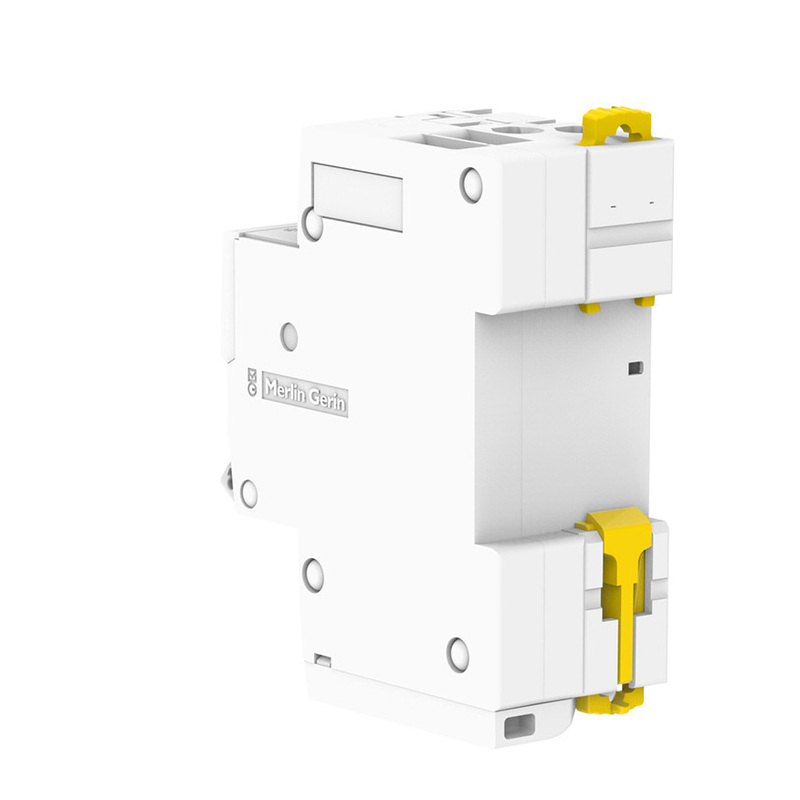

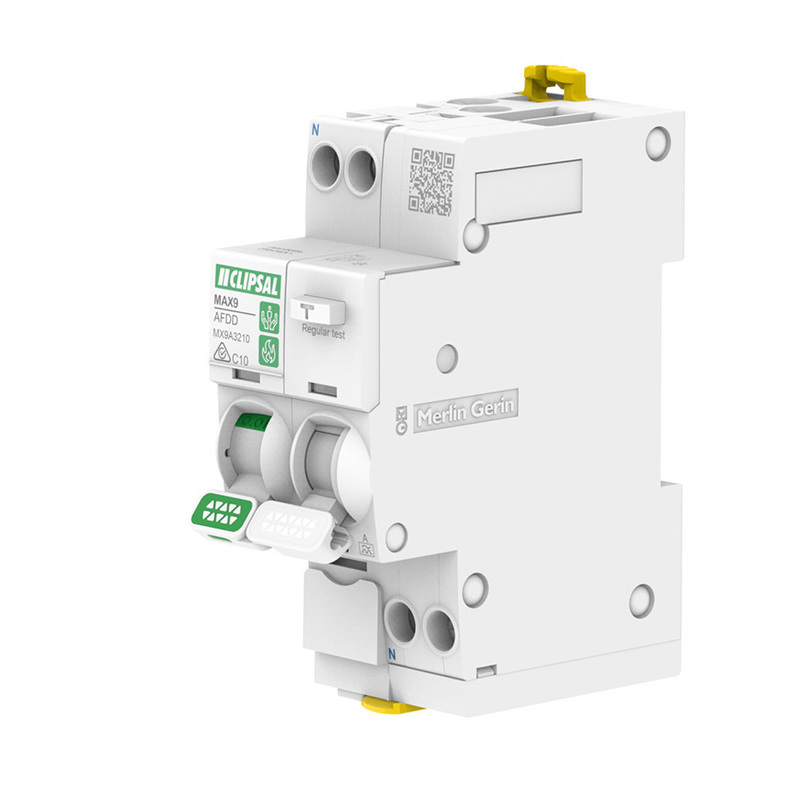

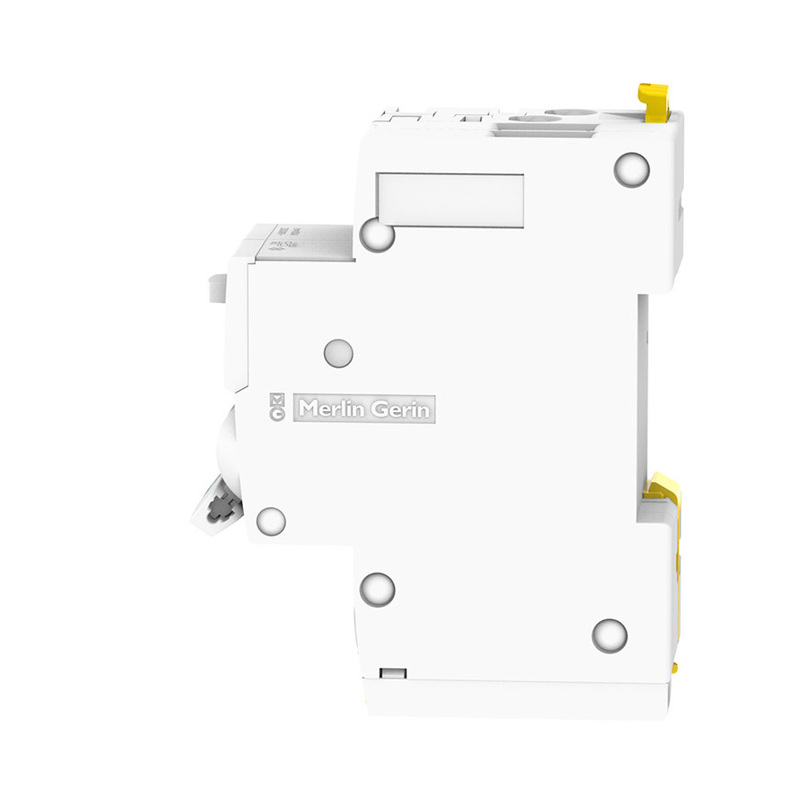

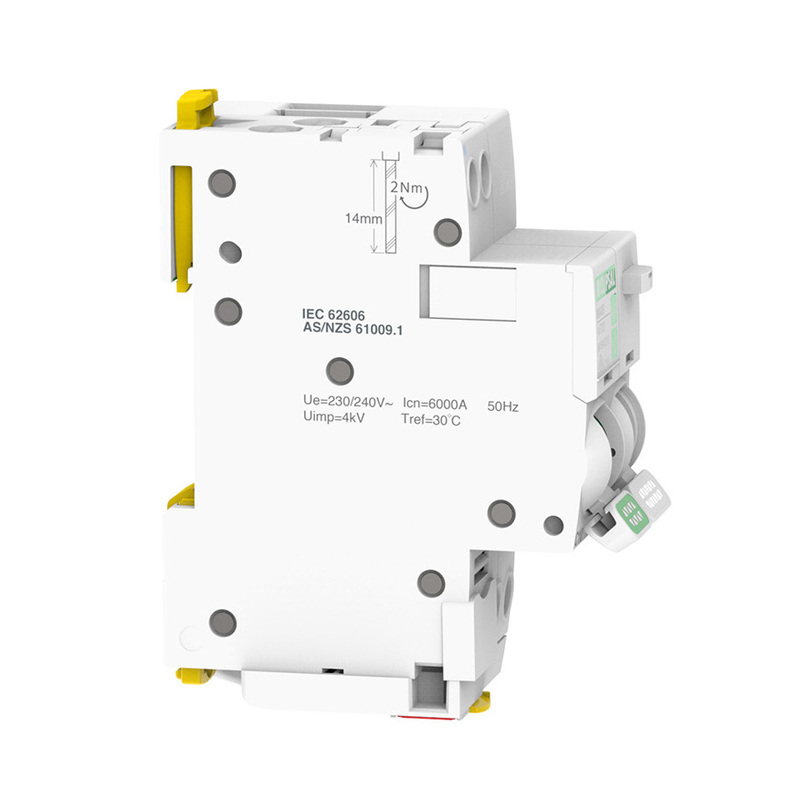

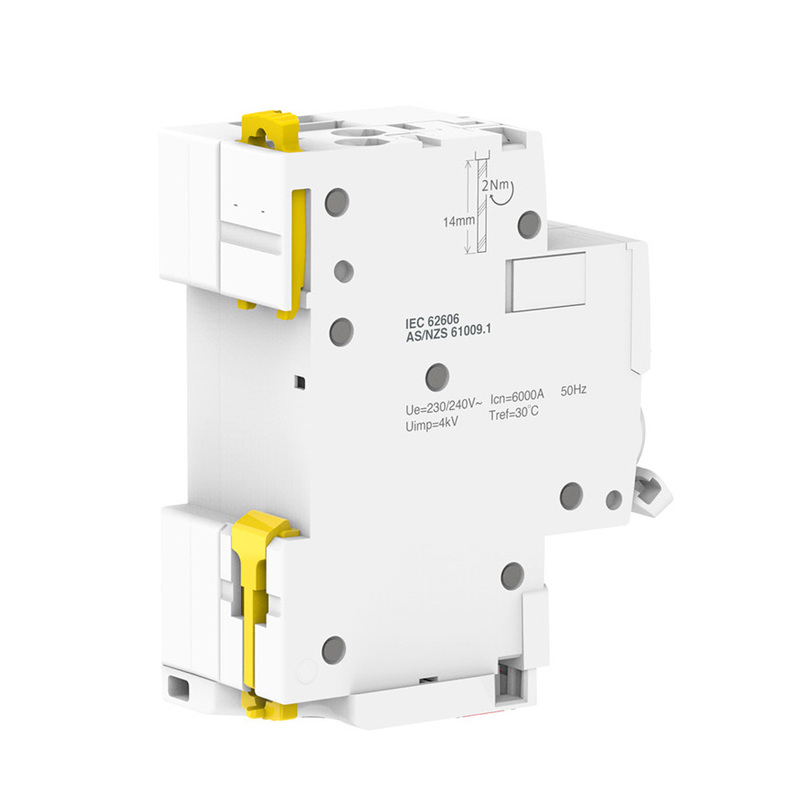

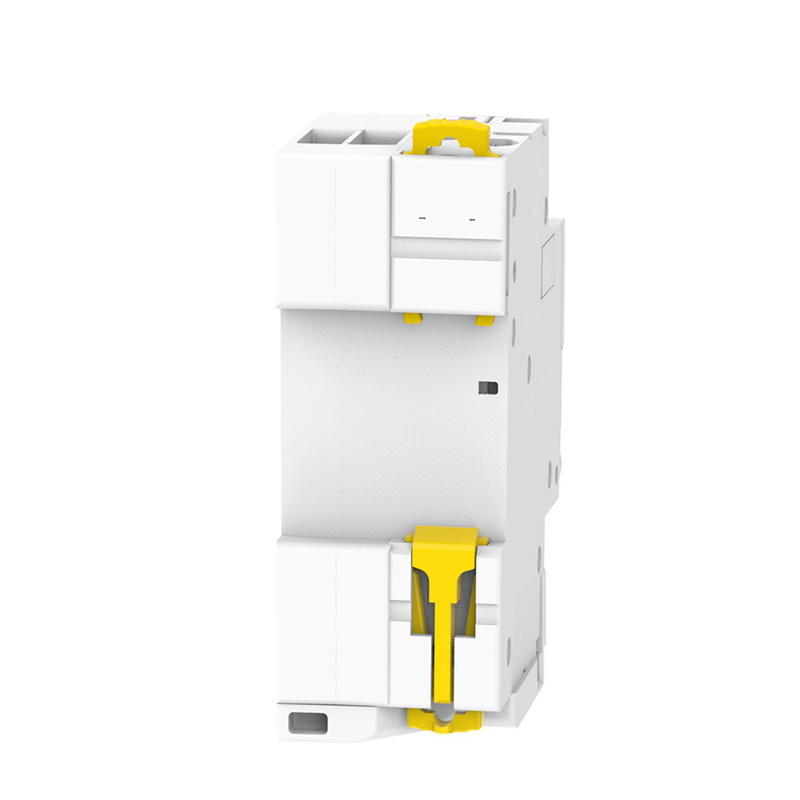

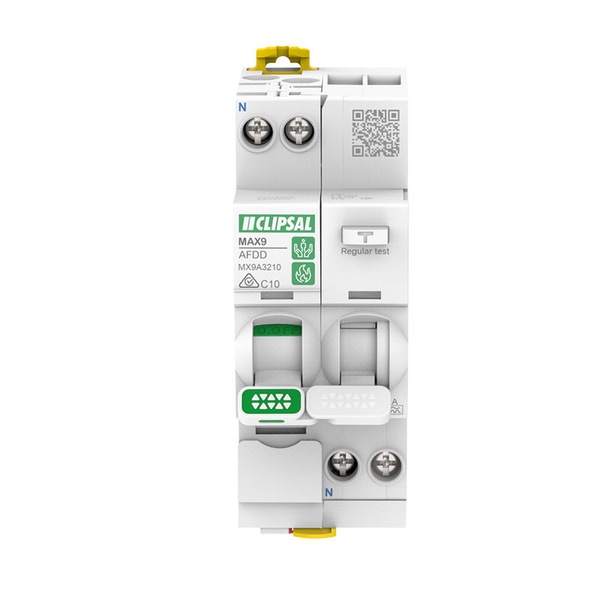

The Clipsal MX9A3210 AFDD is a circuit breaker that automatically cuts the electricity supply when it detects an arc fault in a circuit. By cutting the electricity supply, AFDD’s help prevents arc faults from reaching temperatures where electrical fires can break out.

This MAX9 product is an arc fault detection RCBO.
MX9A3210 is a 1P+N circuit breaker with 1 protected pole, 10A In rated current at 30øC and C tripping curve.

Features:

• The operating frequency is 50Hz.
• The earth leakage protection class is type A with a sensitivity of 30mA.
• The earth-leakage protection time delay is instantaneous.
• The Icn rated short circuit breaking capacity goes up to 6000A at 240VAC conforming to IEC 61009 standard.
• This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing systems.
• It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
• It detects arc fault that comes from fire start and is constantly analyzing electric settings.
• It isolates the involved circuit automatically before the first flame appearance.
• It is particularly adapted for circuit protection where the fire started is the most important in domestic installation (outdoors, rooms).
• It has an RCM quality label.
