What is an Arc Fault Detection Device?

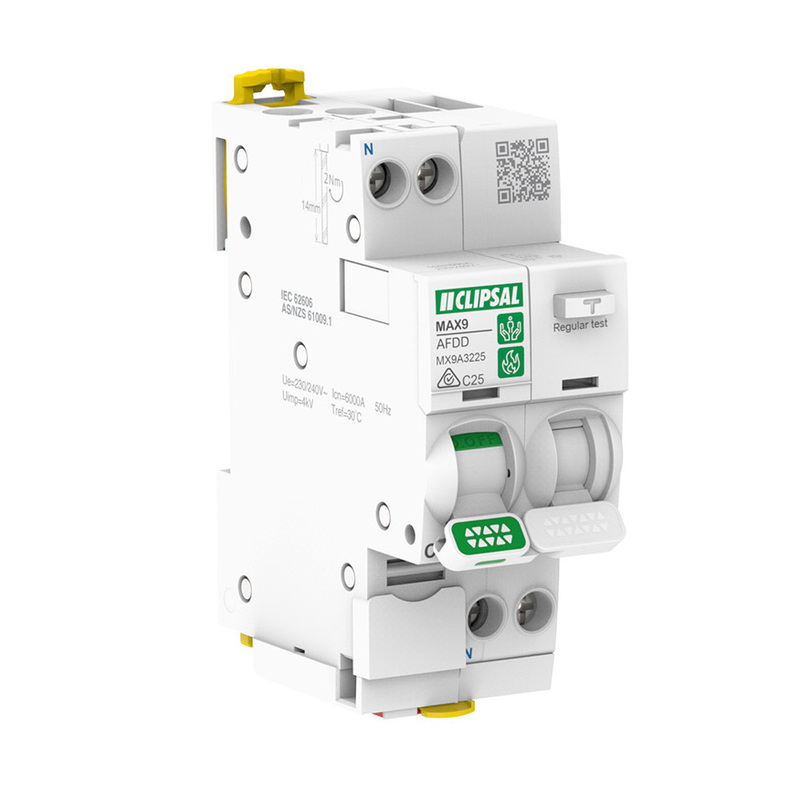

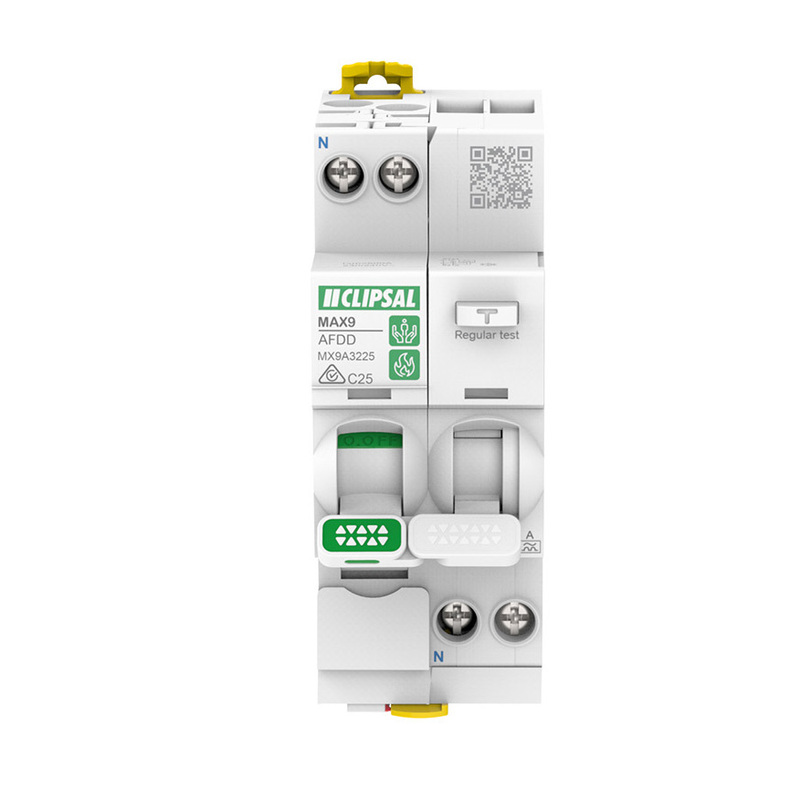

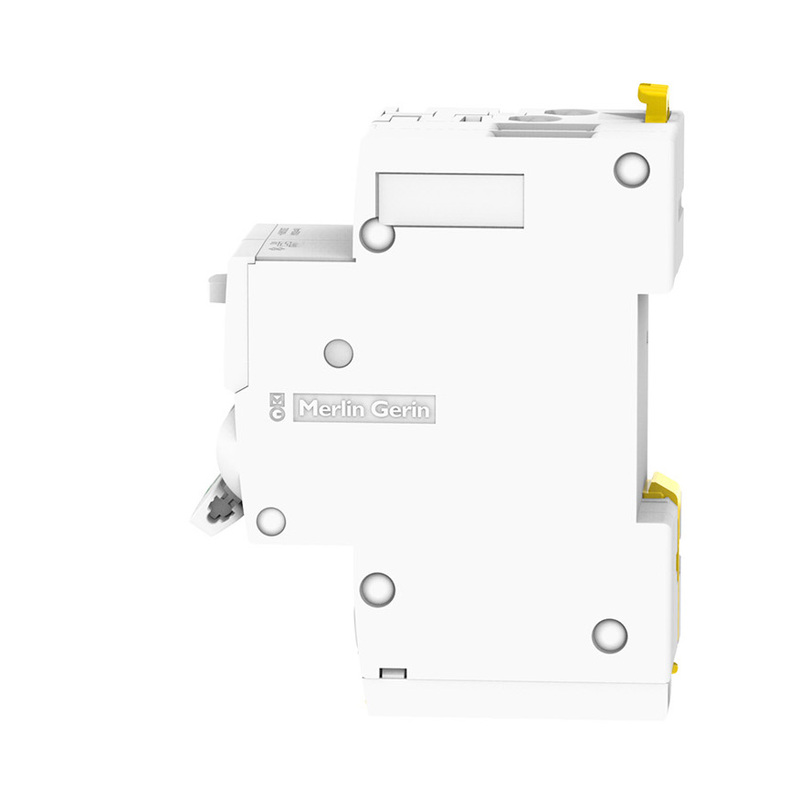

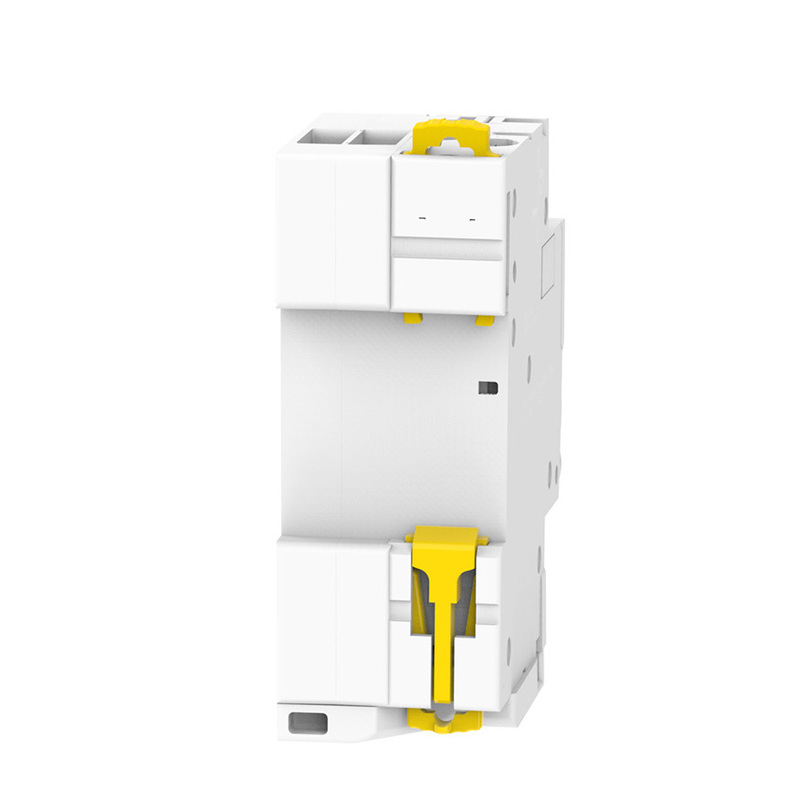

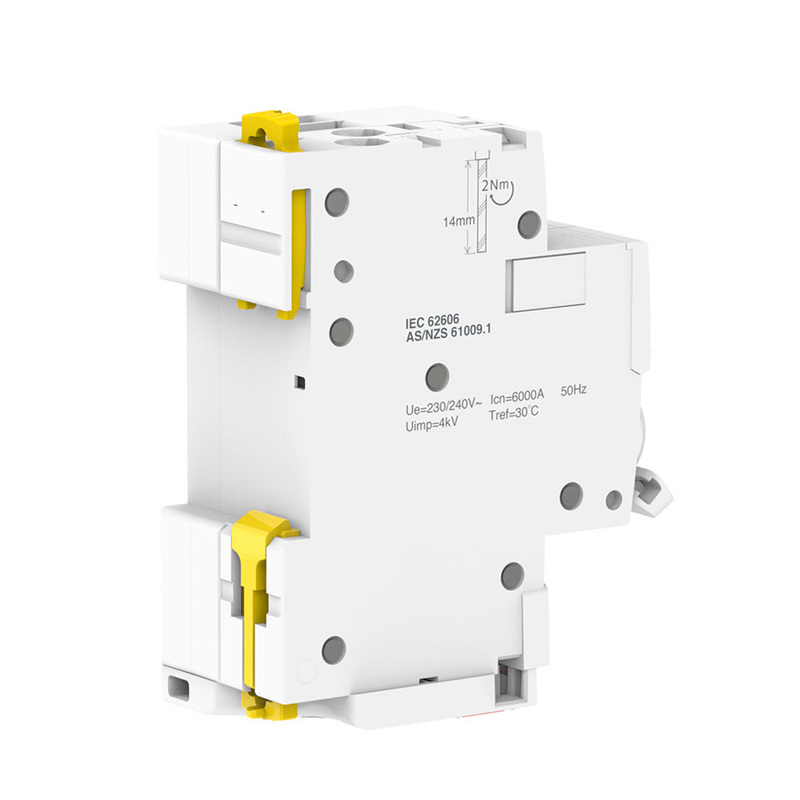

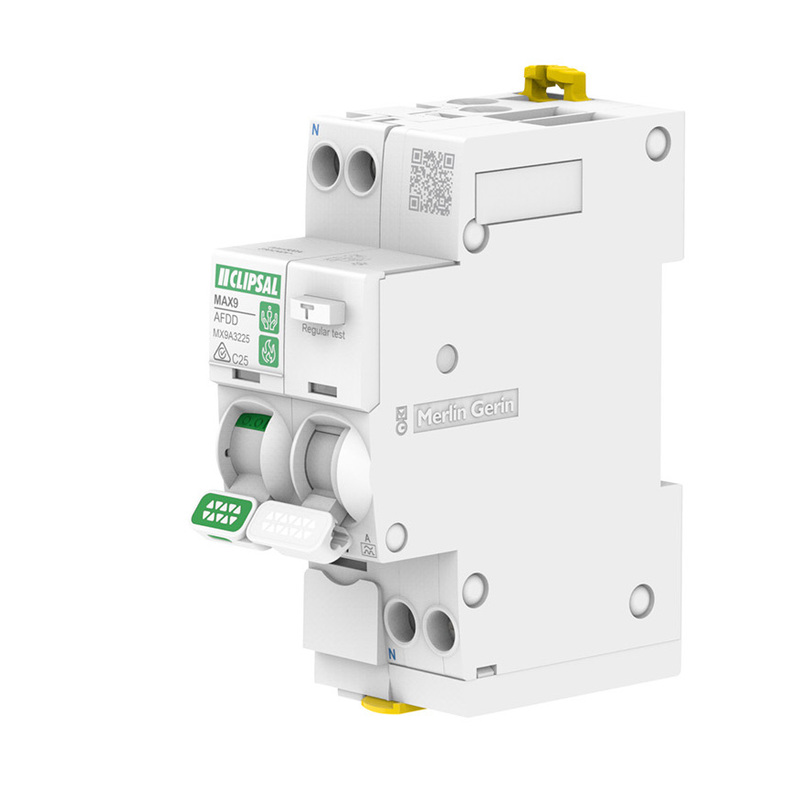

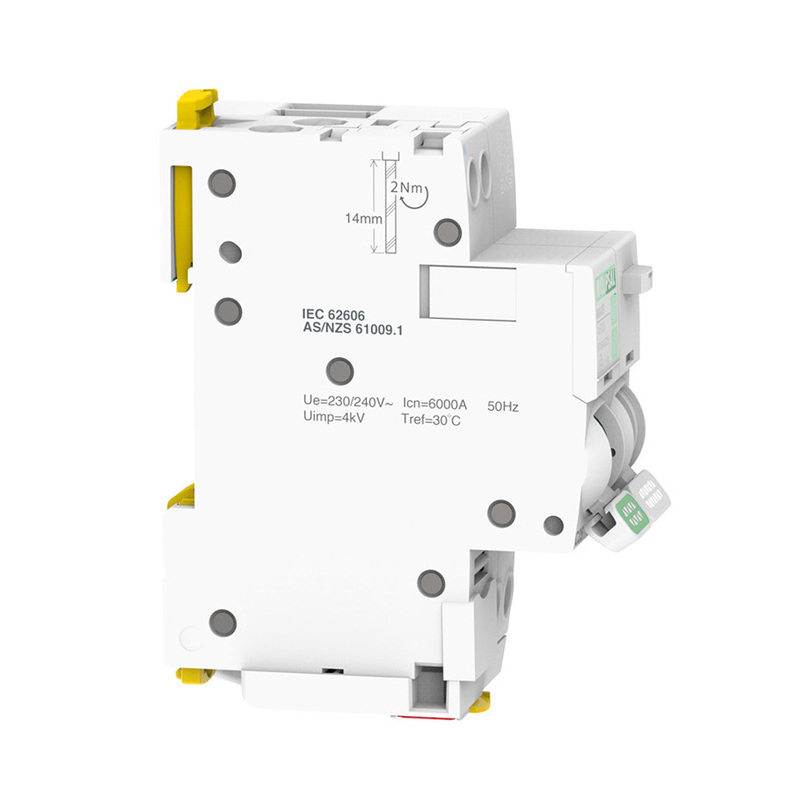

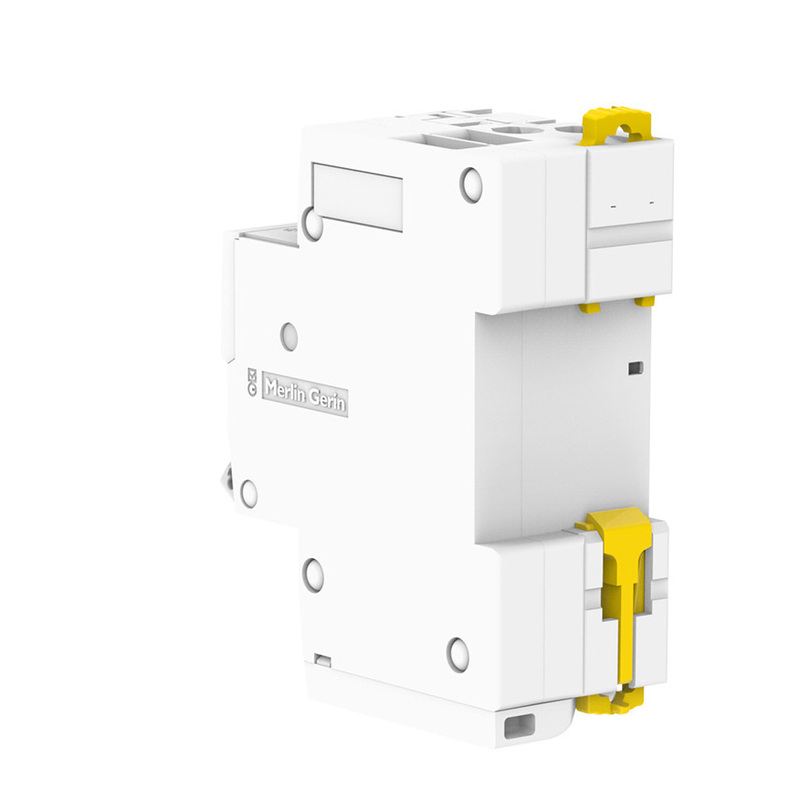

The Clipsal MX9A3225 AFDD is a circuit breaker that automatically cuts the electricity supply when it detects an arc fault in a circuit. By cutting the electricity supply, AFDD’s help prevents arc faults from reaching temperatures where electrical fires can break out.

This MAX9 product is an arc fault detection RCBO.
MX9A3225 is a 1P+N circuit breaker with 1 protected pole, 25A In rated current at 30øC and C tripping curve.

Features:

• The operating frequency is 50Hz.
• The earth leakage protection class is type A with a sensitivity of 30mA.
• The earth-leakage protection time delay is instantaneous.
• The Icn rated short circuit breaking capacity goes up to 6000A at 240VAC conforming to IEC 61009 standard.
• This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing systems.
• It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
• It detects arc fault that comes from fire start and is constantly analyzing electric settings.
• It isolates the involved circuit automatically before the first flame appearance.
• It is particularly adapted for circuit protection where the fire started is the most important in domestic installation (outdoors, rooms).
• It has an RCM quality label.
• The Ue rated operational voltage is 240VAC.
• The Ui rated insulation voltage is 440VAC.
• It has a Uimp rated impulse withstand voltage of 4kV.
• It can be mounted on DIN rail for modular installation.
• The width in 9mm pitches is 4.
• The dimensions are (W) 36mm x (H) 91mm x (D) 75mm.
• The product colour is white (RAL9003).
• The product weight is 237g.
• According to IEC 60529 standard, the degree of protection is IP20.
• The pollution degree is 2.
• The operating temperature is from -25øC to +70øC.
• The storage temperature is from -40øC to +85øC.
• This product complies with EN/IEC 62606 standard.
