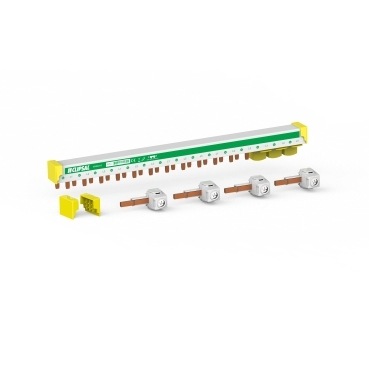

Clipsal MX9B315 - MAX9 Busbar 3PN 15 modules

MAXBAR MX9B315 is slim type top feed comb busbar for a row
The rated current is 100A.
It is 3P+N and has 15 modules.
4 x Connector

Features:

• MAX Speed – Up to 15 times faster compared to the traditional wiring method
• MAX Professionalism – No cables for feeding RCBOs
• MAX Performance – 100A rated
• MAX Ease – All in 1 pack: Busbar + Connectors + Teeth cover + End Caps
• Comb busbar mounting mode is horizontal and cuttable.
• It is dedicated to the residential market.
• The Ue rated operational voltage is 230VAC or 415VAC.
• The Ui rated insulation voltage is 500V.
• The dimensions are (W) 324mm x (H) 50mm x (D) 45mm.
• The Colour is white electric (RAL9003).
• The comb busbar colour is white electric (RAL9003)
