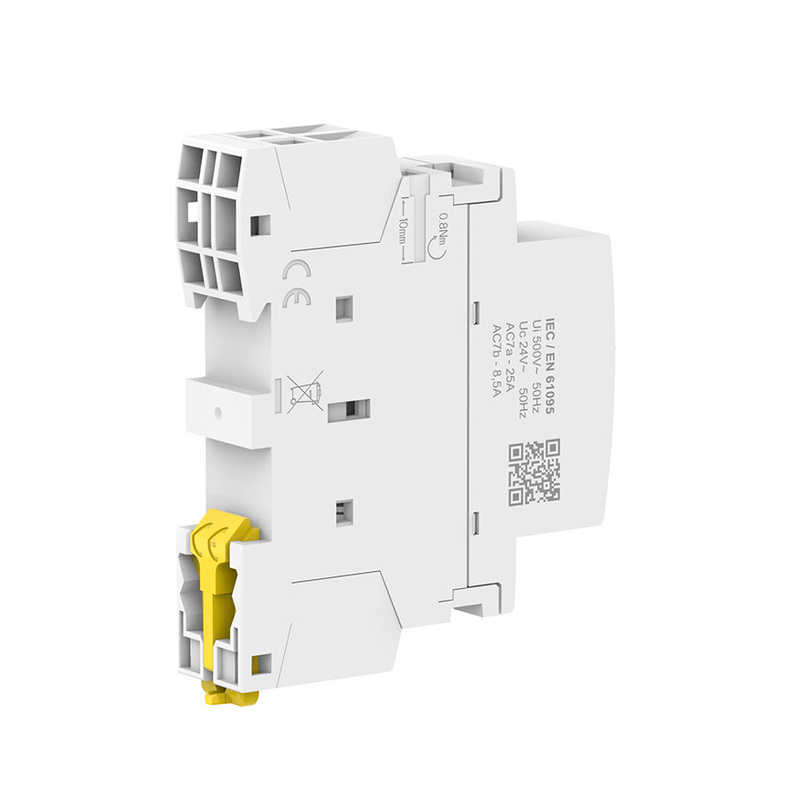

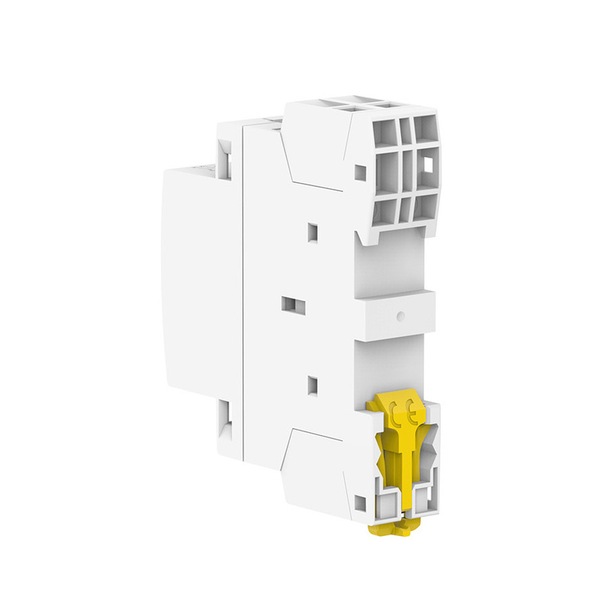

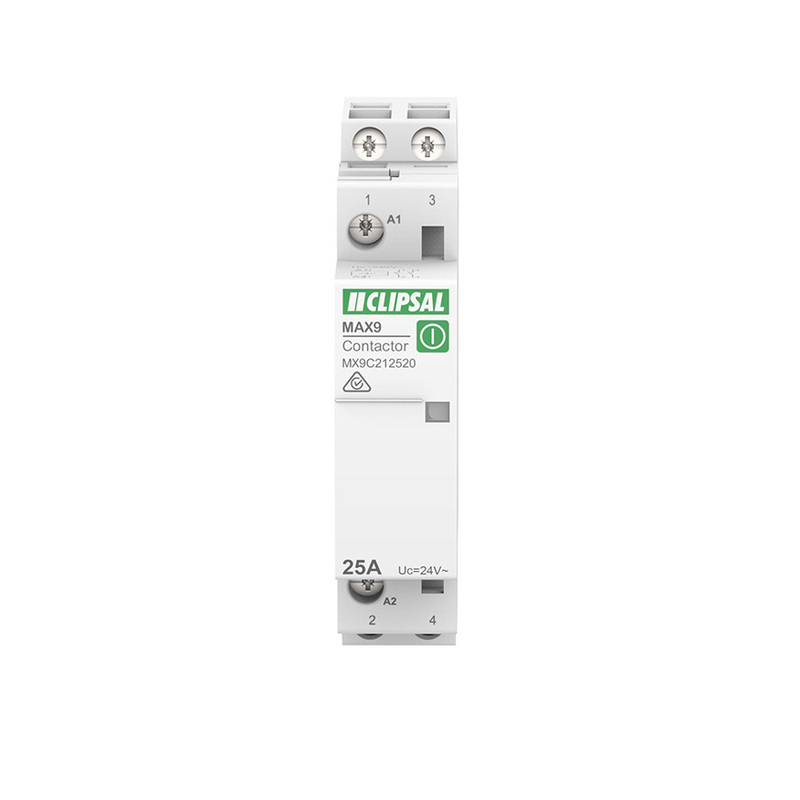

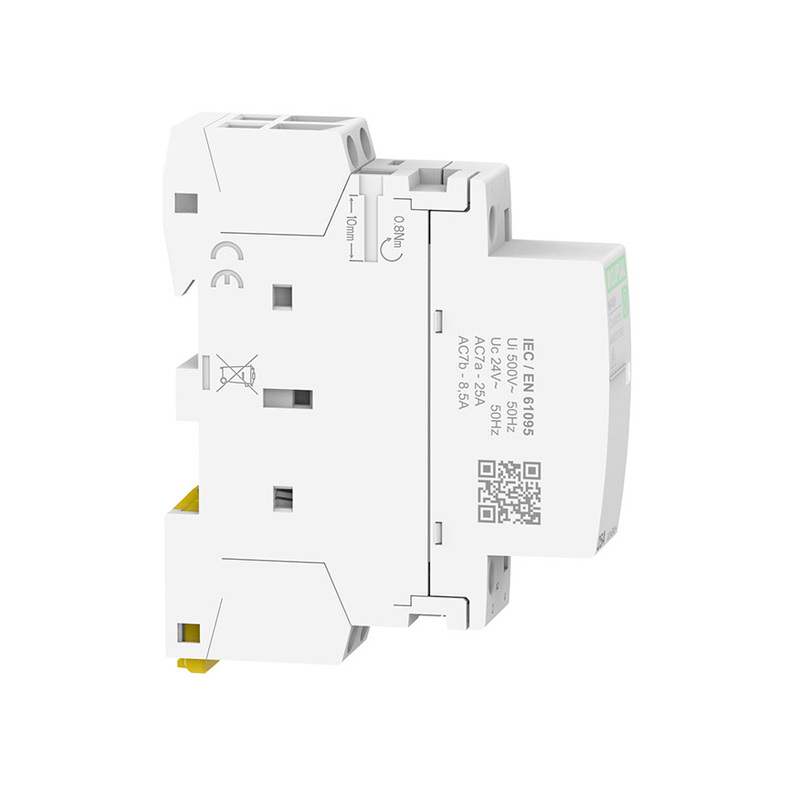

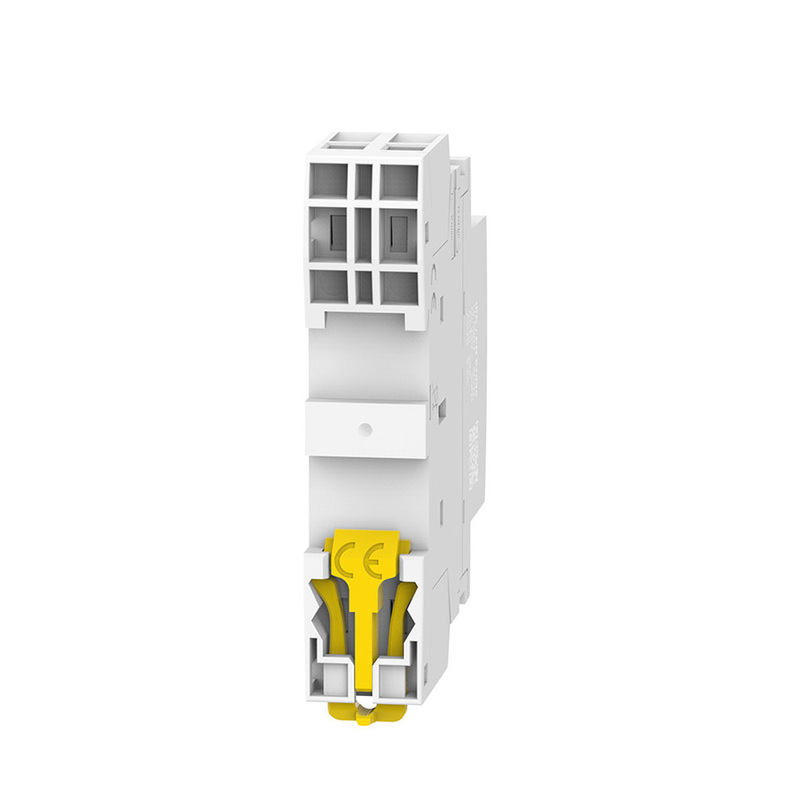

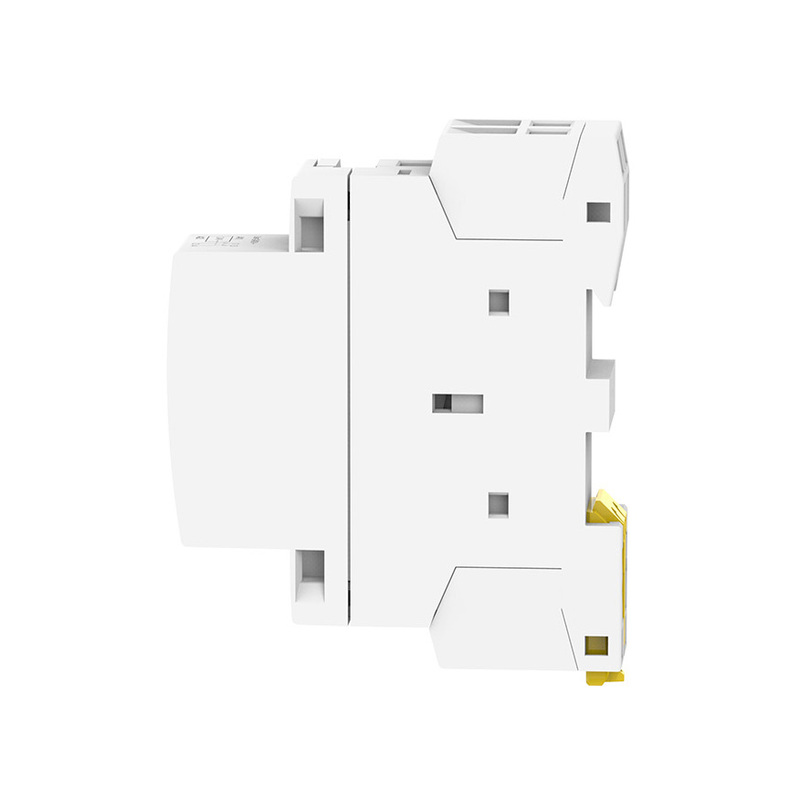

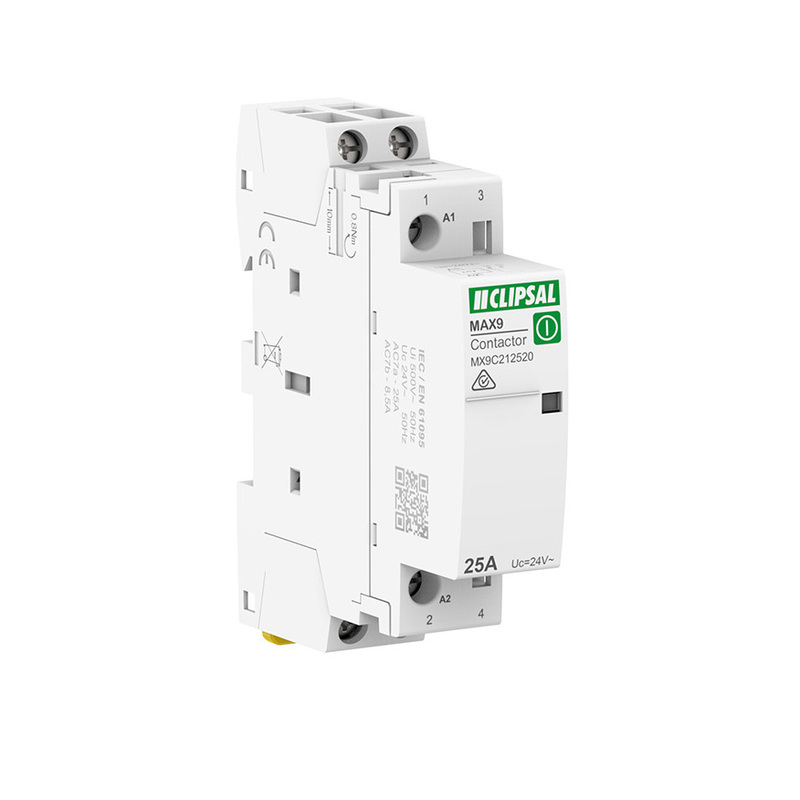

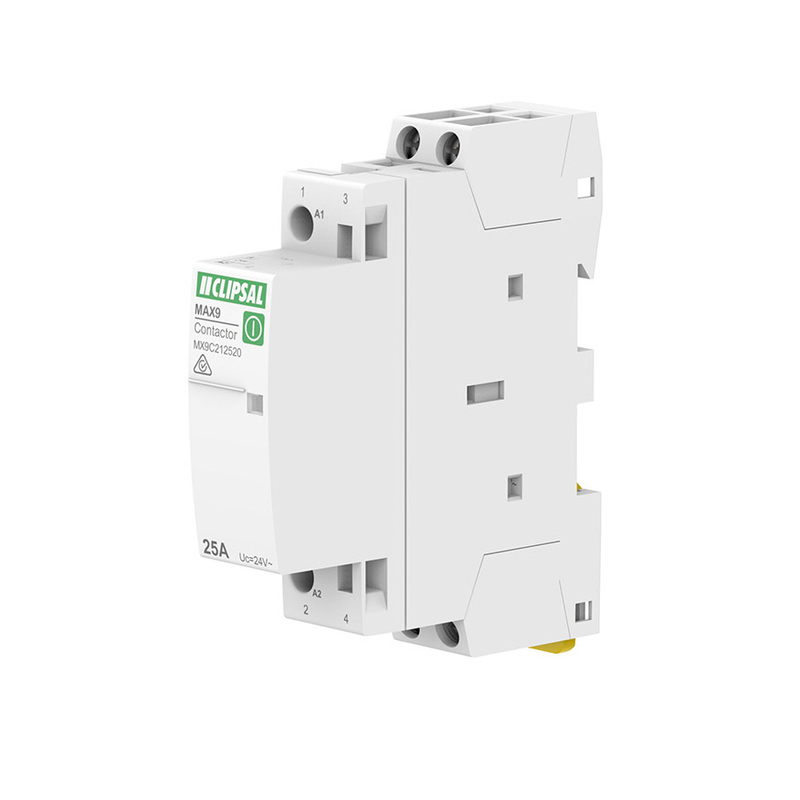

This MAX9 product is a modular contactor.
t is a 2P modular contactor with 2 normally open contacts.

Features:

• The rated current is 25A for AC-7a.
• The Ue rated operational voltage is 240VAC.
• The Uc control voltage is 24VAC.
• This device could be used for control circuits.
• This device could be used for remote switching small motors (fans, mixers) or HVAC system applications.
• This product is compliant with IEC/EN 61095 standard.
• The MAX9 is targeted to residential for individual and collective buildings.
• It has an electrical endurance going up to 100000 cycles and a mechanical endurance going up to 1000000 cycles.
• The operating frequency is 50Hz.
• It can be mounted on a DIN rail for modular installation.
• Its width is 2 pitches of 9mm.
• The product colour is white (RAL9003).
• The dimensions are (W) 18mm x (H) 81mm x (D) 63mm.
• According to EN 61095 standard, the degree of protection is IP20 and IP40 in the enclosure.
• The operating temperature is -5-70 øC.
• The storage temperature is -40-70 øC.
