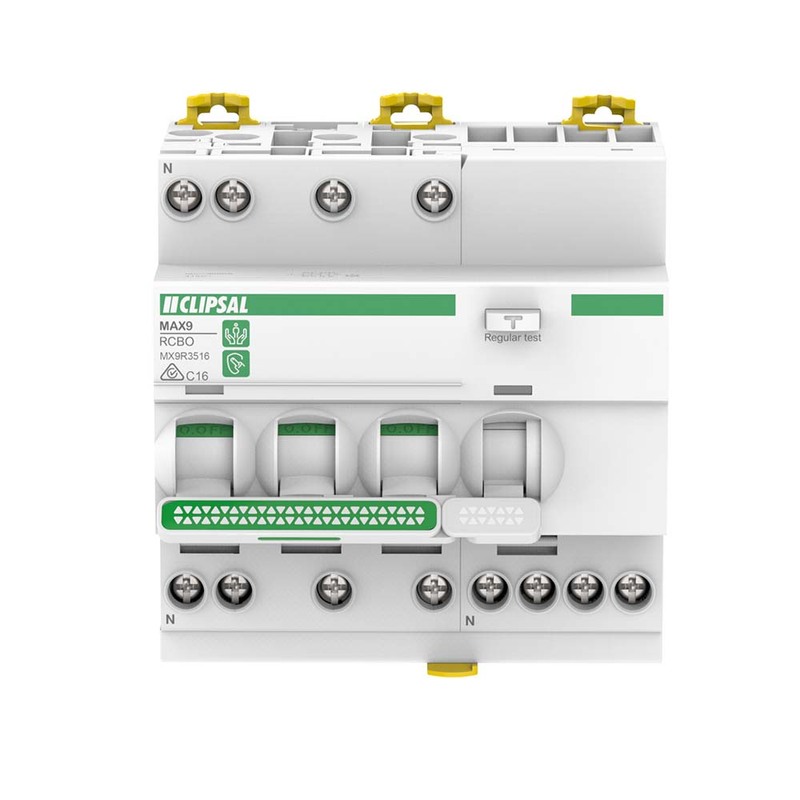

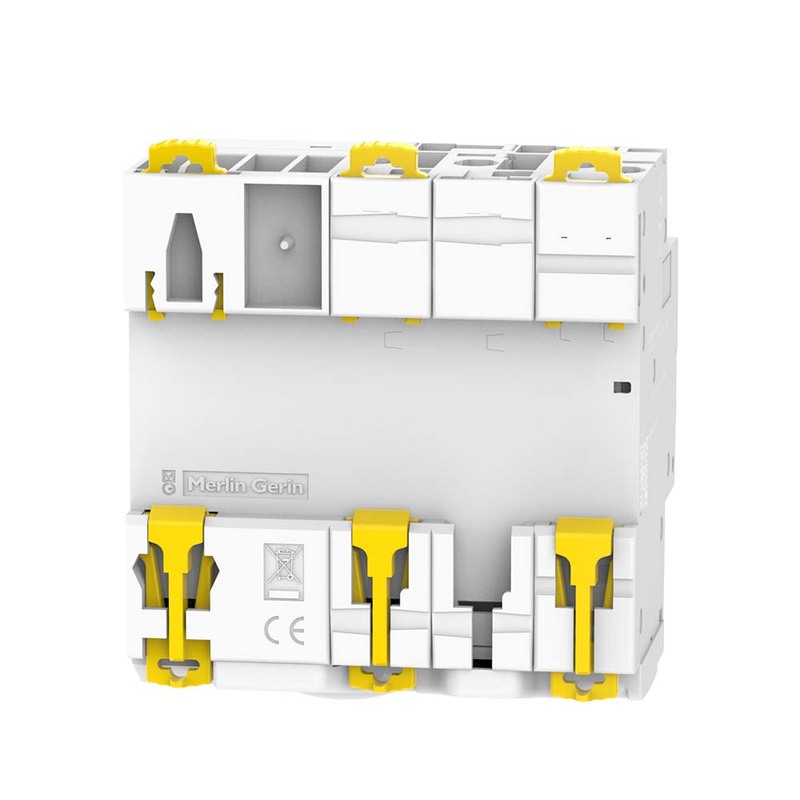

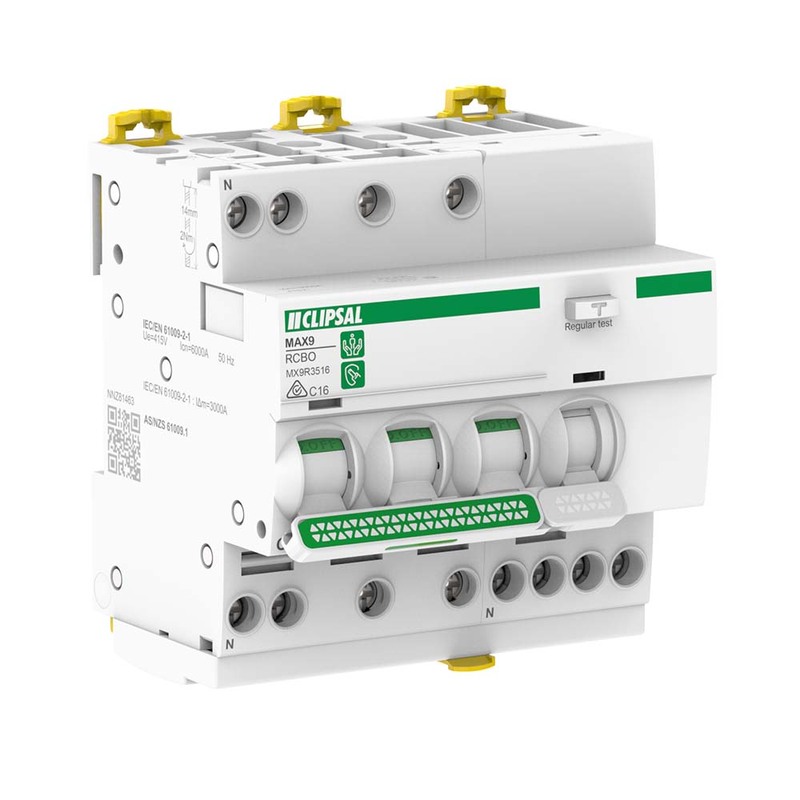

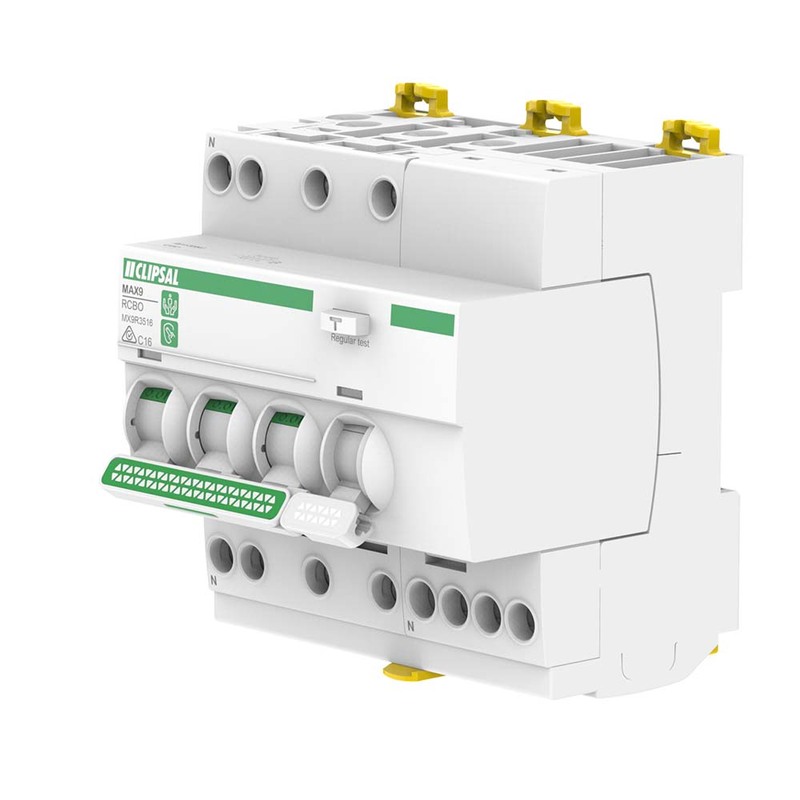

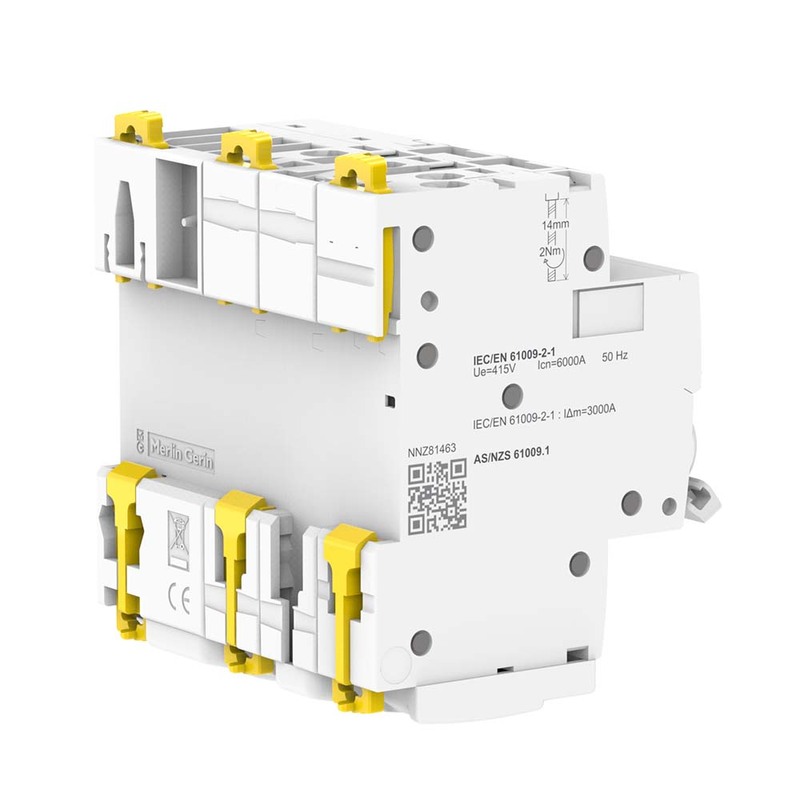

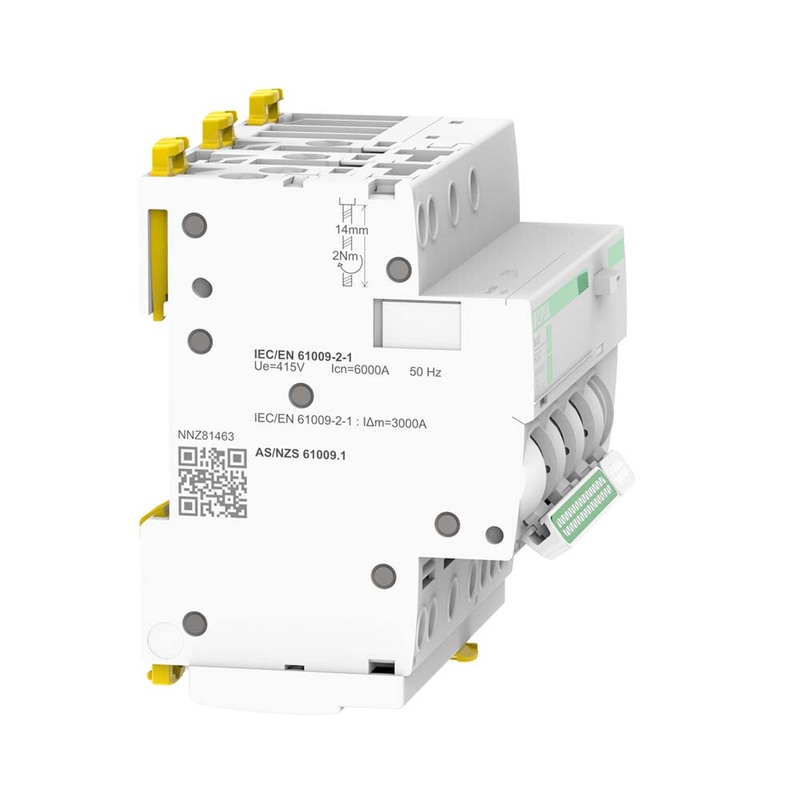

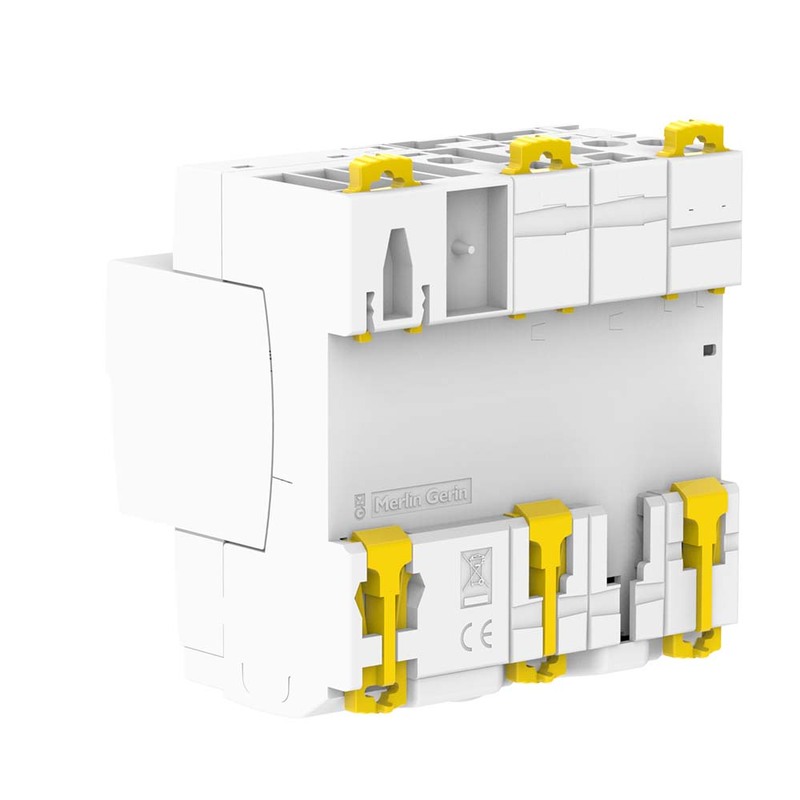

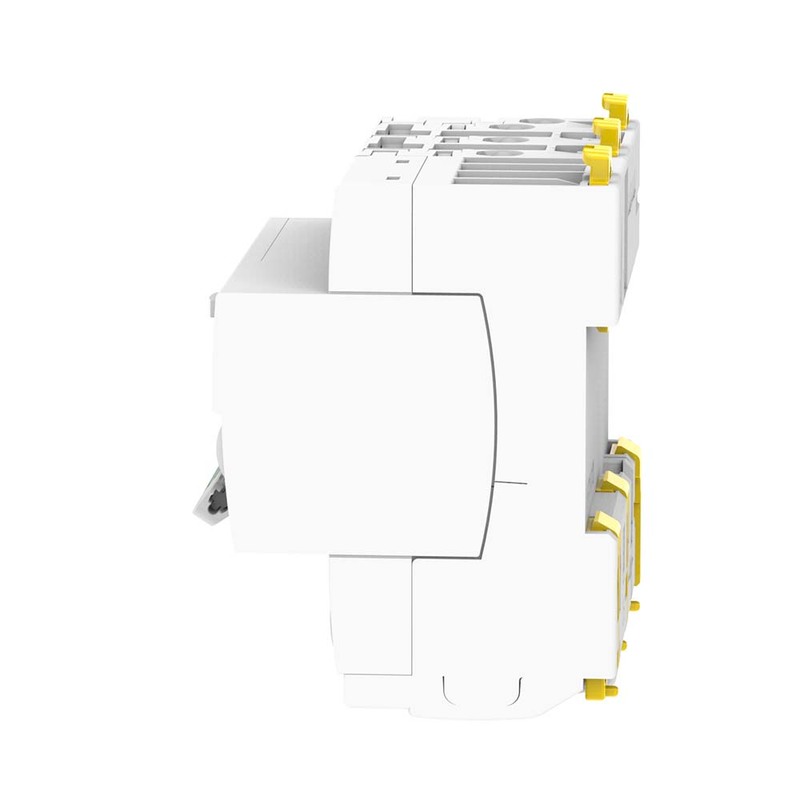

The MAX9 Clipsal MX9R3516 product is a residual current breaker with overcurrent protection (RCBO).
The MX9R3516 is a 3P+N circuit breaker with 3 protected poles, 16A In rated current at 30øC and C tripping curve.

3P+N, 5-Module RCBO C-Curve, Type A

AS/NZS 3000:2018 bring in a major change for residential applications. It states that additional protection by RCDs with a maximum rated residual current of 30mA shall be provided for all final sub-circuits. This clause applies irrespective of the circuit amperage or the number of phases. This includes circuits for air conditioners, cooktops, hot water systems, pool pumps, etc. that were historically not protected by RCD. MAX9 3P+N RCBO helps to provide a complete RCBO solution for 3 phase applications.

Features and benefits:

• Full installation flexibility with the option of having the line connection either from top or bottom.
• Type A earth leakage protection to help provide additional safety to end-user
• The Green strip on the toggle indicates the opening of all the poles.
• Easy diagnosis with visible red tripping flag to identify earth leakage tripping
• Clear marking of neutral on left side

Applications:

• Ideal for retrofit installations where pole space is a problem.
• Small width allows a greater number of MCB/RCDs to be installed in the one enclosure

Specifications:

• The operating frequency is 50Hz.
• The earth leakage protection class is a type A with a sensitivity of 30mA.
• The earth-leakage protection time delay is instantaneous.
• The Icn rated short circuit breaking capacity is up to 6000A at 415VAC.
• It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
• This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
• It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
• It has an RCM quality label.
• The Ue rated operational voltage is 415VAC.
• The Ui rated insulation voltage is 440VAC.
• It has a Uimp rated impulse withstand voltage of 4kV.
• It can be mounted on a DIN rail for modular installation.
• The width in 9mm pitches is 10.
• The dimensions are (W) 90mm x (H) 95mm x (D) 75mm.
• The product colour is white (RAL9003).
• The product weight is 500g.
• According to IEC 60529 standard, the degree of protection is IP20.
• The pollution degree is 2.
• The operating temperature is from -25øC to +70øC.
• The storage temperature is from -40øC to +85øC.
• This product complies with IEC 61009-2-1 and EN/IEC 61009-1 standards.
