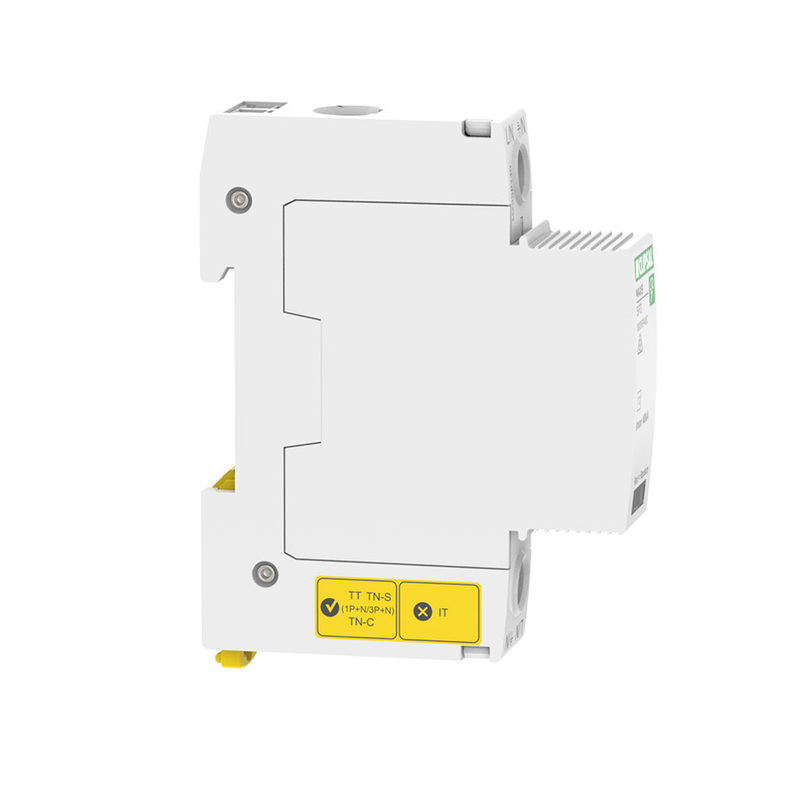

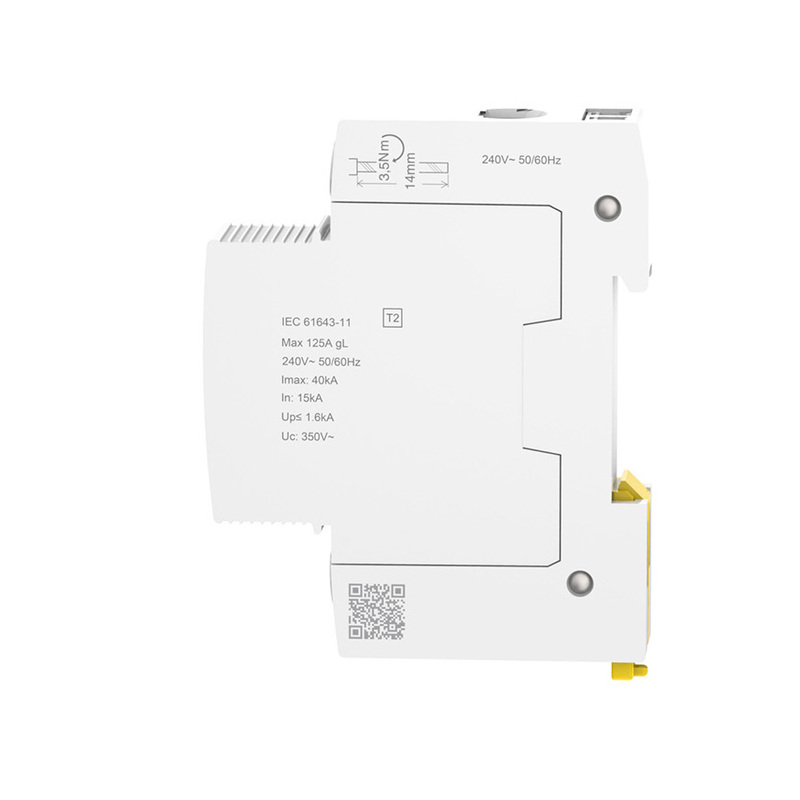

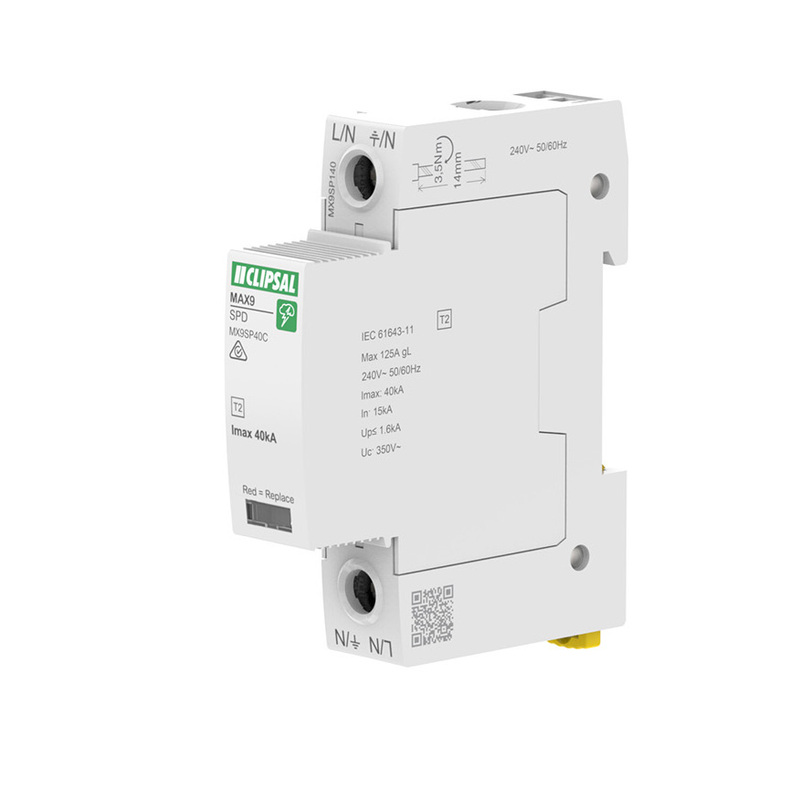

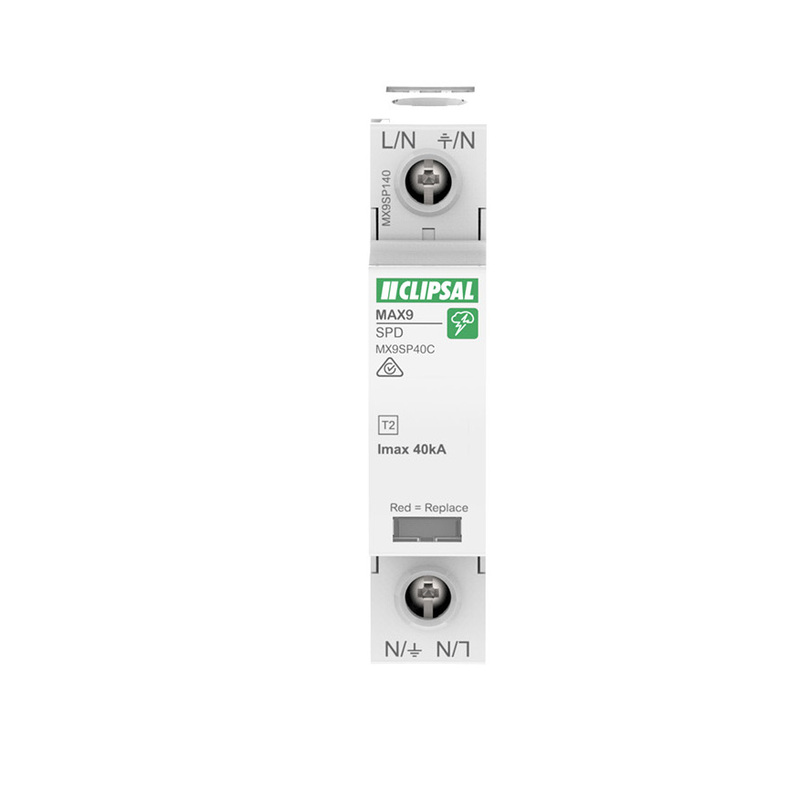

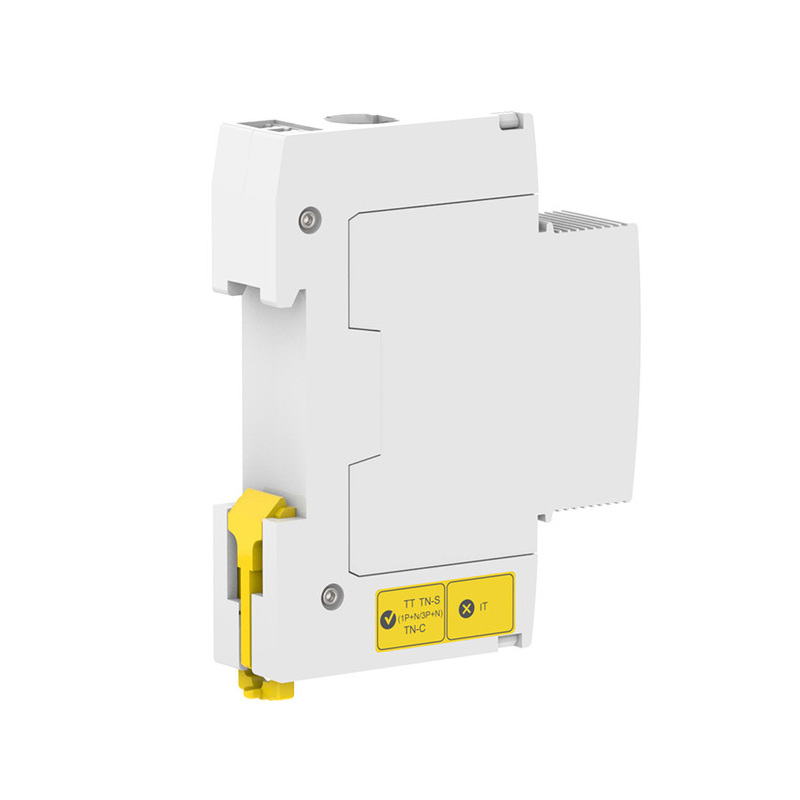

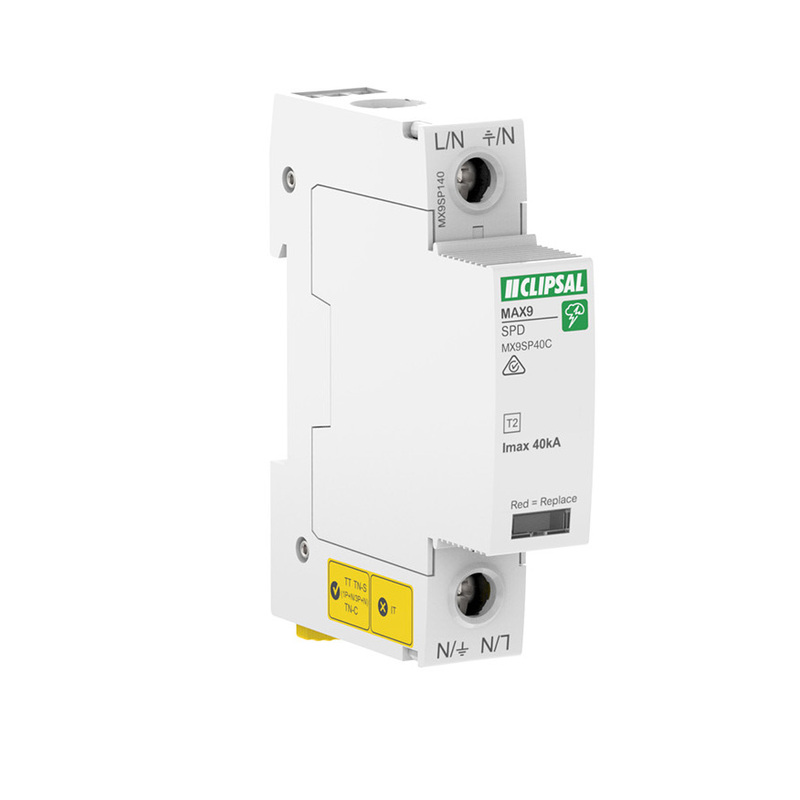

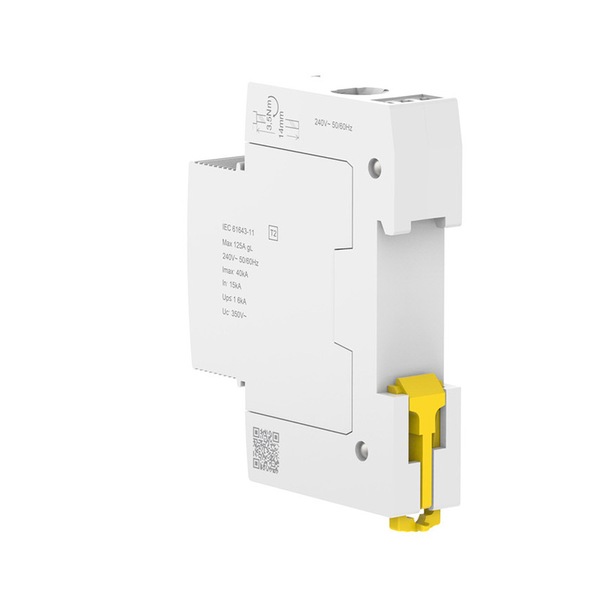

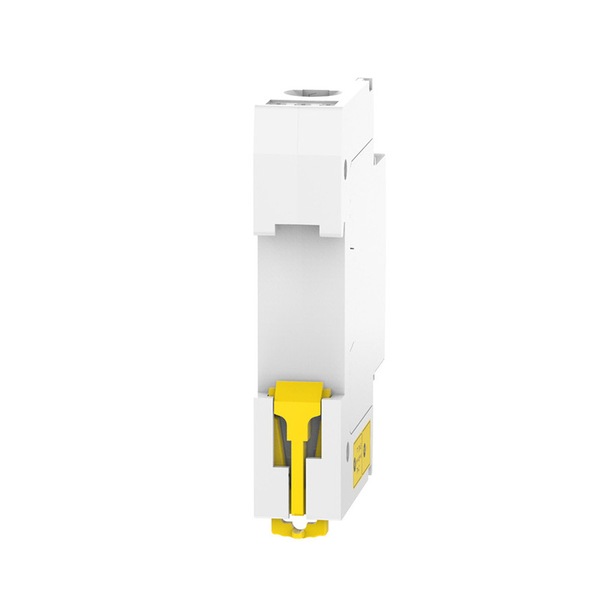

The Clipsal MX9SP140 MAX9 surge protection device is a modular surge arrester. It is a 1 Pole surge arrester. It has 1 position switch with contacts type 1 NO + 1 NC.

Surge Protection Device – SPD

When lightning strikes, there are no second chances. The MAX9 range of surge protection devices won’t let you down. Modern Australian homes have an estimated $15,000 worth of electronics unprotected against voltage surges. From fridge to washer/dryer, smart appliances have a lot of electronic components inside them. Surge protection strips only offer limited protection to the devices connected to them. Items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves, and lighting can be protected against voltage surges with a Surge Protective Device.

One device can help to protect the whole house from voltage spikes.

Features and benefits:

• The maximum discharge capacity of 40kA (8/20μs)
• Uniform terminal heights and modular size enable neat and efficient installation
• Cartridge replacement is quick and easy
• Replacement cartridges available as a spare part
• This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing systems.
• The maximum discharge current is 40kA.
• The nominal discharge current is 15kA.
• It ensures the protection of electronic devices against destruction by lightning.
• It is recommended in building supplied by overhead lines and protected.
• It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester.
• The tunnel type terminal connection allows rigid copper cables from 2.5mm to 25mm (top or bottom).
• The tunnel type terminal connection allows flexible copper cables from 4mm to 16mm (top or bottom).
• It has an RCM quality label.
• The Ue rated operational voltage is 240VAC +/-6%.
• The Up maximum voltage protection level is 1.6kV.
• The Uc maximum continuous operating voltage is 350VAC.

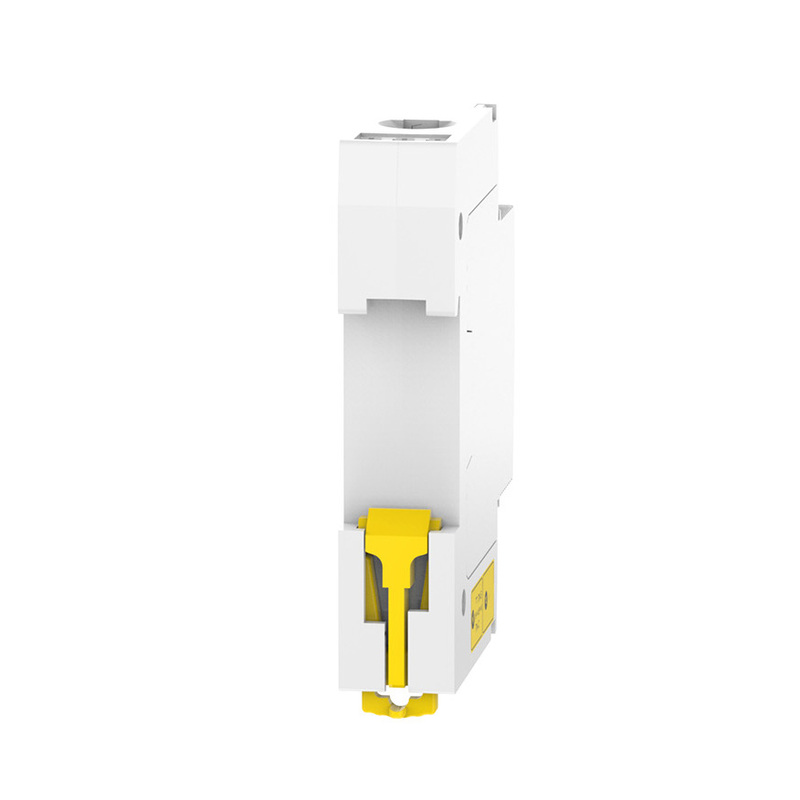

• It can be mounted on a DIN rail for modular installation.
• The width in 9mm pitches is 2.
• The dimensions are (W) 18mm x (H) 85mm x (D) 64mm.
• The product colour is white (RAL9003).
• The product weight is 119g.
• According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforms to IEC 62262 standard.
• The operating temperature is from -25øC to +70øC.
• The storage temperature is from -40øC to +85øC.
• This product complies with EN 61643-11 and IEC 61643-11 standards.
