Clearance  - NO RETURNS

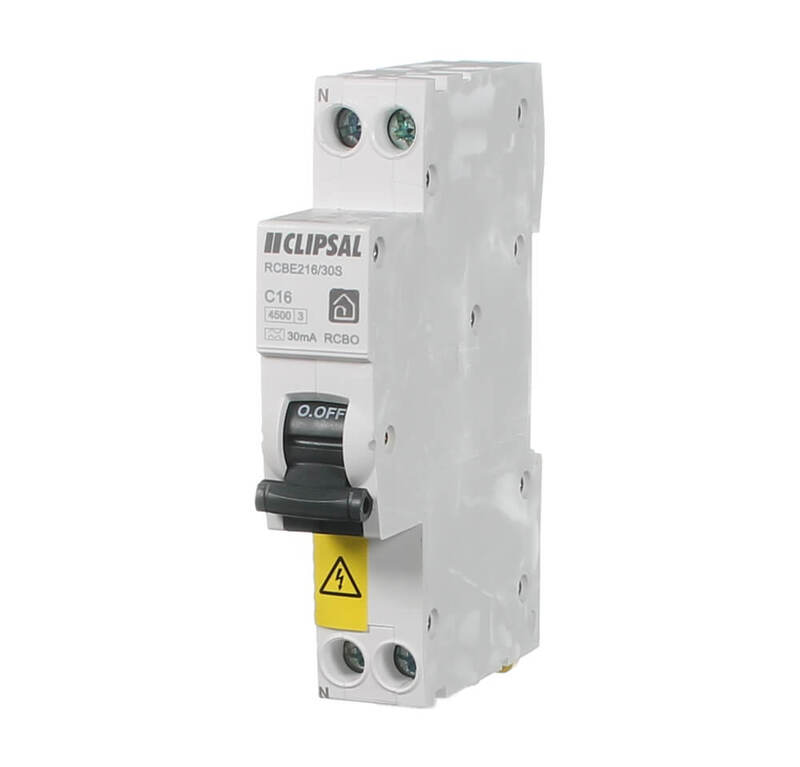

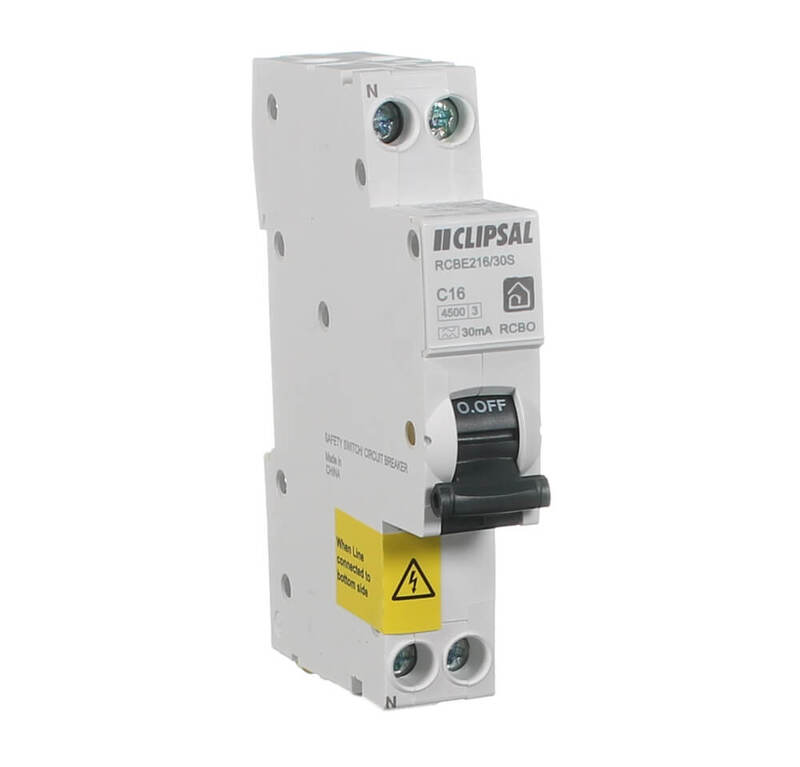

Clipsal Resi Max RCBO is a Residual Current Breaker with Overcurrent Protection.
The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
The Clipsal 16Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.
The RCBE216/30S RCBO can be wired from the top or bottom.


Features:

• Residual current breaker with overcurrent protection (RCBO)
• Product brand: Clipsal
• Poles description: 1P + N
• Neutral position: Left
• Number of modules: 1
• Number of protected poles: 1
• [In] rated current: 16A
• Network type: AC
• Trip unit technology: Thermal-magnetic
• Curve: C
• Earth-leakage sensitivity: 30 mA
• Earth-leakage protection class: Type A
• Breaking capacity: 4.5 kA Top and bottom, line and load compatible
• Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
• Two pole safety feature allows switching of both active and neutral contacts
• Trip free locking device (lockable in 'ON' or 'OFF' position)
• Compatible with Clipsal switchboards and switchboard accessories
• AS/NZS 61009 compliance
• Two–year warranty.
