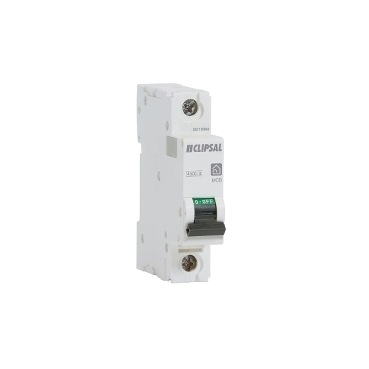

Clipsal Resi MAX, 4.5kA, Miniature Circuit Breakers, 1 Pole, 1 Module, 240V, 8A - MCB4-108
,gravity=Center,allowExpansion)
Collect 4 Everyday Rewards points
Dispatch in 2 business days
FREE SHIPPING when you spend over $495
Exclusive to products sold by Direct Wholesale Supplies
Collect 4 Everyday Rewards points
Dispatch in 2 business days
FREE SHIPPING when you spend over $495
Exclusive to products sold by Direct Wholesale Supplies
network frequency | 50/60 Hz |
---|---|
product brand | Clipsal |
China RoHS Regulation | Product out of China RoHS scope. Substance declaration for your information |
number of modules | 1 |
Circularity Profile | N/A |
[Ue] rated operational voltage | 240 V |
ambient air temperature for operation | -25-70 oC |
height | 81 mm |
pollution degree | 3 |
RoHS exemption information | Yes |
breaking capacity | Icn 4.5 kA conforming to AS/NZS 60898-1, Icu 6 kA conforming to AS/NZS 60898-1 |
range of product | Wilco, Series 4 |
ambient air temperature for storage | -40-70 oC |
curve code | C |
End of life availability display | No need of specific recycling operations |
relative humidity | 95-95 % at 55-55 oC |
standards | AS/NZS 60898 |
Mercury free | Yes |
tropicalisation | 2 conforming to IEC 60068-1 |
tightening torque | 2 N.m |
Environmental Disclosure | ENVPEP1304004 |
Sustainable offer status | Green Premium product |
Package 1 width | 72 mm |
connections - terminals | screw terminal for 1 cable(s], 0.75-16 mm2 rigid, screw terminal for 1 cable(s], 0.33-10 mm2 flexible, screw terminal for 1 cable(s], 0.33-10 mm2 flexible with ferrule |
network type | AC |
electrical durability | 20000 cycles |
mechanical durability | 20000 cycles |
RoHS EUR conformity date (nQYYYY], | 0627 |
Package 1 Length | 85 mm |
[In] rated current | 8 A |
[Ui] rated insulation voltage | 440 V |
Package 1 Weight | 104 g |
width | 18 mm |
IP degree of protection | IP20 conforming to IEC 60529, IP40 (modular enclosure], conforming to IEC 60529 |
EU RoHS Directive | Compliant |
depth | 78.5 mm |
REACh Regulation | Free of Substances of Very High Concern above the threshold |
Package 1 Height | 18 mm |
RoHS Eur Status | Compliant |
net weight | 115 g |
[Uimp] rated impulse withstand voltage | 4 kV |
China RoHS In Scope | No |
Global Data Status | publishable |
Modified At | 2018/04/13 03:30:29 |
Commercial status | Commercialised |
wire stripping length | 13 mm |
number of poles | 1 |
Source Key | MCB4-108 |
GTIN: 9318795018300
