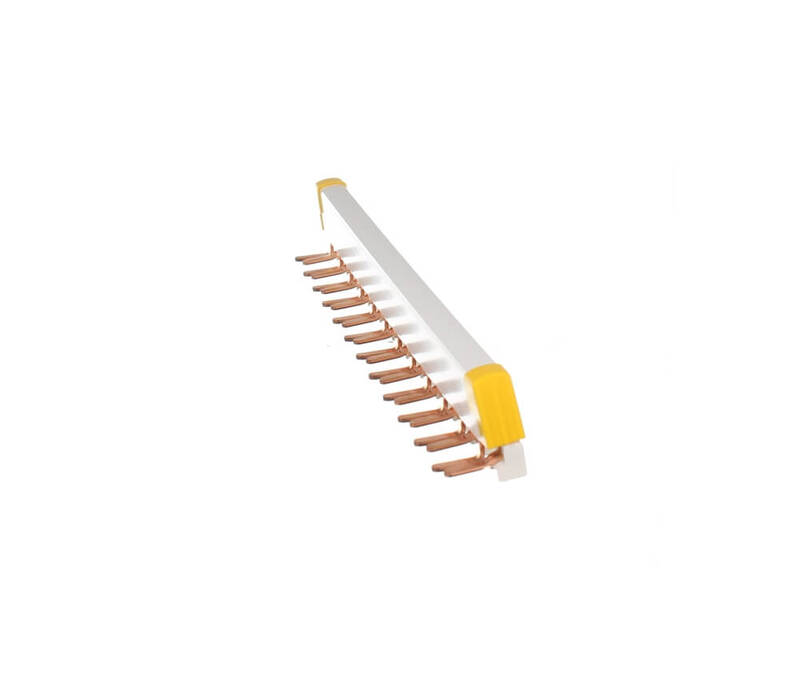

The Clipsal RMXPH112 is a 12 module pin type copper busbar with plastic insulation on the body and the ends. It is designed for 1 phase and neutral connection on the Resi Max Clipsal range. The comb busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed up to 10 times faster than looping building wire.
No looping required for neutral and active conductors.
The teeth on the busbar has a 9mm pitch. Quality construction and tested to perform.

Features

• 12 Modules
• 24 x 9mm pitches
• Width 216mm
• Current rated 80A @ 40°
• Rated Insulation voltage 500V
• Rated operational voltage 230V
• SLIM Comb busbar is optimised for the SLIM RCBO
• Resi MAX comb busbar reduces wiring effort, makes wiring easy and installations time efficient
• Save valuable switchboard space with the SLIM RCBO, a 2 in 1 RCBO system in a thinner module
• All devices are reliable and sturdy self-extinguishing material
• The residential house symbol on all Resi MAX products is now easily identifiable
• Resi MAX system complies with Australian standards - AS/NZS60898, AS/NZS61008, AS/NZS61009 and AS/NZS 60947-3
